Precision Speed Reducer Parallel Reducer Excellent Quality Low Price Motor Speed Parallel Helical Reducer Planetary Gearbox

Raydafon Group's Precision Speed Reducer Parallel Reducer offers excellent quality at a low price, ideal for motor speed applications with parallel helical and planetary gearbox designs. Perfect for engineers and manufacturers, it ensures reliable performance, smooth operation, and solves efficiency issues in industrial settings. Stand out with superior durability and precision, enhancing productivity—choose Raydafon for unmatched value today!

Send Inquiry

Product Description

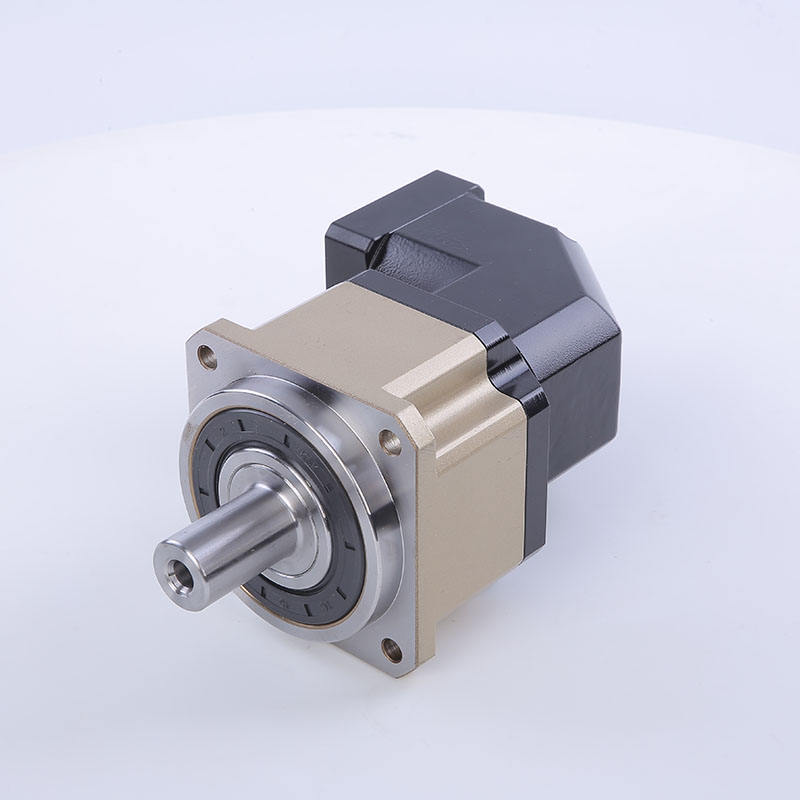

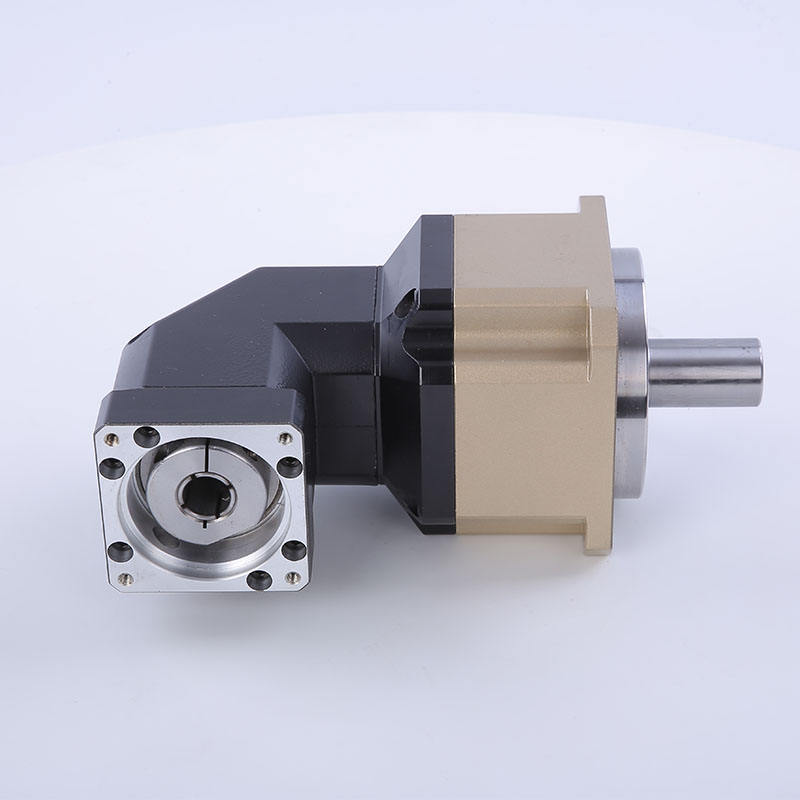

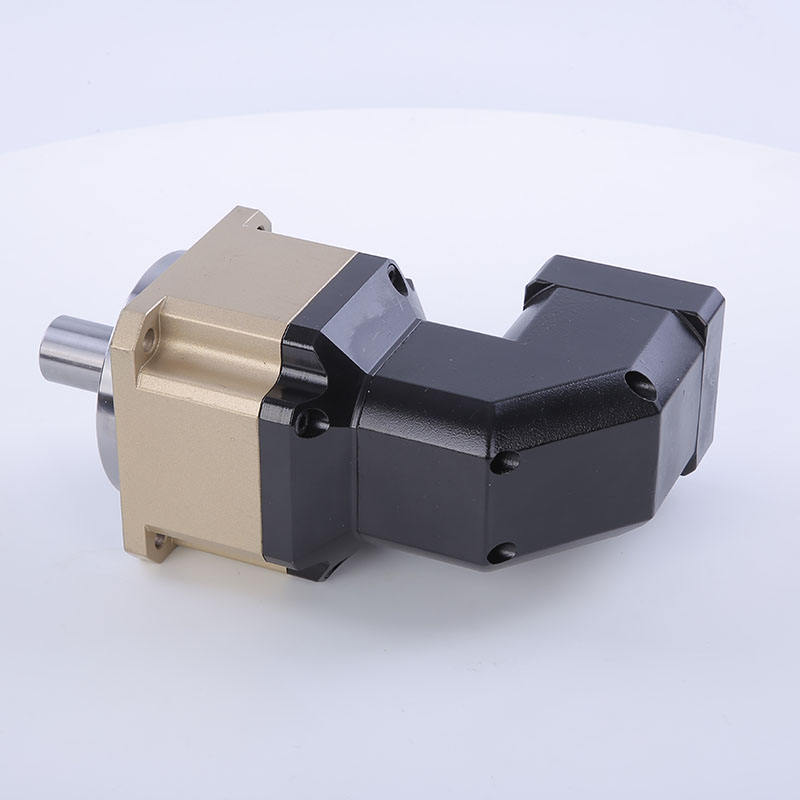

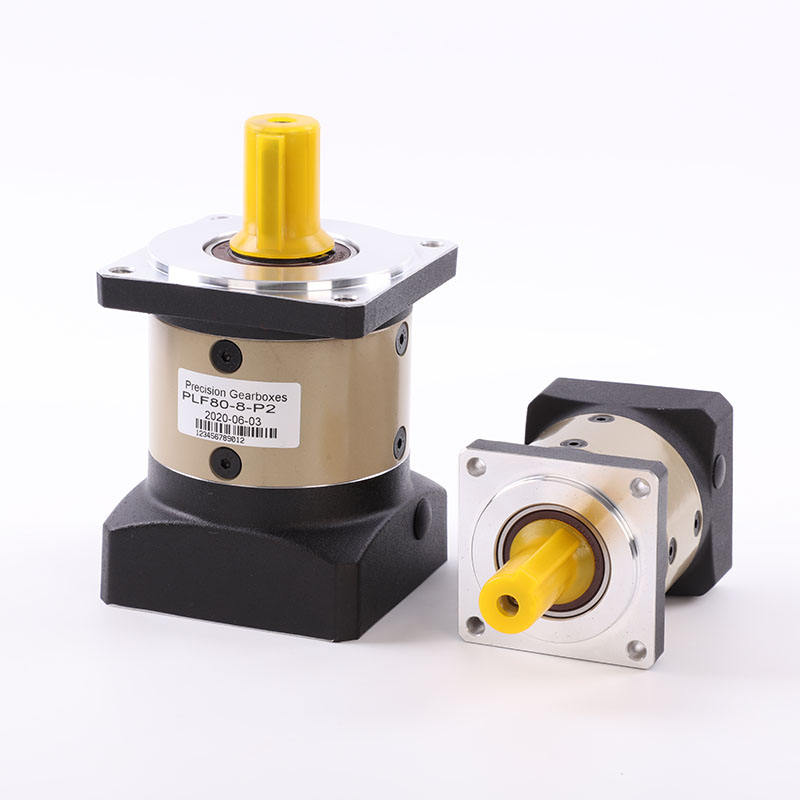

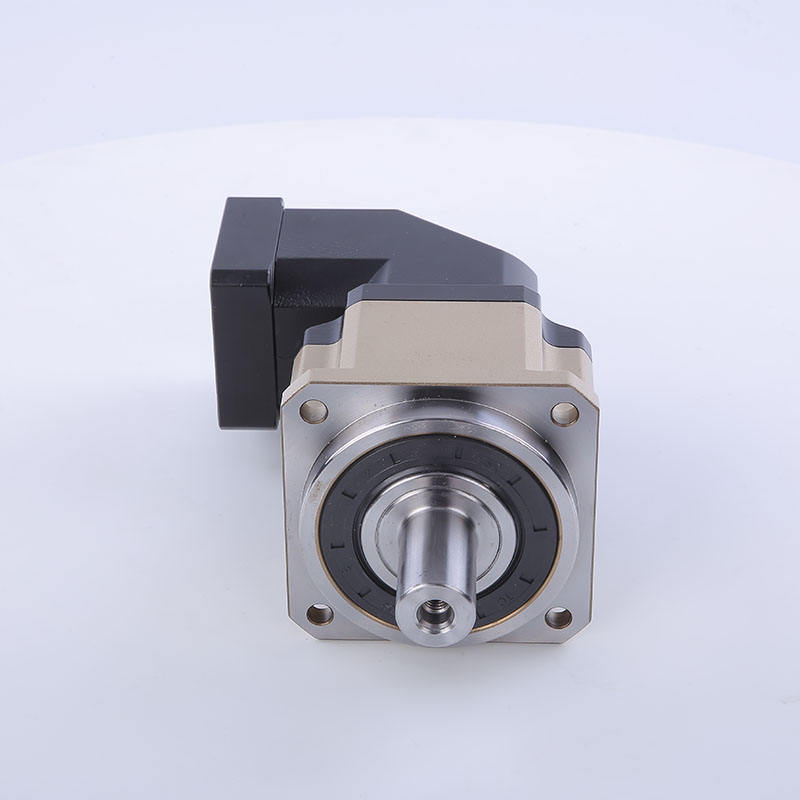

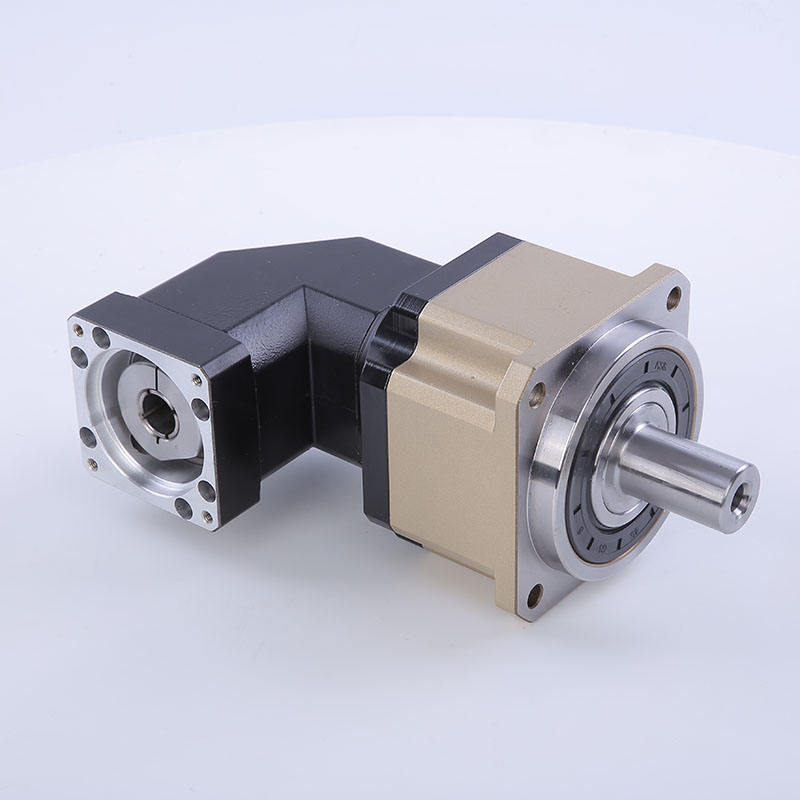

FAB PRECISION PLANETARY

LOW NOISE: under 65 BD

LOW BACKLASH:Under 3 arcmin

2 stage with 5 arcmin

HIGH EFFICIENCY:

1 stage exceeds 95%

2 stage exceeds 92%

HIGH SPEED SPEED: Up 8000 RPM

HIGH SPEED REDUCTION RATIO:

OVER 1/1000

Right elevation

Left elevation

Front elevation

7 SIZES FOR CHOICE		Item	22mm-220mm
output torque			14Nm-2000 Nm
RATIO	1 STAGE	3/4/7/8/10
RATIO	3	2 STAGE	12/15/20/25/30/35/40/50/60/70/80/100
BACKLASH	1 STAGE	≤1，≤3，≤5 arcmin
BACKLASH	5	2 STAGE	≤3,≤5,≤7 arcmin

Packing Details: Standard carton/Pallet/Standard wooden case
Delivery Details : 15-30 working days upon payment

1.Payment Term: TT, L/C

2.Delivery time: about 30 days from receive payment.

3.We accept customized products as per your special requirement.

4.Guidelines for the Selection:Usually we can select one machine which is suitable for you with some informations from you,such as
ratio/motor speed/mounting dimension/ out torque etc.

5.If the minimum order amount is in excess of $10000, there are preferential.

Q1: What information should I tell you to confirm the product?
A:Model/Size, Transmission Ratio, Shaft directions & Order quantity.

Q2: What can i do if I don't know which one I need?
A:Dont worry, Send as much information as you can, our team will help you find the right one you are looking for.

Q3: What is your product warranty period?
A:We offer one year warranty since the vessel departure date left China.

Q4: Are you trading company or manufacturer ?
A: We are factory.

Q5: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q6: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q7: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
