Zero Backlash Planetary Gearbox

Zero-Backlash Planetary Robotic Gearbox - EP SeriesGPL Planetary Gearbox

Raydafon EP Series Robotic Planetary Gearboxes provide the lowest backlash and high tilting rigidity for horizontal and vertical robotic and motion control applications.

Features

With a backlash of ≤ 0.1 arcmin, the GPL Series can be considered a zero backlash gearbox

Best-in-the-market torsional rigidity for ≤ 0.6 arcmin lost motion

Patented design guarantees the backlash will not increase over the life time of the gearbox

Industry-accepted proven performance

Seven sizes with nominal output torque of 445 to 3505 Nm and ratios of 50:1 to 200:1

Flanged solid shaft output or flanged hollow shaft output (up to 75 mm through hole)

Integrated Motor Adapter Plate ready to mount your motor

Right angle GPR available

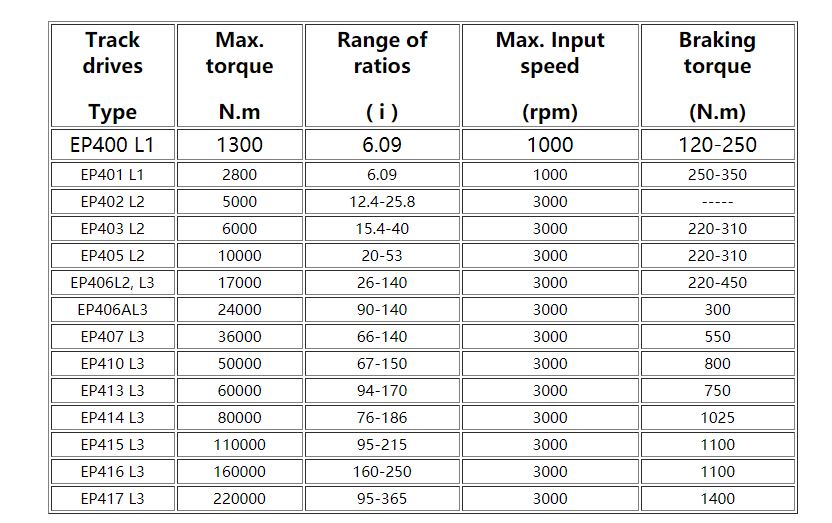

Output torque Range: 1000 ... 220000 N.m

Gear Ratios: i=5.3 ... 365

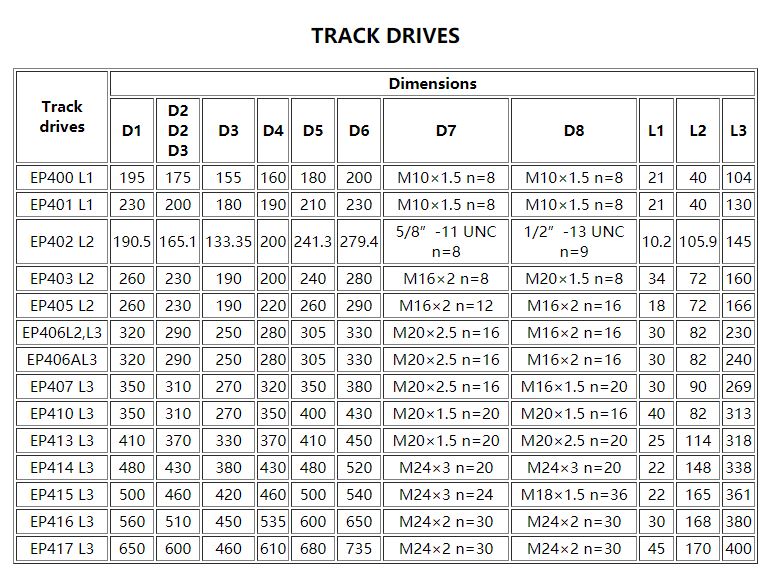

Support: rotating housing flange to fit tracks

Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors

Hydraulic motor options: Pressure relief valve, Overcenter valve on request

Brake: hydraulic released parking brake on request
