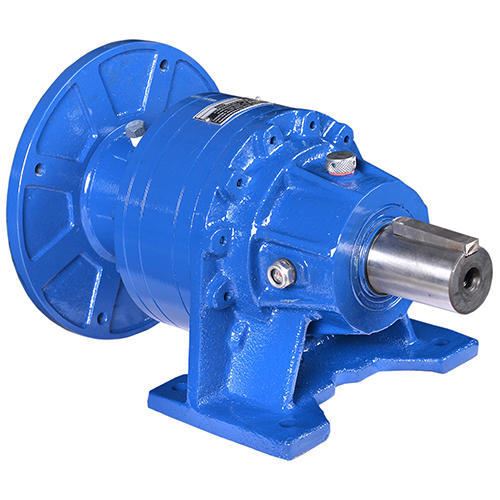

The Raydafon series has a 90° input via helical bevel gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by 100% optimized Helical Gearing. High Axial and Radial Loads provided by High Precision Taper Roller Bearings.
Output torque
T2N : 9 Nm - 2000 Nm
Ratios
1-stage :3/4/5/6/7/8/9/10/14/20
2-stage :
12/15/16/20/25/28/30/32/35/40/45/48/50/60/64/70
80/90/100/120/140/160/180/200
Only AFR042 2-stage offers 15,20 option.
Low backlash
1-stage : ≤2arcmin / ≤4arcmin / ≤6arcmin
2-stage : ≤4arcmin / ≤7arcmin / ≤9arcmin
high efficiency
1-stage :≧ 95%
2-stage :≧ 92%
Easy mount
Low Noise
The Most Professional Servomotor Drive Planetary Gearbox .Raydafon is a worldwide leader in manufacturing of planetary gearboxes. Based on more than twenty years of accumulated manufacturing and marketing experience, plus the highest level of technical production capabilities, Apex Dynamics, Inc. designed and built a technically advanced, high speed, low backlash servo application planetary gearbox. Our Break through patented technology (over 6 patents), provides the customer with the optimum high precision helical reducer at a reasonable price and is offered with the only tip to toe 5-Year warranty in the industry today, including the seals and bearings. Our company slogan is TRUTHFUL RESPONSIBLE CREATIVE. The primary focus in daily operation is quality. We pride ourselves on our dedication to quality; our duty, is customer satisfaction. We are continuously improving processes, finding proper and effective methods to provide customers new solutions for difficult applications, and developing new products.

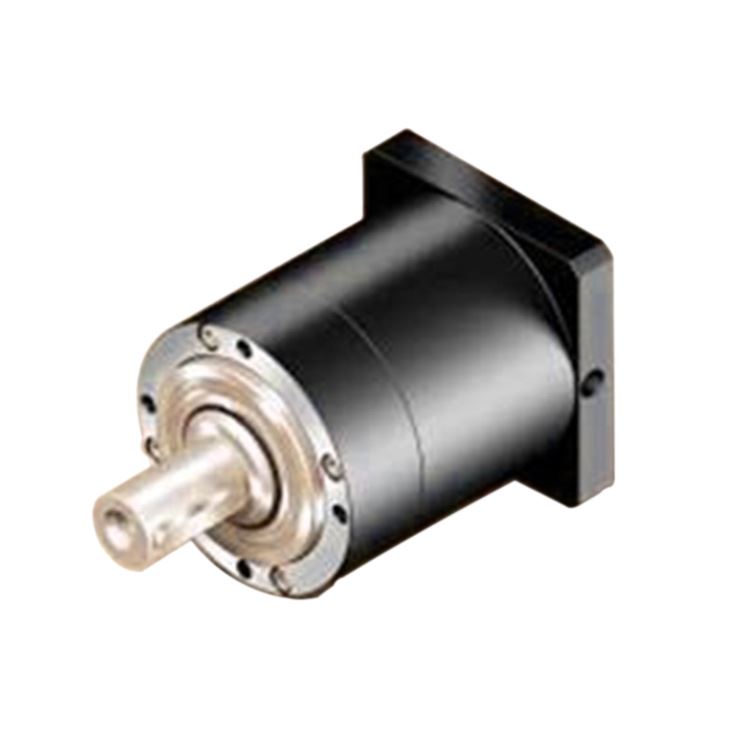

Components:
1. Gearbox Housing & Flange: Aluminum-alloy Die Casting ADC12
2. Gearset: Precision Planetary Gear Set
Ring Gears: 40Cr
Planetary Gears: 20CrMnTi, Surface Hardness HRC58~62, Inner Hardness HRC33~40
3. Input Configurations:
Keyed Hollow Shaft with Motor Adaptor
4. Output Configurations:
Keyed Solid Shaft Output
Keyless Solid Shaft Output
5. Applicable Motors:
Servo Motors, Stepper Motors
Models:
PAB/PABR Series, PPG Series
Features:
1. EP high percision planetary gearboxes including a full series of inline(linear) and right angle precision planetary gearboxes
2. High precision, high dynamic, low backlash
3. Up to 3 optional backlash: Ultra Precision Backlash, High Precision Backlash, Standard Backlash
4. Superior performance for precision industrial automation and servo applications
| Series | Stage | Models | Ratio | Rated Torque | Output Flange Dia. | Output Shaft Dia. | Backlash | Efficiency |
| PAB (Linear) | 1 | PAB042, PAB060, PAB090, PAB115, PAB142, PAB180, PAB220 | 3, 4, 5, 6, 7, 8, 9, 10 | 14N.m~2000N.m | 42mm~220mm | Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 | ≤1, ≤3, ≤5 arcmin | ≥97% |
| 2 | PAB042, PAB060, PAB060A, PAB090, PAB090A, PAB115, PAB142, PAB180, PAB220 | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 14N.m~2000N.m | 42mm~220mm | Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 | ≤3, ≤5, ≤7 arcmin | ≥94% | |
| PABR (Right Angle) | 1 | PABR042, PABR060, PABR090, PABR115, PABR142, PABR180, PABR220 | 3, 4, 5, 6, 7, 8, 9, 10, 14, 20 | 9N.m~2000N.m | 42mm~220mm | Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 | ≤2, ≤4, ≤6 arcmin | ≥95% |
| 2 | PABR042, PABR060, PABR090, PABR115, PABR142, PABR180, PABR220 | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200 | 14N.m~2000N.m | 42mm~220mm | Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 | ≤4, ≤7, ≤9 arcmin | ≥92% | |
| PPG (Linear) | 1 | PPG040, PPG060, PPG080, PPG080A, PPG120, PPG120A, PPG160 | 3, 4, 5, 7, 10 | 9N.m~423N.m | – | Φ10, Φ14, Φ20, Φ25, Φ40 | ≤6, ≤8 arcmin | ≥97% |
| 2 | PPG040, PPG060, PPG080, PPG080A, PPG120, PPG120A, PPG160 | 15, 16, 20, 25, 30, 35, 40, 50, 70, 100 | 9N.m~423N.m | – | Φ10, Φ14, Φ20, Φ25, Φ40 | ≤8, ≤10 arcmin | ≥94% |
