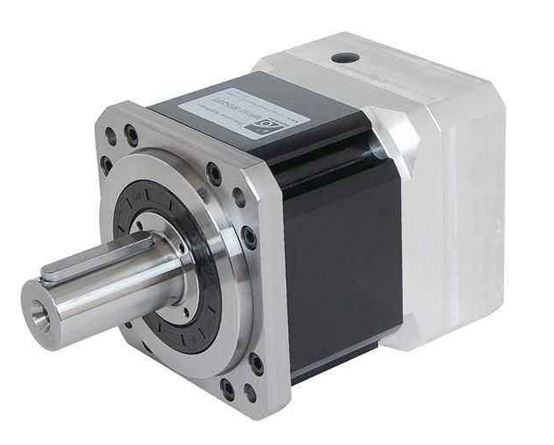

Two Stage Planetary Gearbox

Series N2: 2 Stage Planetary Gearbox

Based on our R&D, every Raydafon 2 stage planetary gearbox (series N2) is designed to withstand strong radial and axial loading on their output shaft. Moreover, every two stage planetary gearbox features a high torque, driving efficiency and loading capacity.

Also, every planetary gearbox efficiency is attributed to the proportional distribution of torque within the gear system. This reduces wear and increases transmission of power.

All our 2 stage planetary gearbox (series N2) features nodular cast housing to increase rigidity and anti-lock. They also case hardened for high quality surface finish, which also contributed to every Raydafon 2 stage planetary gearbox efficiency.

We have a wide range of 2 stage planetary gearboxes (series N2) to choose from, being a reputable planetary gear reducer manufacturer.

Key Features

Modular design,combined according to customer requirement

Heavy bearing, Design for heavy duty Application

Hardened gearing, long life with high reliability

Low speed shaft design
