Professional American Standard Pulley Sheaves 8V Series Cast Iron Eight-Groove Cheap V-Belt OEM Customizable Split Taper

8V Series Cast Iron Eight-Groove Pulley Sheaves with Split Taper BushingsThe 8V series 8-groove tapered bushing pulley is applicable to 8V and 8V V-belt. They range in diameter from 12.5 "to 64.0". According to the pulley size, they use S2, U1 or W1 split taper bushings, which we also have......

Send Inquiry

Product Description

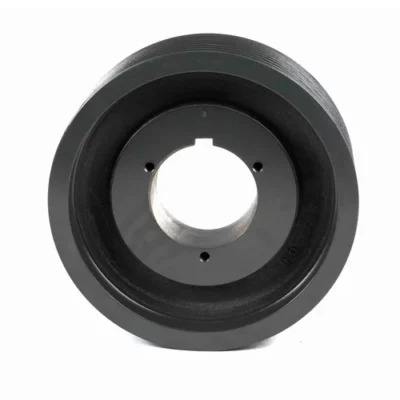

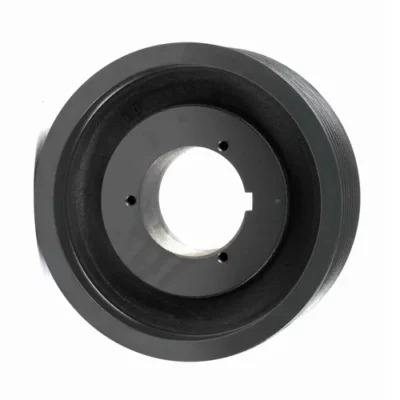

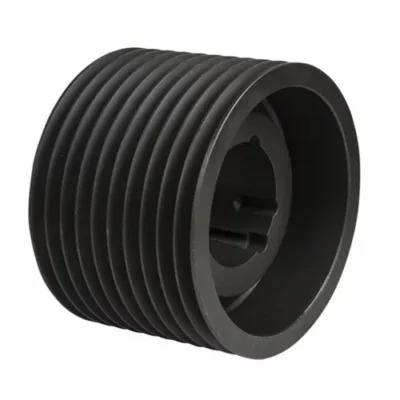

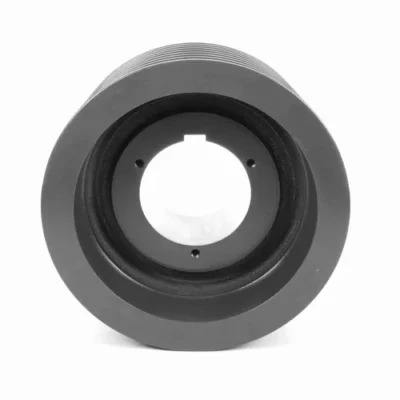

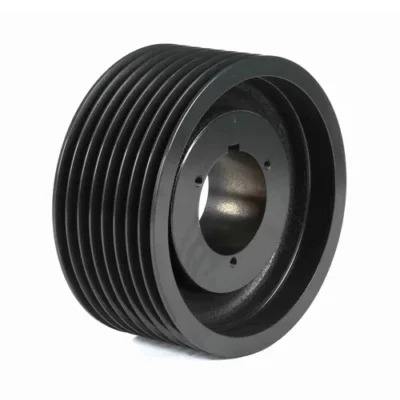

8V Series Cast Iron Eight-Groove Pulley Sheaves with Split Taper Bushings

The 8V series 8-groove tapered bushing pulley is applicable to 8V and 8V V-belt. They range in diameter from 12.5 "to 64.0". According to the pulley size, they use S2, U1 or W1 split taper bushings, which we also have in stock. Most of our 8-groove 8V split tapered pulleys are made of high-strength 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

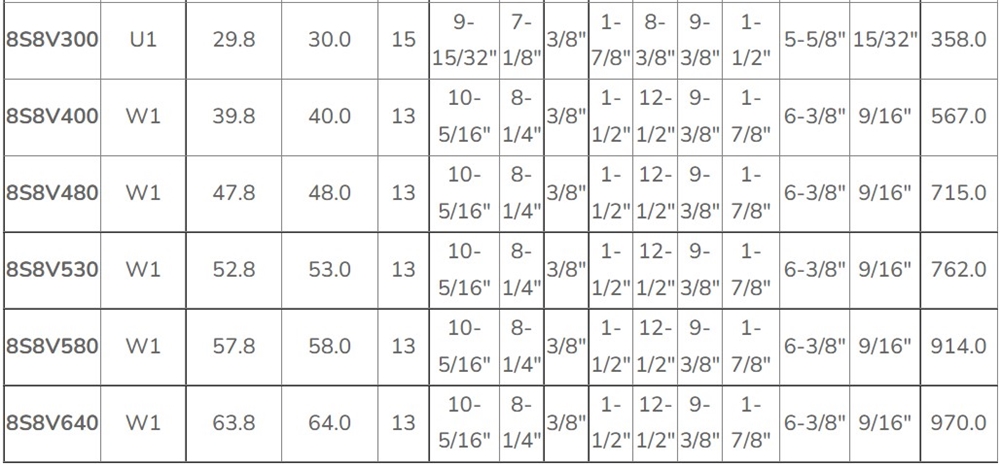

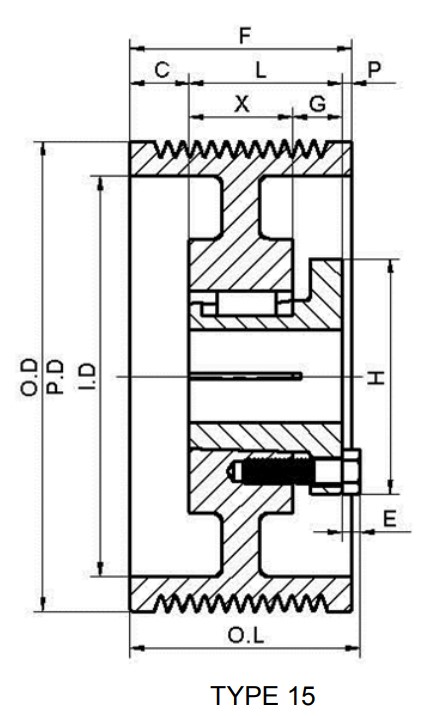

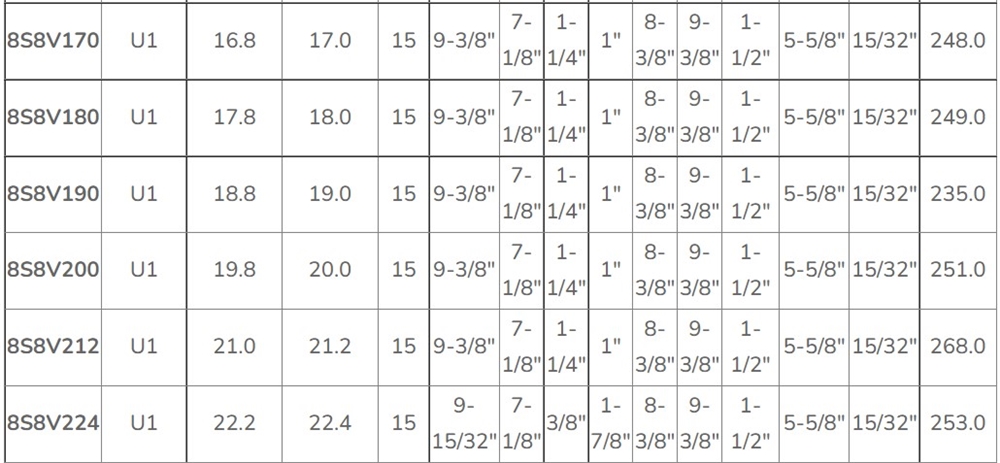

Eight-Groove 8V Split Taper Sheave Size Chart

For more details, please click here to contact us!

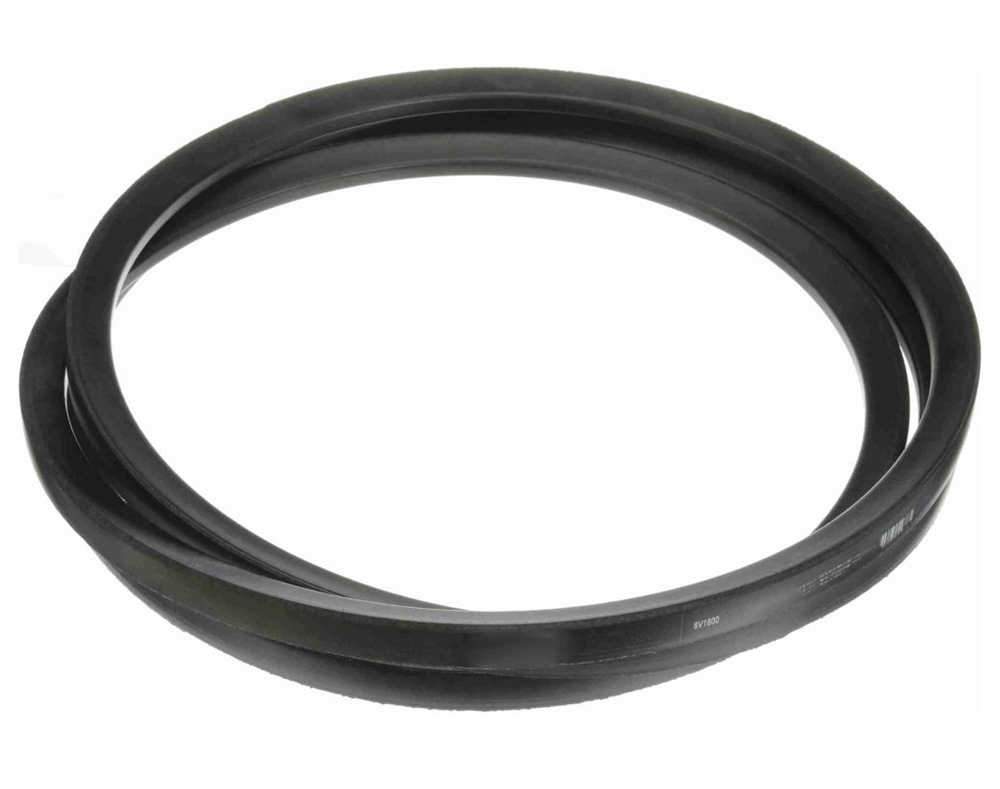

Related Matching 8V, 8V Banded Series V-Belt (1) 8V series V-belt Classic 8V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 8V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 8V series v-belts we provide are manufactured according to ISO 9001 specifications, which are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. (2) 8V series ribbon V-belt The 8V series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of 8V series v-belt is 1.0 inch.

Relevant open tapered bushing Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. Our high-quality split taper bushing is made of high-quality steel or casting material and can be interchanged with any other brand. It is designed as a flange bushing with a tapered cylinder and a slit on each side. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters. For more information or to get a quote for our high-strength open taper bushing, please contact our customer support team and we will be happy to help you.

What should be paid attention to when installing the pulley? Belt pulley is generally used for long-distance power transmission, so it is widely used, such as the power output of small diesel engines such as tractors and automobiles. It is also suitable for mechanical transmission, such as processing equipment, textile machinery, lathes, forging presses, etc. It has a wide range of applications and obvious characteristics. Pulley drive has overload protection function; The center distance between the two shafts driven by the belt pulley has a wide adjustment range. 1. Before assembly, the belt pulley must be cleaned once to ensure that all parts of the belt pulley are clean and dry, that the mating surface is closely matched, that there is no oil stain, and that there is sufficient friction. The following is a brief introduction to the installation precautions of the pulley: 2. When it is about to be installed in place, two or three hexagonal socket bolts shall be tightened in sequence to ensure that the conical sleeve is subjected to uniform axial force and that the pulley and conical sleeve are placed in the same axis. 3. After the pulley is tightened, pull the cable to check and adjust the relative positions of the driving and driven pulleys to ensure that the two pulleys are on the same plane and the belt tension is moderate. 4. The pulley cover shall be intact and firmly installed to ensure that the belt is broken or the triangular pulley is loose during operation, resulting in a major safety accident. Fifth, the conical sleeve is a wearing part. After long-term use, the inner hole and chain groove may be damaged. Check each time the pulley is assembled. If any defect is found, the spare parts shall be replaced in time. The belt pulley drive can reduce the impact of load, run stably, and have low noise and vibration. Its structure is also very simple and easy to adjust. In terms of the manufacturing and installation accuracy of the pulley, the pulley drive is not as strict as the meshing drive. These are some of the features of the pulley used.

Common application of 8V series pulley The pulley is a hub type part. The manufacturing process is usually based on casting and forging. It comes in various sizes. It is a universal transmission component in many mechanical equipment. At present, pulley is mainly used for long-distance power transmission. In order to adapt to various applications, the pulley products on the market have a variety of specifications, types and sizes. Therefore, processing equipment, textile machinery, packaging machinery, generators, air machinery, presses and other equipment in many fields are widely used in automobiles.

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Our also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
