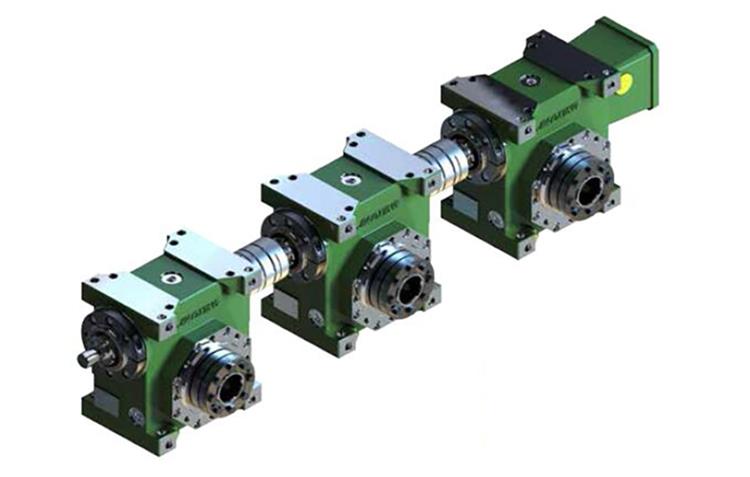

zero backlash gearbox
| Features | Benefits |
|---|---|
| Zero Backlash ≤ 0.1 arcmin | Highest precision for your application |
|
Lowest lost motion ≤ 0.6 arcmin High torsional rigidity |
Superior accuracy even with low torque |
| Patented self-adjusting backlash system | Constant precision throughout the entire lifetime |
| High torque density 58-73 Nm/kg | Smaller gearbox, lighter overall system |
| Fully-loaded life 20,000 operating hours | Longer lifetime, reduced maintenance costs |
| Efficiency > 90% | Lower power consumption, smaller motor |
| Quiet < 70 dB | Reduced workplace noise exposure |
|
High output, acceleration and emergency stop torque |
More security for your application |
| Superior tilting and torsional stiffness | Allows precise positioning |
| Low vibration | High repeatability |
| Lowest breakaway torque | Better control of the overall system |
| Standard mineral oil | Reduced lubrication cost |
| Low operating temperature | Longer component and lubricant life |
| Low moment of inertia | Excellent dynamic performance |
| Compact design, low weight | Lighter overall design |
| GAM flange input with motor adapter and clamp |
Ready to mount your motor |

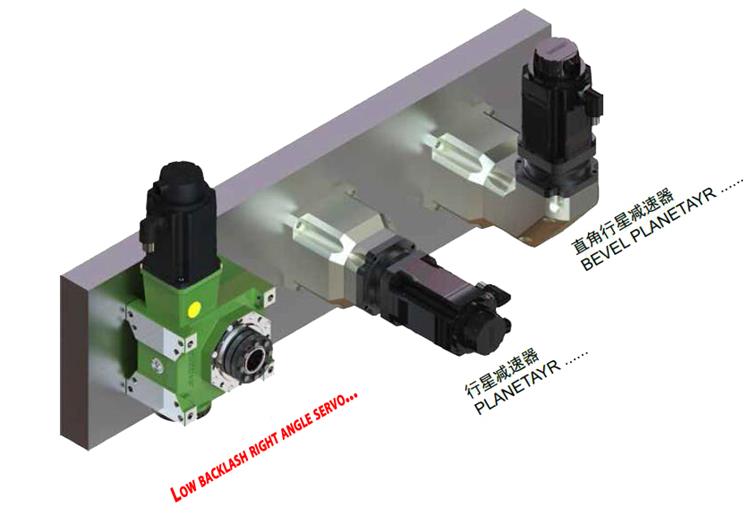

Applications:
Precision rotary motion
— Reducing the noise and vibration that is caused by the load change and the change of cutting force.
— Reducing the noise and impact that is caused by the corotation and reverse.
— By reducing worm abrasion.
— Increasing worm output response speed.
Precision Indexing device
— CNC machine, assembly line, cutting machine, transmission lines, etc.
— Indexing device,accurate reading mechanism require accurate movement occasions.
