Planetary GearBoxes For Construction Equipment

Planetary GearBoxes for Construction equipment

Wheel Drive , Slew Drive and track drive

The EP7 series slew drives by Raydafon Transmission Co., Ltd enjoy following features:

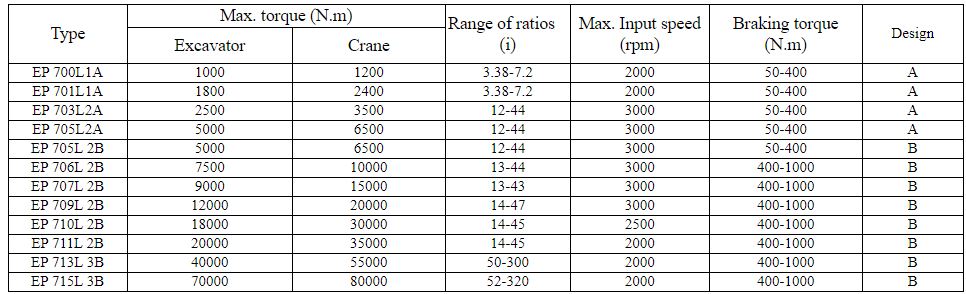

Output torque Range:1000 ... 80000 N.m Gear Ratios: i=3,3 ... 3000

Support: slew support (with Flange mounted) Electric Brake:DC and AC type

Output shaft: splined or with integral pinion. Output shafts supported by heavy duty capacity bearings

Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors, IEC electric motors

Hydraulic motor options:Pressure relief valve, Over center valve, parking brake on request
