Low Price Guaranteed Quality American Standard 4B QD Bushed Sheaves Pulleys for a and B Belts
4B QD Bushed Sheaves Pulleys for "A" and "B" BeltsThe 4B series pulleys are used for A, AX, AA, 4L, B, BX, BB and 5L v-belts with diameters ranging from 3.75 "to 38.35". Depending on the pulley size, they can be used with SH, SD, SK, SF or E QD bushings, which we also h......

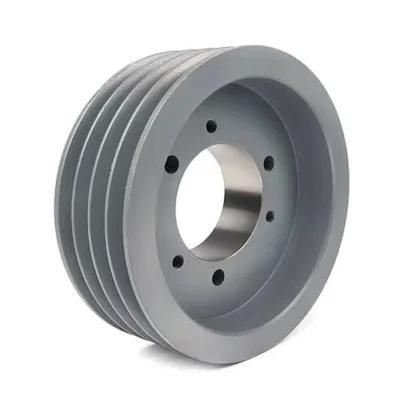

4B QD Bushed Sheaves Pulleys for "A" and "B" Belts
The 4B series pulleys are used for A, AX, AA, 4L, B, BX, BB and 5L v-belts with diameters ranging from 3.75 "to 38.35". Depending on the pulley size, they can be used with SH, SD, SK, SF or E QD bushings, which we also have in stock. Our four groove 4B QD bushing pulleys are mostly made of high strength grade 35 cast iron, coated with phosphate and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine. The main advantage of using QD (quick detachable) pulleys is that if the bushing (hub) is broken, the entire assembly does not need to be replaced, or if only the pulley is worn, the same principle applies. Another significant advantage is that compared with the "fixed hole" type, the QD pulley has a wider range of hole options.

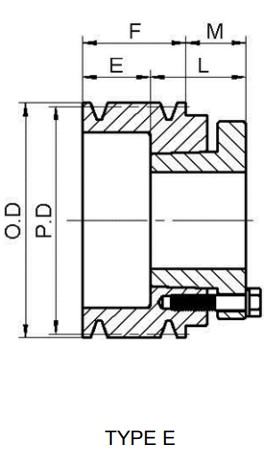

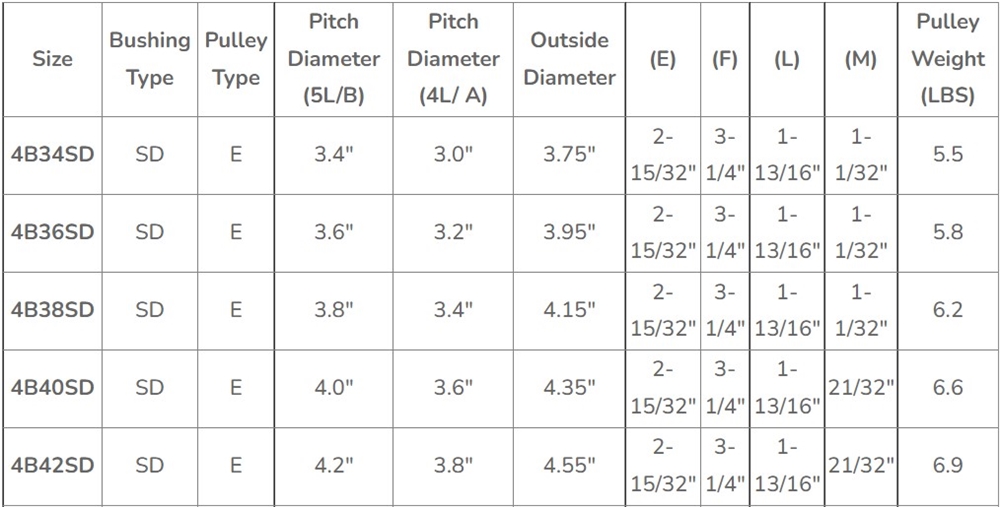

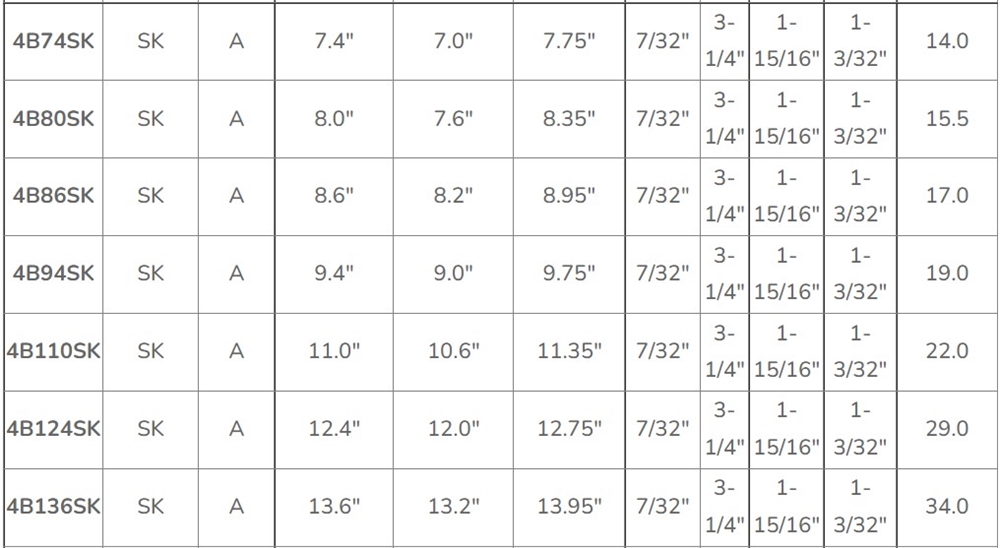

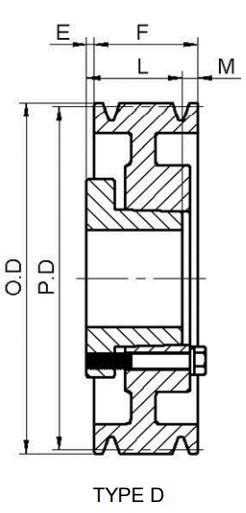

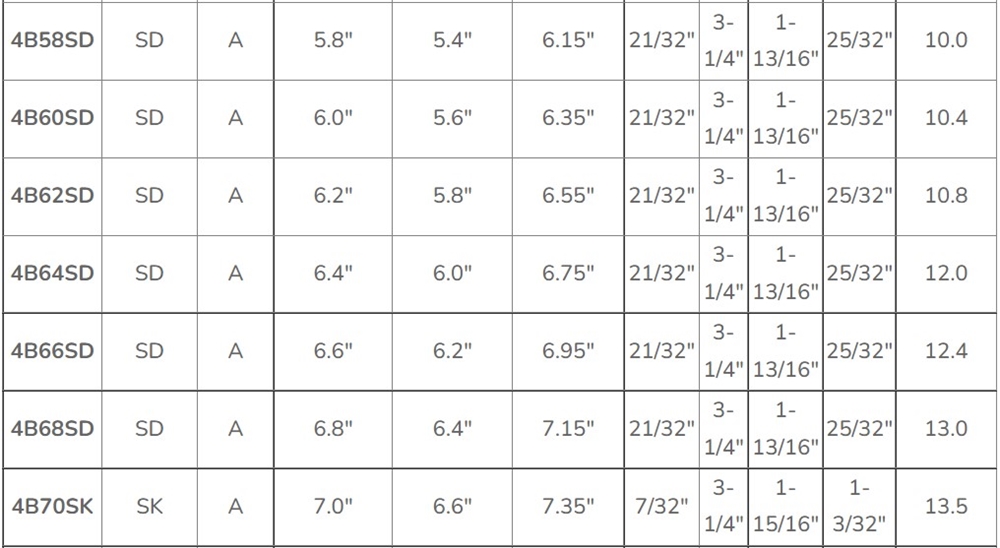

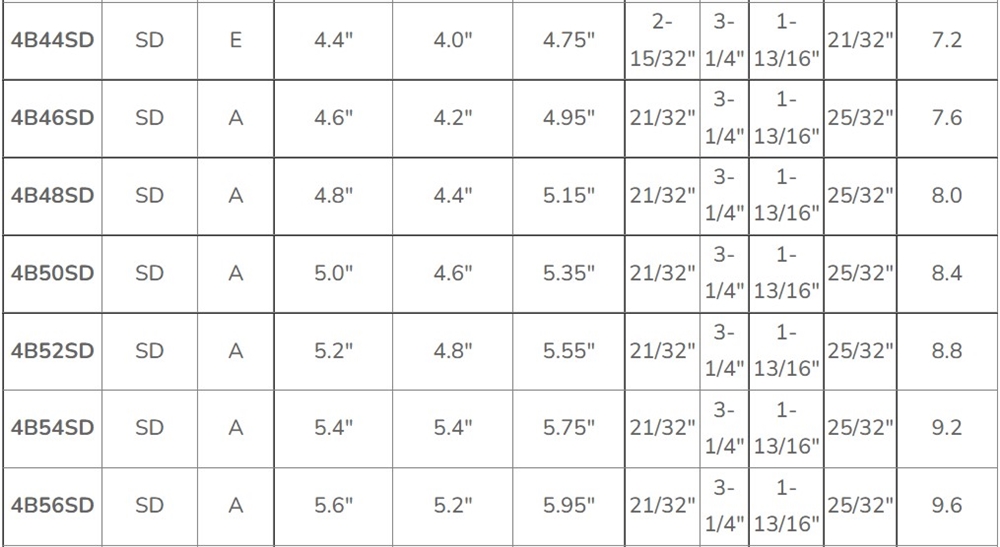

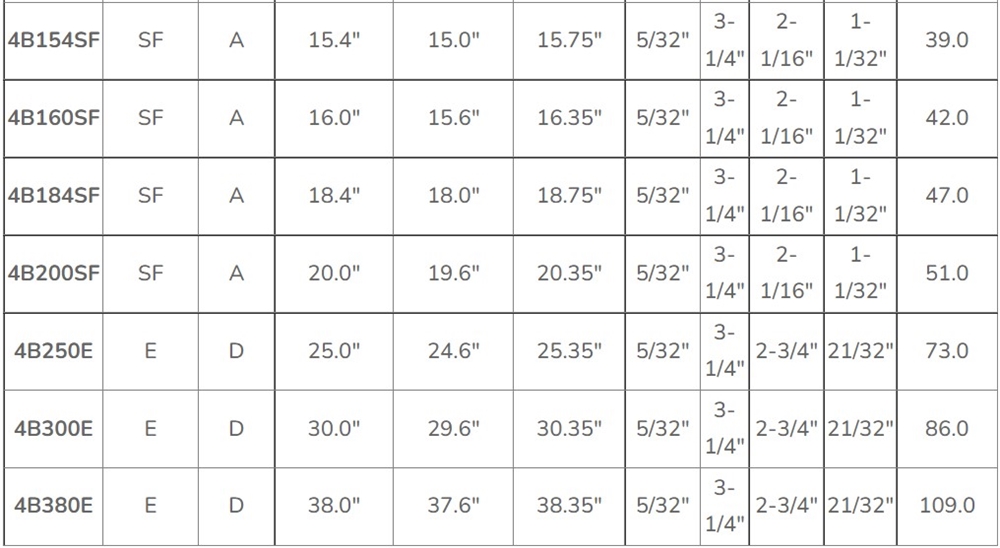

4B Style QD Bushed Pulley Size Chart
For more details, please click here to contact us!

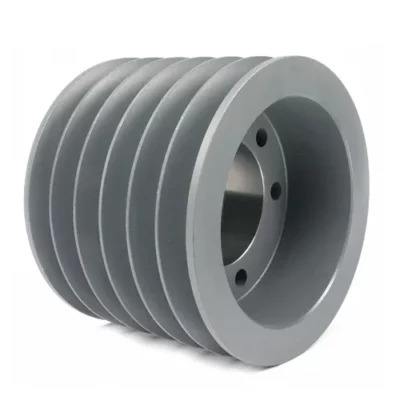

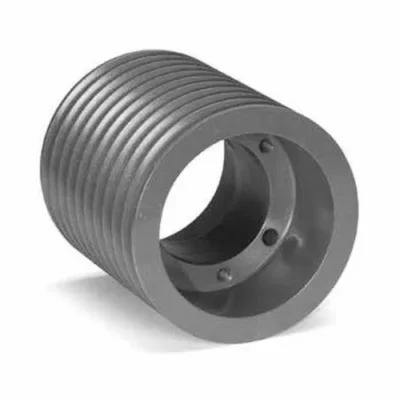

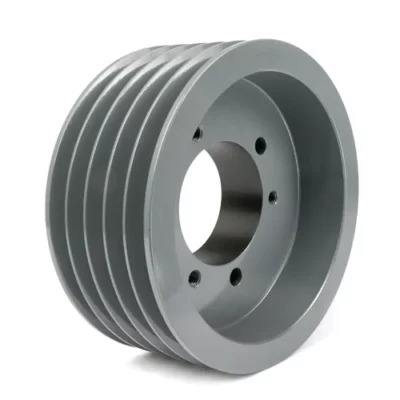

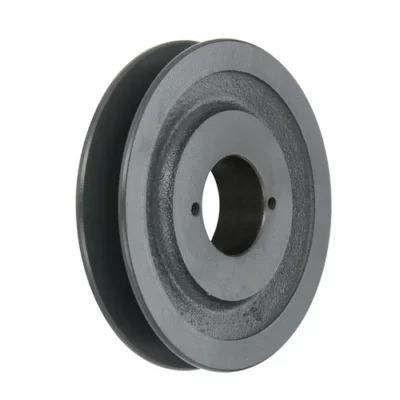

QD bushing pulley
The manufacturing tolerance of QD bushing pulley is accurate. They have different diameters and can be statically or dynamically balanced. These pulleys are made of grey cast iron from GG 25 to GG 30. They have a strength of 207 Mpa and a hardness of 187 to 241.

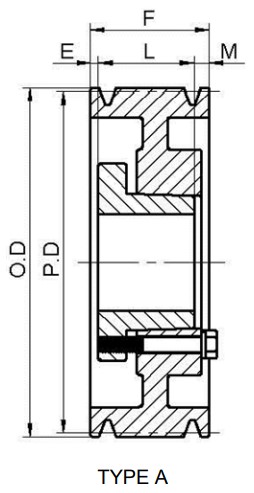

One side of the QD casing has a fully split flange and a straight flange around the outer diameter. The flange fits closely and requires a hex head screw to install the component. When the screws are tightened, the flange compresses and tightens the identified parts on the bushing.
Why choose QD bushing pulley?
The QD bushing pulley has many advantages over traditional V-belt pulleys. They are more cost-effective and ideal for use with non critical ratio drives. It is characterized by a cylindrical lining with radial shape, which can reduce friction in the hole and limit the movement of mechanical parts. They fit well with the hub in the sprocket.
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
