Product Description

Spindle motor type Several different types of spindle motors are available. You can find AC, servo, brushless and water-cooled spindles. Depending on your application, you can choose SMP 0.2 or SMP u. For cost sensitive applications, SMP u motors can be used. servo motor Servo motor for spindle motion is a common and effective solution for spindle driven machinery. These motors use an encoder to detect the relative position of the motor rotor. The encoder can detect the position of the rotor by monitoring the speed and rotation of the motor shaft. The servo motor used for spindle motion is different from the traditional stepping motor in several aspects. Although they use the same principle of rotation, they are very different mechanically. The servo motor transmits electrical pulses through wires wound around the permanent magnet. This creates an electromagnetic field that causes the spindle to rotate at high speed. Compared with the stepping motor, one advantage of the servo motor is that the servo motor is more accurate. Their resolution is several hundred thousand steps per revolution. This allows them to provide more precise movement, which is particularly important when more axes are added to the center of the machine. On the other hand, the stepping motor may lose step sometimes. The operator will not notice these small errors, but they can be seen on the machined parts. AC spindle The AC spindle has a motor to rotate the rotor. These motors are multipolar and can reach speeds of 30000 rpm. They can also be controlled by a single inverter. Traditionally, they need to be oversized to provide sufficient power for rotation. Today, manufacturers are producing them with less power, but that does not mean they sacrifice performance or responsiveness. When selecting the spindle motor, ensure that the speed is within the required range. The most common rated speed of the AC spindle is 24000 RPM. However, some manufacturers do not specify a minimum speed. This can cause overheating. AC spindle has two main cooling modes: air cooling and water cooling. Both types have a cooling system connected to the spindle. Air cooled spindles tend to run hot at low speeds. The AC spindle can be high speed or low speed. High speed spindle has precisely matched bearings and elastic or rigid preload structure, allowing high-speed rotation and achieving the best cutting effect. In addition, the high-speed spindle is made of high-precision parts, which can be controlled in real time during processing. The AC spindle with low speed option is designed for low noise operation. Brushless spindle amplifier The traditional brushless spindle amplifier must provide enough voltage and current to meet the requirements of maximum speed and low-speed torque. This may result in the motor using three to fifteen times the power required. In order to overcome these challenges, Parvex researchers have studied more efficient motor design and new control methods. They determined that it was possible to reduce the magnetic flux generated by the motor without sacrificing performance or cost. The brushless spindle amplifier has a wide range of functions. They can be used for precise positioning and alignment of wafers, masks and other surfaces. They can be used for one, two, or three axes. The brushless servo amplifier also has a wide range of operating modes, including position, speed and torque control. Single phase H-bridge and dual independent half bridge output types are available. In single-phase drive mode, these amplifiers can provide full rail to rail bipolar bus voltage to the load. In dual mode, the amplifier can provide half of the full rail to rail bipolar bus voltage. In both cases, the sum of the wattage requirements of two independent loads must be within the limits of each amplifier module. Water-cooled spindle The water-cooled spindle motor shall operate at low speed. It should not overheat. It also does not require a long startup time. The connection between motor and spindle must be accurate. The insulation shall be higher than 10 megohms. The water flow shall be 3-5 L/min. In order to prolong the service life of water-cooled spindle motor, you should ensure that the cooling water is clean and fresh. You can check this by checking the spindle temperature. If the temperature is too high or too low, it may be because the cooling water does not enter the spindle motor. In addition, the cooling water should be replaced regularly. Secondly, ensure that VFD is compatible with the spindle motor. If you are not sure how to connect the wires, you should hire a professional electrician. Always ensure that the ground pin is connected.

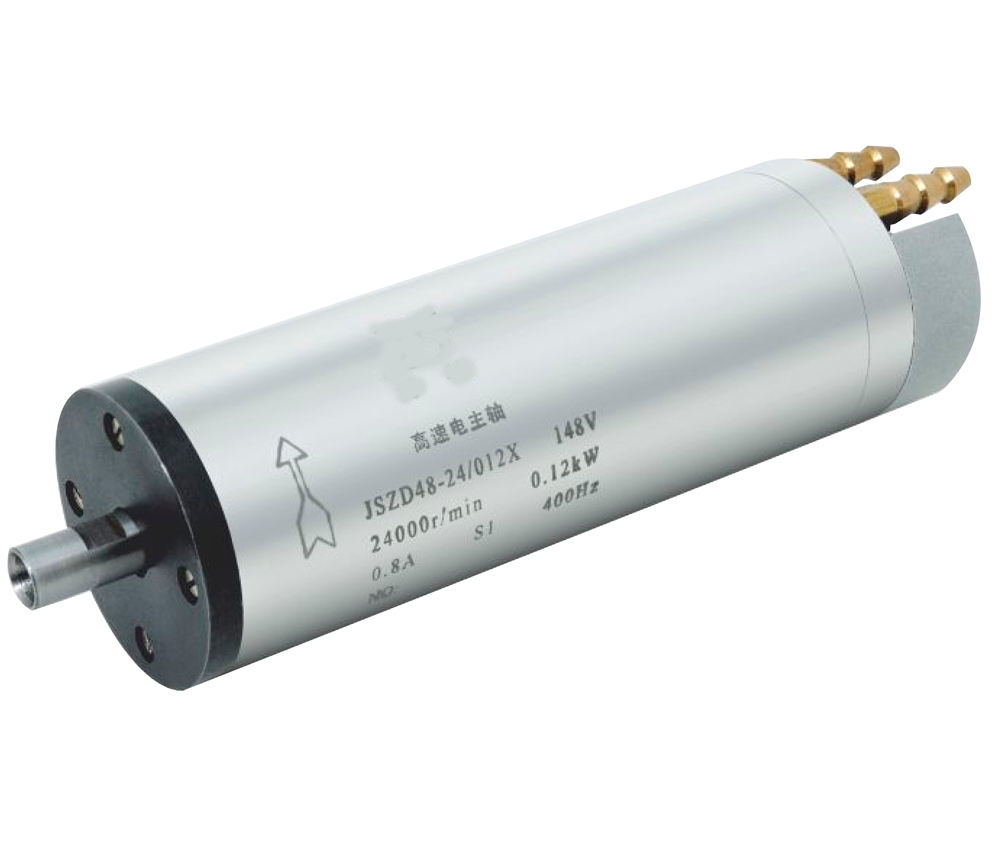

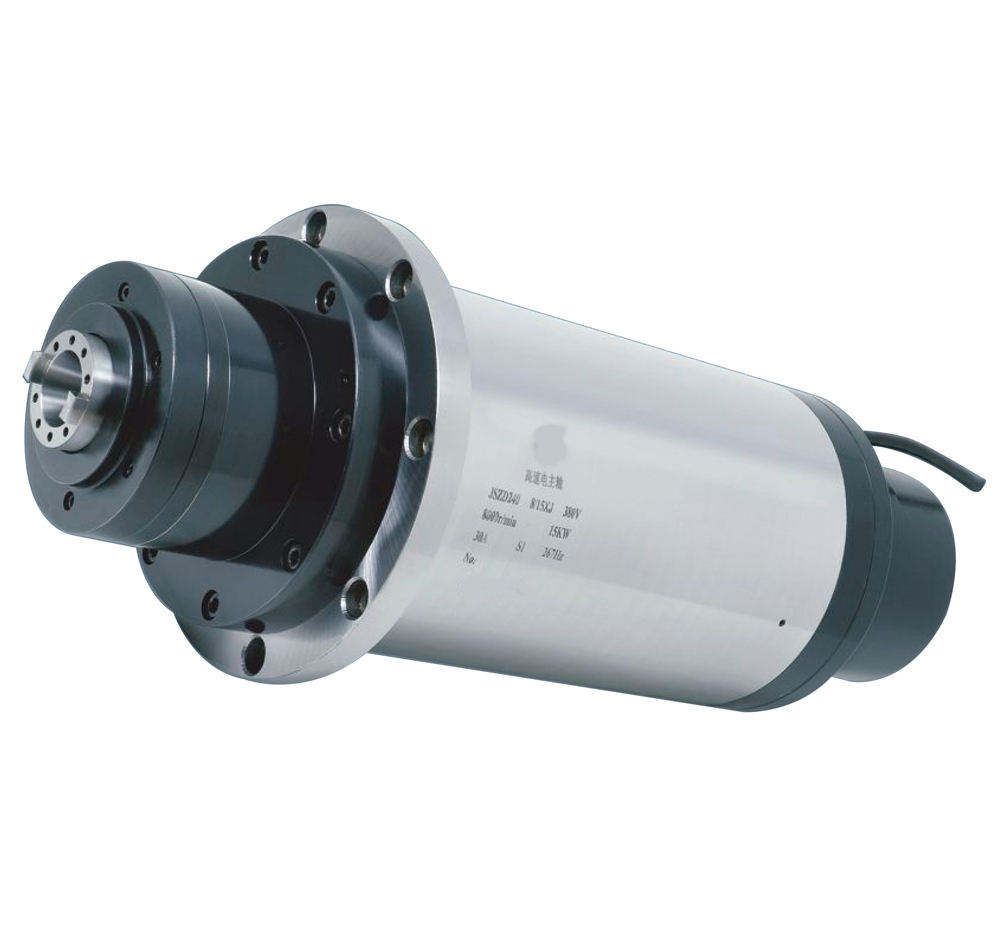

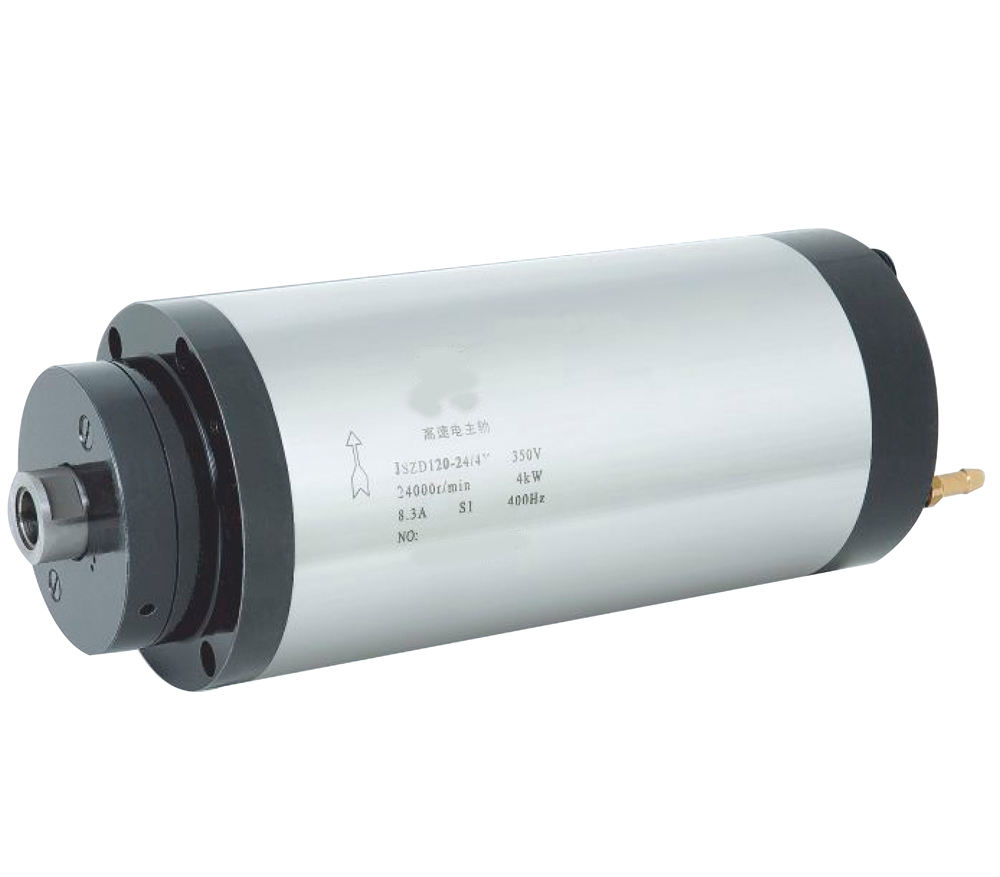

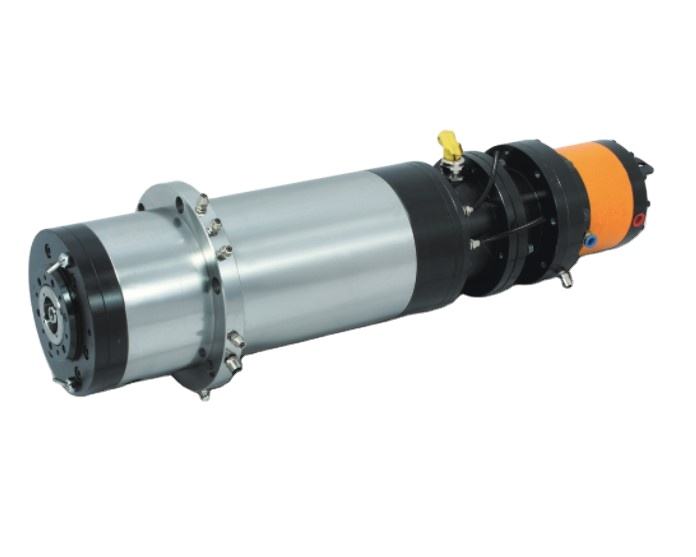

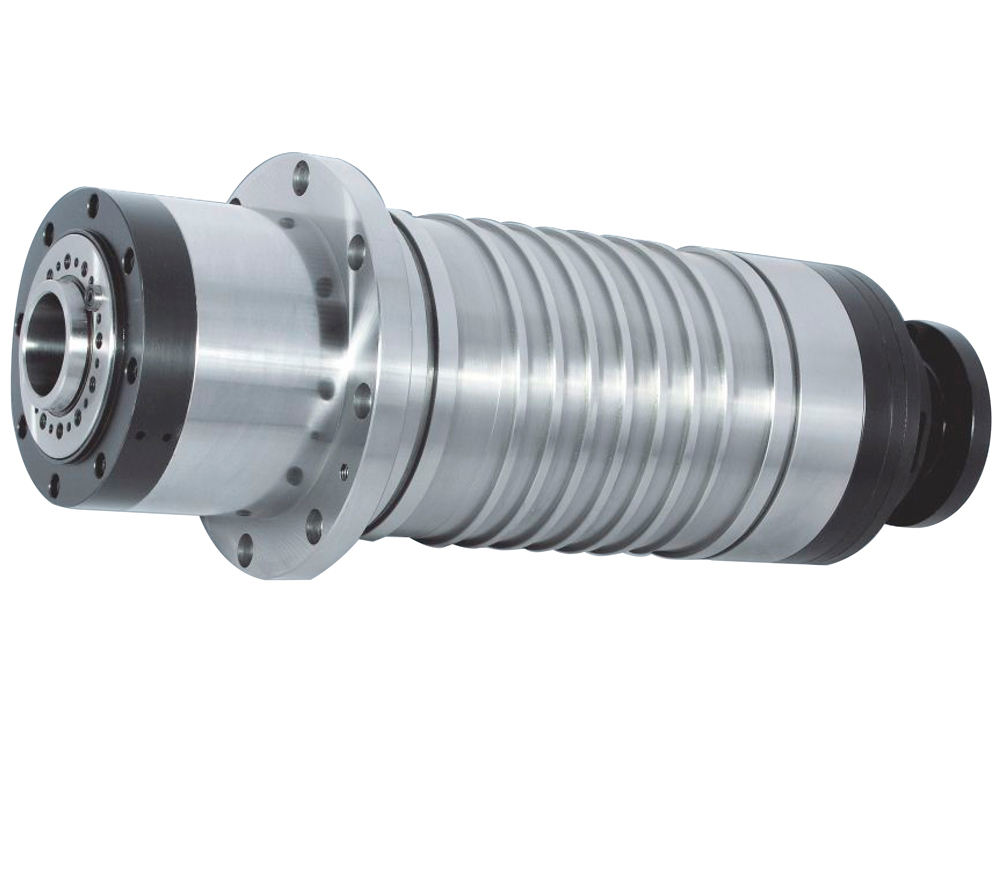

Motor spindle series The main products can be divided to 5 styte with more than 10 series , the speed from 600r / min To 1 10 000 / min . the powerfrom0.05KW to 40KW . the spindle bearing according to different speed using high precsion and speed bearing , or ceramicbearing , or maglev bearing . The cooling way using oil , oil fog , oil gas , We also can design it for youn requirement .

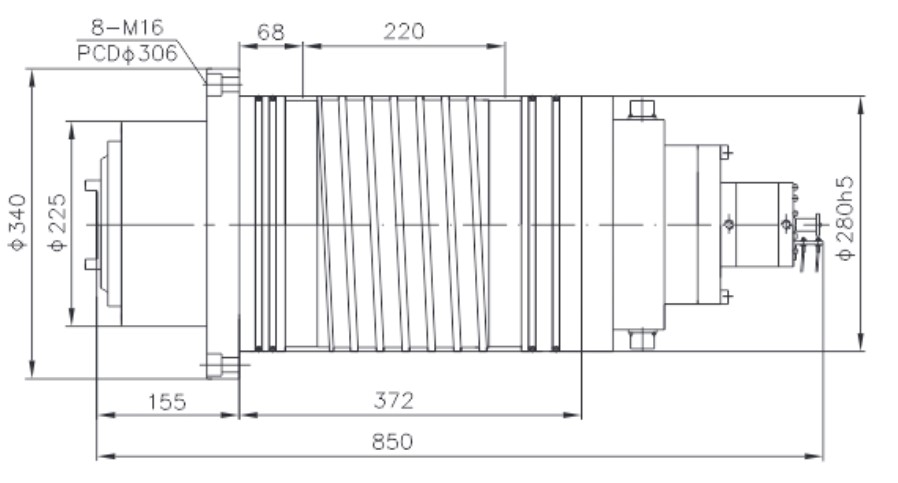

Dimensions

Advantages of electric spindle

* The spindle and motor are integrated, with compact structure, simple installation, convenience and space saving;

* No intermediate transmission link, high efficiency, low vibration, low noise, stable movement, long service life of main shaft bearing at the same speed;

* Easy to achieve high speed, high accuracy and high dynamic and static stability ;

* Using modern control technology and motor optimization design, it can meet the requirements of different working conditions and loads.

For more details, please click here to contact us!

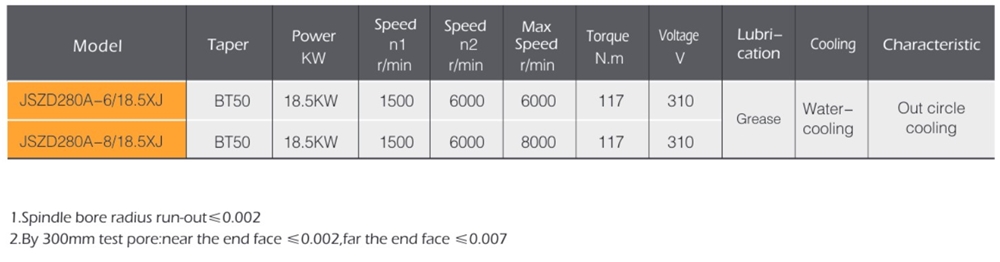

Speed	8000rpm
Voltage	310V
Power	18.5kw
Warranty	Bearings for half year,other parts for one year

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
