CWB-2L 2 Rows Working Speed 2-5 Km/h Potato Harvester for Carrots, or Onions

POTATO HARVEST - 2 ROWSThe 2-row potato harvester is typically a tractor-mounted or trailed implement powered by the tractor’s PTO (Power Take-Off)system. It is engineered to dig up potatoes from two adjacent rows (usually spaced 60-90 cm apart, depending on planting practices), separate them from t......

Send Inquiry

Product Description

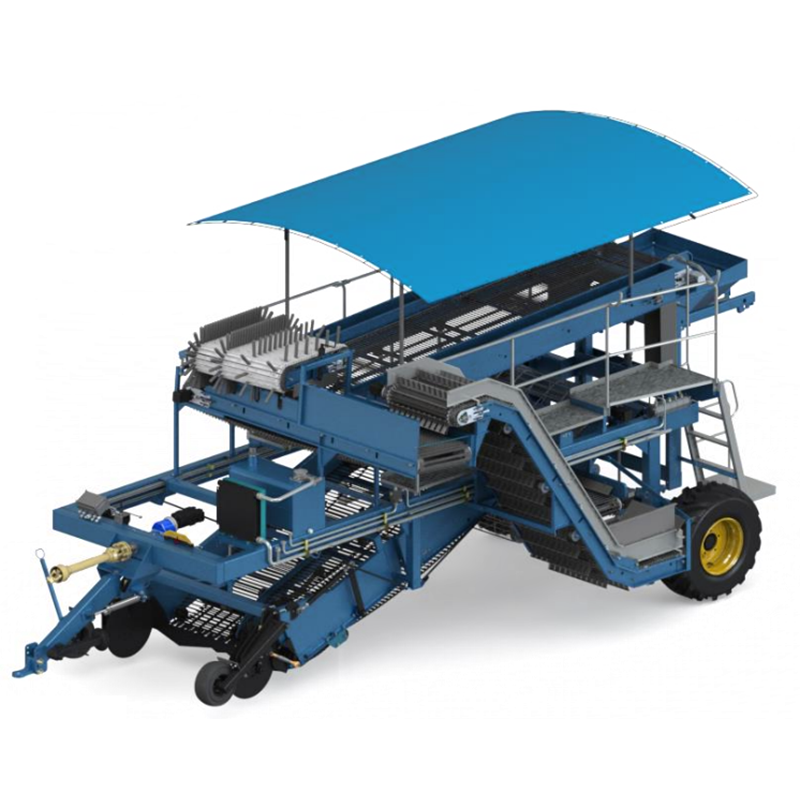

POTATO HARVEST - 2 ROWS

The 2-row potato harvester is typically a tractor-mounted or trailed implement powered by the tractor’s PTO (Power Take-Off)system. It is engineered to dig up potatoes from two adjacent rows (usually spaced 60-90 cm apart, depending on planting practices), separate them from the soil, and either deposit them on the ground for manual collection or transfer them into a hopper or truck for further processing.

Key Features
1. Dual-Row Digging Mechanism: Equipped with two digging blades or shares that lift potatoes and soil from two rows at once.
Adjustable digging depth to accommodate different soil types and planting depths.

2. Sieving and Separation System: Uses vibrating sieves, conveyor belts, or rollers to separate potatoes from soil, rocks, and vines.
Some models feature additional cleaning mechanisms, like star rollers or hedgehog belts, to
remove debris.

3. Hydraulic Components: Often includes hydraulic lifts or adjustments for controlling the tilt angle and unloading process.
May have hydraulically driven belts or booms for smooth operation.

4. Discharge Options: Rear discharge: Potatoes are laid in a neat row behind the machine.
Side discharge or elevator: Potatoes are transferred to a trailer or truck alongside the harvester.

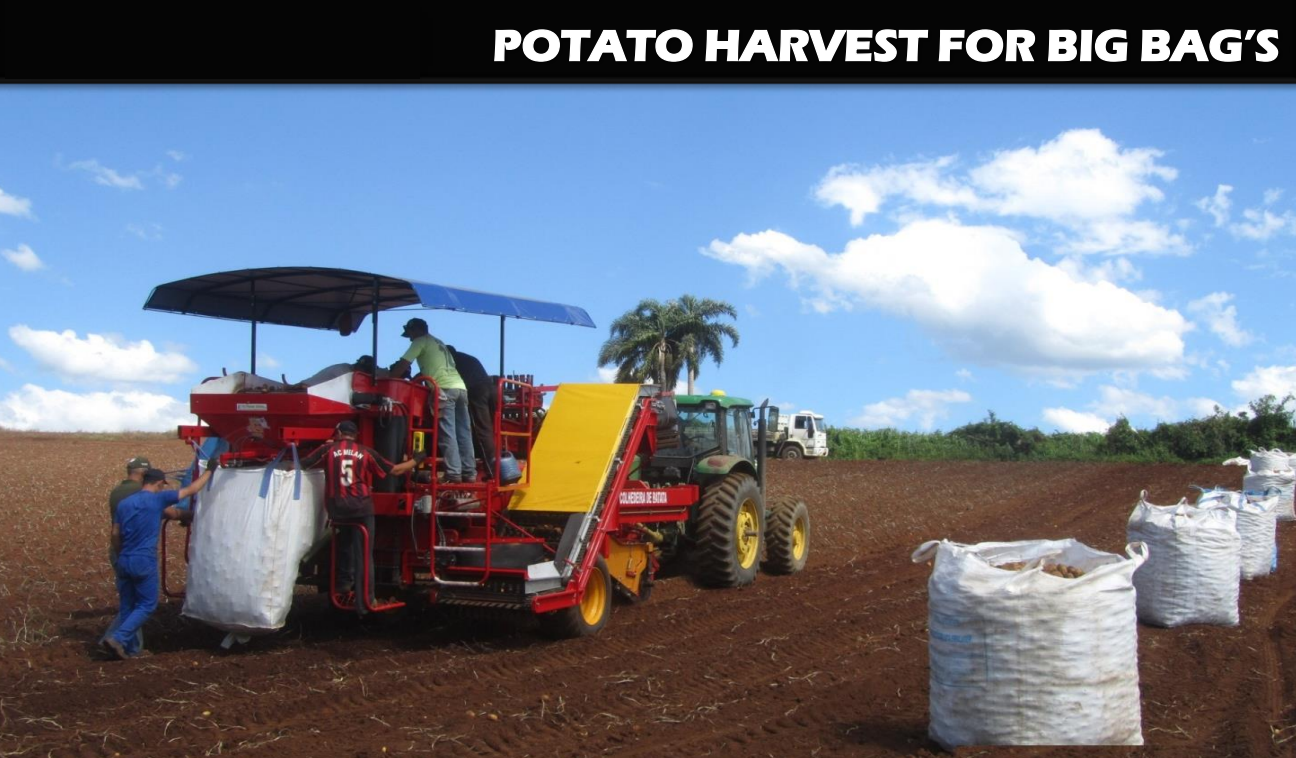

Bunker/hopper: Some advanced models store potatoes temporarily for continuous harvesting.

5. Robust Construction: Built with durable materials like steel to withstand tough field conditions and heavy use.

For more details, please click here to contact us!

TECHNICAL DATA	CWB-2L
Dimensions
Length (mm)	8800
Width (mm)	3200
Height (mm)	3900
Empty weight	4500 Kg
Tractor requirements
Cardan shaft input revolutions	540 RPM
Engine power (min.)	100 cv
Control valves required	2
Working speed	2 - 5 Km/h

Applications
Medium to Large Farms: Perfect for farmers managing dozens to hundreds of acres of potatoes.

Commercial Potato Production: Used by growers supplying markets, processors, or seed companies.

Other Root Crops: Some models can be adapted to harvest sweet potatoes, carrots, or onions with minor adjustments.

How It Works
1. Digging: As the tractor moves forward, the harvester’s blades penetrate the soil beneath the potato rows, lifting the tubers along with surrounding dirt.

2. Separation: The mixture passes over a series of sieves or belts that vibrate or rotate, allowing soil to fall through while
retaining the potatoes.

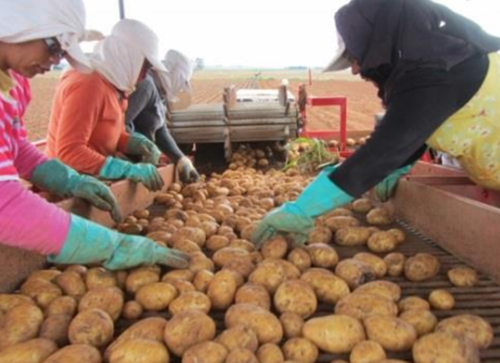

3. Cleaning: Additional rollers or belts remove vines, weeds, and small stones, ensuring cleaner potatoes.

4. Unloading: Depending on the model, potatoes are either dropped behind the machine, conveyed to a truck via an elevator, or stored in an onboard bunker.

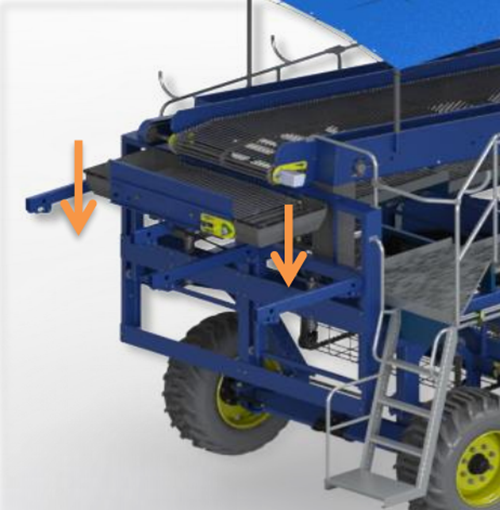

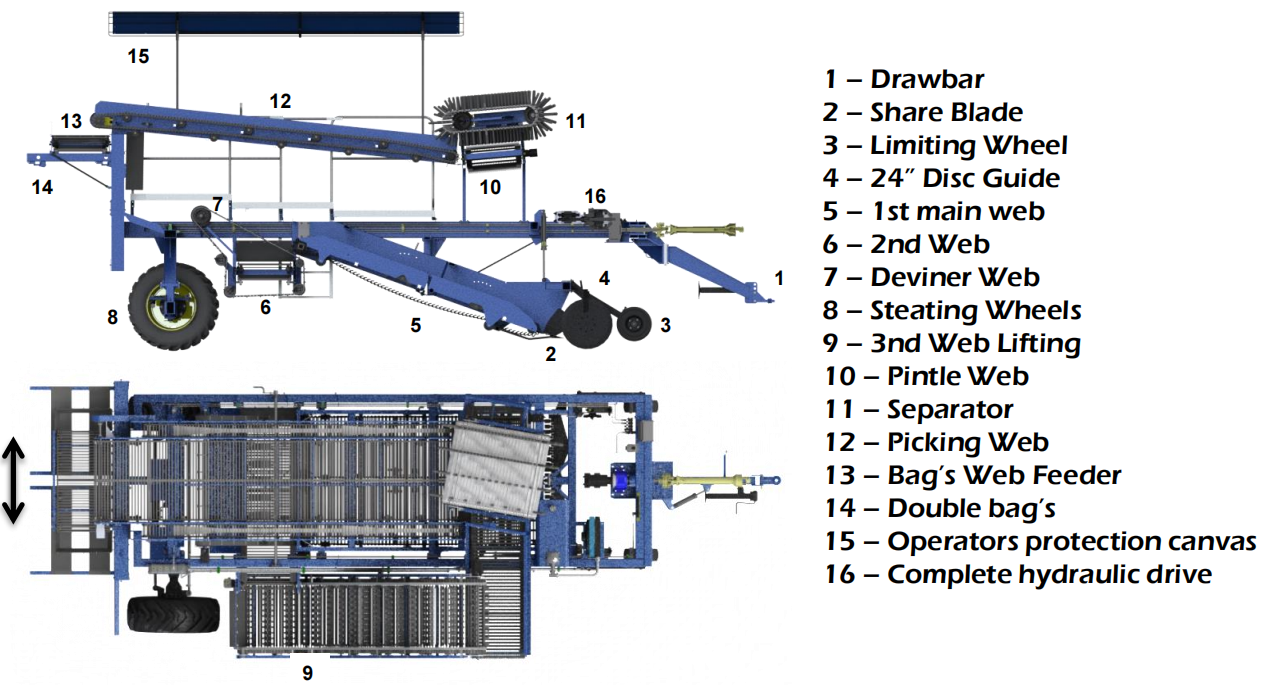

Construction of Potato Harvester

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
