C55 C60 C77 C102b C110 C111 C131 C132 Mbp132 Pw132 C133 C188 Brh188 Combination Chain

Send Inquiry

Product Description

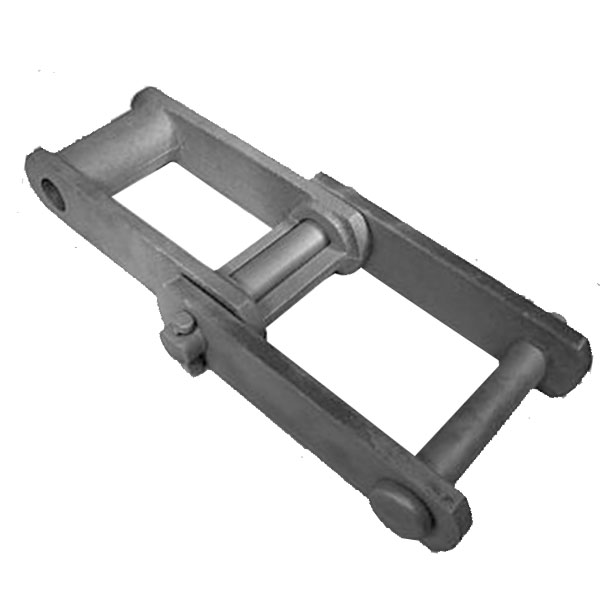

Ever-power Combination Chain is used extensively in the cement, paper and pulp, quarrying, and mining industries for elevating and conveying a wide variety of abrasive and non- abrasive materials. It is also finding many uses in general in- dustrial assembly conveyors. It is not recommended for drive chain. The construction of Combination Chain can be either cottered or riveted. Cottered is normally consid- ered standard. Pins have flat areas at their ends, which lock into the appropriately punched sidebars, preventing pin ro- tation during chain operation. All pin holes are clean-cored for smooth bearing surfaces and are dimensioned for proper pin clearance. Industry dimensional standards are rigidly maintained and this chain may be interchanged with links of other manufacturers. Pitch sizes range from 1.631 to 6.050 inches; tensile strength range extends from 12,150 to 67,500 pounds. All Combination block links except C55 and C55L have elliptical barrels. This adds extra metal where the sprocket to chain contact causes most chain wear. MBP 132C has chambered barrels containing grease which lubricates pins, helps to avoid joint freezing, and pro- hibits entry of corrosive and abrasive material into the bar- rel core. Attachments are available in many of the pitch sizes for a wide range of applications. Combination links are symmetrical and may therefore be operated in either direction of travel. Brutaloy and cast steel sprockets are available for each pitch size. COUPLER LINKS FOR COMBINATION CHAIN Coupler links are required for joining chain where no take-up is available. Each chain pitch size has a Promal cast off-set sidebar coupler link available for this purpose.

COMBINATION CHAIN MATERIALS

A-L CHAIN NO.	MATERIALS
A-L CHAIN NO.		BLOCK LINKS (Inside Links)	SIDEBARS (Outside Links)	PINS
C55		Carbon Steel, Heat Treated
C 55L				Carbon Steel, Heat Treated
C 60				Carbon Steel, Heat Treated
C 77				Carbon Steel, Heat Treated
C 102B				Carbon Steel, Heat Treated
C 1021/2	ALL NUMBERS	Carbon Steel, Heat Treated	ALL NUMBERS
C 110 C 111 C 111C		ALL NUMBERS		Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated	ALL NUMBERS
C 131				Carbon Steel, Heat Treated
C 132 MBP 132 MBP 132C PW 132 C 133	A-L PROMAL	Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated	Carbon Steel, Heat Treated
C 188		Carbon Steel, Heat Treated
BRH 188				Carbon Steel, Heat Treated

WEIGHTS OF COMBINATION CHAIN PARTS

A-L CHAIN NO.	AVERAGE WEIGHT IN LBS.
	COUPLERS	PLAIN BLOCK LINKS	STEEL PINS WITH COTTERS	STEEL RIVETS
C 55	0.3	0.3	0.1	0.1
C 77	0.4	0.4	0.1	0.1
C 102B	1.9	1.8	0.4	0.4
C 110	2.6	3.1	0.4	0.4
C 111	3.3	3.5	0.7	0.7
C 132	6.1	6.0	1.5	1.5
MBP 132	6.1	8.2	1.5	1.5
MBP 132C	6.1	8.2	1.5	1.5
PW 132	6.1	9.8	1.5	1.5
C 188	0.7	0.7	0.2	0.2
BRH 188	0.7	1.2	0.2	0.2

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
