Product Description

Replacement model for Bonfiglioli

The 600 series Planetary Gearbox can be alternative to Trasmital Bonfiglioli

601R ,603W,605W,606W,609W,611W,613W ,615W

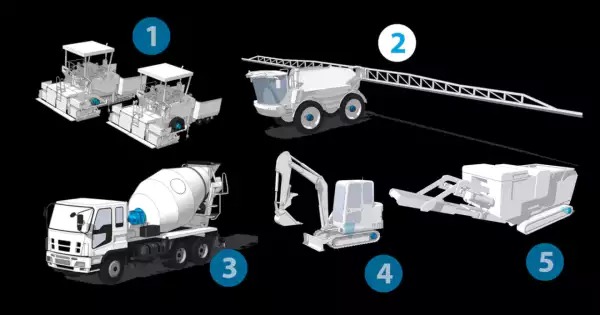

The 600 series planetary gear box, which replaces Bonfiglioli, is the best solution for designing wheeled off-road machinery. These solutions have compact design, high torque and load capacity, negative multi disc parking brake and optional separation device, which are used to tow the vehicle in case of emergency, and fully meet the application requirements.

602L2-25

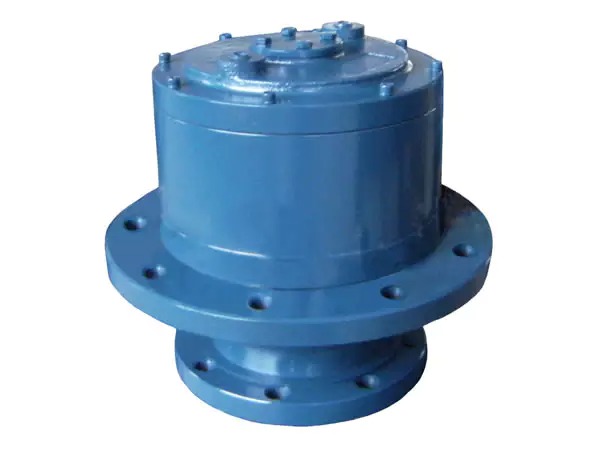

602L2

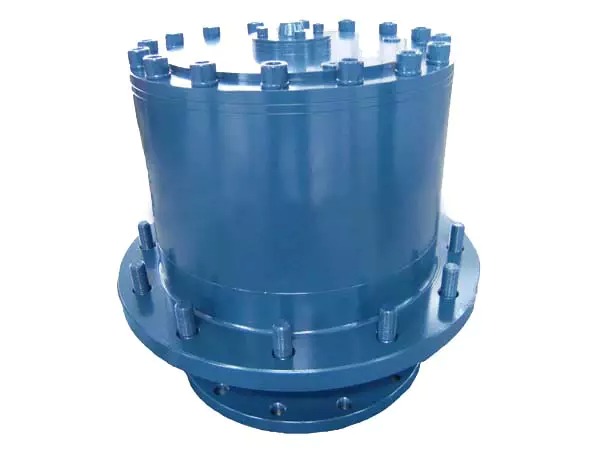

608L2

Main features of 600 series planetary gearbox

rotating housing flange with studs for mounting wheels and rollers robust design high torque capacity high load capacity mechanical life of seals compact design optional mechanical gear separation can be provided upon request

1. Output torque range: 1000-60000 N.m 2. Transmission ratio: I = 5.3-142 3. Support: the gearbox has a rotating housing flange to install the wheel 4. Applicable motor: axial piston hydraulic motor, hydraulic rail motor or other 5. Hydraulic motor options: pressure reducing valve, eccentric valve 6. Bearing: a solid bearing system that can absorb the force exerted by the ring gear 7. Brake: hydraulically released parking brake 8. Others: nb600l series wheel drive with manual disconnect application 9. Due to the use of solid tapered roller bearings, the radial and axial bearing capacity is large. 10. Reliable oil seal protection, designed according to our field experience. 11. Universal and SAE input direct mounting flange 12. These devices are designed for direct mounting into the rim. The technical data and installation dimensions of the 13.600l series transmission are the same as those of Rexroth GFT... W series and Bonfiglioli 600 series, so these three transmissions can be used interchangeably.

Track drives Type	Max. torque N.m	Range of ratios (i)	Max. Input speed (rpm)	Braking torque (N.m)
601 L1A	1750	5.77	1000	450-600
603 L2A	4000	19-23-32-40	3000	210
603 L2B	4000	19-23-32-40	3000	210
602 L2	5000	12.4-25.8	3000	-
605 L2	7000	22-27-30-42-53	3000	220-310
606 L2, L3	12000	30-35-43-68-79	3000	300-800
607 L2, L3	17000	33-75-108	3000	300-600
609 L2, L3	23000	33-142	3000	300-600
610 L2, L3	30000	20-111	3000	300-800
611 L2, L3	36000	41-47	3000	300-800
613 L3	45000	108	3000	300-800
615 L3	60000	108	3000	300-1000

Group Background

The ever power transmission provides some of the best performance you can find, but they occasionally fail. You can call OEM, ever power gearbox directly to repair the gearbox; But like all other OEMs, their turnaround time is very long. In many cases, their backlogs range from nine months to a year. Hengli transmission maintenance service. In the gear world, we can repair your constant power gearbox with less time and money, which will meet or exceed OEM standards! We will remove your gearbox for free and take it to one of our factories, where we will complete ndti (non-destructive wear inspection) and treat your gearbox with all white gloves to assess the demand.Ever power transmission has been helping customers since the 1960s. They have transformed from a "small workshop" into a wide range of international companies providing services for the industrial, agricultural, marine, energy, infrastructure and heavy machinery industries.

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
