Two Pallets HMC500P CNC Lathe Cutting Metal Working Machine Horizontal Machining Center

Discover the Raydafon Guoup Two Pallets HMC500P CNC Lathe Cutting Metal Working Machine Horizontal Machining Center: A precision-engineered powerhouse for metal fabrication, offering dual pallets for seamless productivity. Ideal for manufacturers and workshops, it enhances efficiency, reduces downtime, and delivers superior results, setting a new standard in industrial machining with unmatched reliability.

Send Inquiry

Product Description

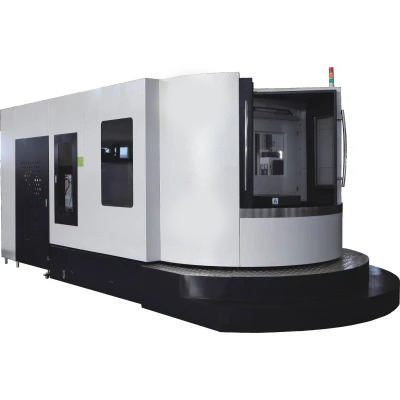

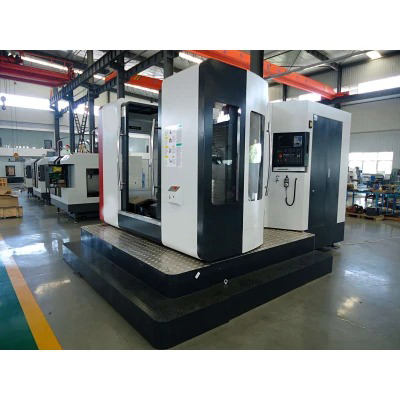

HMC500P horizontal machining center

The HMC500P is a horizontal machining center known for its high precision and efficiency in machining various parts. It features a horizontal layout with a transverse movement of the worktable, ensuring stable and reliable machining processes. With its robust machine body and rigid cast iron bed, the HMC500P can handle large workpieces and heavy loads. It is equipped with a high-speed spindle and a tool changer, enabling quick tool changes and enhancing production efficiency. The machine center also boasts multi-axis control capabilities, enabling complex cutting operations and multi-sided machining. The HMC500P incorporates advanced CNC systems, offering flexible programming capabilities and an easy-to-use interface. Operators can easily set up and monitor machining processes through a touchscreen or control panel. Additionally, it has interfaces for automation systems, allowing seamless integration into highly efficient automated production lines. In summary, the HMC500P horizontal machining center is a high-performance and high-precision machine tool suitable for machining complex parts. It provides powerful cutting capabilities, high production speeds, and user-friendly operation, making it a vital asset in modern manufacturing industries.

Machine structure: All machine parts are analyzed using finite element method "M" - shaped cross bracket, with a base weight of over 4000Kg

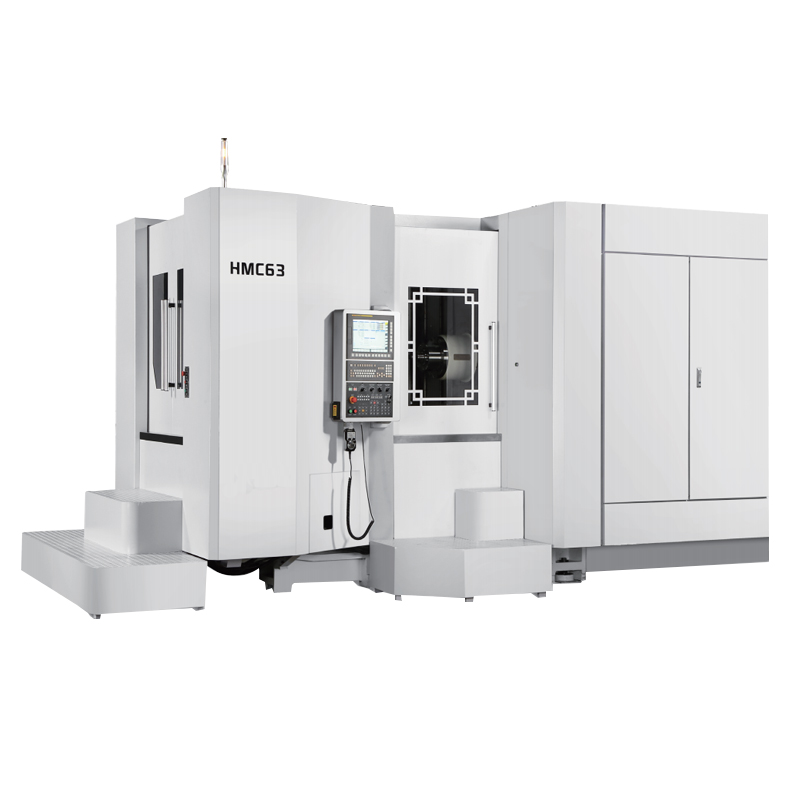

HMC63

HMC500

HMC500P

HMC630

HMC630P

Workbench

Single pallet

Dounle pallets

Single pallet

Dounle pallets

Workbench size

630x630

500×600

630x700

The maximum load-bearing capacity of the workbench

1200

600

950

Number of workbenches

Table form

24xM16 threaded hole

Distance from the centerline of the spindle to the workbench

100 ~ 1000

120 ~ 870

0 ~ 750

120 ~ 870

0 ~ 750

Distance from workbench center to spindle end face

50 ~ 1080

130 ~ 1030

Workpiece rotation diameter

Φ1050

Φ1380

Φ950

Φ1380

Φ950

Workbench indexing

1° x360

1° x360 / 0.001°

Type of platform replacement structure

turn type

Workbench exchange time

3-Axis

stroke

1050/900/1030

1050/750/900

Fast Moving Distance (XNY2)

m/min

60/60/60

30/30/30

B-axis fast movement speed

m/min

Main spindle

Main spindle power (basic configuration)

18.5-26

15/18.5

Maximum speed (basic configuration)

rpm

8000

6000

Spindle hole thrust

BT50

Main spindle inner diameter

100

Positioning accuracy (national standard

positioning accuracy

0.01 (entire process)

Repetitive positioning accuracy

0.006

B-axis indexing accuracy

6″

10″

B-axis repeated indexing accuracy

1″

5″

Tool magazine

Tool magazine capacity

Tool selection method

Two-way arbitrary

Tool change time

2.5

4.5

External dimensions

Length * width * height

6485x3865x3300

4800×3700×2850

6600×4300×2850

4800×3700×2800

6600×4300×2850

Machine weight

18200

11000

13000

12000

14000

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

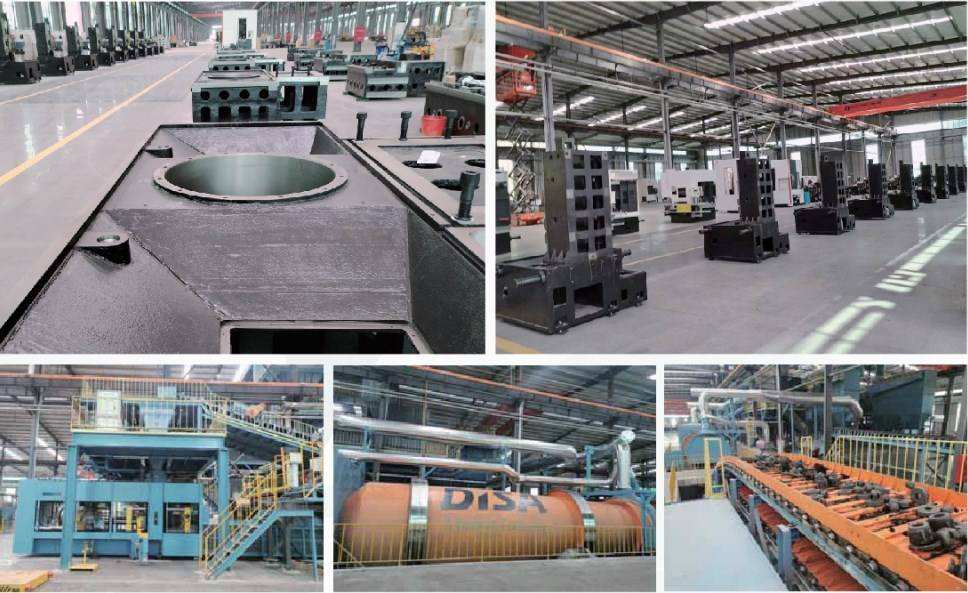

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

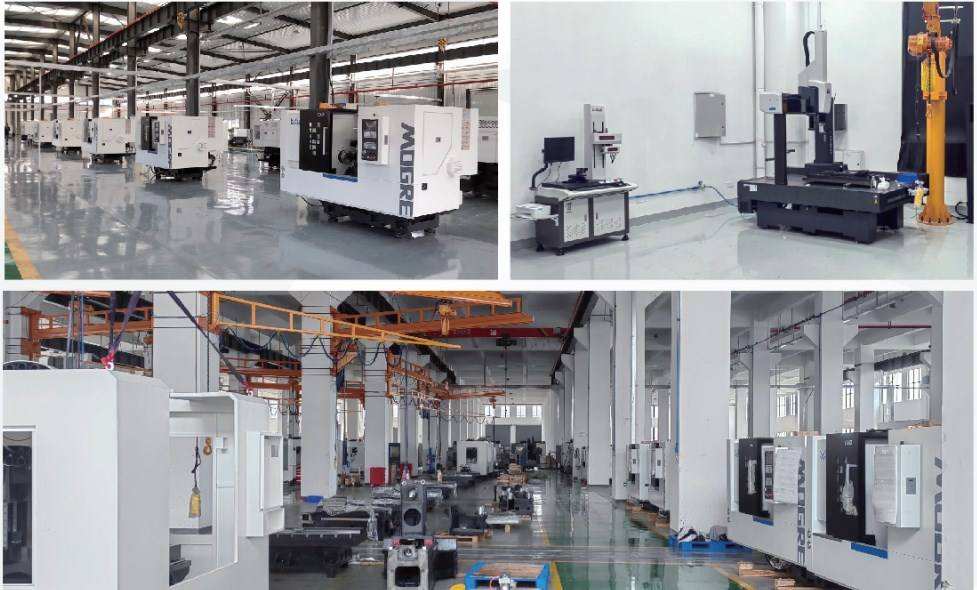

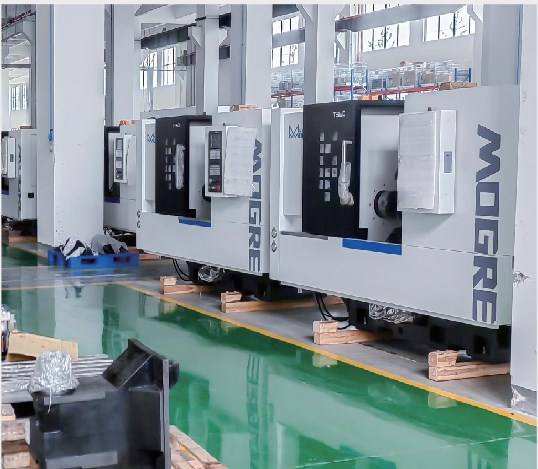

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
