Superior Quality W 2400 Series Walterscheid Replacement PTO Shaft

W 2400 Series PTO Shaft Replacement of WalterscheidThe PTO shaft transfers power from the tractor to the PTO power accessory. This enables the tractor to provide power for various tractor implements, including flail mowers, wood cutters, rotary tillers, excavators, etc.Length: 1010mm from cross join......

Send Inquiry

Product Description

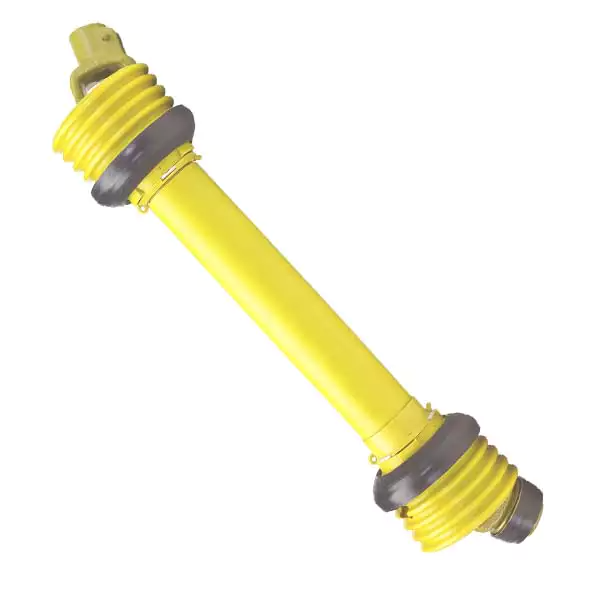

W 2400 Series PTO Shaft Replacement of Walterscheid

The PTO shaft transfers power from the tractor to the PTO power accessory. This enables the tractor to provide power for various tractor implements, including flail mowers, wood cutters, rotary tillers, excavators, etc.

Length: 1010mm from cross joint End 1:1 3/8 "6 spline yoke End 2:1 3/8 "6-spline F5 free wheel Pipeline: 1b/2a Protection: SD25

Specification of W 2400 series PTO shaft 150-250cm cross length, The total length is 165-260cm, W2400 series. 32mm x 76mm x 86mm (approx.) triangular profile drive pipe. 39KW-53HP@540 rpm, 61KW-83HP@1000 rpm. Standard axes include: One end has 1 3/8 "x 6 spline quick release yoke. The other end has no end yoke. Safety protection device. We will accept non-standard yoke.

Weight, W	kg	15.1
Inner diameter, d	mm	32
Outer diameter, D	mm	170
Number of splines, F		21
Length, L	mm	610
Inner diameter, d1	mm	35
Quantity of slots, F		21
Length 2, L2	mm	860

W 2400 series PTO shaft application Spare parts driven by Massey Ferguson, Claas and Gleaner. The W 2400 series PTO shaft is applicable to the following agricultural machines: Challenger combine: 660 670 Combine Claas: LEXION Combine Gleaner: C62 R40-R75 Combine Massey Ferguson: 8780 9690 9790 Massey Ferguson tractor: 8680 Ensure that the drive torque is transmitted to the drive elements of agricultural machinery so that worn or damaged devices can be replaced during maintenance and repair work. An assembly product consisting of a central beam and two forks pivoted to the beam end. This connection allows torque to be transmitted between shafts, and the angular displacement of the shaft (up to 40-45 °) changes during rotation.

PTO shaft parts and components The PTO shaft and components of HZPT will keep your equipment working normally. As a leading supplier of PTO shaft, we stock various standard, metric and constant speed transmission systems and PTO shaft parts and components (implement PTO yoke, PTO shaft clutch and PTO shaft oil pipe). HZPT has a large number of tractor PTO shaft transmission systems. We provide replaceable transmission systems and components, providing a simple solution for customizing or repairing applications.

PTO drive shaft type There are two types of PTO shaft. Everyone who owns a tractor needs to know the type of PTO shaft on the tractor. It may not be necessary to identify the PTO shaft type before replacing the damaged PTO shaft. Let's mention two PTO shaft types and show how to quickly identify shaft types. The first type of PTO shaft is called domestic, and the second type is called metric. You can identify each type by its shape. The domestic PTO shaft has four shapes: square, rectangular, round and spline. The metric PTO shaft has three shapes, namely, star, bell and football. Domestic PTO shaft is very common in North America, so the style of shaft is usually attributed to North America. The metric PTO shaft with star and ball belongs to Germany. The bell-shaped metric PTO shaft belongs to Italy. Each PTO shaft type (shape) includes many series, and the PTO shaft length and size are different. After identifying the shaft type, you can measure the outer diameter of the bearing cap from one end to the other end at the U-joint and the bearing cap to understand the shaft series.

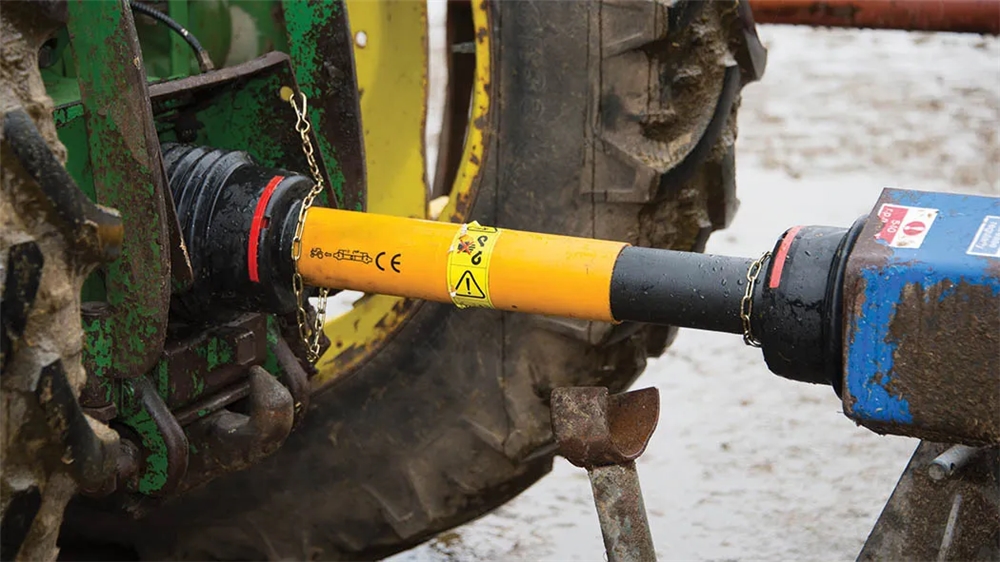

How do I connect the PTO shaft to the tractor?

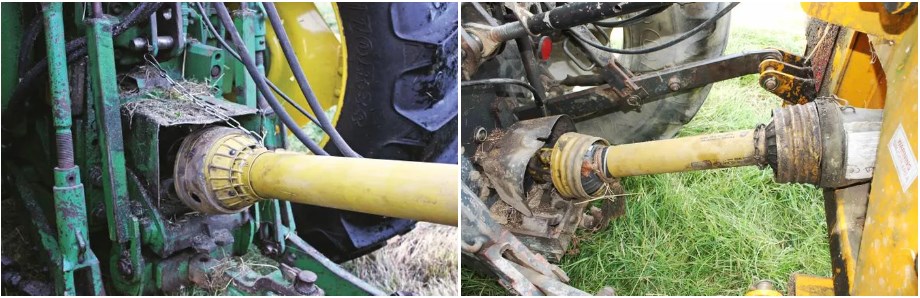

PTO shaft accident is one of the most common and serious causes of tractor related injuries. Before using the tractor and implementing PTO shaft components, read and follow all safety instructions and best practices in the tractor and implement operator's manual. Ensure that all shields and other tractor and implement PTO shaft components are in good working condition. Do not use the tractor and implement PTO shaft components when the tractor engine is running or any part of the PTO shaft drive implement is still moving. Connect the PTO shaft to the tractor Generally, to connect the PTO drive shaft of the implement to the rear PTO shaft of the tractor, you must bend down while lifting the heavy PTO shaft of the implement. In addition, when the PTO shaft release collar of the implement is pulled back or the pin lock release device is pressed, the PTO power train spline must be correctly aligned, and the implement shaft must be slid onto the PTO shaft of the tractor at the same time. We know it doesn't sound easy. To help simplify this potentially difficult task, please use these methods provided by experienced tractor operators. (Wearing gloves when connecting the PTO shaft is another wise advice to help avoid cuts and scratches.) First, make sure that the PTO shaft connection is ready (reading the tractor and operating manual is the key to understand the correct setting of the two machines). Most tractors allow you to put the PTO shaft on the tractor in the neutral position. This ensures that the tractor PTO output shaft rotates freely, making it easier to align the splines of the two shafts correctly. If a three-point mounted implement is connected, please note that the three-point linkage is in the full downward position to avoid accidental crushing when someone inadvertently moves the position control lever. Hitches and implements will lower even when the engine is turned off. If the PTO shaft cannot be aligned with the three-point implement in the fully lowered position, the drawbar may need to be removed. When using a three-point implement driven by the PTO shaft, it is usually a good idea to remove the drawbar. This helps to avoid damaging the PTO shaft due to the impact of the shaft on the drawbar when the implement falls to the lower limit of travel of the three-point linkage. Before starting to use the three-point implement driven by the PTO shaft, check the clearance between the PTO shaft and the drawbar. Suppose that your tractor PTO shaft has no neutral setting, and the tractor PTO shaft remains locked when the engine is turned off. In this case, you may need to install the implement on the three-point linkage, raise and lock it in the extended position before turning off the tractor; You should be able to rotate the implement shaft to carefully align the splines. Take extra care not to let your fingers touch the universal joint of the implement PTO shaft, because there may be some momentum after the implement shaft rotates. Next, both PTO shaft ends should be cleaned. It is almost impossible to connect dirty and dry spline shafts. The splined PTO shaft is designed for a tight fit. A small piece of gravel or some crop debris in the soil can prevent the shaft from sliding together. Next, lightly smear the two with grease to help the two closely matched metal plates slide together. Clean oil from clean sources is preferred, but experienced tractor operators know how to improvise on site. After lubrication, the two spline shafts should slide together faster.

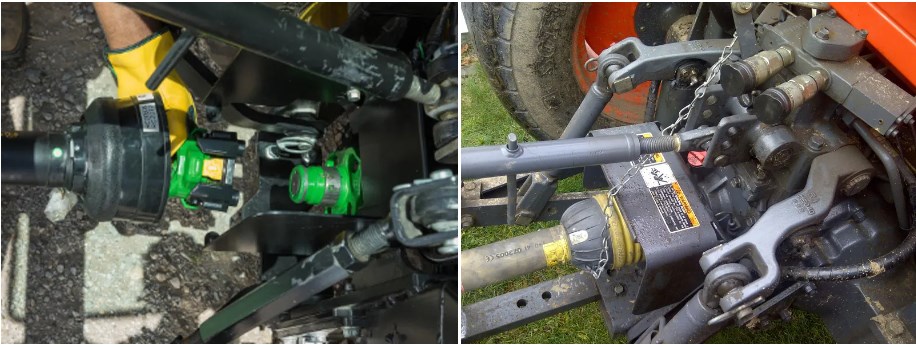

On compact tractors and their implements, the PTO shaft connection is not far from the ground. It may be easier to handle the PTO shaft connection on your knees. If you kneel on the proper ground, it will be faster to kneel and lift the weight of the implemented PTO shaft. When you hang the PTO shaft, the car floor mat, a carpet or some strong cardboard will reduce the pressure on your knees. After the splines are aligned, press the locking pin button or pull the ball locking ring backward, and then push the shaft onto the PTO shaft. If it is difficult to slide, sometimes shaking the end of the implement PTO shaft up and down will help start. After starting, slide the shaft – you may hear a click, the button should retract to the original position, otherwise the collar will slide forward. To ensure that the shaft lock is fully in place, pull the hand back from the button or collar to the shaft; It should not be possible to remove. With these simple tips, you can reduce the time of PTO shaft connection and complete the work to be completed faster.

How to cut the PTO shaft to the correct length?

The chipper bearings or the tractor PTO may be damaged. If the PTO shaft is too long, it may get stuck when lifting the linkage. If the PTO shaft is too long, it must be cut off. The equal length must shorten the PTO in two halves. 1. Mount the chipper on the three-point linkage of the tractor. 2. Cut off the engine and remove the key. Place the chipper on a solid and flat surface. 3. Lift the three-point linkage so that the power intake shaft of the chipper is at the same level as the PTO of the tractor. The power take-off and air inlet should be closest to this position. 4. Open the PTO shaft. Connect the halfshaft to the chipper so that the locking pin is locked in place. Align the other end of the chipper with the end of the tractor PTO. Place the ends side by side as shown on the right side of the figure. Mark how much must be cut on the shield. The tube must be short enough not to reach the bottom at any chipper position. 5. Cut the plastic pipe. 6. Cut a piece from the profile pipe with the same length as the piece cut from the protective cover. Shorten the other half of the PTO shaft to the same length. How to cut the PTO shaft to the proper length 7. File off the sharp edges of the profile pipe. You need to remove the burrs on the cut end of the PTO shaft to make the PTO slide correctly. We recommend applying grease on both sides of the PTO before reassembly. After reassembling the PTO shaft, it can be connected to the tractor and implemented.

PTO shaft accident problem The PTO shaft used for agricultural equipment may fail due to its high stress and load during operation. Focusing on where the problem occurs will help you determine the cause of the problem. Compression problem Prolonged and continuous compression of the PTO shaft may cause damage to the connection on the PTO shaft, connecting shaft, implement, tractor or bearing. Any of these conditions can be repaired by shortening the length of the PTO shaft. Request help from HZPT's experienced professionals to complete the work correctly and timely, so that you can return to the track of completing the task quickly. abrasion Wear and tear will inevitably occur when operating agricultural equipment. Areas to be noted, especially yoke ears or side edges, may be damaged due to excessive tilting. If the slope exceeds 45 degrees, disconnect the PTO shaft. If the pipe overlap is lack of lubrication, the expansion pipe and pipe section will also be excessively worn. Insufficient lubrication can also lead to excessive wear of shield bearings. Without proper lubrication, the friction between these bearings is too large. They should be lubricated every eight hours.

Damaged or damaged parts When things start to go wrong, or you focus on the area of the machine that normally runs smoothly. Part damage can occur anywhere, from the telescopic tube to the cross bearing arm or the joint to the yoke. Pay attention to the impact load on the equipment and make sure that the type of PTO shaft you use is suitable for the work you want to complete. Heavy equipment may bear great pressure, but it must be stopped if there is any problem before the damage beyond simple repair. Clutch problem Most tractor PTO shaft faults and problems result from improper clutch adjustment or complete absence of clutch. If you plan to rotate farmland or implement continuous contact work, be sure to use sliding clutch to absorb the strike.

PTO shaft maintenance

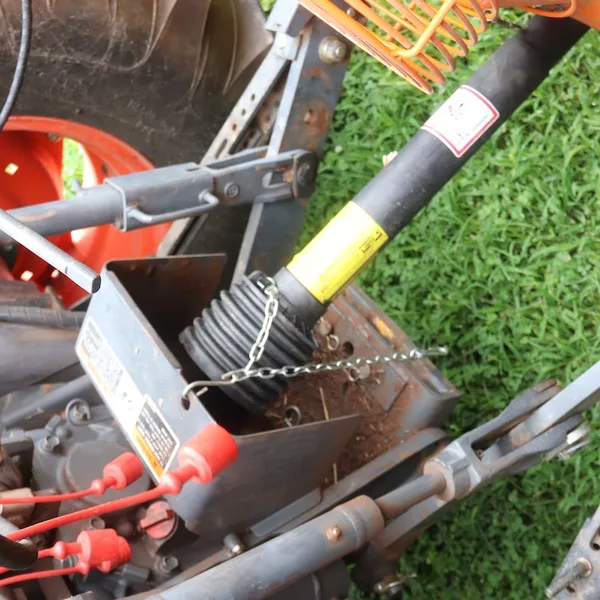

*Periodically lubricate the bearings according to the manufacturer's recommendations - do not over-lubricate the bearings, as excessive grease will attract dust and dust. *If recommended by the manufacturer, clean the inner and outer sliding surfaces of the telescopic part of the guard daily or more frequently - do not grease the sliding area of the guard unless recommended by the manufacturer. Remove the protective cover regularly and clean the shaft with penetrating oil. *Make sure the U-shield on the tractor is in good condition. If bent, the end of the PTO shaft shield may be damaged. *Make sure that the O-ring guard installed on the implement is the correct size and fits the PTO shaft guard. *Make sure that the U-shaped guard on the tractor and the O-shaped guard on the implement overlap the PTO shaft guard by at least 50 mm. *Make sure that the length of the PTO shaft and protective cover is suitable for the machine-PTO shaft protective cover expansion section should be slightly shorter than the length of the PTO drive shaft expansion half (not more than 25mm). *Lubricate the sliding metal PTO drive shaft according to the manufacturer's recommendations (usually before starting work and after eight hours of use). *Make sure that the button on the PTO shaft can move freely, because if the controller or shaft end is hammered into place, the shaft and shield may be damaged. *Maintain the position of the lower lift arms at the rear of the tractor to prevent them from hitting the PTO shaft or shield when the tractor turns - if you make a sharp turn, reduce the speed of the PTO shaft or disconnect the PTO drive to protect the shaft. *Fix the restraint chain in place and fix it in place on the tractor and implement - this is usually near the O-ring guard on the machine and the U-guard on the tractor (this ensures that the chain movement is not restricted) - do not connect the end of the chain to the lower lift arm. *If a bellows type PTO shaft guard is used, make sure that the end of the guard is properly fixed on the tractor and implement to ensure that the drive shaft is completely enclosed in the guard, and replace it if necessary. *If you purchase a new PTO shaft for a heavy drive machine, such as a feed harvester, mower, feeder truck or rotary harvester, make sure that the shaft is heavy and suitable for operation. *Consider installing a PTO shaft with a wide-angle universal joint on the baler, lawn mower, and mud tank truck. *Make sure that the drawbar pin on the towing machine does not stain or damage the shaft or guard.

We also supply agricultural gearbox:https://planetary-gearboxes.en.Raydafon/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
