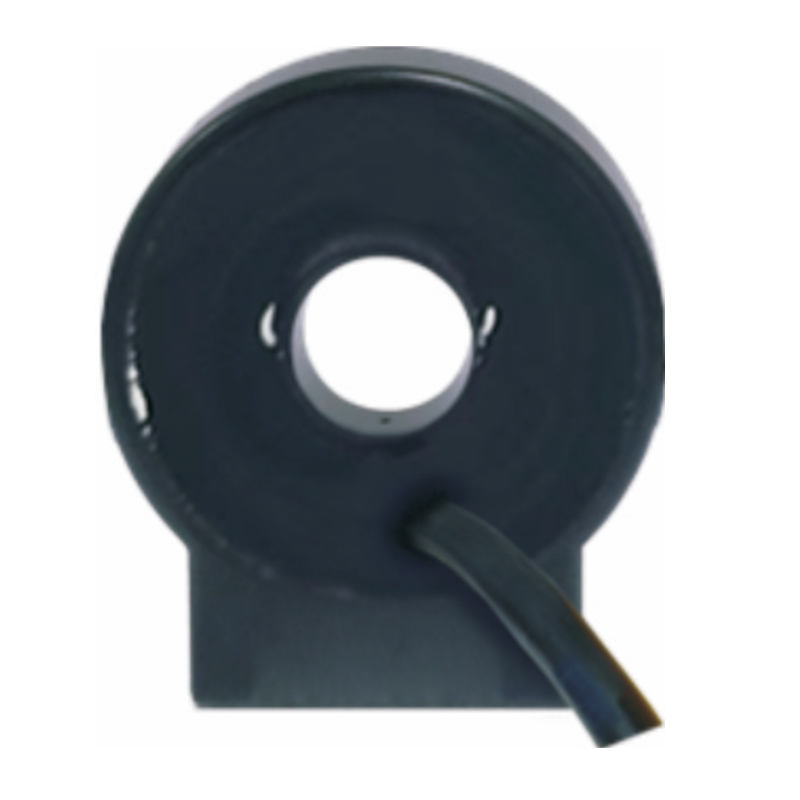

SICA600G AC Current Transformer Electrical Current Transducer

Raydafon Guoup's SICA600G AC Current Transformer measures electrical currents with high accuracy and reliability, ideal for industrial and energy sectors. It features advanced technology, durable materials, and easy installation, solving monitoring challenges and enhancing efficiency. A superior choice for engineers seeking precision and trust.

Send Inquiry

Product Description

High insulation between primary and secondary sides Strong overload capacity

Good temperature characteristics High reliability

Internal electrical system works continuously for 10 years

Lightweight design

Easy to install

Super cost-effective

Model	SICA600G
Range input	AC600mA/0.3mA
Turns ratio	1:2000
Auxiliary power supply	No power required
Linearity	≤0.5%
Phase difference nonlinearity	≤25'
Load capacity	≤2V
Input frequency response	1kHz~3kHz
Linear range	1%~120%
Housing aperture	Φ9mm
Overload capacity	10 times the nominal input current value, lasting 1s, interval 300s, repeated 5 times
Isolation and withstand voltage	2.5kV/50Hz/min×1mA
Working environment	Temperature: -40~85℃; Humidity: ≤95% (no condensation)
Product output lead length	200mm (including male connector), M12 male connector, 2-core
Waterproof level	IP67
Installation and fixing method	Screw fixing
Housing and lead requirements	Low smoke flame retardant
Filling requirements	Resin sealing

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
