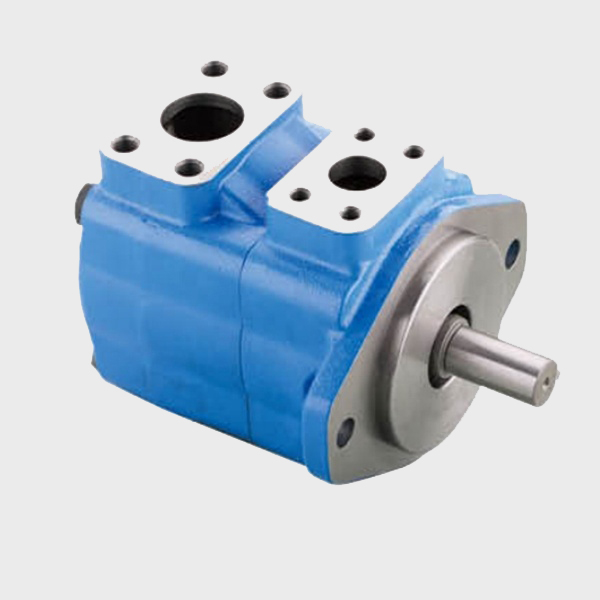

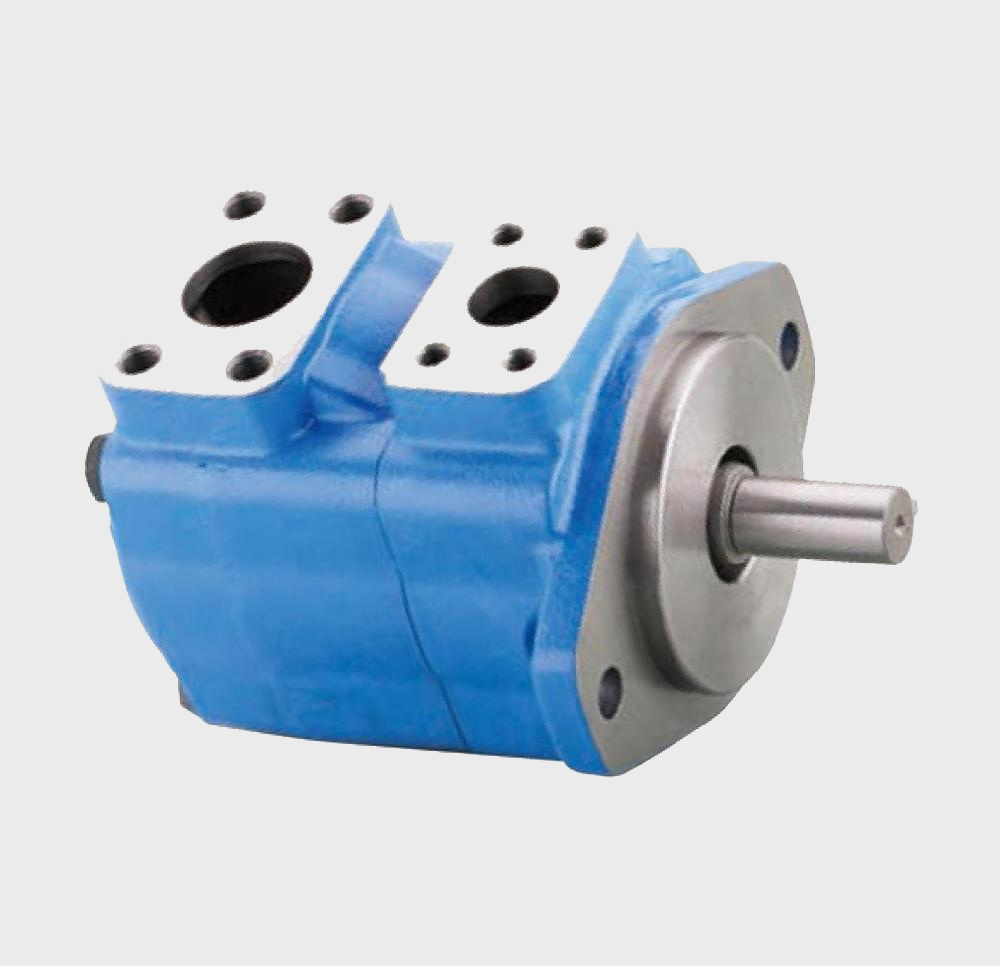

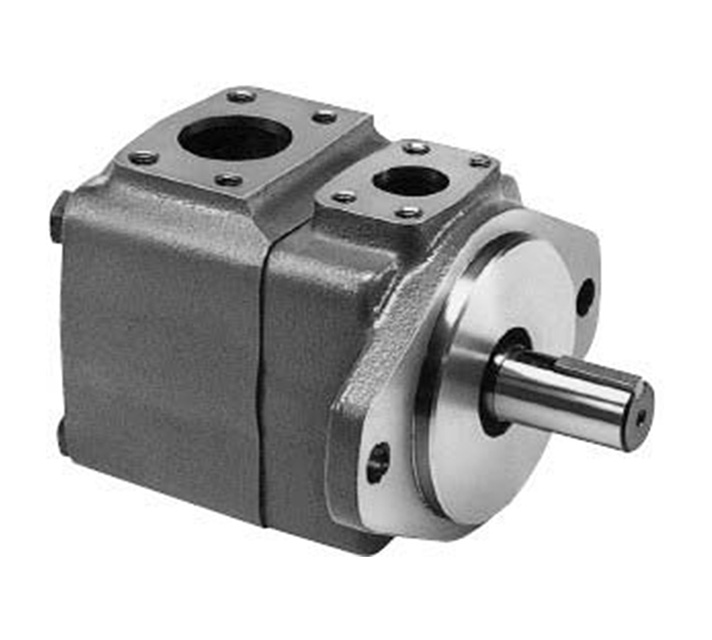

Hydraulic Eaton Vickers V&VQ Vane Pump
20V 25V 35V 45V 20VQ 25VQ 35VQ 45VQ
Features:
• Eaton Vickers V and VQ series are fixed displacement and balanced type hydraulic vane pumps. Available in both 12 vanes design for industrial application with quiet operating and 10 vanes design for mobile application with higher pressure and wider range of speed. They are widely used in hydraulic systems for machine-tools , presses, die casting machine, engineering, plastic injection molding and other machineries.
• Its interchangeable with original Vickers hydraulic pump of the same model.
• The inlet or outlet ports can be rotated through increments of 90°in relation to each other, providing application flexibilityand easy installation.
• With the cartridge independent of the shaft,allowing for easy change of flow capacity and field servicing without removing the pump from its mounting.
• For the vane pump cartridge kit of VQ Series, the flexible plates are inserted between the support plates and the rotor. The flexible plates are assembled with the bronze facing towards the rotor to improve cold start capability and compensate thermal expansion in the rotor. This makes VQ Series particularly suited for mobile
application.
| Specifications | Single Pump V Series | ||||
| Displacement code | Geometric displacement | Anti-Wear Mineral Oil | Weight (KG) | ||
| Series | (ml/r) | Max. speed (rpm) | Max. pressure (MPa) | ||
| 5 | 17 | ||||
| 8 | 27 | 21 | |||
| 9 | 30 | ||||
| 20V | 10 | 33 | 1800 | 16 | 12 |
| vane pump | 11 | 36 | |||
| 12 | 40 | 14 | |||
| 14 | 45 | ||||
| 10 | 33 | ||||
| 12 | 40 | ||||
| 25V | 14 | 45 | 1800 | 17.5 | 14.8 |
| vane pump | 17 | 55 | |||
| 19 | 60 | ||||
| 21 | 67 | ||||
| 21 | 67 | ||||
| 25 | 81 | ||||
| 35V vane pump | 30 | 97 | 1800 | 17.5 | 22.7 |
| 35 | 112 | ||||
| 38 | 121 | ||||
| 42 | 138 | ||||
| 45 | 147 | ||||
| 45V | 50 | 162 | 1800 | 17.5 | 34.1 |
| vane pump | 57 | 180 | |||
| 60 | 193 | ||||
| Single Pump VQ Series | |||||
| Displacement code | Geometric | Anti-Wear Mineral Oil | Weight (KG) | ||
| Series | displacement (ml/r) | Max. speed (rpm) | Max. pressure (MPa) | ||
| 5 | 18 | ||||
| 8 | 27 | 21 | |||
| 20VQ vane pump | 9 | 30 | 2700 | 12 | |
| 11 | 36 | ||||
| 12 | 40 | 16 | |||
| 14 | 45 | 14 | |||
| 10 | 33 | ||||
| 12 | 40 | 2700 | |||
| 25VQ vane pump | 14 | 45 | 21 | 14.8 | |
| 17 | 55 | ||||
| 19 | 60 | 2500 | |||
| 21 | 67 | ||||
| 21 | 67 | ||||
| 25 | 81 | 2500 | |||
| 35VQ vane pump | 30 | 97 | 21 | 22.7 | |
| 35 | 112 | 2400 | |||
| 38 | 121 | ||||
| 42 | 138 | ||||
| 45 | 147 | ||||
| 45VQ vane pump | 50 | 162 | 2200 | 17.5 | 34.1 |
| 57 | 180 | ||||
| 60 | 193 | ||||
| Vickers Vane pump | Displacement | A=opposite inlet port | B=- 90° CCW from inlet | C=inline with inlet | D=- 90° CW from inlet |
| 5 GPM | 20VQ5A1A22R | 20VQ5A1B22R | 20VQ5A1C22R | 20VQ5A1D22R | |
| 8 GPM | 20VQ8A1A22R | 20VQ8A1B22R | 20VQ8A1C22R | 20VQ8A1D22R | |
| Vickers 20VQ pump | 9 GPM | 20VQ9A1A22R | 20VQ9A1B22R | 20VQ9A1C22R | 20VQ9A1D22R |
| 11 GPM | 20VQ11A1A22R | 20VQ11A1B22R | 20VQ11A1C22R | 20VQ11A1D22R | |
| 12 GPM | 20VQ12A1A22R | 20VQ12A1B22R | 20VQ12A1C22R | 20VQ12A1D22R | |
| 14 GPM | 20VQ14A1A22R | 20VQ14A1B22R | 20VQ14A1C22R | 20VQ14A1D22R | |
| 10 GPM | 25VQ10A1A22R | 25VQ10A1B22R | 25VQ10A1C22R | 25VQ10A1D22R | |
| 12 GPM | 25VQ12A1A22R | 25VQ12A1B22R | 25VQ12A1C22R | 25VQ12A1D22R | |
| Vickers 25VQ pump | 14 GPM | 25VQ14A1A22R | 25VQ14A1B22R | 25VQ14A1C22R | 25VQ14A1D22R |
| 17 GPM | 25VQ17A1A22R | 25VQ17A1B22R | 25VQ17A1C22R | 25VQ17A1D22R | |
| 19 GPM | 25VQ19A1A22R | 25VQ19A1B22R | 25VQ19A1C22R | 25VQ19A1D22R | |
| 21 GPM | 25VQ21A1A22R | 25VQ21A1B22R | 25VQ21A1C22R | 25VQ21A1D22R | |
| 21 GPM | 35VQ21A1A22R | 35VQ21A1B22R | 35VQ21A1C22R | 35VQ21A1D22R | |
| Vickers 35VQ pump | 25 GPM | 35VQ25A1A22R | 35VQ25A1B22R | 35VQ25A1C22R | 35VQ25A1D22R |
| 30 GPM | 35VQ30A1A22R | 35VQ30A1B22R | 35VQ30A1C22R | 35VQ30A1D22R | |
| 35 GPM | 35VQ35A1A22R | 35VQ35A1B22R | 35VQ35A1C22R | 35VQ35A1D22R | |
| 38 GPM | 35VQ38A1A22R | 35VQ38A1B22R | 35VQ38A1C22R | 35VQ38A1D22R | |
| 42 GPM | 45VQ42A1A22R | 45VQ42A1B22R | 45VQ42A1A22R | 45VQ42A1D22R | |
| Vickers 45VQ pump | 45 GPM | 45VQ45A1A22R | 45VQ45A1B22R | 45VQ45A1A22R | 45VQ45A1D22R |
| 50 GPM | 45VQ50A1A22R | 45VQ50A1B22R | 45VQ50A1A22R | 45VQ50A1D22R | |
| 57 GPM | 45VQ57A1A22R | 45VQ57A1B22R | 45VQ57A1A22R | 45VQ57A1D22R | |
| 60 GPM | 45VQ60A1A22R | 45VQ60A1B22R | 45VQ60A1A22R | 45VQ60A1D22R | |
| Vickers Vane pump | Displacement | A=opposite inlet port | B=- 90° CCW from inlet | C=inline with inlet | D=- 90° CW from inlet |
| 2520VQ10A51CC22R | 2520VQ12A51CC22R | 2520VQ14A51CC22R | 2520VQ17A51CC22R | ||
| 2520VQ10A81CC22R | 2520VQ12A81CC22R | 2520VQ14A81CC22R | 2520VQ17A81CC22R | ||
| Vickers 2520VQ pump | Front and rear 5, 8,9, 11,12, 14, | 2520VQ10A91CC22R | 2520VQ12A91CC22R | 2520VQ14A91CC22R | 2520VQ17A91CC22R |
| 17, 19, 21 | 2520VQ10A111CC22R | 2520VQ12A111CC22R | 2520VQ14A111CC22R | 2520VQ17A111CC22R | |
| 2520VQ10A121CC22R | 2520VQ12A121CC22R | 2520VQ14A121CC22R | 2520VQ17A121CC22R | ||
| 2520VQ10A141CC22R | 2520VQ12A141CC22R | 2520VQ14A141CC22R | 2520VQ17A141CC22R | ||
| 3520VQ25A51CC22R | 3520VQ30A51CC22R | 3520VQ35A51CC22R | 3520VQ38A51CC22R | ||
| 3520VQ25A81CC22R | 3520VQ30A81CC22R | 3520VQ35A81CC22R | 3520VQ38A81CC22R | ||
| Vickers 3520VQ pump | Front and rear 5, 8,9, 11,12, 14, | 3520VQ25A91CC22R | 3520VQ30A91CC22R | 3520VQ35A91CC22R | 3520VQ38A91CC22R |
| 21,25, 30, 35, 38 | 3520VQ25A111CC22R | 3520VQ30A111CC22R | 3520VQ35A111CC22R | 3520VQ38A111CC22R | |
| 3520VQ25A121CC22R | 3520VQ30A121CC22R | 3520VQ35A121CC22R | 3520VQ38A121CC22R | ||
| 3520VQ25A141CC22R | 3520VQ30A141CC22R | 3520VQ35A141CC22R | 3520VQ38A141CC22R | ||
| Front and rear 10,12, 14, | 3525VQ25A101CC22R | 3525VQ25A121CC22R | 3525VQ25A141CC22R | 3525VQ25A171CC22R | |
| Vickers 3525VQ pump | 17,19,21,25, 30, | 3525VQ30A101CC22R | 3525VQ30A121CC22R | 3525VQ30A141CC22R | 3525VQ30A171CC22R |
| 35, 38 | 3525VQ35A101CC22R | 3525VQ35A121CC22R | 3525VQ35A141CC22R | 3525VQ35A171CC22R | |
| 3525VQ38A101CC22R | 3525VQ38A121CC22R | 3525VQ38A141CC22R | 3525VQ38A171CC22R | ||
| 4520VQ42A51AA22R | 4520VQ45A51AA22R | 4520VQ50A51AA22R | 4520VQ60A51AA22R | ||
| 4520VQ42A81AA22R | 4520VQ45A81AA22R | 4520VQ50A81AA22R | 4520VQ60A81AA22R | ||
| Vickers 4520VQ pump | Front and rear 5, 8, 9, 11,12, 14, | 4520VQ42A91AA22R | 4520VQ45A91AA22R | 4520VQ50A91AA22R | 4520VQ60A91AA22R |
| 42, 45, 50, 57, 60 | 4520VQ42A111AA22R | 4520VQ45A111AA22R | 4520VQ50A111AA22R | 4520VQ60A111AA22R | |
| 4520VQ42A121AA22R | 4520VQ45A121AA22R | 4520VQ50A121AA22R | 4520VQ60A121AA22R | ||
| 4520VQ42A141AA22R | 4520VQ45A141AA22R | 4520VQ50A141AA22R | 4520VQ60A141AA22R | ||
| 4535VQ42A251AA22R | 4535VQ45A251AA22R | 4535VQ50A251AA22R | 4535VQ60A251AA22R | ||
| Vickers 4535VQ pump | Front and rear 21, 25, 30, 35, 38, | 4535VQ42A301AA22R | 4535VQ45A301AA22R | 4535VQ50A301AA22R | 4535VQ60A301AA22R |
| 42, 45, 50, 57, 60 | 4535VQ42A351AA22R | 4535VQ45A351AA22R | 4535VQ50A351AA22R | 4535VQ60A351AA22R | |
| 4535VQ42A381AA22R | 4535VQ45A381AA22R | 4535VQ50A381AA22R | 4535VQ60A381AA22R |
For more detailed model number, please contact our company.
