Product Description

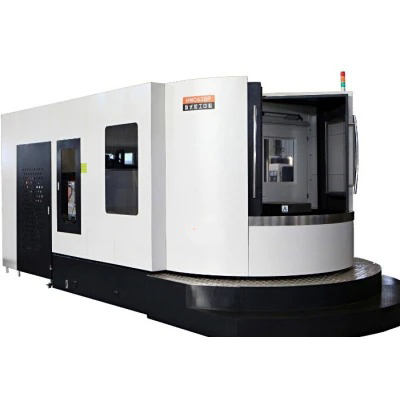

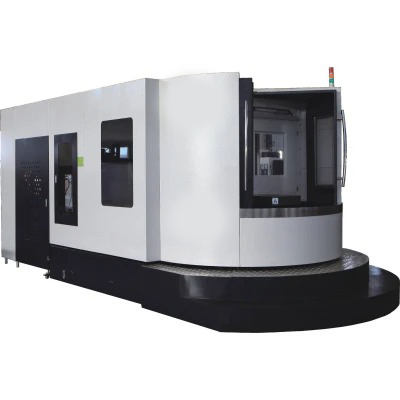

HMC800 horizontal machining center

The HMC800 Horizontal Milling Machine is a powerful and versatile machine tool designed for efficient and precise milling operations across various industries. Advantages: 1. High Precision: The HMC800 offers exceptional precision and accuracy, ensuring tight tolerances and superior surface finishes for the machined parts. 2. Rigidity and Stability: With its robust construction and rigid bed, the HMC800 provides excellent stability during heavy-duty cutting operations, minimizing vibrations and ensuring consistent results. 3. Versatility: This milling machine features multi-axis capabilities, allowing for complex machining tasks and accommodating a wide range of workpiece sizes and geometries. 4. High Productivity: Equipped with a high-speed spindle and an efficient tool change system, the HMC800 enables fast and efficient production, reducing cycle times and maximizing productivity. 5. Advanced Control System: The machine incorporates a user-friendly control interface, facilitating easy programming, operation, and monitoring of milling processes. Applications: The HMC800 Horizontal Milling Machine finds applications in various industries, including: 1. Automotive: It is used for milling engine blocks, transmission components, chassis parts, and other automotive components. 2. Aerospace: The HMC800 is employed to machine complex aerospace parts, such as aircraft structural components, landing gear parts, and turbine components. 3. Mold and Die Making: It is widely utilized for milling molds and dies used in plastic injection molding, die casting, and other molding processes. 4. General Machining: The HMC800 caters to a wide range of general milling applications, including milling, drilling, tapping, and contouring operations on various materials. In summary, the HMC800 Horizontal Milling Machine offers high precision, versatility, and productivity, making it a valuable asset in industries requiring complex and precise milling operations. Its applications span across automotive, aerospace, mold and die making, and general machining, providing reliable and efficient solutions for diverse manufacturing needs.

HMC63

HMC500

HMC500P

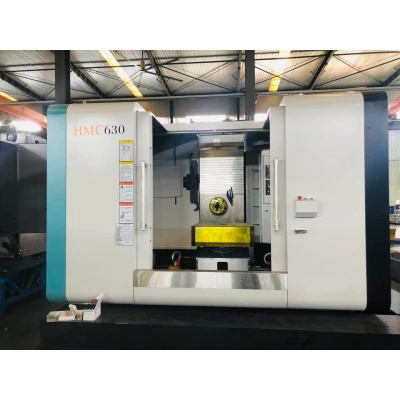

HMC630

HMC630P

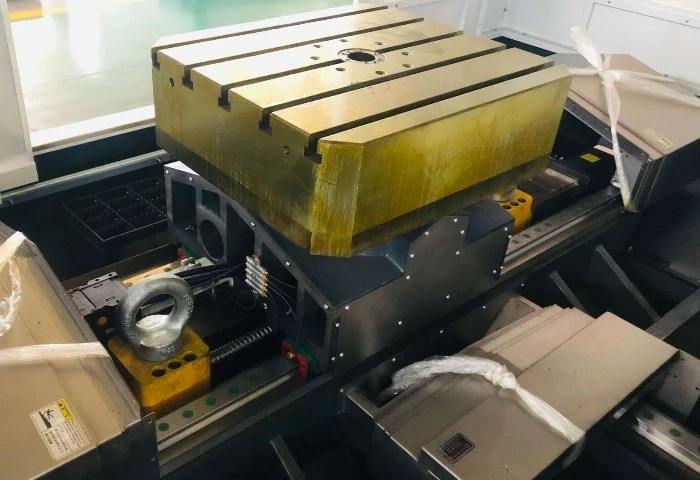

Workbench

Single pallet

Dounle pallets

Single pallet

Dounle pallets

Workbench size

630x630

500×600

630x700

The maximum load-bearing capacity of the workbench

1200

600

950

Number of workbenches

Table form

24xM16 threaded hole

Distance from the centerline of the spindle to the workbench

100 ~ 1000

120 ~ 870

0 ~ 750

120 ~ 870

0 ~ 750

Distance from workbench center to spindle end face

50 ~ 1080

130 ~ 1030

Workpiece rotation diameter

Φ1050

Φ1380

Φ950

Φ1380

Φ950

Workbench indexing

1° x360

1° x360 / 0.001°

Type of platform replacement structure

turn type

Workbench exchange time

3-Axis

stroke

1050/900/1030

1050/750/900

Fast Moving Distance (XNY2)

m/min

60/60/60

30/30/30

B-axis fast movement speed

m/min

Main spindle

Main spindle power (basic configuration)

18.5-26

15/18.5

Maximum speed (basic configuration)

rpm

8000

6000

Spindle hole thrust

BT50

Main spindle inner diameter

100

Positioning accuracy (national standard

positioning accuracy

0.01 (entire process)

Repetitive positioning accuracy

0.006

B-axis indexing accuracy

6″

10″

B-axis repeated indexing accuracy

1″

5″

Tool magazine

Tool magazine capacity

Tool selection method

Two-way arbitrary

Tool change time

2.5

4.5

External dimensions

Length * width * height

6485x3865x3300

4800×3700×2850

6600×4300×2850

4800×3700×2800

6600×4300×2850

Machine weight

18200

11000

13000

12000

14000

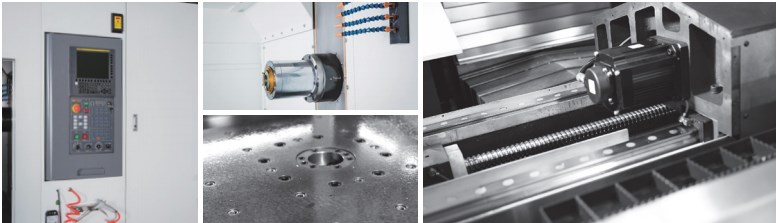

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
