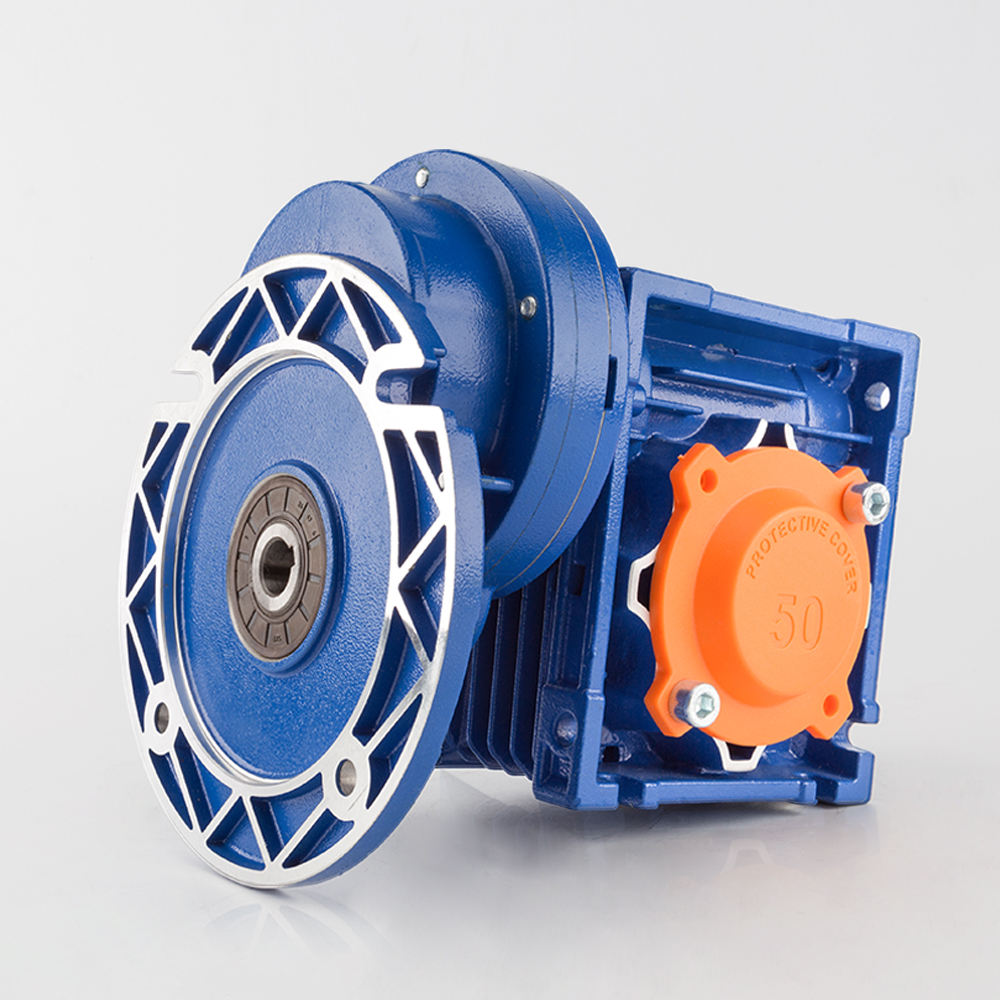

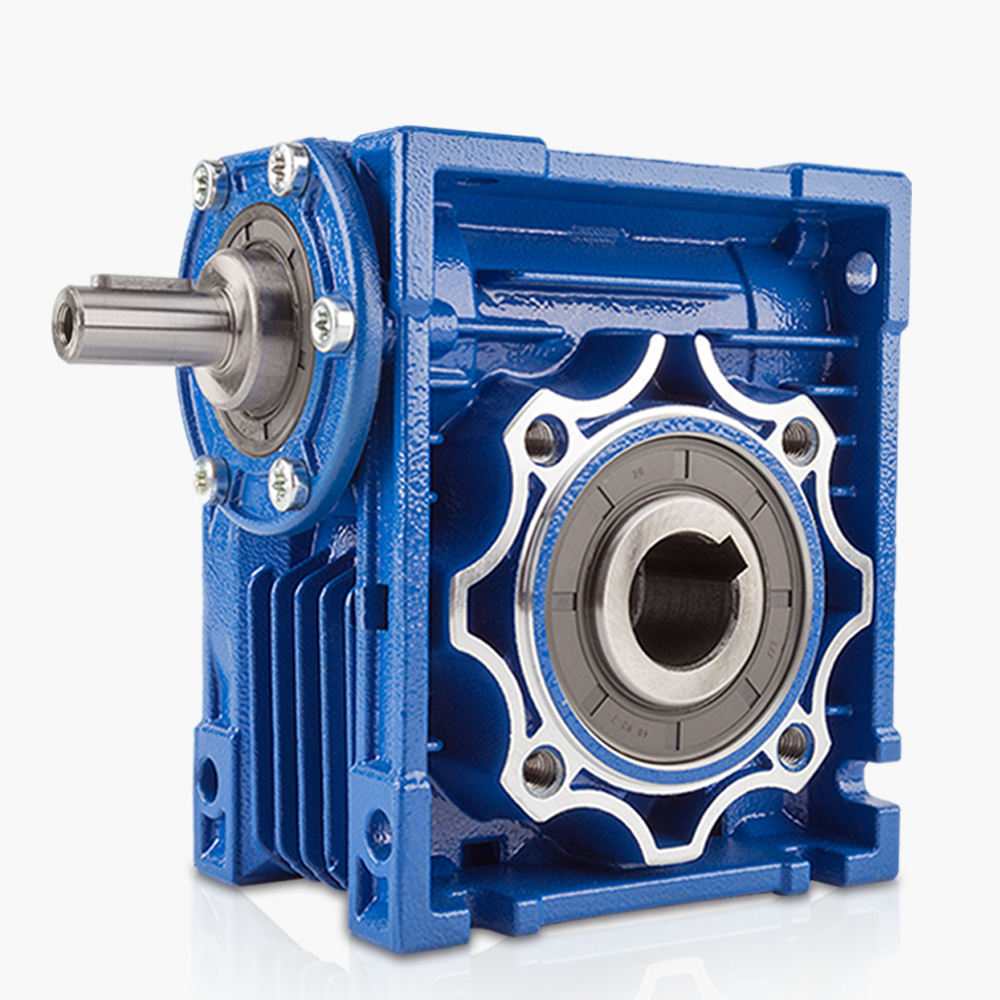

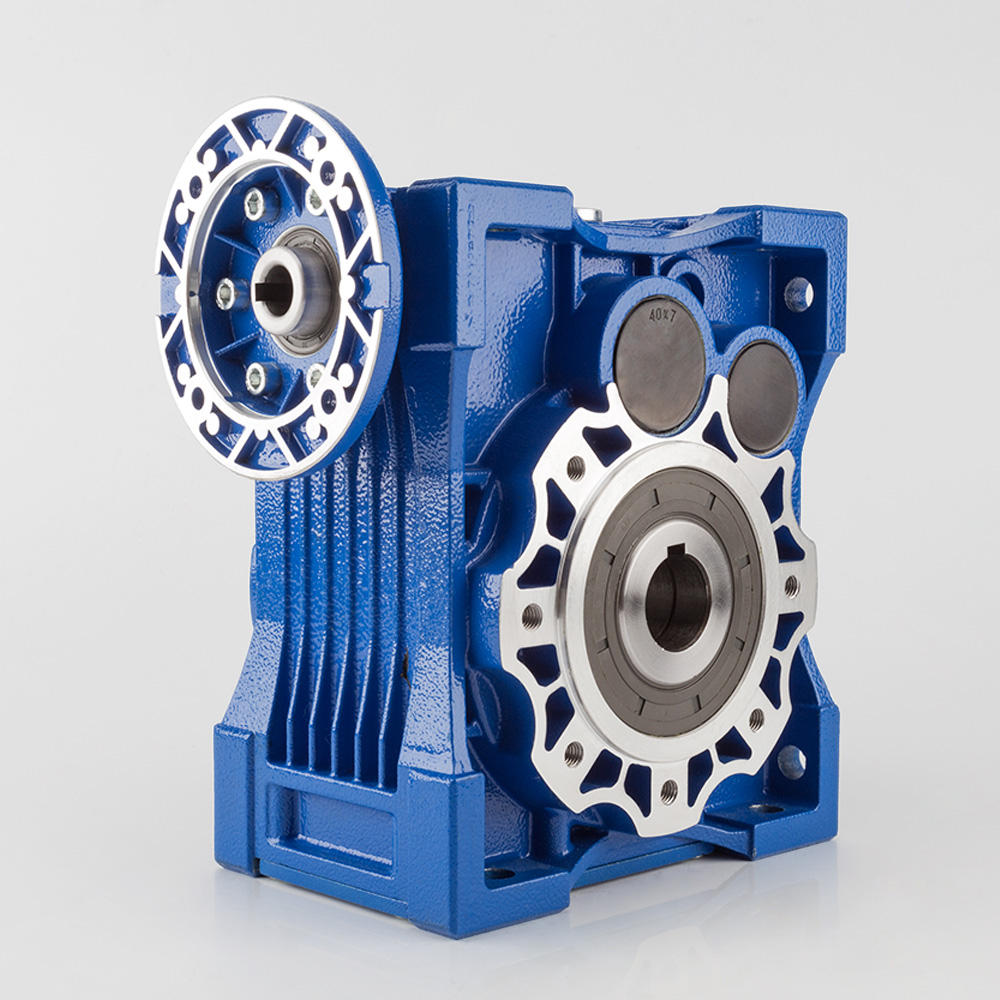

NMRV Worm Speed Reducer with Cast Iron Motor Reductor Worm Drive Motor

Features:

1) Made of high quality cast iron,customised worm reducer for textile machinery.

2) Large output torque, stable transmission with lower noise

3) High heat-radiating efficiency, durable service life and fully sealed

4) Suitable for omnibearing installation

Technical data:

1) Basic type:NMRV110 /NMRV130

 2) Speed ratio: 7.5/10/15/20/25/30/40/50/60/80/100

3) Input power: 0.25~1.5kW

4)The distance between the centers of worm and worm gear is 110mm 130mm 150mm

NMRV worm gearbox with  motor :

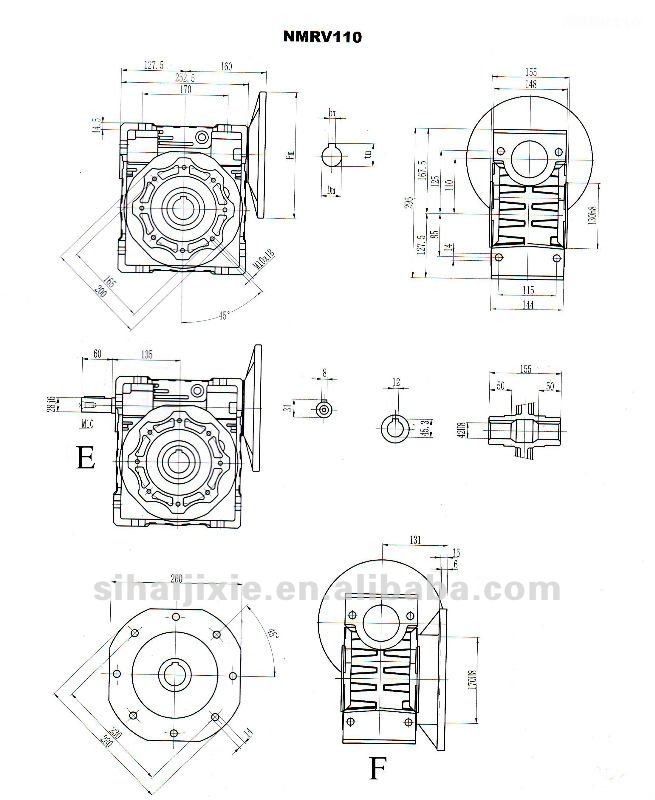

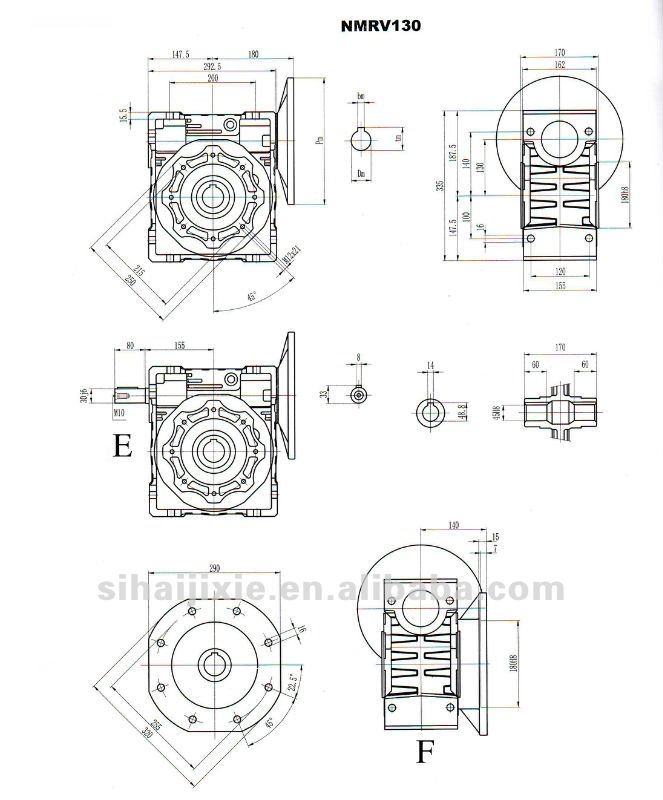

Detail outline dimension:
