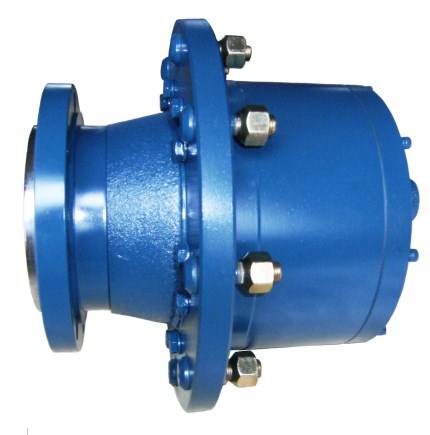

Model 8 Series Max. Input Speed 3500rpm Planetary Gearbox Replacement of AUBURN (Wheel Drives)

Products Description Model 8 series planetary gearbox The Model 8 series planetary gearbox is a high-performance gearbox suitable for various industrial and commercial applications. It has two configurations: inline and right angle to meet different application requirements. The Model 8 series plan......

Send Inquiry

Product Description

Products Description

Model 8 series planetary gearbox The Model 8 series planetary gearbox is a high-performance gearbox suitable for various industrial and commercial applications. It has two configurations: inline and right angle to meet different application requirements. The Model 8 series planetary gearbox adopts a high-strength and precision machined planetary gear system, which can provide high torque output, precise speed control, and smooth and efficient power transmission. Gearboxes are designed to handle high radial and axial loads, making them ideal for demanding applications that require high power density and precise control. Model 8 series planetary gearbox The gearbox has various transmission ratios that can be customized to meet specific torque and speed requirements. It is also designed to be easily integrated with multiple motors, making it a popular choice for applications that require high power density and precise control. Model 8 Series Max. Input Speed 3500rpm Planetary Gearbox Replacement of AUBURN (Wheel Drives)

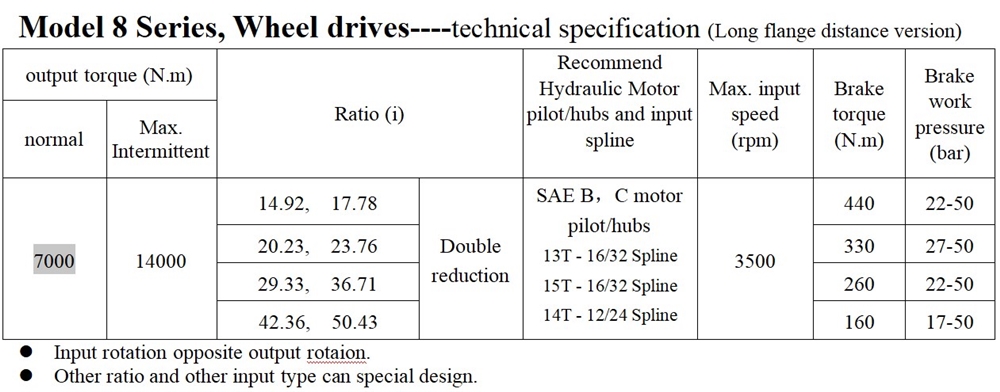

FEATURE CHART: MODEL 8 SERIES,WHEEL DRIVES REDUCTION - STYLE W (Long flange distance version)

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 8

MOTOR PILOT/HUBS

SAE B

SAE B1

SAE C

MOTOR INPUT SPLINE

13T - 16/32

15T - 16/32

14T - 12/24

RATIO OPTIONS

14.92, 17.78
20.23, 23.76
29.33, 36.71
42.36, 50.43

14, 17
20, 23
29, 36
42, 50

OUTPUT OPTIONS

1/2×2.50
9/16×2.75
5/8×2.37
3/4×3.21
NONE

5
7
8
11
0

BRAKE

160Nm

B4D

260Nm

B4F

330Nm

B4H

440Nm

B4L

Without Brake

DISCONNECT

With disconnect

Without disconnect

NONE

Example of complete order code:

B4H

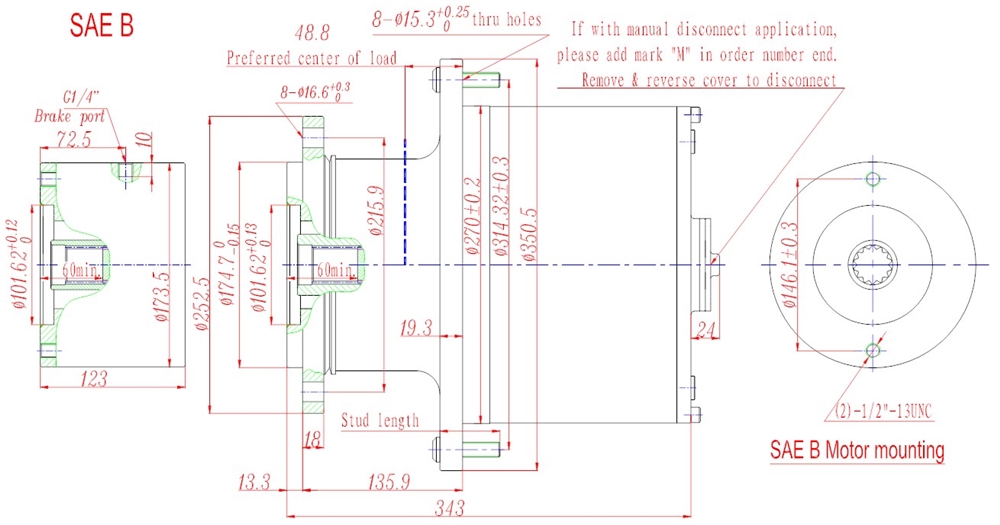

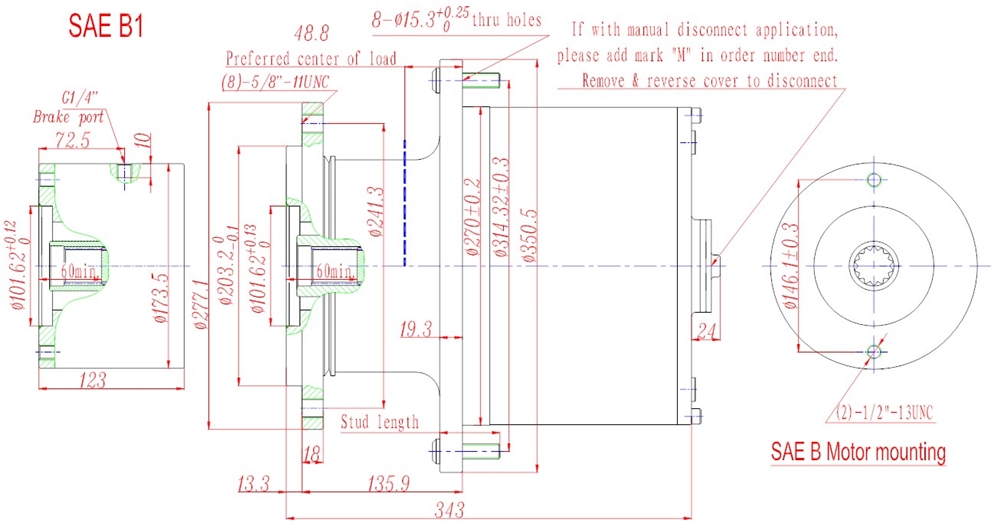

Model 8 Series, Wheel drives---dimensions (Long flange distance version)

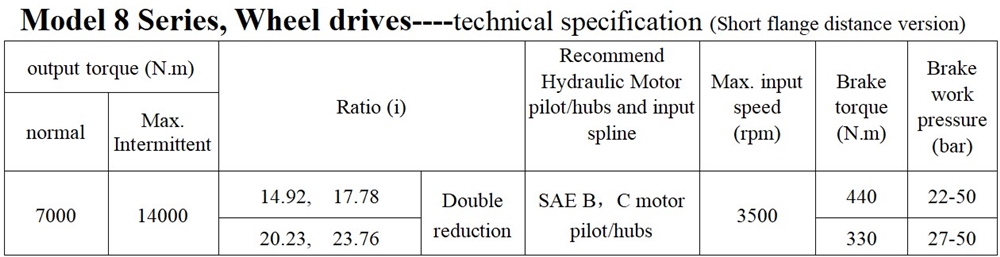

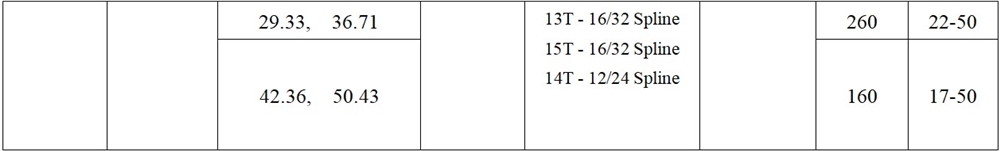

FEATURE CHART: MODEL 8 SERIES,WHEEL DRIVES REDUCTION - STYLE W (Short flange distance version)

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 8

MOTOR PILOT/HUBS

SAE B4

SAE B5

SAE C4

SAE C5

MOTOR INPUT SPLINE

13T - 16/32

15T - 16/32

14T - 12/24

RATIO OPTIONS

14.92, 17.78
20.23, 23.76
29.33, 36.71
42.36, 50.43

14, 17
20, 23
29, 36
42, 50

OUTPUT OPTIONS

1/2×2.50
9/16×2.75
5/8×2.37
3/4×3.21
NONE

5
7
8
11
0

BRAKE

160Nm

B4D

260Nm

B4F

330Nm

B4H

440Nm

B4L

Without Brake

DISCONNECT

With disconnect

Without disconnect

NONE

Example of complete order code:

B4H

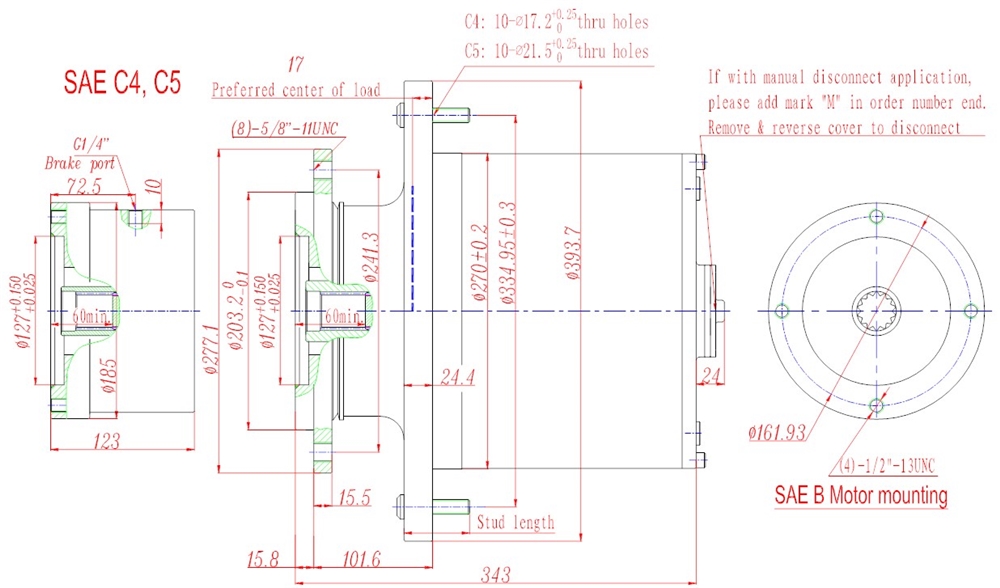

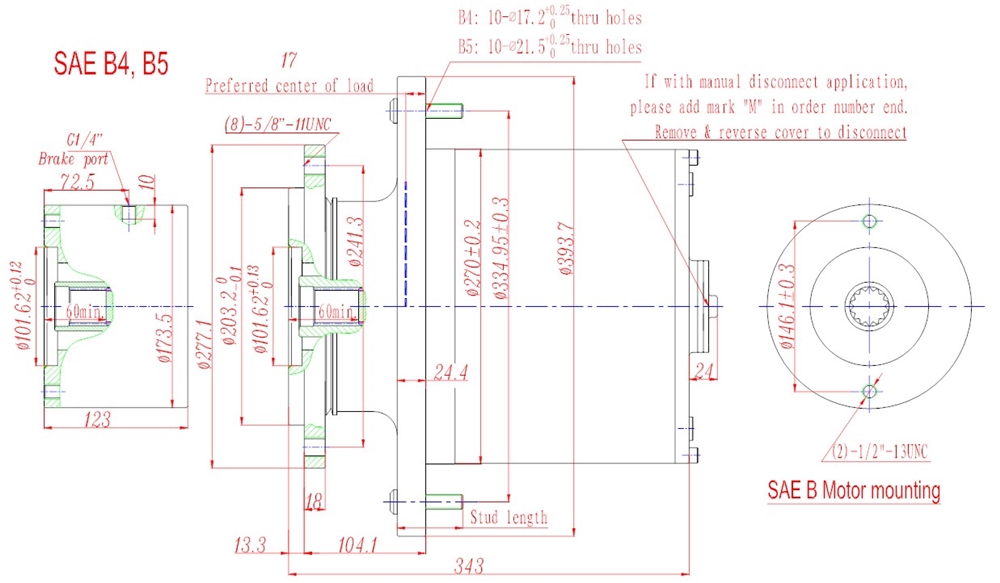

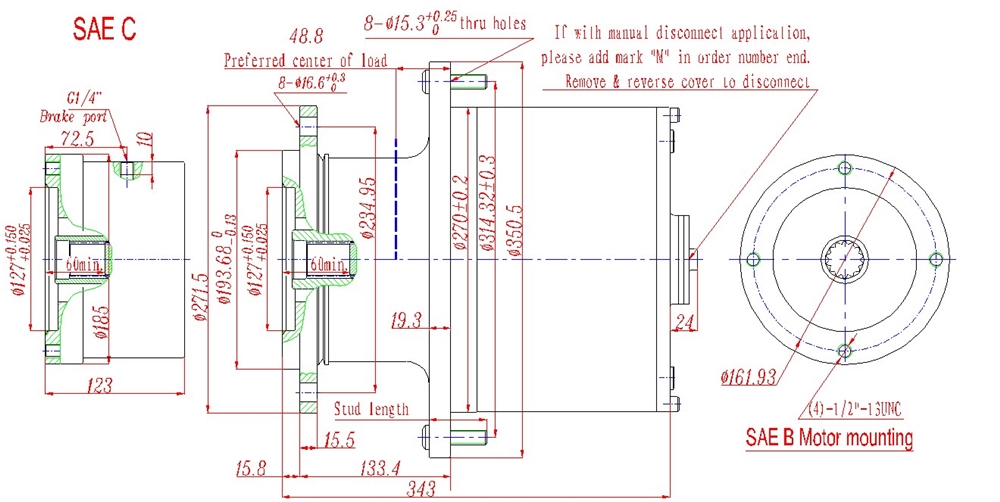

Model 8 Series, Wheel drives---dimensions (Short flange distance version)

Application of 8-series planetary gearboxThe Model 8 series planetary gearbox is a multifunctional gearbox that can be used in various industrial and commercial applications that require high torque output, precise speed control, and efficient power transmission. The following are some specific applications of the Model 8 series planetary gearbox: Model 8 series planetary gearbox Material-handling equipment: Material-handling equipment, such as conveyor systems and elevators, requires accurate speed control and high torque output to operate effectively. The Type 8 series planetary gearbox is used in the drive system of these machines to provide necessary power and control for efficient material handling. Packaging machinery: Packaging machinery, such as filling and sealing machines, require precise speed control and high torque output to operate effectively. The Type 8 series planetary gearbox is used in the drive system of these machines, providing the power and precise control required for efficient and reliable operation.Robots: Robotic applications require high precision, control, and torque output to achieve efficient operation. The Model 8 series planetary gearbox is used as a driving system for robot applications, providing the necessary power and control for precise and efficient motion. Renewable energy: Renewable energy applications such as wind turbines and solar trackers require precise speed control and high torque output to achieve efficient power generation. The Type 8 series planetary gearbox is used in the drive system of these machines to provide necessary power and control for efficient and reliable power generation. Mining equipment: In order to operate efficiently, mining equipment such as conveyors and crushers require high torque output and precise speed control. The Type 8 series planetary gearbox is used in the drive system of these machines to provide the necessary power and control for efficient mining operations. Overall, the Model 8 series planetary gearbox is a reliable and efficientsolution suitable for various industrial and commercial applications that require high power density, precise control, and durability. Its versatility, modular design, and high-performance characteristics make it an ideal choice for various applications.

Our FactoryAt present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting moderncomputer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.
