Hot Sale American Standard 3V Series Cast Iron Sheaves with Three-Groove V-Belt Customizable OEM Support Split Taper Bushings
3V Series Cast Iron Three-Groove Sheaves with Split Taper Bushings3V series three groove tapered bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 2.65 "to 33.50". According to the pulley size, they use G, H, P1, Q1 or R1 split taper bushings, ......

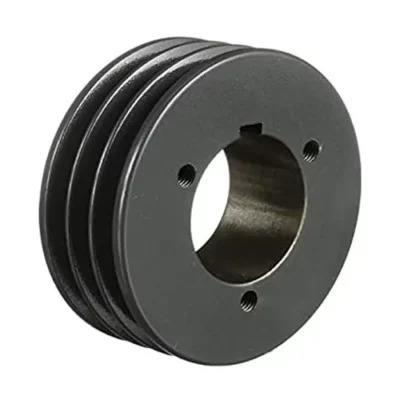

3V Series Cast Iron Three-Groove Sheaves with Split Taper Bushings
3V series three groove tapered bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 2.65 "to 33.50". According to the pulley size, they use G, H, P1, Q1 or R1 split taper bushings, which we also have in stock. Our three groove 3V split taper pulleys are mostly made of high-strength 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

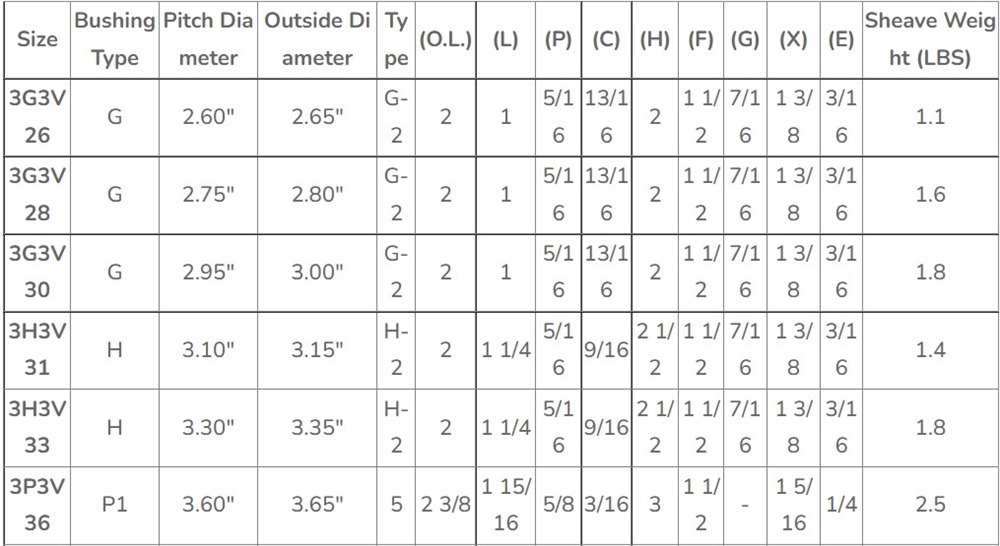

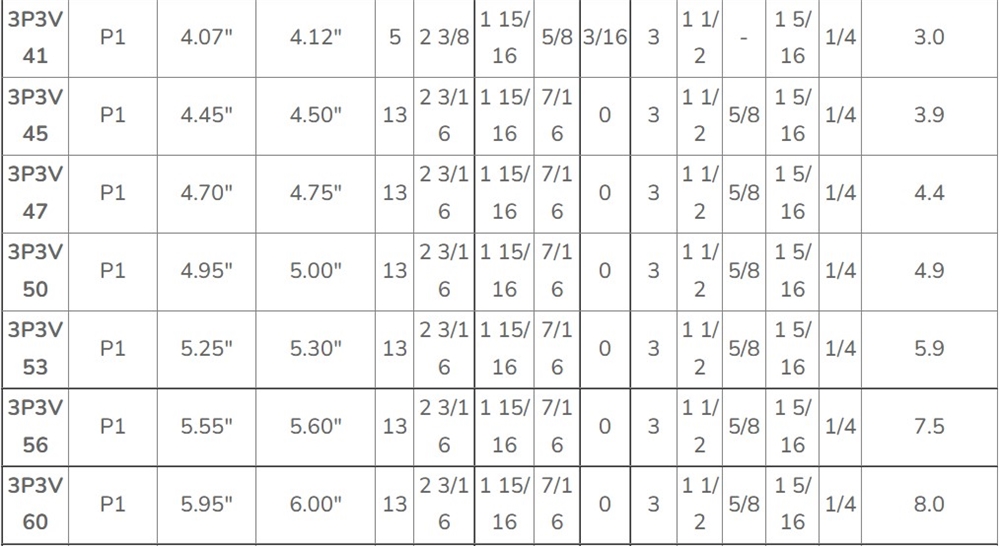

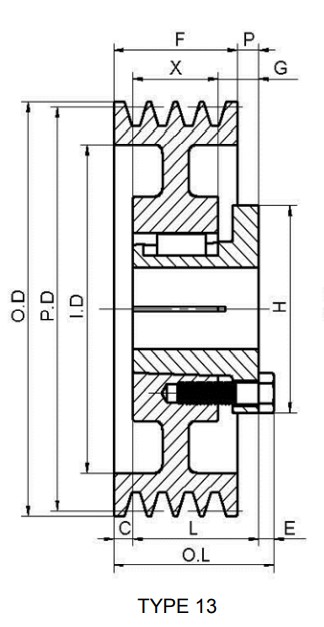

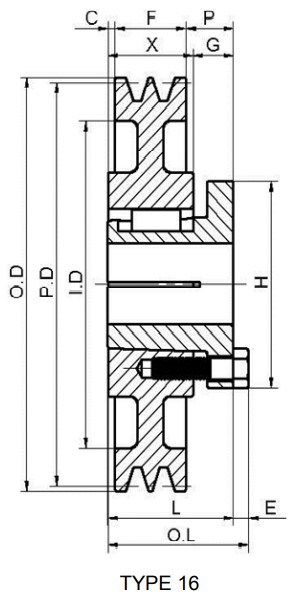

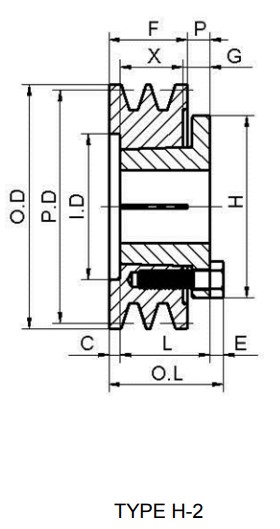

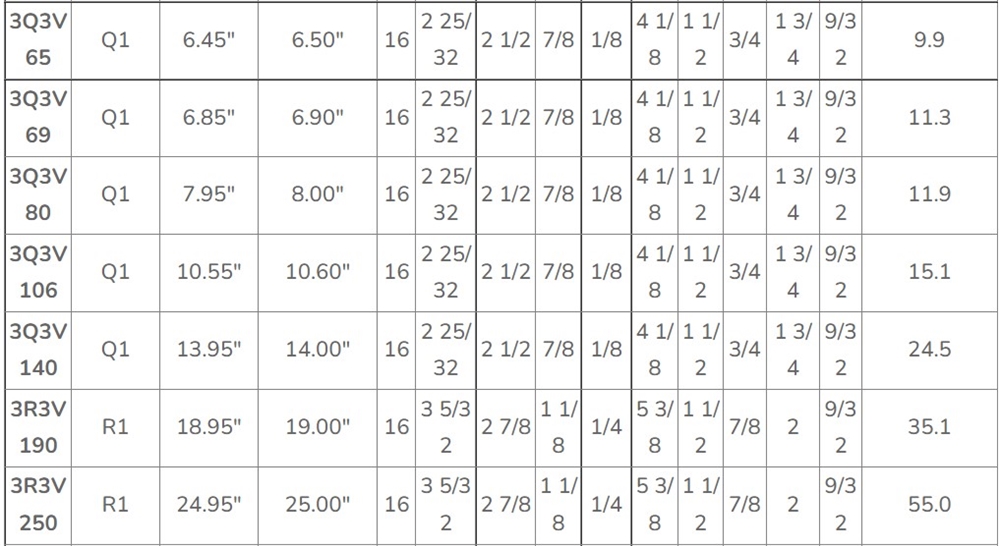

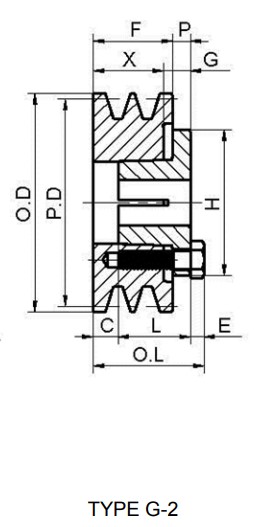

Three-Groove 3V Split Taper Sheave Size Chart
For more details, please click here to contact us!
How to select the correct 3V pulley and V-belt?
The 3V pulley is a mechanical pulley used to rotate the 3V belt. These pulleys, also known as V-pulleys, are usually placed side by side. The circumference of a single pulley may have multiple grooves. When used for multiple belt drives, torque is distributed across multiple belts, providing mechanical redundancy.
Compared with other mechanical drives, belt drives have several advantages. For example, they can provide opposite rotation without a driveline. They are also easier to maintain and clean than different drive types. They are also more flexible and do not require oil or grease to work. These advantages make them more affordable than other drive types.
When selecting a 3V pulley, you must understand the working principle of the cross section. The cross section of the V-belt is usually described as a trapezoid with the top and bottom parallel. The pitch line, the distance between the top and bottom surfaces, and the inside and outside lengths are critical. Understanding these features will ensure that you choose the correct size for your application.
Match 3V, 3VX series V belt
(1) 3V series V-belt
The classic 3V series V-belt has a top width of 0.38 ", a thickness of 0.31" and an angle of 38 °, which also classifies it as a deep wedge V-belt. The 3V series belt is designed to be more compact and more powerful than the standard 40 ° angle v-belt. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 3V series v-belts we provide are manufactured according to ISO 9001 specifications and ARPM standards; They are oil and heat resistant and can be directly interchanged with other brands. The 3V conveyor belt is made of natural rubber compound and polyester rope, and is covered with a mixture of cotton and polyester, with high durability. The 3V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. We also stock a complete set of high-power v-belts and matching v-belt pulleys/pulleys.
(2) 3V series ribbon V-belt
The 3V series v-belts are part of the "classic" series of v-belts because they are one of the oldest and most common styles used. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of the 3V series v-belt is 0.38 inches.
(3) 3VX toothed V-belt
The top width of the 3VX toothed v-belt is 0.38 "and the thickness is 0.31". Our grooved 3VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 3VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 3VX toothed v-belt or pulley, and we are happy to help you.
(4) 3VX belt toothed V-belt
All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 3VX toothed v-belt runs more smoothly and loosely, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs.

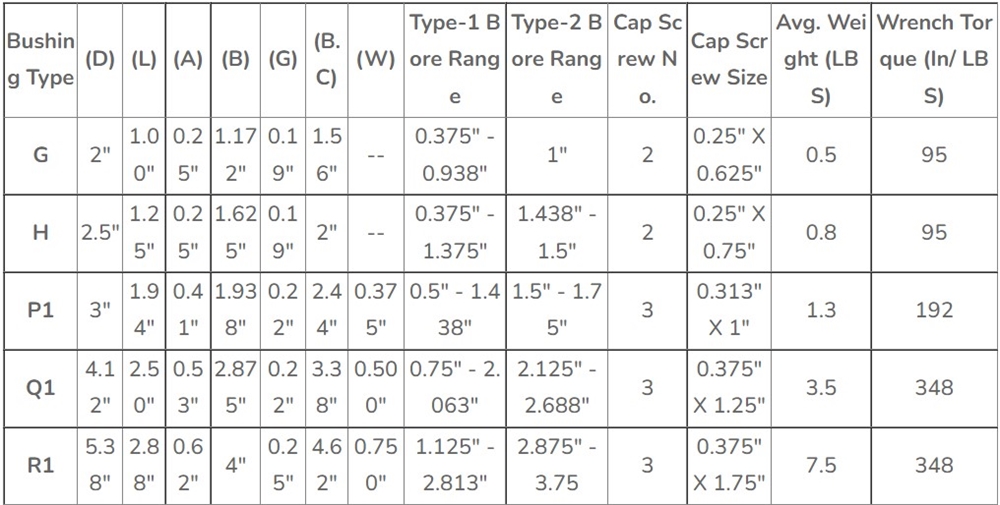

Accessories Split Taper Bushings
Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. Our high-quality split taper bushing is made of high-quality steel or casting material and can be interchanged with any other brand. It is designed as a flange bushing with a tapered cylinder and a slit on each side. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters. For more information or to get a quote for our high-strength open taper bushing, please contact our customer support team and we will be happy to help you.
Working principle and characteristics of pulley
The working principle of the belt pulley is that the belt connects the driving belt pulley and the driven belt pulley, and the power is driven by the friction generated by the friction between the belt pulley and the belt. The belt pulley drive operates stably, with low noise, small vibration, simple structure and convenient maintenance. The disadvantage is that it is difficult to install, easy to slip after a long time of use, and the transmission efficiency cannot be guaranteed.
The taper sleeve pulley is a new type of pulley widely used in Europe and America. It consists of two parts. A conical sleeve is connected between the belt pulley and the mounting shaft, and then locked with an Allen wrench to fix the screw. The belt pulley solves the complicated problem of traditional belt pulley installation. It doesn't need external force as before. Pullers, hammers and other items only need an Allen wrench to complete the installation. After installation and use, even if the belt pulley is worn and slippery, it is not necessary to replace the entire belt pulley at the same time. Only one installation cone sleeve can continue to be used, which can greatly reduce the use cost.
Use Scenarios of 3V Split Tapered Pulley
*Machine tool
*Crusher, pulverizer, crusher, classifier, vibrating screen
*Material conveying system
*Fans, blowers and exhausters
*Pumps and compressors
*Woodworking saw, milling machine, planer, lathe
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
