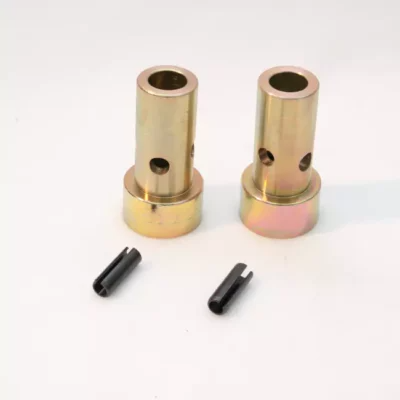

CAT 1 Quick Hitch Adapter BushingsCAT 1 quick hitch adapter bushing is a small metal insert designed to adjust the lower link connection point on the tractor from one size to another, so as to use different sizes of hitches. CAT 1 mark refers to the size of the hitch, which is the standard size comm......
CAT 1 quick hitch adapter bushing is a small metal insert designed to adjust the lower link connection point on the tractor from one size to another, so as to use different sizes of hitches. CAT 1 mark refers to the size of the hitch, which is the standard size commonly used for small tractors in agriculture. For example, if a farmer has a large accessory that requires a CAT 2 hitch, but only one tractor with a CAT 1 hitch, an adapter bushing can be used. The bushing is used as a connector to allow accessories to be used with smaller hitches.
Most Cat 1 quick hitches require a bushing to be installed on the lower pin in order to adapt the attachment to the quick hitch. They will be installed on any 7/8-inch pin to accommodate any Cat 1 quick hitch that requires bushings.
Function - For the quick hitch system, these bushes are used for CAT 1 (category 1) implements, and they can help to fix the equipment accessories to be connected to the rear of the tractor.
Accessories - suitable for Class 1 three-point tractors, compatible with Speedo John Deere Jeffers and more quick hitches. The bushing kit includes 2 quick-hitch bushings and 4 roll pins.
Material - made of high-quality steel, solid and durable, with galvanized surface to ensure rust prevention and corrosion resistance.
Easy to install - the quick-hitch system is easy to install, and the roll pin can be inserted with only one hammer.
Weight 17 lbs
Available length of shoulder bushing 2-7/8 inches
Total length of shoulder bushing 4 inches
Why choose our adapter bushing?
Adapter bush kit for CAT 1 quick hitch
Quick hitch bushing kit: This 3-ton bushing kit allows you to adjust the implement to install the quick hitch. Simply slide the bushing onto the lower lift pin and the top link pin to reduce and eliminate the spacing, so as to obtain a better and stronger fit.
Made of coated steel: each bushing will be made of galvanized steel. This coating can prevent rust and corrosion of steel, so you don't have to worry about bushing damage over time.
Six top link pin adapters: This quick hitch bushing kit will include a total of six top link pin adapters. These adapters vary in length and thickness, allowing you to convert type 0, type 1, and type 2 top attachment pins to better fit the quick hitch.

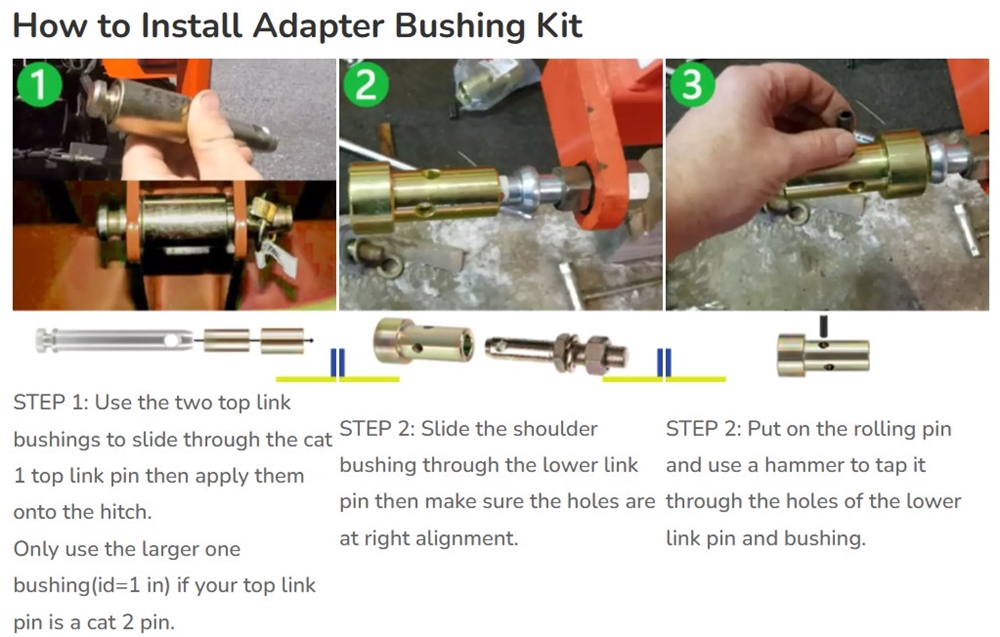

Easy to install: Use this bushing kit to install quickly and easily. Slide the top link bushing onto the top link pin and use the shoulder bushing on the lower lift pin. Fix the shoulder bushing in place with the connected roll pin.

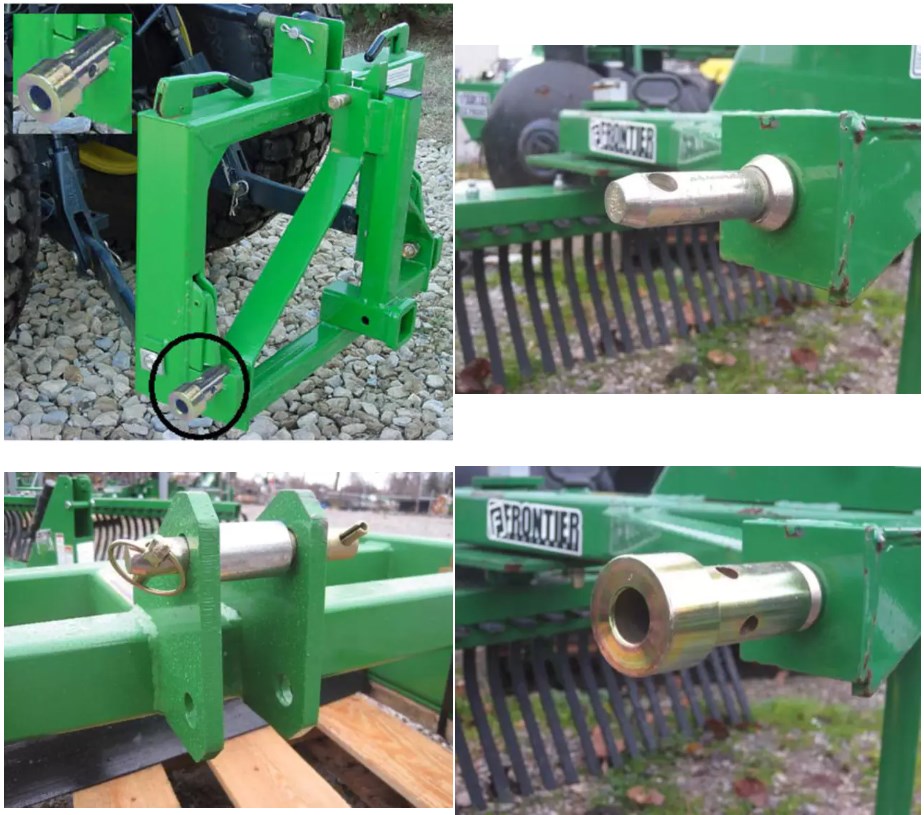

Adapter bushing on quick hitch

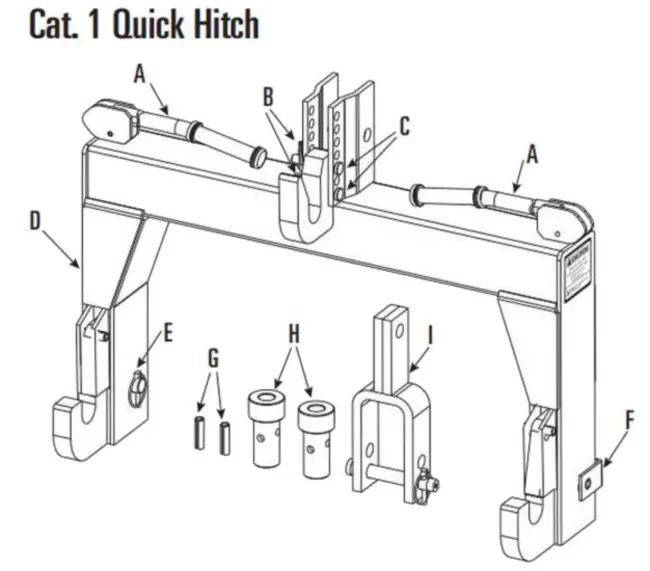

Adapter bush kit for CAT 1 quick hitch
A-Lock handle * 2
B-top link Lynch pin * 2
C-top connecting rod pin * 2 D-frame * 1
E Lower frame Lynch pin * 2
F Lower frame pin * 2 G Roll pin * 2
H-type bushing * 2
I-Top Link adapter bracket * 1
Note: The top adapter is used to connect the brush holder, mower and other tools.
For more details, please click here to contact us!
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
