Factory Price ZTS-5 Explosion-proof Limit Switch Box for Valves/valve Gearbox

what is limit switch boxA limit switch box is a device that is used to detect the position of a moving object. It is typically used in industrial settings to control the movement of machinery and equipment.The limit switch box consists of a housing, a switch, and a lever. The housing is typically ma......

Send Inquiry

Product Description

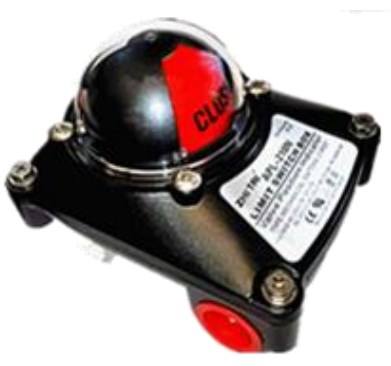

what is limit switch box

A limit switch box is a device that is used to detect the position of a moving object. It is typically used in industrial settings to control the movement of machinery and equipment. The limit switch box consists of a housing, a switch, and a lever. The housing is typically made of metal or plastic and protects the switch from damage. The switch is typically a reed switch or a microswitch and is used to detect the position of the lever. The lever is typically made of metal or plastic and is attached to the moving object. When the moving object reaches a predetermined position, the lever will move and activate the switch. The switch will then send a signal to a control system, which will then take the appropriate action.

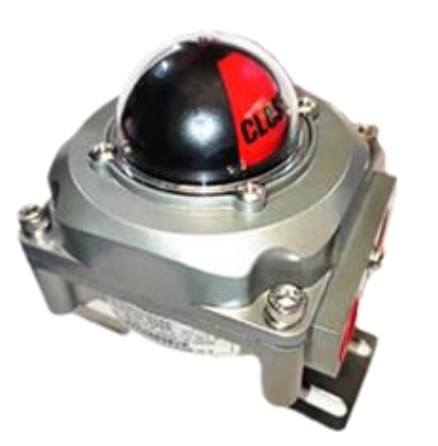

ZTS-5 explosion-proof -Protection grade: IP67/NEMA4&4X (standard) IP68 (option);
-Explosion-proof sign: Ex db IIC T6 Gb; Ex tb IIC T80℃ Db
-Die-casting aluminum alloy shell (standard), powder coating, solid and compact design, beautiful appearance; Stainless steel shell (optional), silica sol precision casting process, solid and durable, better performance;
-3D position indicator to clearly identify the valve position;
-Double connection ports, standard contacts, convenient and safe wiring;
-Terminal block: 2-3P PA66 nylon, melting point 252 ℃, with high temperature resistance and corrosion resistance,fire
rating UL94v-2;
-Anti-tripping bolt: 304 stainless steel;
-It is easy to install, and the stainless steel spindle connection part and mounting bracket meet the NAMUR standard

Installation instructions

1) Assembly the mounting bracket (2)
Install the bracket on the pneumatic actuator.
Fix the mounting bracket on the actuator(4) with bolts.
2) Install the limit switch box (1)
Insert the shaft of the limit switch box correctly into
the drive slot on the actuator drive shaft
(3) fix with mounting bolts (7).
3) Remove the cover (5)
Use a tool to rotate the fixed cover bolt (6) until it
is loose, and then remove the cover for wiring and
commissioning.

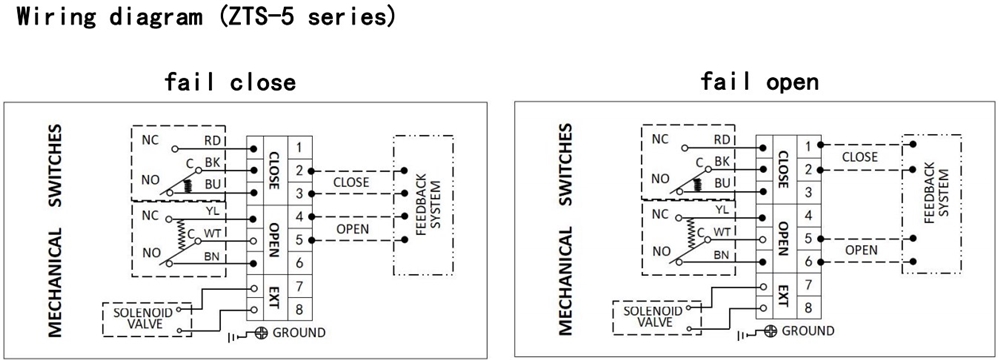

Wiring connection of distribution cable (note:wiring diagram is inside the shell)

1. The incoming line lock for ZTS-2 series is PG13.5 waterproof connector, Please use the line 8~ 12 insulated cable;
2. ZTS-5 series uses 3/4 "or PG13.5 explosion-proof isolation seal according to customized requirements and
cable 8~ 12 explosion-proof cable;
3. Pass the cable through the wire lock and fasten the wire head on the terminal block as shown in the wiring
diagram;
4. Rotate the outer sleeve of the wire lock to make the inner diameter of the sealing ring close to the sheath
of the cable to lock cable.
5. Unused cable entries must be blocked;

Limit switch boxes are used in a variety of applications, including: Control of valves Control of conveyor belts Control of machine tools Control of elevators Control of doors Limit switch boxes are an important safety feature in many industrial settings. They help to prevent accidents by ensuring that machinery and equipment only operate when it is safe to do so. Here are some of the benefits of using a limit switch box: They can help to prevent accidents by ensuring that machinery and equipment only operate when it is safe to do so. They can help to improve the efficiency of machinery and equipment by ensuring that they are only operated when they are needed. They can help to reduce the cost of maintenance by preventing damage to machinery and equipment. They can help to improve the quality of products by ensuring that they are only produced when they are safe and of good quality. If you are considering using a limit switch box in your industrial setting, it is important to choose the right one for your needs. You will need to consider the type of machinery or equipment you are using, the environment in which it is operating, and the safety requirements of your workplace.

Setting

1, Move the valve to the close position, adjust the upper cam, Make the "off" switch have signal output.
2,Move the valve to the open position, adjust the lower cam, Make the "ON" switch have signal output.
3, Let the valve switch run several times to confirm the limit switch signal is accurate and reliable.

*Remember that the incorrect setting of the cam position will cause no signal output.

Reinstall the cover

*Carefully fix the cover of the switch box, do not damage the O-ring.
*Check the position indicator.
*Operate the actuator to the full open/full close position and check
*Position indicator.
*If the position indicator is not correctly aligned with the cover
*Align it in the correct direction and then install the cover and tighten the screws on the cover.

Important safety regulations
*Please cut off the power before performing any maintenance.
*When replacing any parts, please contact us.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
