Ep Hot Selling 2.5 Ton Winch Hydraulic Truck Winch for Tractor

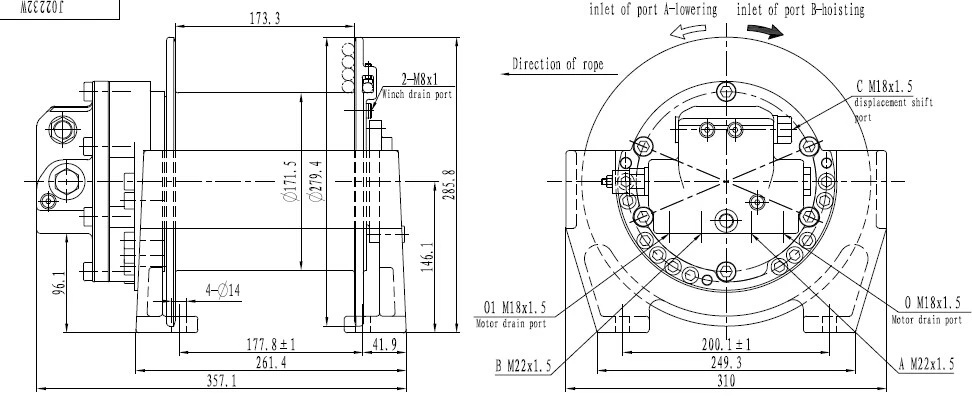

Product DescriptionThe winch is extremely compact. Overall length of the winch is only 357mm. The hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch, so the overall length is kept tothe minimum. The compact design is very suitable for applications where the ......

Send Inquiry

Product Description

The winch is extremely compact. Overall length of the winch is only 357mm. The hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch, so the overall length is kept tothe minimum. The compact design is very suitable for applications where the installing room is limited. Hydraulic winches are needed in many heavy indutries and have diverse application. We manufacture these winches with most rugged steel so that they are durable and have a long lifetime. We have a variety of hydraulic winches to best suits customers needs.Except for standard winches, were also able to provide tailored solutions to our customers. The winches are not only popular in Chinese market, but also in international market.

Product Name	IYJ Series Hydraulic Winch	Material	Metal Steel
Color	OEM or Customer's Request	Application	Heavy Machinery
Motor	Hydraulic Motor	Certificate	ISO9001:2008
Power	Hydraulic System	OEM	Yes

MAIN FEATURES ：

·Compact and elegant design, easy to install ·high starting& working efficiency ·Reliable operation with little noise ·Stable operation in hot, cold, wet, damp and other extreme working environments Low maintenance relieves your anxiety A range of accessories such as rope guides and pressure rollers are available on request.

Application：They're widely used in truck crane, mobile crane, aeriel platform, tracked vehicle and other machines.

IYJ334-75-88-22-ZPG represents that the hydraulic winch adopts a three stage planetary gearbox, and that the modules of the gearbox are 3,3 and 4 respectively. The rated single pull on 1st layer is 75kN, drum capacity is 88, rope diameter is 22 mm. the winch is fitted with brake, counterbalance valve, and is driven by a high speed axial hydraulic motor.

The hydraulic motor, planetary gearbox and brake are installed in the drum of the winch, so the overall length is kept to the minimum. It is very suitable for applications where the installing room is limited.

Customizations are Welcome :)

to get the latest quotation

>>>>>

Other Products

IYJ17 Series Single Phase Compact Planet Hydraulic Winch

•Technology: Hydraulic System

•The hydraulic motor, planetary gearbox and brake are installed in the drum of the winch, so the overall length is kept to the minimum. It is very suitable for applications where the installing room is limited.

•Application: mining industry, deck machinery and truck cranes, mobile crane，aeriel platform，Machinery or Marine

ISYJ Series hydraulic recovery rope winch truck

•Technology: Hydraulic Systemwide line pull：available ranging from 1 ton to 30 ton.
•It has a brake and a manual declutch system which is fitted at the final stage of gearbox. When we pull out the handle, the drum can rotate freely

•Application: ship and deck machinery, construction machinery, Machinery or Marine

IYJ-N Series Built-in Hydraulic Winch

• We can design and manufacture special winches according to customers' specifications.Wide line pull range up to 60 ton compact design & high reliability• easy to install, high starting& working efficiency,Reliable operation with little noise ,Low maintenance relieves your anxiety

•Application:ship and deck machinery, construction machinery, Machinery or marine

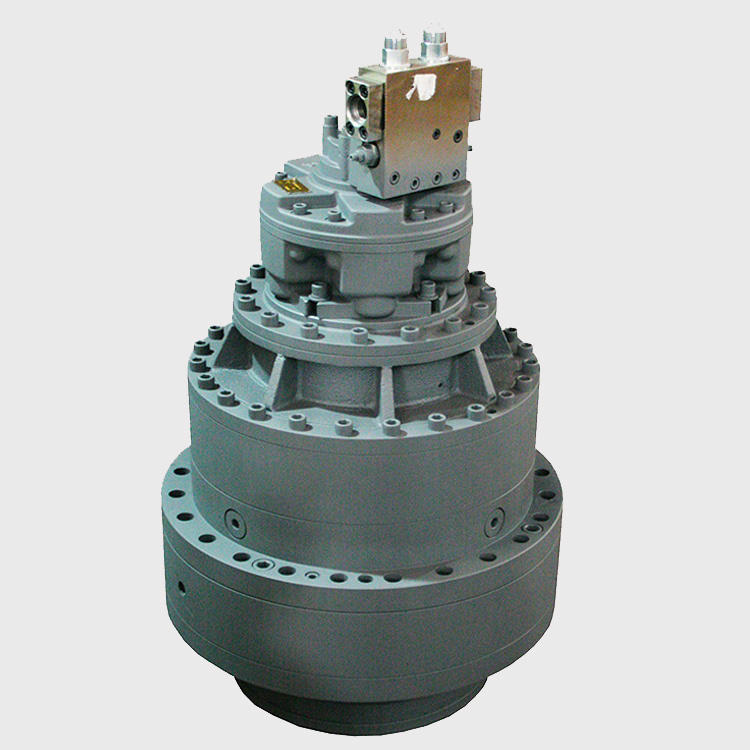

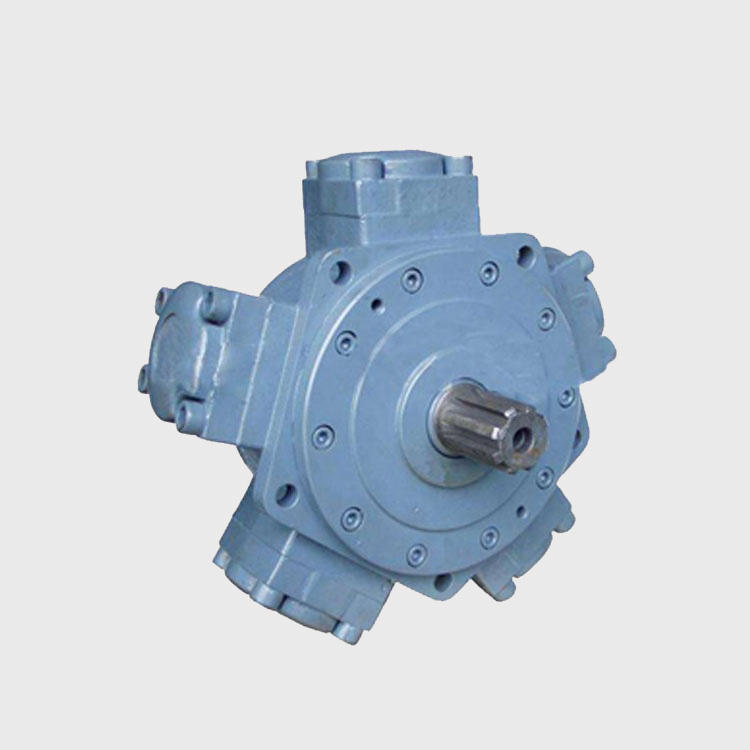

IMC Series Hydraulic Motor

•use the patent technique of our company and consist of a variety of valve blocks with function of braking and single
counterbalance valve, high speed hydraulic motor, Z type brake, KC type or GC type planetary gearbox, drum, frame and clutch. •The
user only needs to provide a hydraulic power pack and directional valve.
•Application:construction, petroleum, mining, geological drilling, ship and deck machinery.

ISYJ Series Compact Logging Hydraulic Winch

•We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at the final stage of gearbox.•When we pull out the handle, the drum can rotate freely•They can be used to pull salvage vehicles, cross country vehicles, heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery.

IYJ15 Series Marine Haul Barge Winches Systems

the winch is fitted with brake, counterbalance valve, and is driven by a high speed axial hydraulic motor.

This winch series can be equipped with a rope roller, alarm system for the last three winding ropes, rope-guider, output shaft for rotation speed measurement, these items are optional.

•Application:construction, petroleum, mining, geological drilling, ship and deck machinery

Main product

Recommend Products

Our Services & Strength

We're among the first and best hydraulic products manufactuers in China. We specialize in designing and manufacturing hydraulic winches, hydraulic motors,hydraulic slewing drives, wheel and track drives, planetary gearboxes,travel motors and wheel motors, hydraulic capstans,hydraulic power units, and hydraulic pumps. We have broad product range, and we can provide one-stop and tailored solutions for driving, controlling and moving to our customers.

FAQ

Q: We Can Not Find The Goods Which We Need From Your Website, What Should We Do?
A: We Manufacture And Design Wide Variety Of Hydraulic Products, Some Of Them Have Not Been Uploaded On Website, You Can Send Us
Descriptions And Pictures Of The Goods Which You Need, We Will Check Whether We Can Supply. If Not, You Can Send Us Sample By
Express, We Will Develop This Item For Bulk Orders.

Q: Can We Buy 1 Piece Of Each Item For Quality Testing?
A: Yes, It's No Problem.

Q: We Want To Buy Your Products, How Can I Pay?
A: You Can Pay Via T/T And Western Union.

Q: How Can You Guarantee The Quality?
A: If You Meet With Quality Problem Within 1 Year, We Will Replace Goods Or Return Your Funds.
