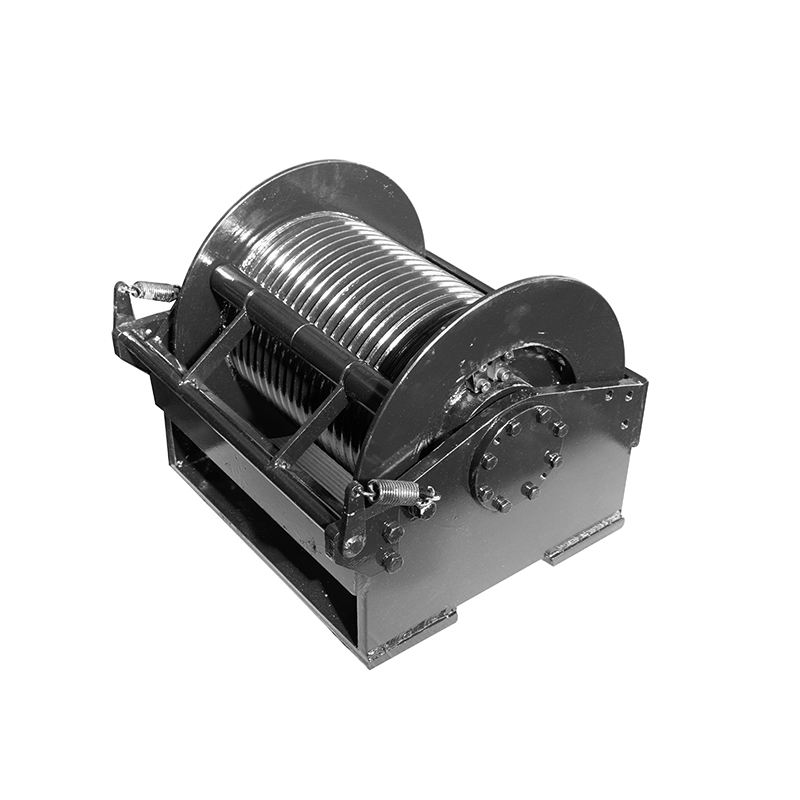

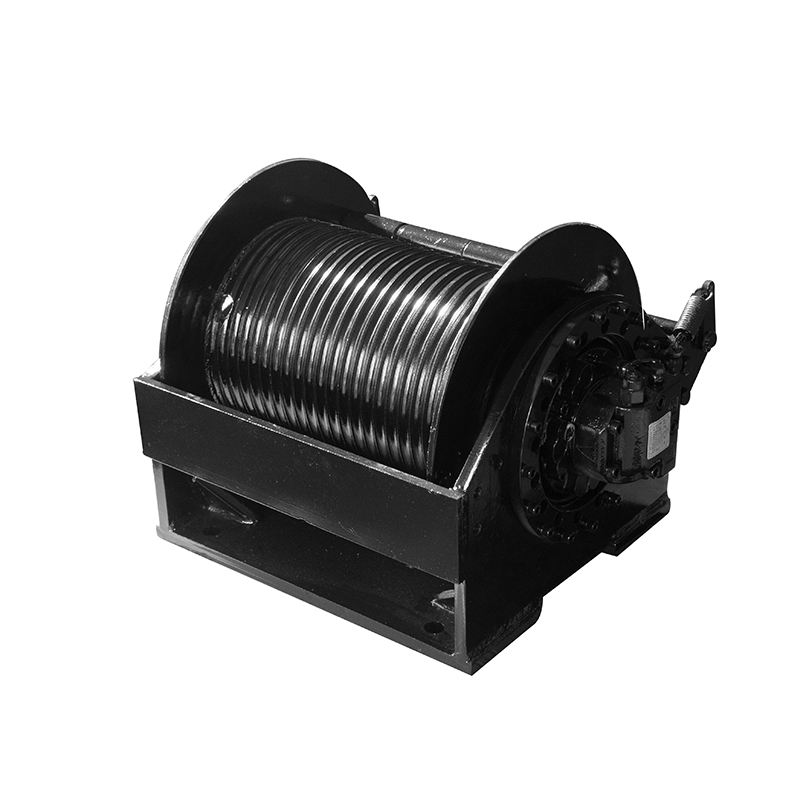

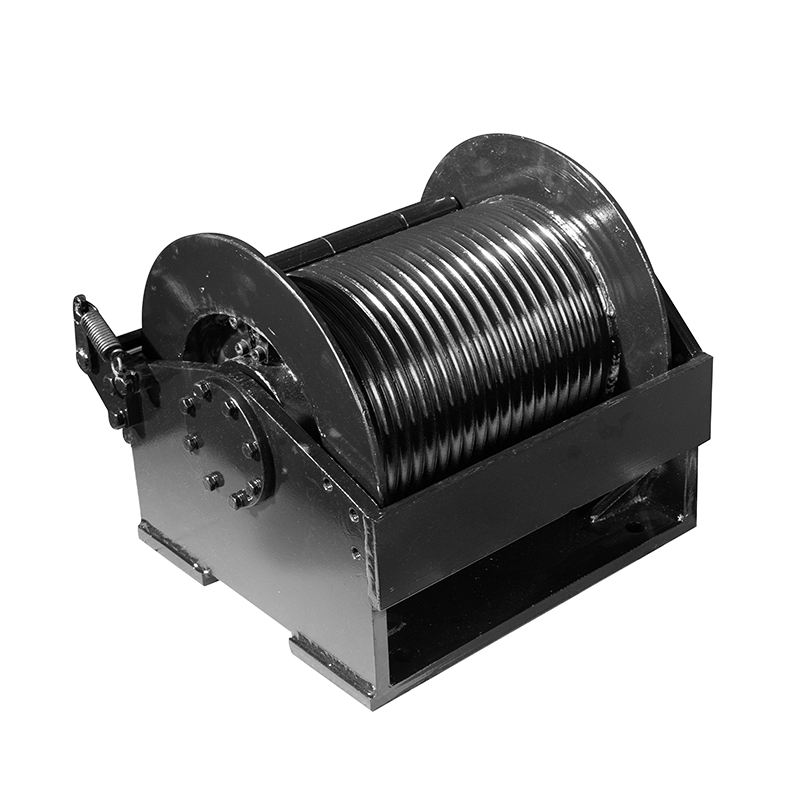

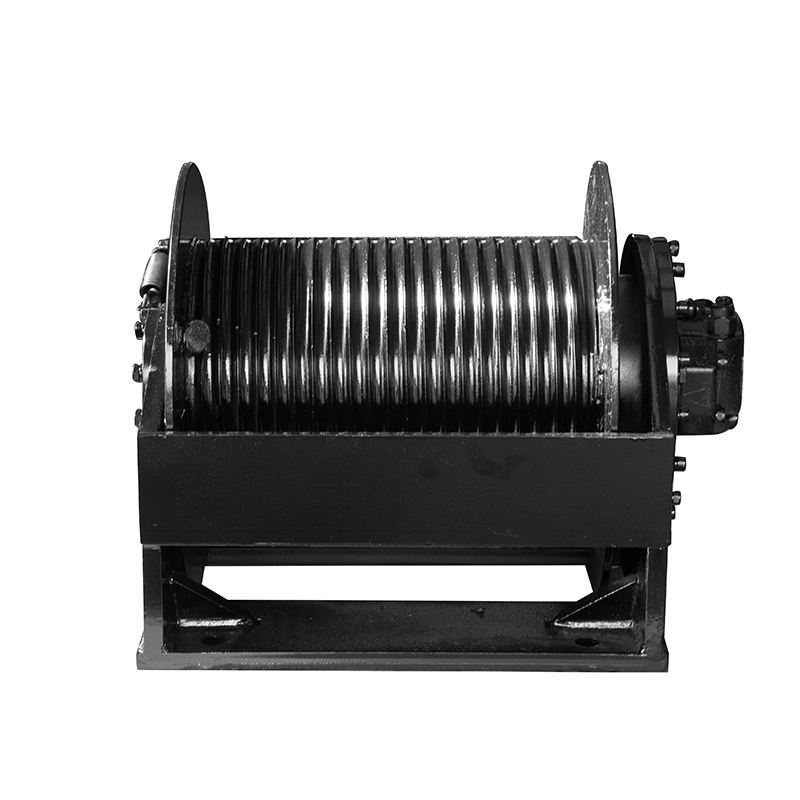

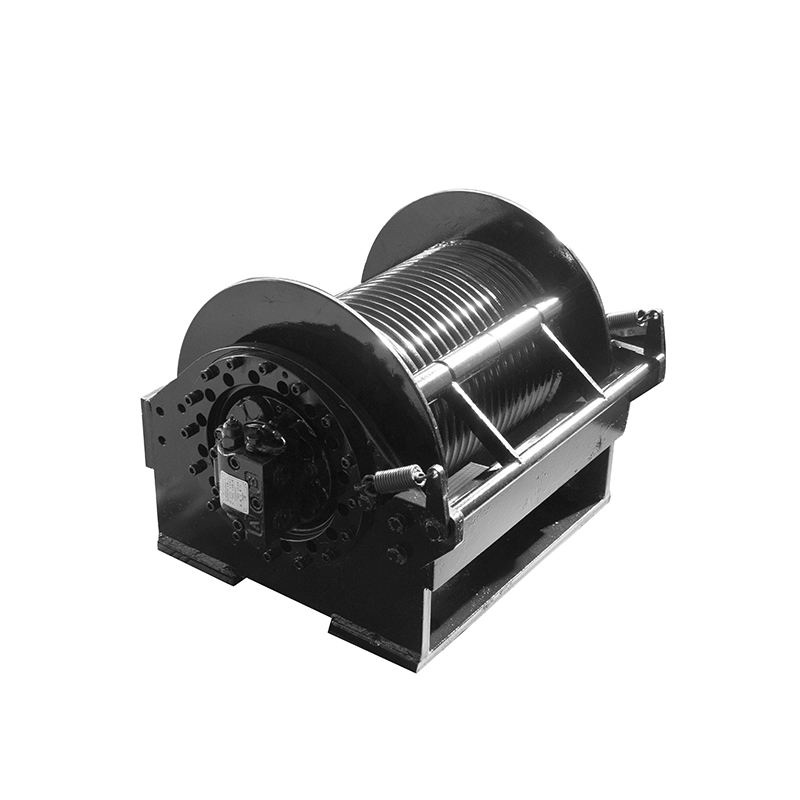

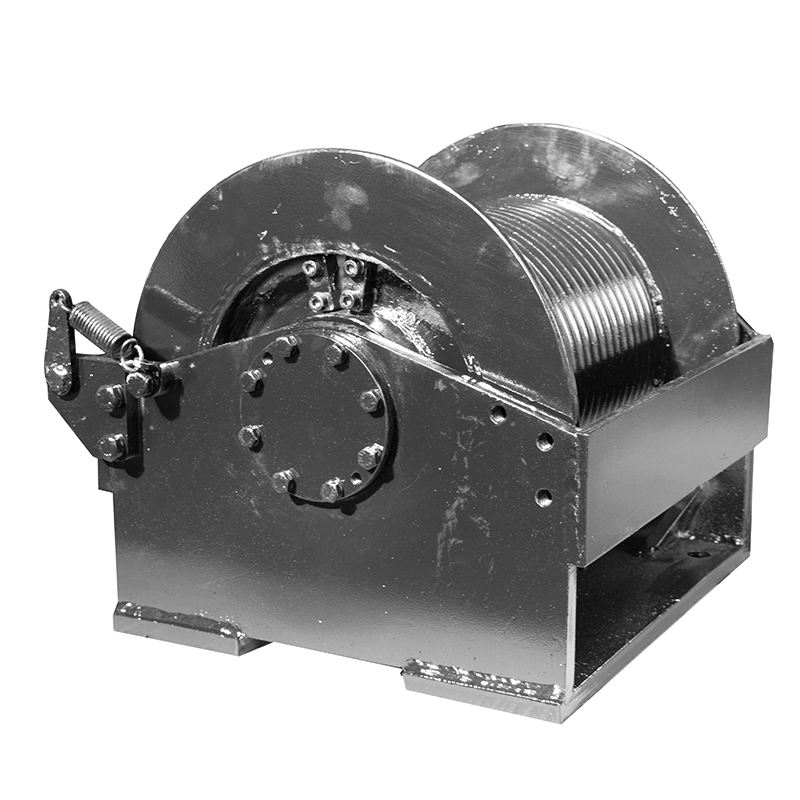

1.Hydralic Winch is made up of inner BM orbit hydraulic motor, planet gearbox decelerator, mechanism brake, ect.
2. Hydraulic Winch adopts steel structure's machine frame using thread conjuction, the control system of which includes shuttle valve and balance valve,ect. Having compact design and small size.
3. Hydraulic Winch adapts to lifing and traction facilities, such as shipping, port, car, ect.
TECHNICAL DATA
| Type | (Max Pull)*10N | Working Pressure(Mpa) | Rope Layers (n°) | Suggesied Rope Diameter(mm) | Rope Capacity(m) | Displacement(mr/r) | Max Rope Speed(m/min) | Associated motor | Weight(kg) | ||
| Firstn° | Lastn° | Firstn° | Lastn° | ||||||||
| ZYJ2B | 2300 | 1850 | 13.9 | 4 | 12 | 80 | 1890 | 34 | 40 | BM4-320 | 130 |
| ZYJ2Ba | 2300 | 1850 | 13.9 | 4 | 12 | 80 | 1890 | 34 | 40 | BM4-320 | 125 |
| ZYJ2.5B | 2500 | 1990 | 13 | 4 | 13 | 120 | 2400 | 30 | 36 | BM5-400 | 209 |
| ZYJ3B | 3000 | 2400 | 13 | 4 | 13 | 120 | 3000 | 26 | 32 | BM5-500 | 210 |
| ZYJ3.5B | 3500 | 2800 | 13 | 4 | 13 | 120 | 3750 | 22 | 28 | BM5-630 | 211 |
