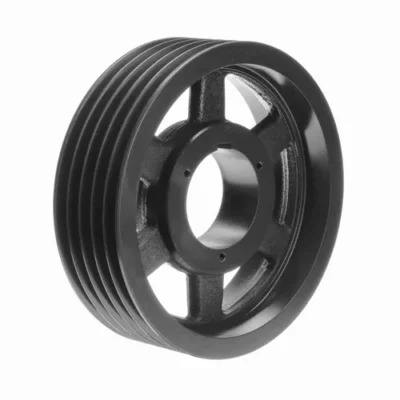

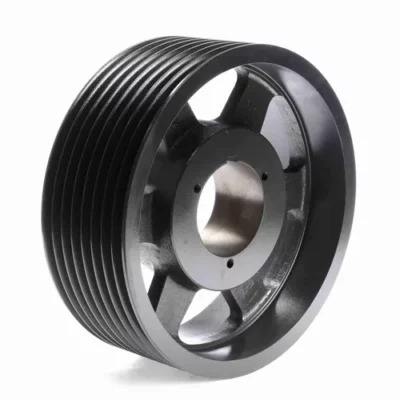

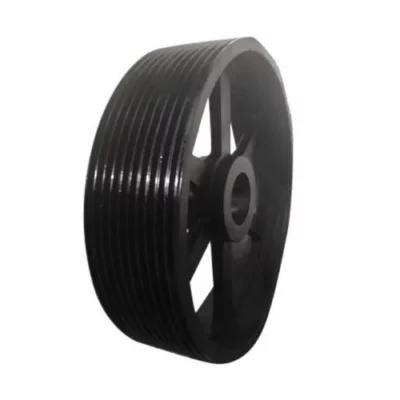

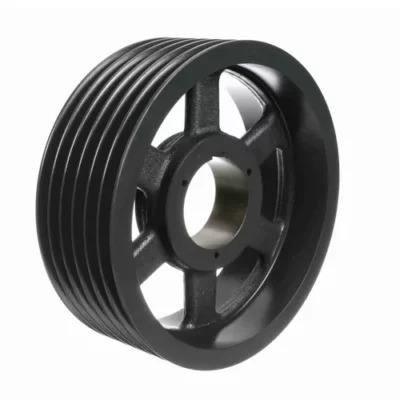

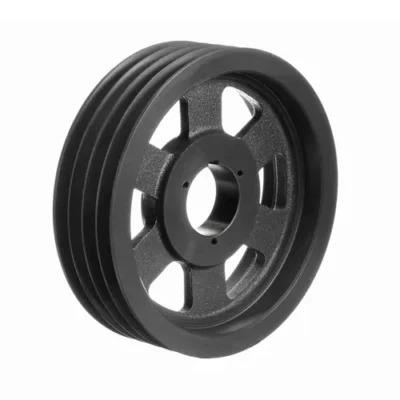

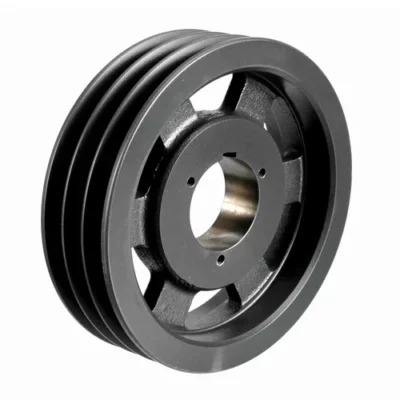

American Standard 5V Series Cast Iron Three-Groove Sheaves With Split Taper Bushings for 5V Belts
5V Series Cast Iron Three-Groove Sheaves With Split Taper Bushings For 5V Belts5VX belt. They range in diameter from 4.40 "to 50.0". According to the pulley size, they use P1, Q1, R1, S1 or U0 split taper bushings, which we also have in stock. Our three groove 5V split taper pulleys are mo......
5V Series Cast Iron Three-Groove Sheaves With Split Taper Bushings For 5V Belts
5VX belt. They range in diameter from 4.40 "to 50.0". According to the pulley size, they use P1, Q1, R1, S1 or U0 split taper bushings, which we also have in stock. Our three groove 5V split taper pulleys are mostly made of high-strength 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

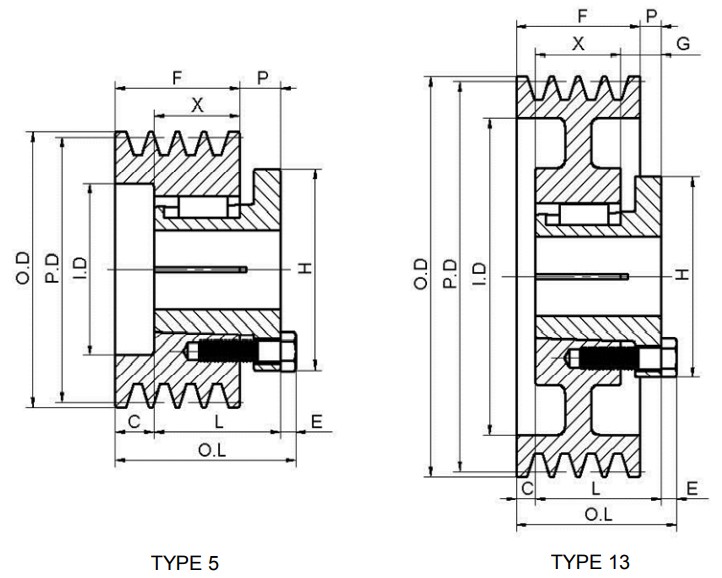

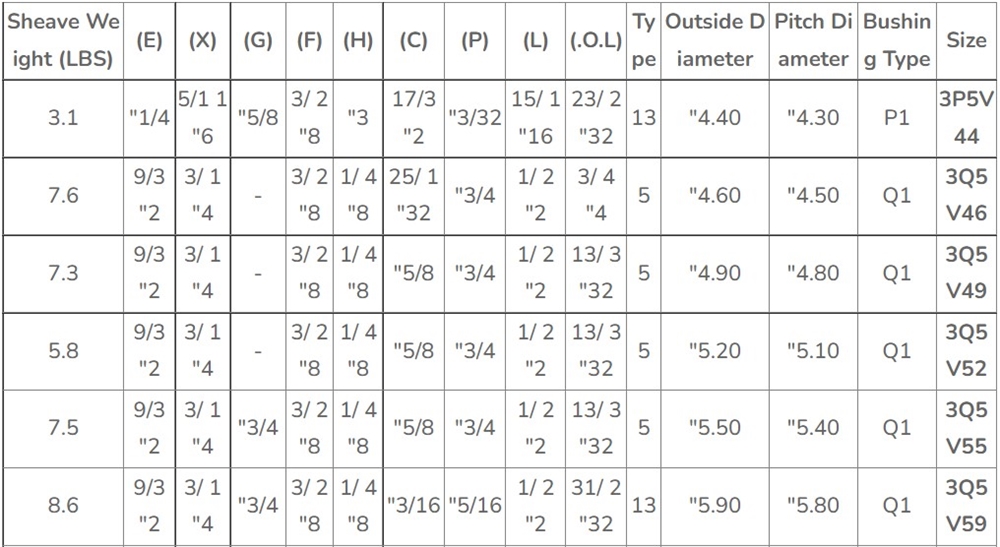

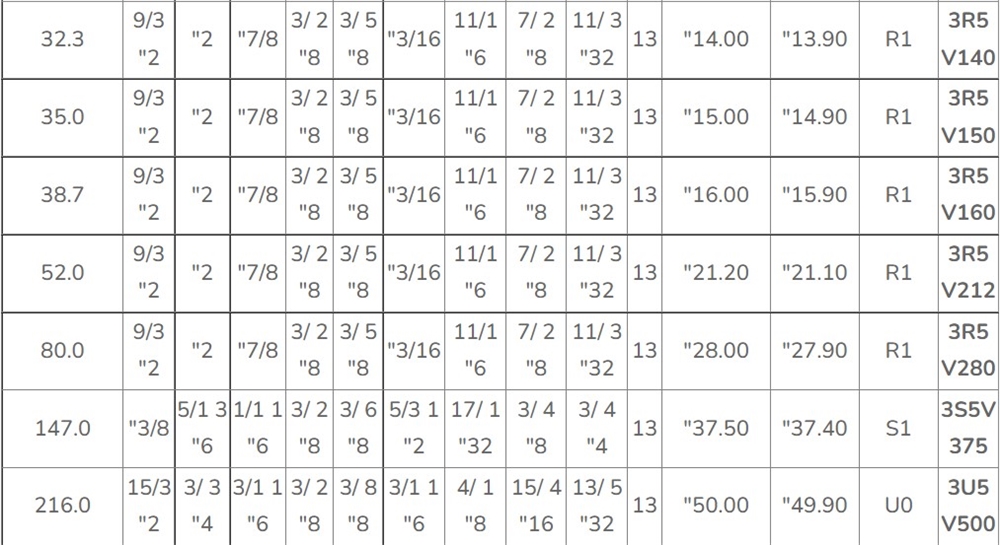

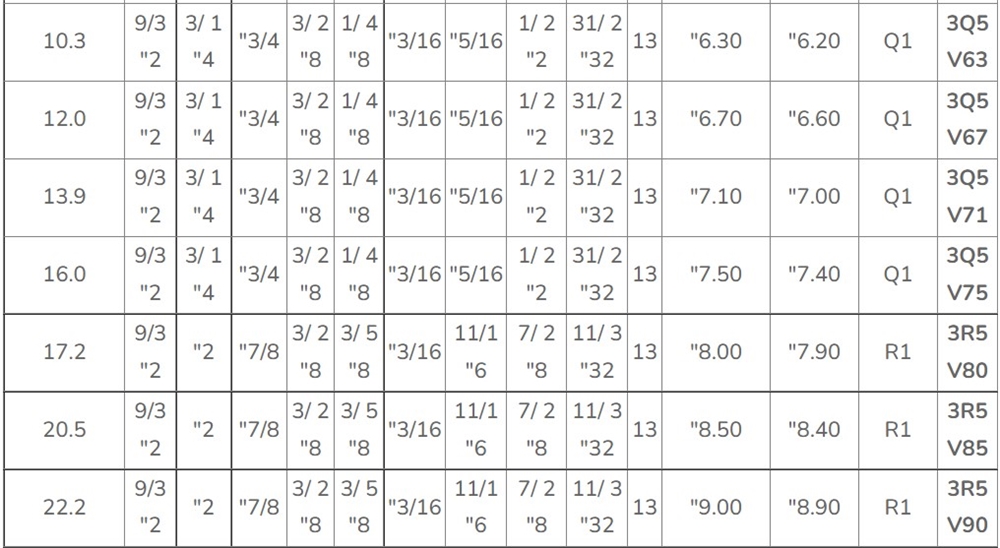

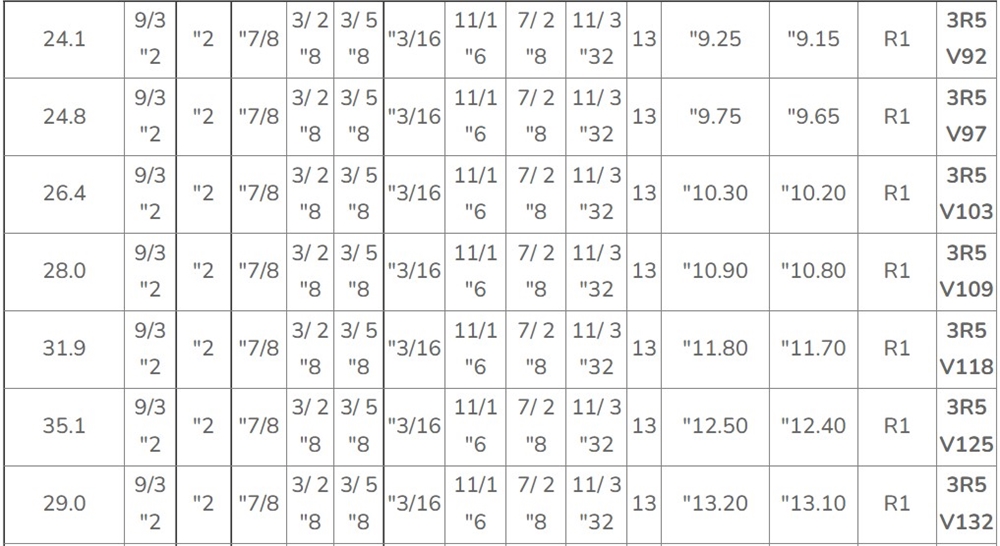

Three-Groove 5V Split Taper Sheave Size Chart
For more details, please click here to contact us!

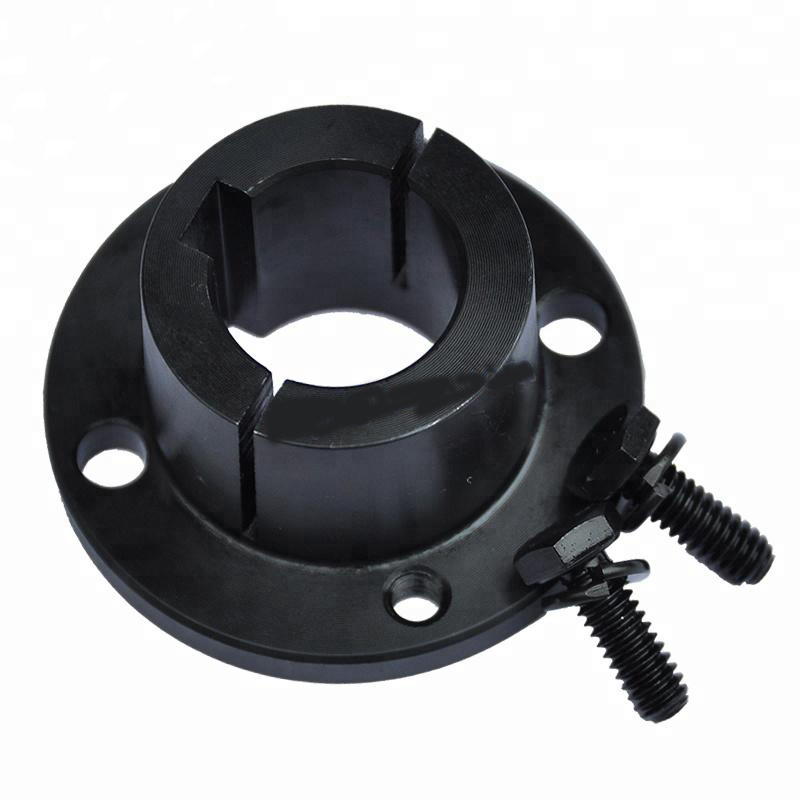

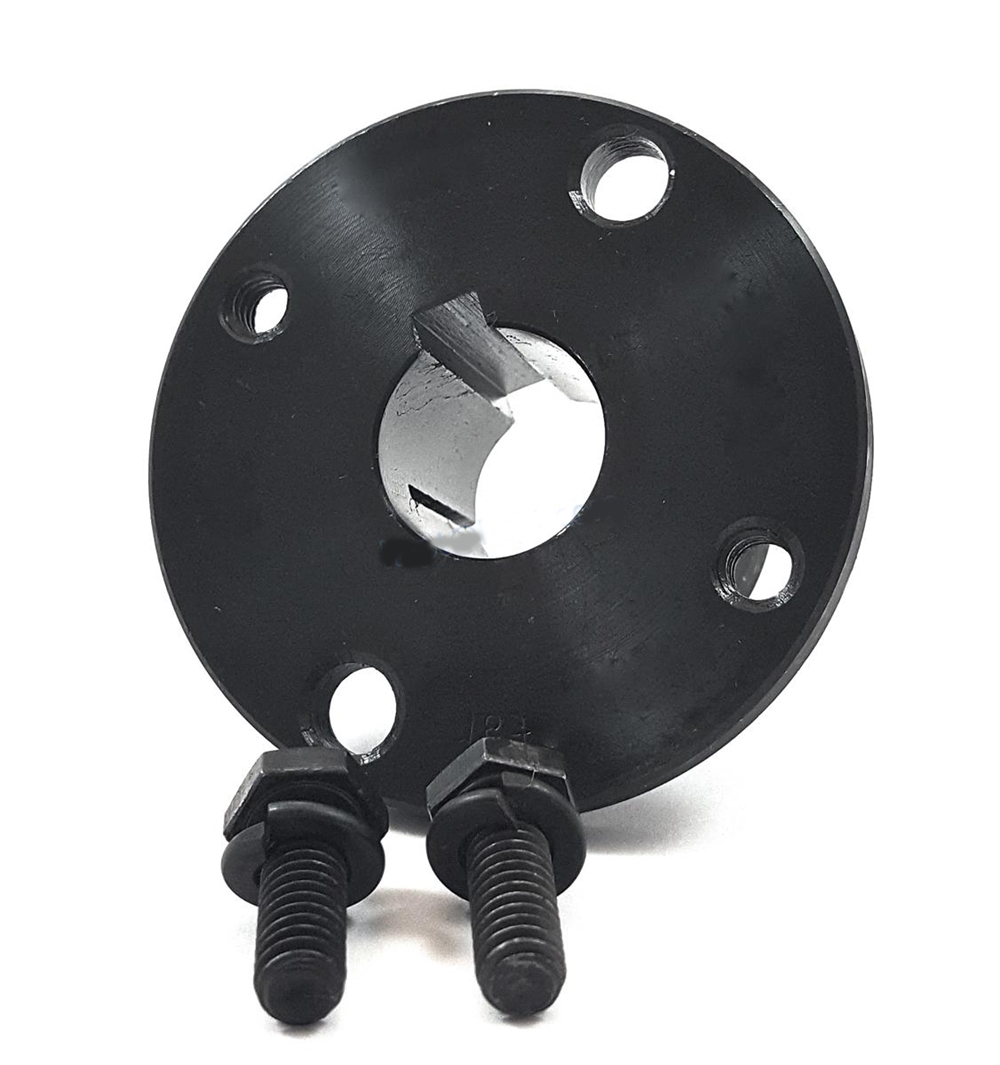

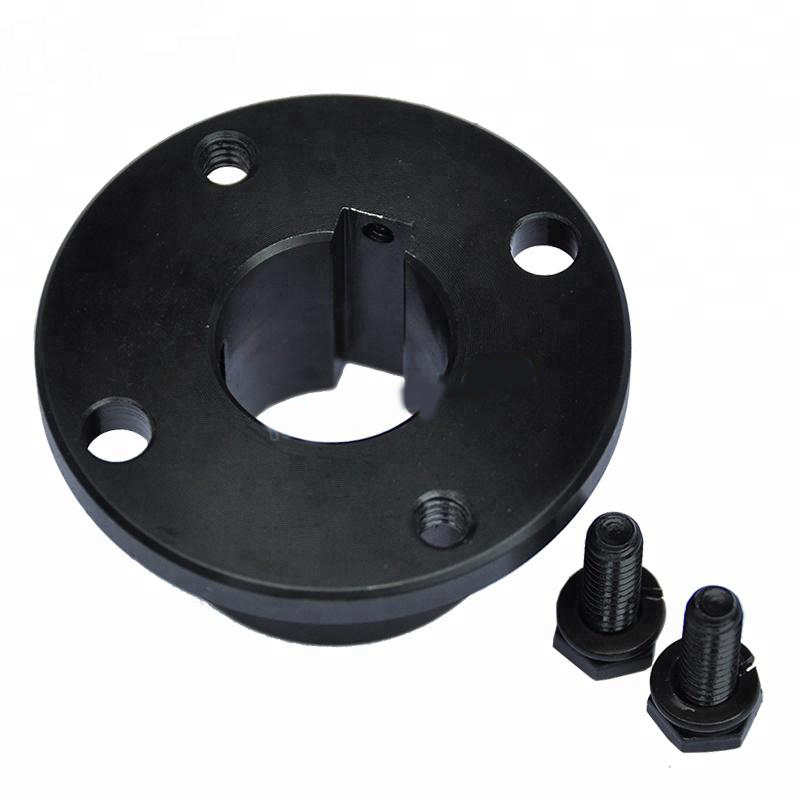

Split Taper Bushings Strength, ease of mounting and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. We have G series to W2 series split tapered bushings with inside diameters of inches and metric systems, ranging from 0.375 inches to 7.43 inches The 5V pulley is specially made for 5V series V-belts and ribbon 5V belts. The size of our 5V v-pulley is manufactured according to ARPM standard, so it can be directly interchanged with other brands. There are only two types of 5V pulley: taper lock and QD (quick disassembly), which can increase the flexibility of the hole diameter range. The difference between our pulleys and other pulleys on the market is that most pulleys are made of Grade 35 cast iron instead of the standard Grade 25 cast iron. This results in stronger pulleys and better wear resistance. In addition, it should be noted that these pulleys, after dynamic balancing, run more smoothly and have less vibration, thus extending the life of bearings and machinery. In addition, they are phosphate and painted to increase corrosion protection.
Removal method of belt pulley:
1. Loosen all bolts, take out one or two bolts according to the number of removal holes, lubricate the bolt type and bolt tip with engine oil, and then insert the bolts into the removal holes.
2. Tighten the bolts alternately until the conical sleeve and pulley are loosened.
3. Remove the tapered sleeve and pulley from the shaft.
Common application of Split Taper Bushings
*Machine tool
*Crusher, pulverizer, crusher, classifier, vibrating screen
*Material conveying system
*Fans, blowers and exhausters
*Pumps and compressors
Woodworking saw, milling machine, planer, lathe
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
