Agricultural Machinery 3 Point Hitch Disc Harrow

Agricultural Machinery 3 Point Hitch Disc Harrow Product Description1BQX-1.1, 3 Point Hitch Disc Harrow description:Wide space operationNarrow space transportation Reasonable structureDurable serviceConvenient to operat and maintainDisc blades : 460mm x 3mm Material of disc : 65Mn Spring Steel Ha......

Agricultural Machinery 3 Point Hitch Disc Harrow





Product Description

1BQX-1.1, 3 Point Hitch Disc Harrow description:

  • Wide space operation
  • Narrow space transportation
  •  Reasonable structure
  • Durable service
  • Convenient to operat and maintain
  • Disc blades : 460mm x 3mm
  • Material of disc : 65Mn Spring Steel
  • Hardness of disc : 38-46hrc
  • Bearing : sealed bearing



Specification

3 Point Hitch Disc Harrow specification :

Items

Unit

1BQX-1.1

Working width

Mm

1100

Working depth

Mm

100~140

Diameter  Of  harrow disc

Mm

460

No. of disc blade

Pcs

12

Matched power

Hp

12-15

Linkage



three-point  mounted

Productivity

Ha/h

0.5





Product picture show

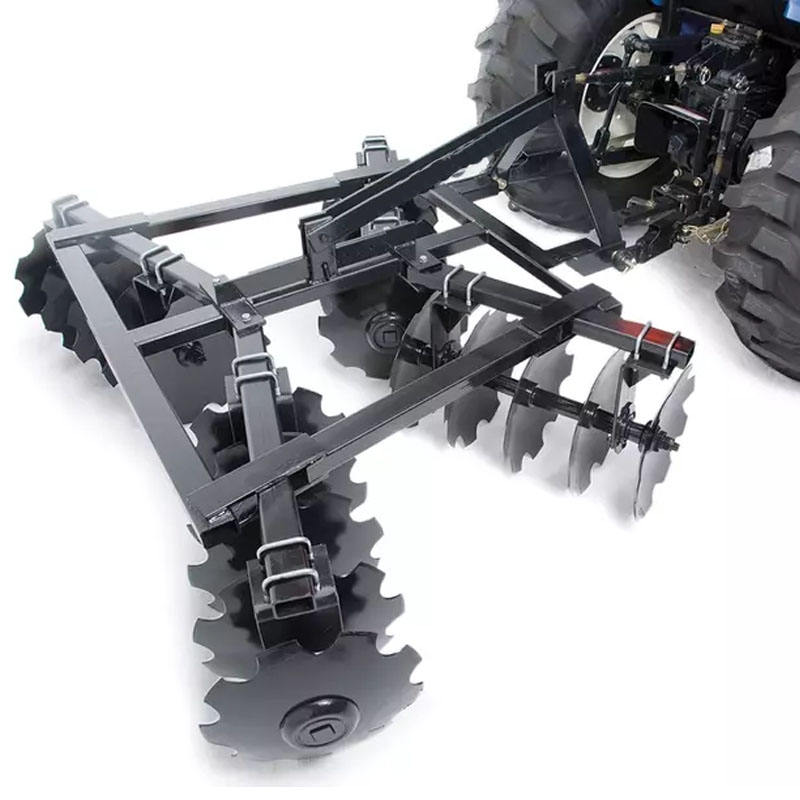

1BQX-1.1 Light duty disc harrow with 12pcs harrow disc blade .



Packaging & Shipping



3 Point Hitch Disc Harrow package :

Iron case , 10 units full set packed in one iron case,the size is 2200*900*950mm .

The 20'' containter can pack 100sets .

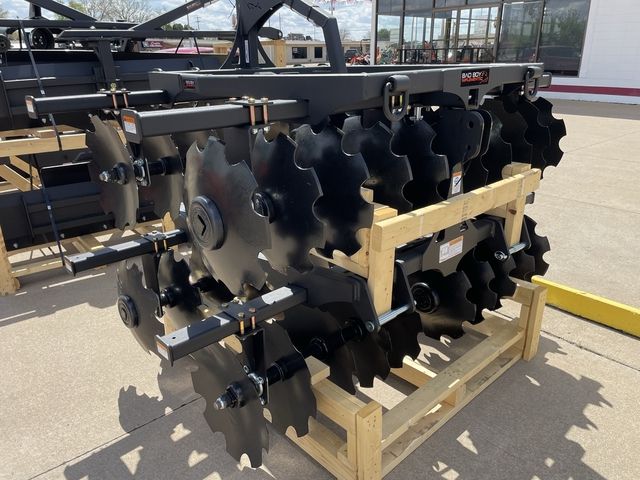

The package picture is as follows:



Agricultural Machinery 3 Point Hitch Disc HarrowAgricultural Machinery 3 Point Hitch Disc Harrow





Advantages

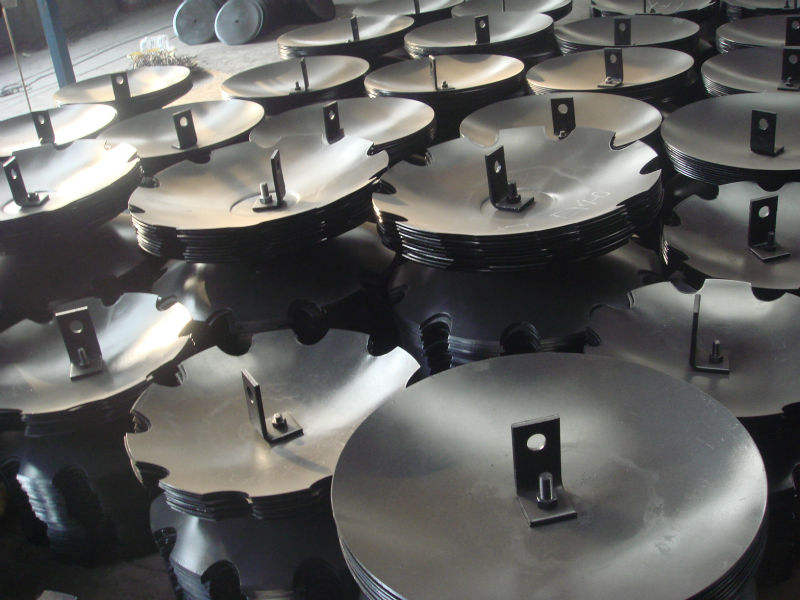

1. Disc blade :made of 65Mn Spring Steel , with quenching and tempering , has 38-46hrc hardness , good toughness and wear resisting .

2. Square shaft :45# steel , with tempering , has hardness.

3. Bearing :with sealed bearing , can add the oil , so it will have long time to work .





Related Products





Our Services

1. Warranty time

    1.We can supply samples for customers.

    2.We supply you 2 years warranty time.

2. Spare Parts

    The Easy-damage parts, we will send you together with the Product for free. And in warranty         period, if the spare part is not work because of the quality, we will send you new parts for       free.

3.Payment way

   1. We accept T/T 30% in Advance, and 70% T/T after Shipping.

   2. We alos accept L/C at sight

4.More information, please contact us
