Product Description

The 9-inch pile hole auger is a tool used to dig holes for fence posts, road signs or other similar applications on the ground. It consists of a spiral drill at the end of the shaft and rotates when connected to an electric drill or other similar equipment. The auger bit after drilling is designed to penetrate soil and other materials to form a clean round hole. 9 inches is the diameter of the hole that can be drilled with this special hole auger.

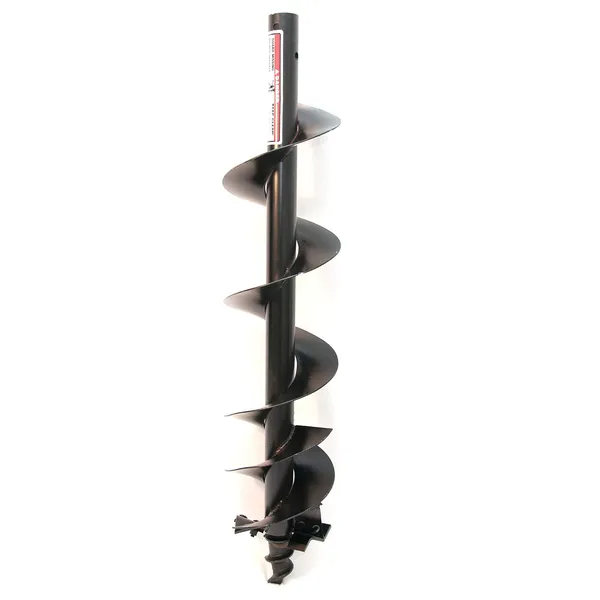

9 "column hole auger specification The column hole auger with a diameter of 9 "is mainly used for 3-point column hole excavators and slide-guided excavators. This auger has specially thick blades and additional welding between blades and shafts. There is a strengthened collar at the place where it connects with the excavator output shaft, and it weighs about 10 pounds more than the standard counterpart. Diameter: 9“ Height: 48“ Flange thickness: 0.19“ Suitable: All excavators have a 2-inch output shaft on the gearbox. This is the standard configuration of most manufacturers, such as Work Saver, Speedo, King Kutter, etc The standard spacing on the bolts that attach the auger to the gearbox is 2 ". Replaceable standard cutting edge.

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037

6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036

6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

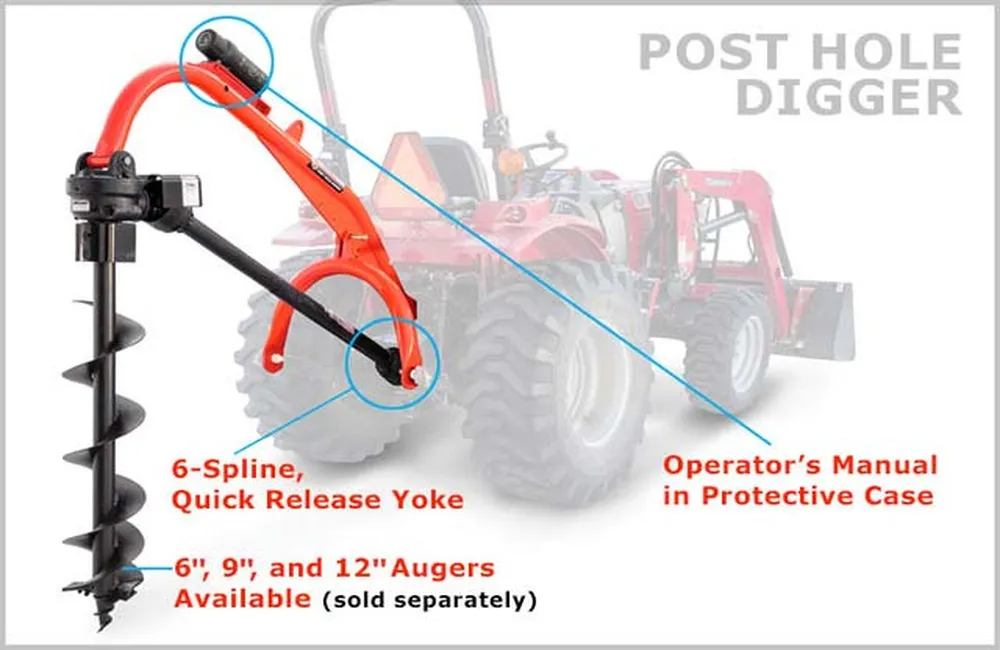

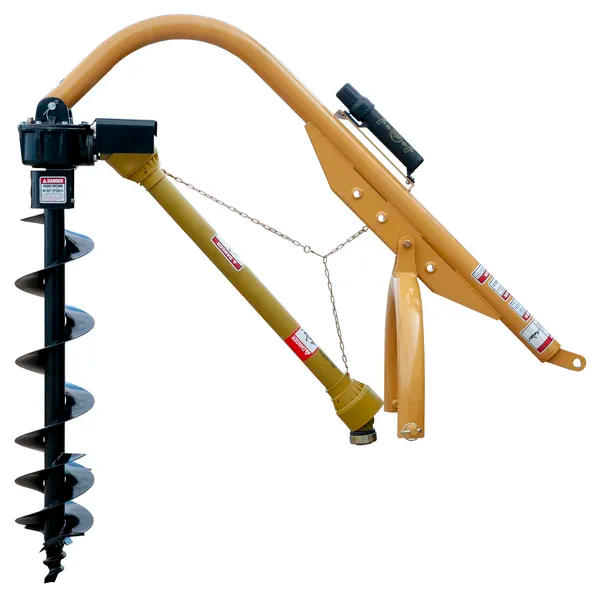

Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' ength)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

Features of 9-inch heavy-duty column hole auger The 9-inch heavy-duty pile hole auger is a convenient tool for drilling piles or foundations. Some of its notable features are: Size: As the name implies, the diameter of the post-drilling auger is 9 inches, which means that it can dig holes 9 inches wide and up to the length of the auger. Material: The back hole spiral drill is made of high-quality steel, which is strong and durable. The handle is also usually made of steel or wood to ensure that it can withstand a lot of use. Design: After drilling, the auger bit usually has a spiral design, so that it can effectively penetrate the soil. This design also makes it easier to take the auger out of the hole, reducing the workload required. Compatibility: The 9-inch heavy-duty cylindrical auger is generally compatible with most standard size auger drivers or power heads. Application: In addition to digging holes for piles or foundations, this pile hole digging auger can also be used for landscaping and gardening tasks, such as planting trees or shrubs. Safety: When operating the auger after drilling, be sure to use appropriate safety equipment, such as gloves, eye protection device and ear protection device. It is also essential to comply with the manufacturer's instructions and safety guidelines. Maintenance: regular cleaning and lubrication of the auger and handle after drilling can prolong the service life of the tool. It is also recommended to regularly grind the auger bit to maintain its efficiency.

9 "Heavy duty column hole auger parts

Pile hole auger is a tool for drilling holes on the ground, which is used for various purposes, such as fence piles, tree planting and landscaping. The following are some common components in the post-hole auger: 9 "Heavy duty column hole auger parts Spiral drill bit: also known as drill bit or digging blade, which is a component that actually penetrates the soil and forms holes. It is usually spiral, and has different sizes and styles according to the soil type and the required drilling depth. Auger extension: This is an optional component that allows you to extend the length of the auger bit to reach deeper depth. It is usually divided into parts that can be connected to the main auger bit. Auger gear box: This is a component that provides power for the auger bit and transfers torque from the engine or motor to the bit. It is usually made of metal and consists of gears, bearings and seals. Auger blades: These are auxiliary cutting edges used to remove excess dirt in the hole and prevent the auger from clogging. They are usually located near the top of the auger bit and have different shapes, such as cup, flat or spiral, depending on the soil type and application. Drive shaft: This component connects the auger gear box to the engine or motor and transmits the rotary power required to rotate the auger bit. It is usually made of heavy steel or aluminum and has sealed bearing components to reduce friction and wear. Clutch assembly: This is an optional component that allows you to control the speed and torque of the auger bit and disconnect it from the power supply when it is not in use. It is usually located between the drive shaft and the transmission and consists of a lever or a button for engaging or disengaging the clutch.

PTO shaft and drilled rear auger

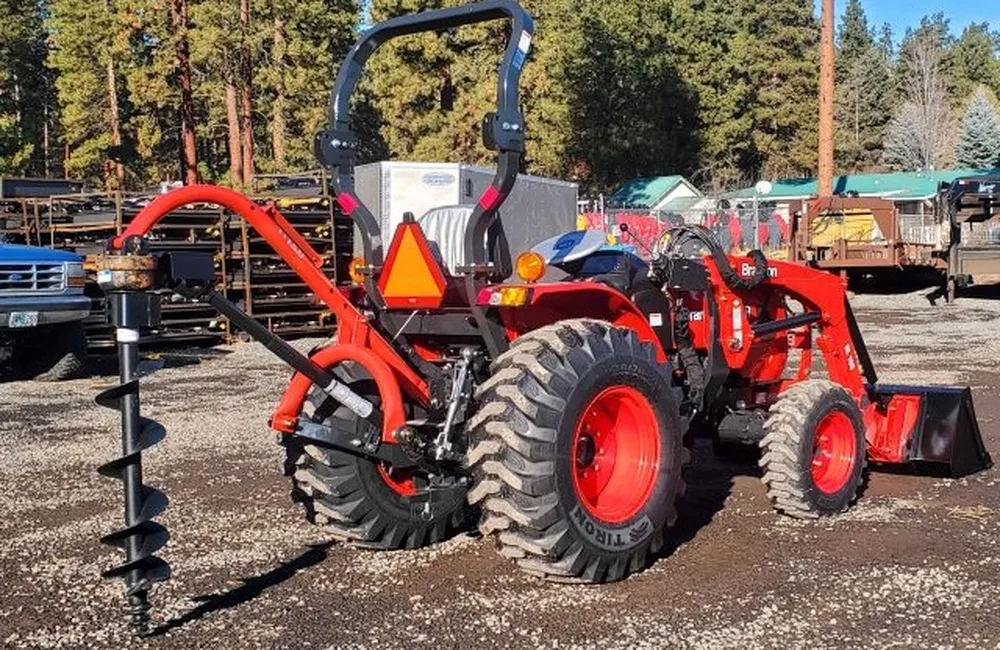

The PTO (power take-off) shaft is a mechanical device used to transfer power from the tractor engine to the connected implements, such as the backhole excavator auger. The shaft transmits power through the rotary drive shaft connected to the implement, so that the implement can work. Pile hole excavator auger is a tool used for agriculture, construction and gardening, which is used to dig holes for planting fence posts, trees and other structures. The auger is connected to the PTO shaft of the tractor and uses a rotary blade or drill to excavate soil and other materials to form holes suitable for planting or other purposes. The PTO shaft and post-drilling auger together constitute a powerful multi-function system, which can be used for efficient excavation for various purposes, making it a necessary tool for many farmers and other agricultural workers.

How to connect the Pto shaft with the auger of the rear hole digger? To connect the PTO shaft to the auger after drilling, the following steps need to be performed: Position the rear hole excavator auger so that it is horizontal and the output shaft is aligned with the PTO shaft. Slide the PTO shaft onto the output shaft of the auger after drilling. Make sure that the splines on the two shafts are connected with each other and that the locking pin hole of the PTO shaft is aligned with the groove on the output shaft. Pass the locking pin through the locking pin hole of the PTO shaft and the groove on the output shaft. Make sure that the pin is fully inserted to secure the connection. Rotate the PTO shaft to ensure that it is correctly engaged with the output shaft and check that the locking pin is firmly seated. Connect the PTO shaft to the PTO drive shaft of the tractor. Make sure that the PTO shaft is securely locked in place on the tractor PTO drive shaft and correctly aligned. Turn on the tractor engine and test whether the PTO shaft is correctly connected and rotated. These steps will help you effectively and safely connect the PTO shaft with the auger after drilling.
