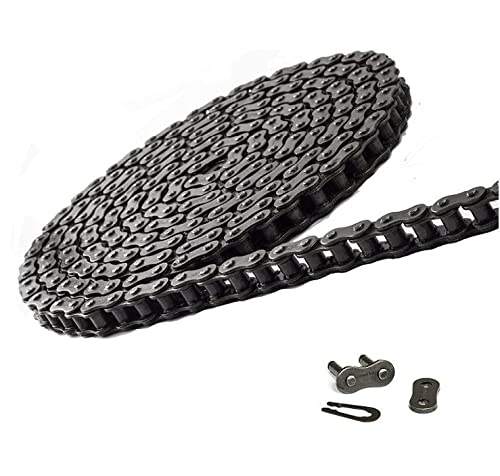

50 Roller Chain 10 Feet with 1 Connecting Link
  • 50 Roller Chain 10 Feet with 1 Connecting Link50 Roller Chain 10 Feet with 1 Connecting Link
  • 50 Roller Chain 10 Feet with 1 Connecting Link50 Roller Chain 10 Feet with 1 Connecting Link
  • 50 Roller Chain 10 Feet with 1 Connecting Link50 Roller Chain 10 Feet with 1 Connecting Link
  • 50 Roller Chain 10 Feet with 1 Connecting Link50 Roller Chain 10 Feet with 1 Connecting Link

50 Roller Chain 10 Feet with 1 Connecting Link

Product Description High Performance Standard Roller Chains ......

Product Description

50 Roller Chain 10 Feet with 1 Connecting Link

High Performance Standard Roller Chains

Standard roller chains are the most widely used chain in industrial equipment across a variety of industries. Here at Ever-power, we are proud to provide high performance roller chains that meet ANSI standards and have gone through stringent process measures to deliver quality, strength and longevity.

Chain Design Features

50 Roller Chain 10 Feet with 1 Connecting Link

50 Roller Chain 10 Feet with 1 Connecting Link

50 Roller Chain 10 Feet with 1 Connecting Link

50 Roller Chain 10 Feet with 1 Connecting Link

Heat Treatment

This ensures the optimum wear life and toughness for all component parts.

Shot Peened and Ball Calibrating

Link plates and rollers are shot peened for greater fatigue strength. The ball calibrating assures maximum resistance to fatigue failure for the plate hole.

Pre-Stressing

Pre-stressing operations firmly seat the chain parts evenly distributing the working load. It accurately establishes chain length and prevents rapid elongation during the initial run in period.

Pre-Loading

Roller chains are running after final assembly, the running in of chain increase it resistance to fatigue and prevent initial elongation of the chain.

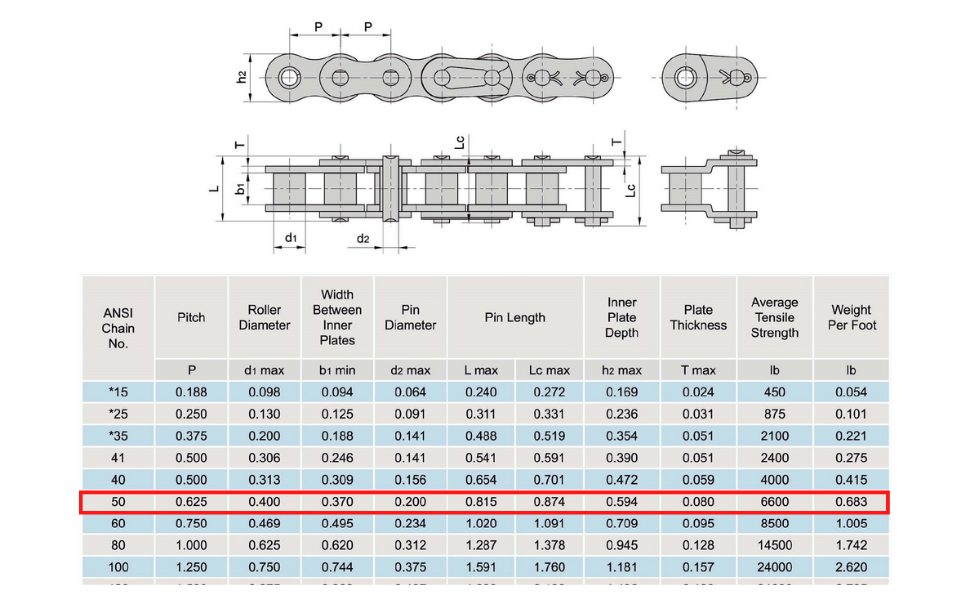

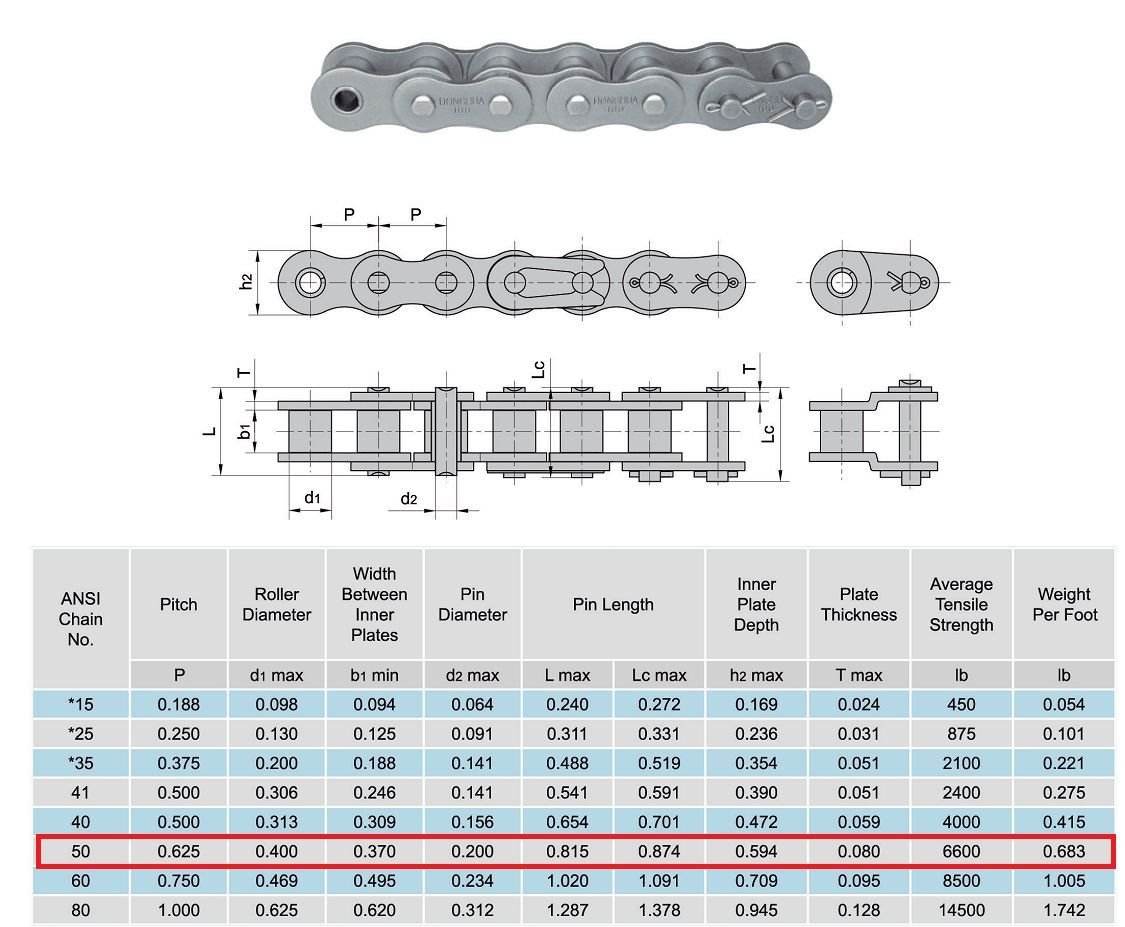

# Roller Chain

Pitch Size 0.625 Inch
Roller Diameter 0.400 Inch
Width Between Inner Plates 0.370 Inch
Pin Diameter 0.200 Inch
Pin Length L Max 0.815 Inch
Pin Length Lc Max 0.874 Inch
Inner Plate Depth 0.594 Inch
Plate Thickness 0.080 Inch
Average Tensile Strength 6600 lb
Material Carbon Steel
Weight Per Foot 0.683 lbs
50 Roller Chain 10 Feet with 1 Connecting Link
