Vp Roots Vacuum Pumps

Raydafon Group introduces Vp Roots Vacuum Pumps: powerful, reliable pumps engineered for industrial applications, offering superior efficiency and durability. Ideal for engineers and manufacturers, they ensure smooth operations and peace of mind with advanced technology and competitive performance. Upgrade your setup today with Raydafon's trusted quality.

Send Inquiry

Product Description

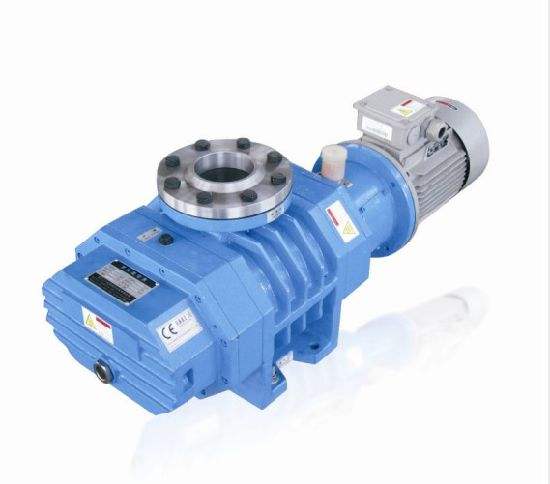

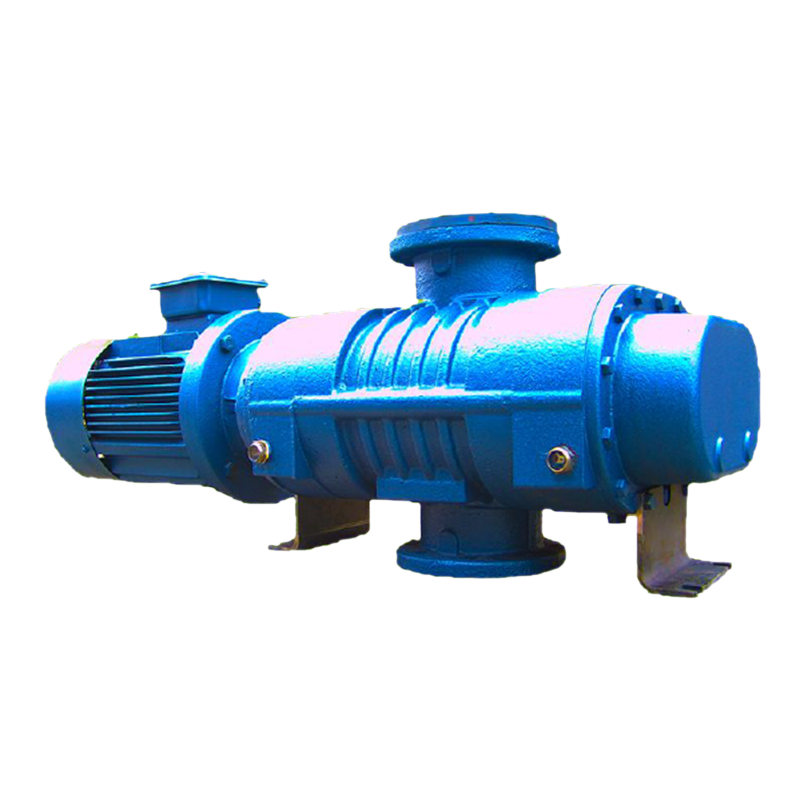

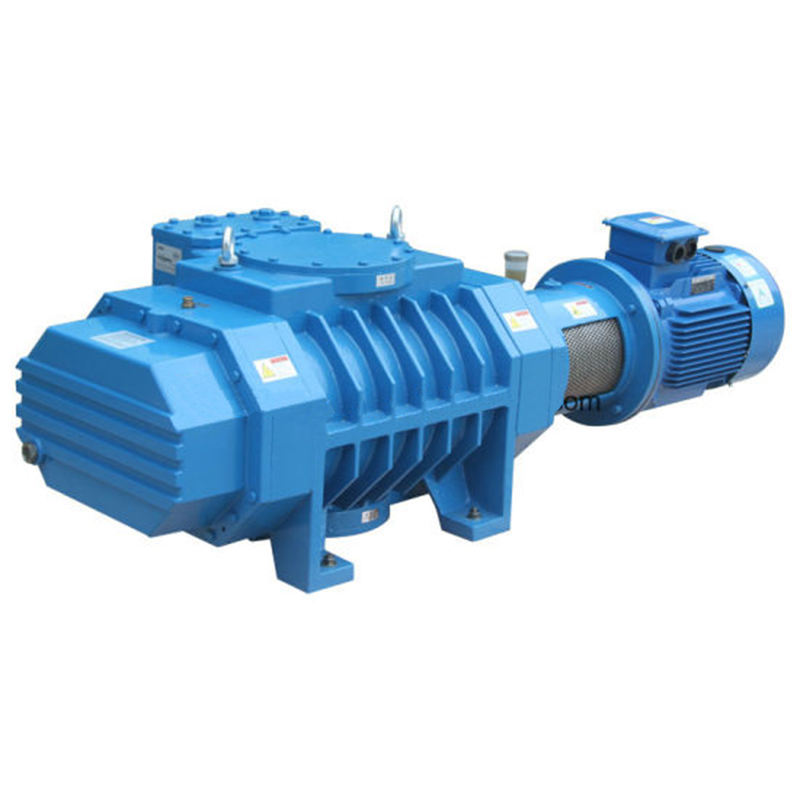

.VP type roots vacuum pump

VP roots vacuum pump is in the 50Torr-micron high vacuum range has a large pumping speed and low cost of equipment, it can becombined with various vacuum pump consists of a vacuum unit. KMBD roots vacuum pumpwith five point bearing design unique, sealing the five bit machine, sealing double sealing structure + mechanical seal for Teflon maze, can realize non leakage, reduce maintenance and repair of the link, ensure the roots pump and durable. Synchronous helical gear and mounted on the driving end, both to ensure quiet and reliable operation, and can reduce the load of the rotortorque. Impeller and shaft integrally cast, can provide large size shaft, impellerand reduce the risk of damage. All contact with the sealing surface of the shaftend faces are polished to reduce wear and reduce the risk of leakage, high temperature high pressure casing, and double tank design, a variety of material selection, further to ensure that the use of the user in various working conditions.
Typical application: chemical, petrochemical, plastics, semiconductors, woodmixture, food processing, vacuum furnace, vacuum booster system, vacuum drying, vacuum dewatering, vacuum packaging

Typical Applications

Special structures working principles,suitable for operation in chemical industry,oil industry,food industry,electrical utility industry,pharmacy industry,textile industry and paper making industry,etc. The other industries that need vacuum drying,concentration,distilling,dehydration and filtering also need the water-ring vacuum pump. It can be use as a backing pump of Roots Pump.

Specifications

Model	Capacity	Ultimate Pressure	Power	speed
	L/S	Pa	KW	RPM
VP200	200	0.05	4	2900
VP600	600	0.05	7.5	2900

Characteristic Curves

Overall Dimensions

FAQ

About Hangzhou Raydafon group(HZPT):
Q: Are you trading company or manufacturer ?
A: HZPT group consists in 3 factories and 2 abroad sales cooperations.we are making vacuum pumps,air compressors and gearboxes.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 30-45 days. The time may vary depending on the product and the level of customization. For standard products,the payment is: 30% T/T in advance ,balance before shippment.,for customized products,50% downpayment is requested normally.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with detail size, material and further specifications;when you place orders,pleasure contact us in advance to communicate all details.

About vacuum pumps:
Q: How is vacuum measured?
A: one standard atmosphere at standard conditions will support a column of mercury 760mm high. This is where the linear measurement in vacuum comes into play.760mm can be also measured in inch Hg (760mm = 29.92″) and microns (760,000 microns = 760 mm= 29.92″). Depending on what vacuum level you require, you will use a different unit of measure for the vacuum measurement. When measuring vacuum below 1 micron, we go to scientific notation (Example: 1 x 10-3 mm Hg)
Q: What is an Absolute vacuum gauge?
A: An absolute pressure gauge is one that will measure your vacuum system without regard to and independent of local barometric pressure. Many dial (Bourdon) gauges and electronic Transducers reference local barometric pressure as their base measurement. However, since these devices are calibrated at SEA LEVEL conditions, operation of these devices above sea level will cause an erroneous reading. Either the gauge/transducer must be recalibrated for the higher elevation use or an absolute pressure gauge would need to be used.A Torr gauge is an absolute pressure gauge and operates on the principle of an altimeter. The Gauge case is evacuated by the vacuum from the process and exerts a negative pressure on a hermetically sealed capsule. The lowering of the pressure in the gauge case causes the capsule to expand thereby causing the gauge movement to turn the pointer. The Torr gauge is highly sensitive and accurate in the lower pressure regions (0-100 mm Hg).
Q: how to judge vacuum degree?
A: Atmospheric Pressure- is variable but is standardized at 760 Torr or 101.325 kPa.
Low Vacuum- also called rough vacuum, is a vacuum that can be achieved or measured by basic equipment such as a vacuum cleaner.
Medium Vacuum- is a vacuum that is typically achieved by a single pump, but the pressure is too low to measure with a mechanical manometer. It can be measured with a McLeod gauge, thermal gauge, or a capacitance gauge.
High Vacuum- is vacuum where the MFP of residual gasses is longer than the size of the chamber or of the object under test. High vacuum usually requires multistage pumping and ion gauge measurement. NASA has revealed that the vacuum level recorded on the moon was 1×10-9 Torr.
Ultra-High vacuum- requires baking the chamber to remove trace gasses and other special procedures. Most standards define
ultra-high vacuum as pressures below 10-8 Torr.
Deep Space- is generally much emptier than any artificial vacuum. Perfect Vacuum - is an ideal state of no particles at all. It cannot be achieved in a laboratory, although there may be small volumes which, for a brief period, happen to have no particles of matter in them.
Q: what type of vacuum pump should I choose for my application:
A: There is no one vacuum pump that is best for all applications. However, there are some general guidelines to remember for your selection.
Oil Lubricated Rotary Pumps are used in applications requiring fairly deep vacuum (< 1 mmHg) and pumping relatively clean gases (Air/N2). Oil lubricated pumps are available in Single stage & Dual stage depending on what vacuum level you need. Additionally, all the oil lubricated pumps are available in Belt drive or Direct drive configurations. Belt drive is preferred in applications where pump longevity and durability is desired because of the low pump rpm (<700 rpm) and their high oil holding capacity which also guards against premature wear from oil breakdown. Direct drive pumps are preferred because of their low cost, compactness and portability.
Dry Vane pumps; are used when a pump is required that does not require lubricating oil because of the objection to oil vapor discharge from the pump and filling/disposal issues with oil. Rotary vane dry pumps however are capable of only maximum vacuum of approximately 25″ Hg and can only pump clean DRY air. Any presence of moisture in the gas being pumped can lead to the pump rusting because of the absence of lube oil.
Rotary Screw Dry Pumps are used in applications where a high vacuum is required (up to 0 .010 mm Hg) and the process gas is not compatible with lubricating oil in oil sealed rotary pumps. These pumps are fairly expensive and are used where a lubricated oil sealed pump or liquid ring pump is not desired. Pleasure email us( [email protected] ) for more details.
Liquid Ring Pumps are used in applications where the process gas may contain a sizable amount of condensable vapors (water,solvents, acids, etc.) that will react negatively with the lubricating oil in Rotary Vane pumps, thereby causing pump damage.Being that a liquid ring pump is a centrifugal unit, the sealing medium can be water, oil or any other fluid compatible with the process. Liquid ring pumps are relatively inexpensive and can use any sealing fluid (water, oil, ethylene glycol, solvents, etc.) that is compatible with the process.
Q:what is gas ballast on vacuum pumps?
A: A gas ballast is a regulated in-bleed of a dry gas (usually Air/Nitrogen) into the compression portion of the pumping cycle of the vacuum pump. The gas acts as a stripping agent that will saturate with the contaminating vapors present in the pump and expelled out the discharge of the pump. Gas ballasts are usually installed as a standard component on all oil lubricated rotary vacuum pumps to aid in the removal of condensable vapors from the vacuum pump oil.
