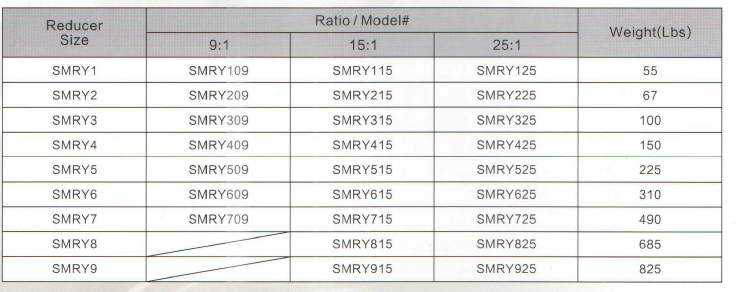

| size | Nominal ratio 15:1 | Nominal ratio 25:1 |
weight lbs |
||||
| Actual Ratio | Maximum Input rpm | Maximum Ouput rpm | Actual Ratio | Maximum Input rpm | Maximum Ouput rpm | ||
| SMRY-2 | 14.04 | 1974 | 140 | 23.37 | 1994 | 85 | 58 |
| SMRY-3 | 14.87 | 2083 | 140 | 24.75 | 2100 | 85 | 98 |
| SMRY-4 | 15.13 | 2118 | 140 | 24.38 | 2072 | 85 | 139 |
| SMRY-5 | 15.4 | 1925 | 125 | 25.56 | 2044 | 80 | 207 |
| SMRY-6 | 15.34 | 1916 | 125 | 25.14 | 2010 | 80 | 285 |
| SMRY-7 | 15.23 | 1827 | 120 | 24.84 | 1863 | 75 | 462 |
| SMRY-8 | 15.08 | 1809 | 120 | 24.62 | 1847 | 75 | 633 |
| SMRY-9 | 15.12 | 1814 | 120 | 25.66 | 1925 | 75 |
760 |
A tapered bore in both sides of the reducer's output hub snugs up against a matching taper on the outer surface of the bushing. Bushingmounting screws pass through the bushing flange into a mounting collar on the hub. As the screws are tightened, the bushing moves inward, gripping the driven machine's input shaft tightly and evenly around every point on its circumference. It is easy-on, easy-off. All the Output Bushing Bore accord to ANSI

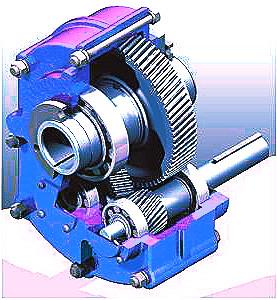

C ompu ter D e s i g n He lical .Gears, Strong Alloy Materials for High Load Capacity, Case Carburized for long life, Ground Profile Crown tooth Profile, In
Conformance with ISO 1328-1997, 98% Efficiency for Per Stage, Smooth Quiet Operation with Several Teeth in Mesh.
Close Grain Cast Iron Construction, Excellent Vibration Dampening & Shock Resistance Features, Precision Bored and Dowelled to Ensure Accurate In-Line Assembly.
Strong Alloy Steel, Hardened, Ground on Journals, Gear Seatings and Extensions, for Maximum Load and Maximum Torsional Loads. Generous Size Shaft
Keys for Shock Loading .
5 Use adapter for mount the torque arm, increase the strength of the gear case, the torque arm easy-on and easy-off and reliability, controls positionof standard torque arm mounting within recommended limits.
Alternative Parts, anti-run back device, are available on all 15:1 and 25:1 ratio units.

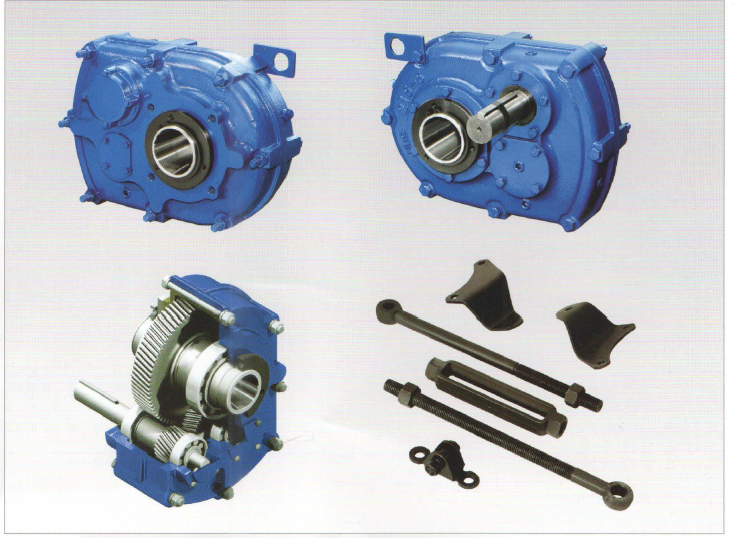

SMRY Shaflt: Mollnt Reducer/Access ries
Dimensions

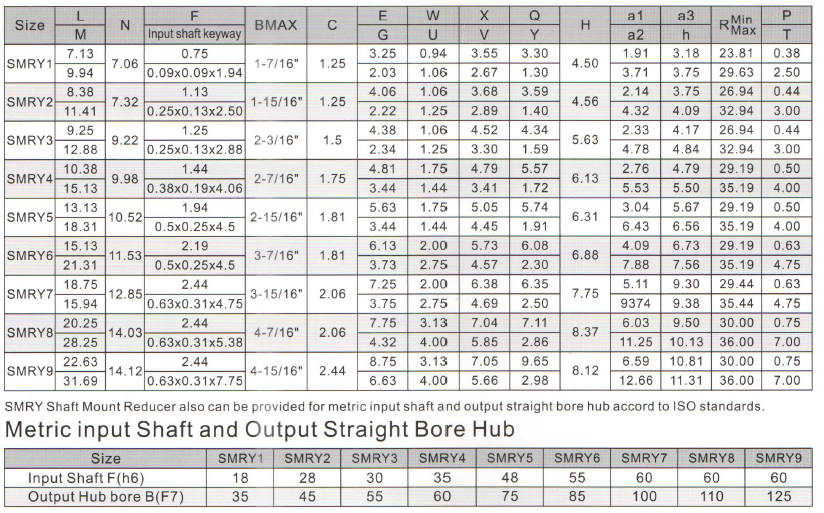

SMRY Shaft Mount Reducer Dimensions
