SS857-K44 SS859-K44 SS958-K44* SS864-K443* SS984-K443* SS994-K443* SS Class Bushed Steel Chain With K44 K443 Attachment

Send Inquiry

Product Description

SS Bushed Steel Chain is ideal for operating under extremely gritty or abrasive condi- tions. This chain is often referred to as "Steel Bushed" or "Rollerless." Each part is machined and heat treated with the result of strength and wear, assuring optimum fit for the pins and bushings. Sidebars are produced to accommodate the ends of the pins which lock into position in the sidebars and will not rotate during operation. The materials used are carefully selected. The pins are alloy steel that contain nickel, chrome and molybdenum, which improves the chain life through its greater fatigue resistance, improved abrasive resistance, and increased tensile strength at both high and low temperatures. These factors result in a premium product for conveyor and elevator service for gritty, abrasive, and fine particle materi- als such as ashes, crushed coal, soda ash, cement, crushed stone, and gravel. •Pitch Range: 2.609 - 7.000" •Average Ultimate Strength: 25,000 - 200,000 lbs •Max. Rec. Working Loads: 2,750 - 27,500 lbs Assorted attachments are offered. All of the cottered chain uses T-head cotters. Cottered construction will be supplied unless riveted is requested. SS Bushed Steel Chain is made in ac- cordance with manufacturer's standards and may be interchanged with standard bushed steel chain of other manufacturers. Sprockets are available in cast steel and fabricated when required.

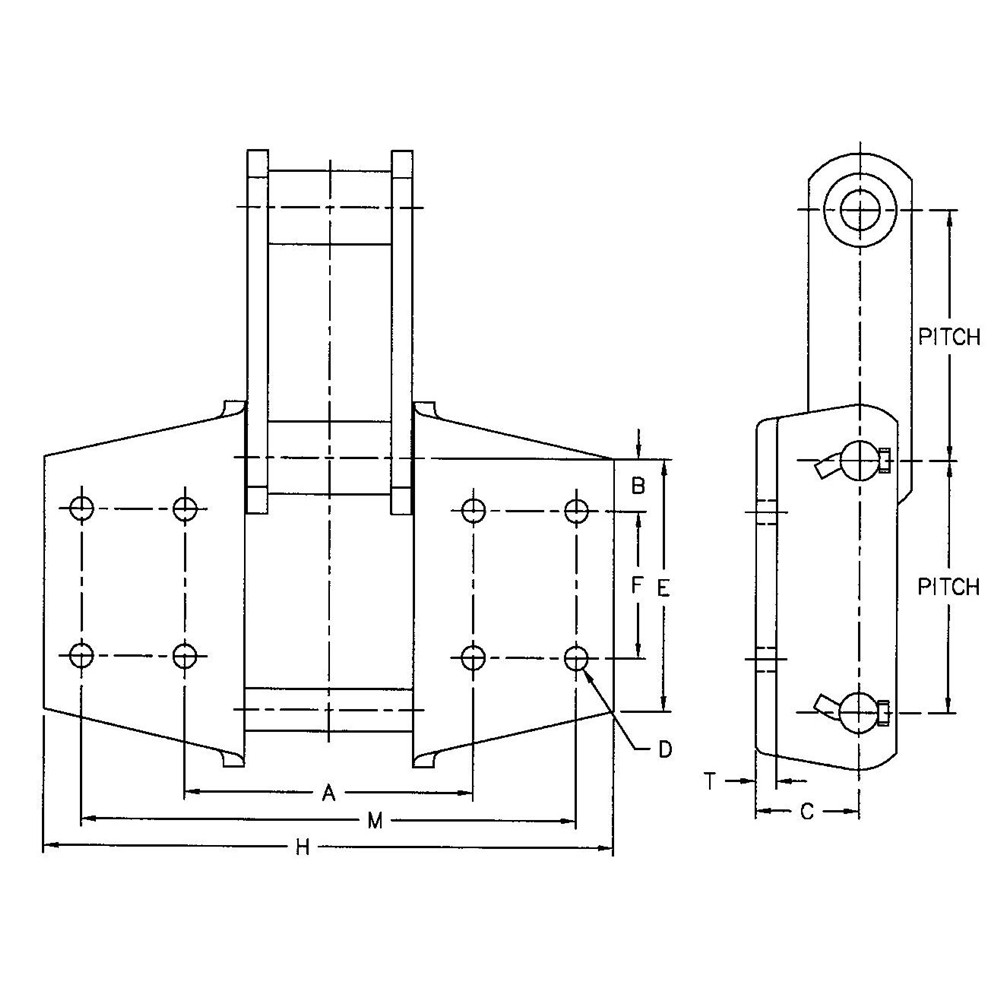

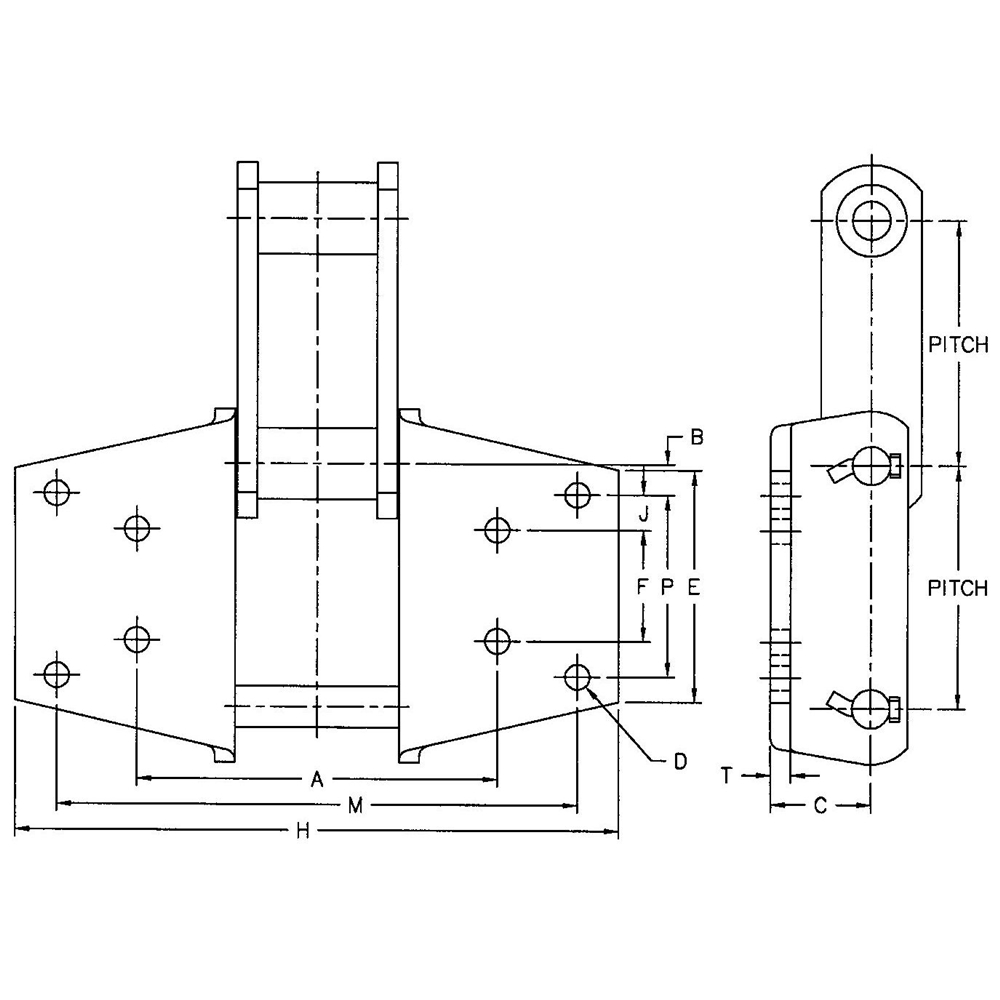

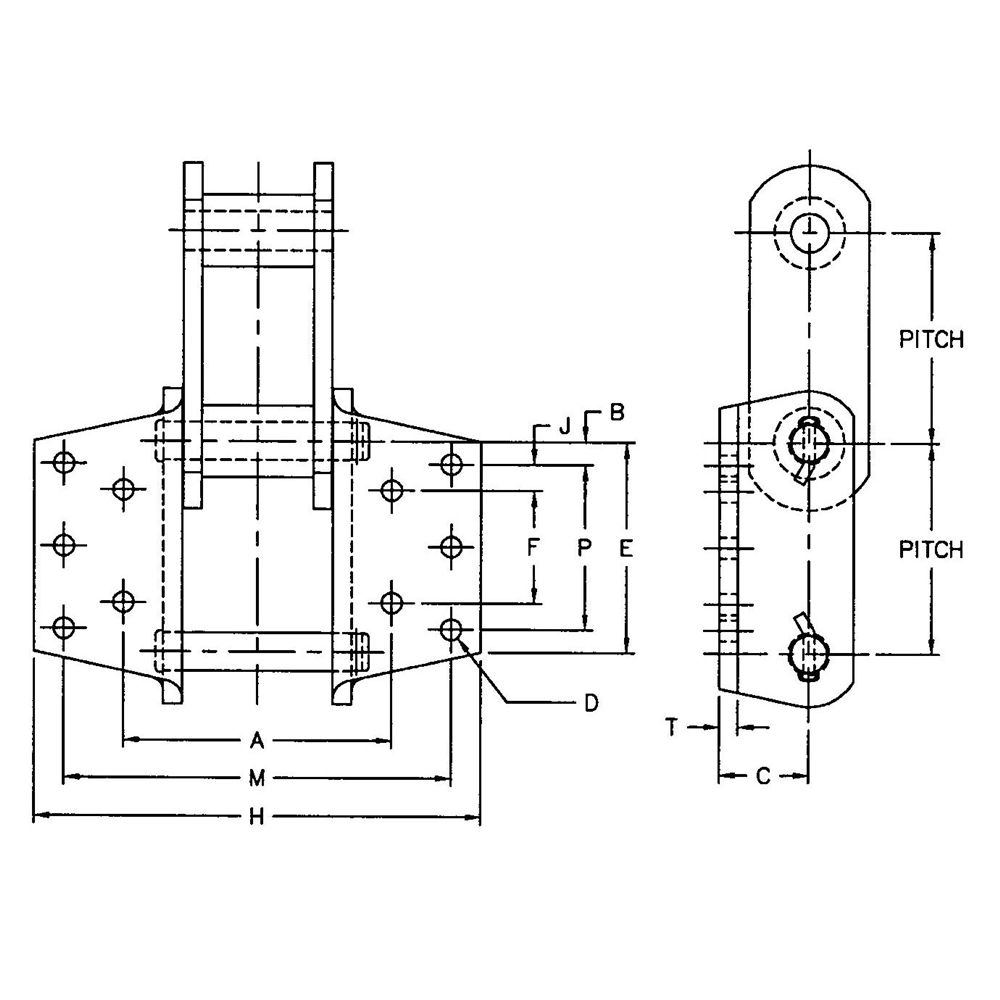

Chain No.	Pitch	A	B	C	T
SS857-K44	6.000	7.00	1.25	2.50	0.50
SS859-K44	6.000	9.00	0.75	3.00	0.62
SS958-K44*	6.000	7.00	1.25	2.50	0.50
SS864-K443*	7.000	9.00	3.50	3.00	0.62
SS984-K443*	7.000	13.00	3.50	3.00	0.62
SS994-K443*	7.000	13.00	3.50	3.00	0.62

Chain NO.	E	F	H	D			J	M	P	AVERAGE WEIGHT PER FT. LBS
Chain NO.	E	F	H				J	M	P	AVERAGE WEIGHT PER FT. LBS	BOLT DIA.	HOLE DIA.
SS857-K44	6.00	3.50	13.81	0.50	0.56	—	12.00	—	42.0
SS859-K44	6.75	2.75	15.06	0.62	0.69	0.88	13.00	4.50	68.0
SS958-K44*	5.75	3.50	13.68	0.50	0.56	—	12.00	—	40.0
SS864-K443*	7.00	3.75	15.06	0.62	0.69	1.88	13.00	5.50	55.0
SS984-K443*	7.32	3.75	14.88	0.62	0.69	2.75	13.00	5.50	58.0
SS994-K443*	7.49	3.75	14.88	0.62	0.69	2.75	13.00	5.50	58.0
