Product Description

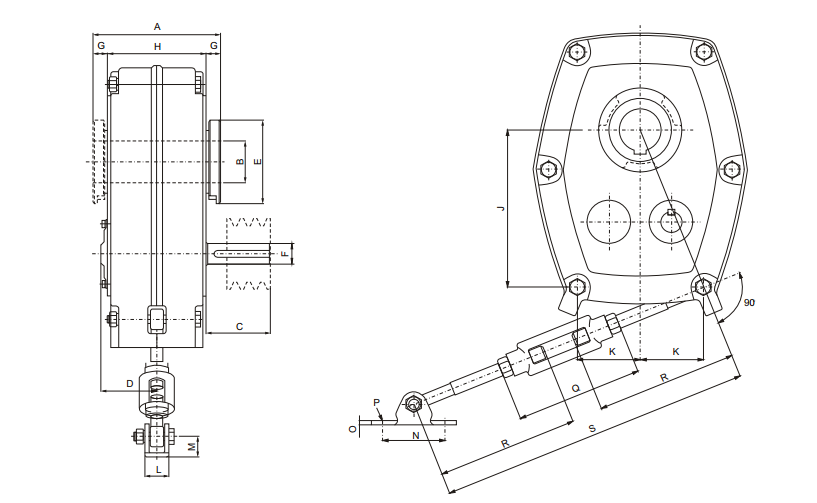

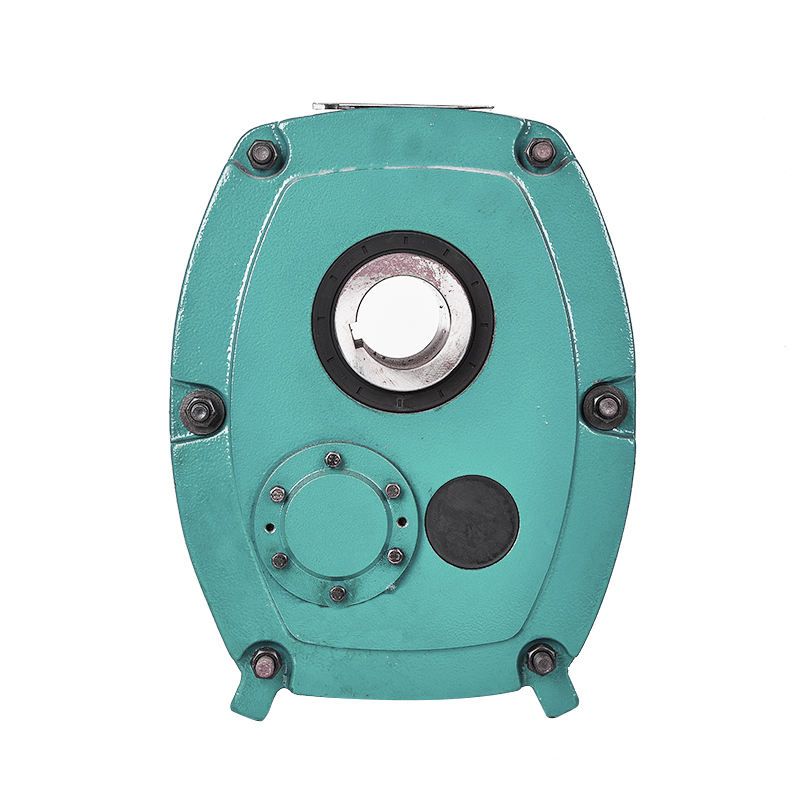

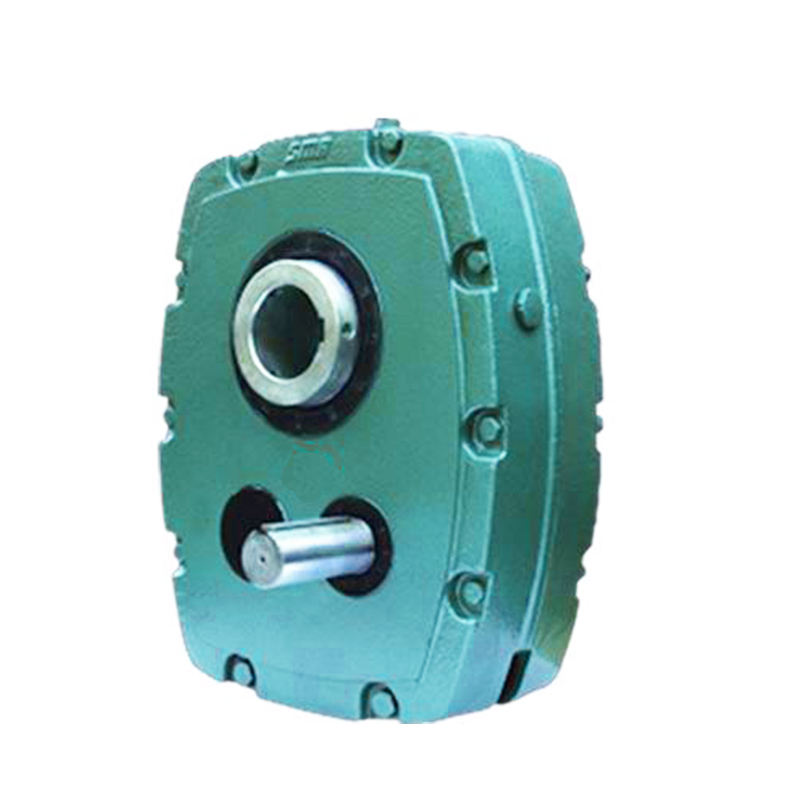

Images of Square Shaft Mounted Gear Box for Mining

Square Shaft Mounted Gear Box

1. Precision High Quality Gearing

Computer designed helical gears, strong alloy materials for high load capacity, ground profile (some intermediate pinions are shaved). Crown tooth profile, in conformance with ISO 1328-1997, 98% efficiency for per stage, smooth quiet operation with several teeth in mesh.

2. Output Hub

*Standard or alternative output hole diameter for choice as follow.

ITEM	Standard output hole diameter	Alternative output hole ø
B5	ø30	ø25/35/40
B13/20	ø30	ø25/35/40
C5	ø40	ø35/45/50
C13/20	ø40	ø35/45/50
D5	ø50	ø45/55/60/65
D13/20	ø50	ø45/55/60/65
E5	ø55	ø50/60/65
E13/20	ø55	ø50/60/65
F5	ø65	ø60/70/75
F13/20	ø65	ø60/70/75
G5	ø75	ø70/80/85
G13/20	ø75	ø70/80/85
H5	ø85	ø80/90/95/100
H13/20	ø85	ø80/90/95/100
J5	ø100	ø90/95/105/110/105120
J13/20	ø100	ø90/95/105/110/105120

3. Strong Alloy Steel Shafts

Strong alloy steel, hardened, ground on journals, gear seatings and extensions, for maximum torsional loads. Generous size shaft keys for shock loading and conform to ISO standards.

4, Back Stops

Alternative parts, anti-run back device, are available on all 13:1 and 20:1. Ratio units and do not recommend for 5:1.

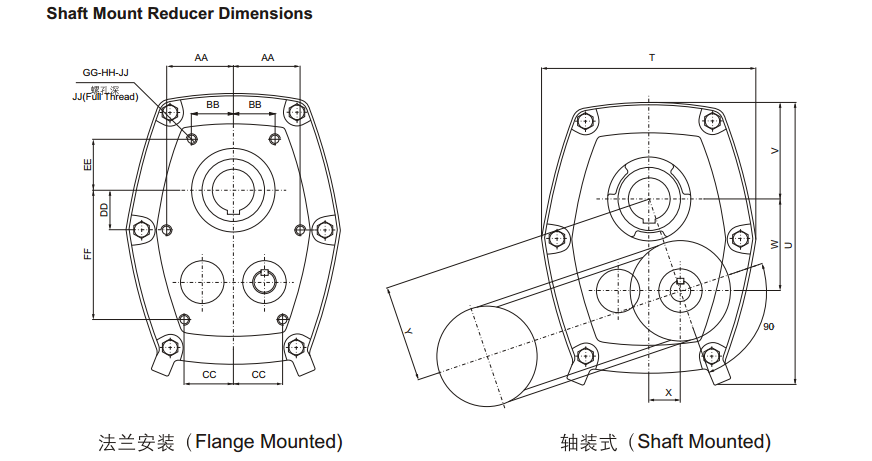

5. Torque Arm Assembly

For easy adjustment of the belt.

Packing Images of Square Shaft Mounted Gear Box

Inner Packing: PP bag with carton;
Outer Packing: Wooden case;
Shipment: 20-30 days upon receiving the deposit.

Q: Are you trading company or manufacturer ?
A: HZPT group consists in 3 factories and 2 abroad sales cooperations.we are making vacuum pumps,air compressors and gearboxes.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 30-45 days. The time may vary depending on the product and the level of customization. For standard products,
the payment is: 30% T/T in advance ,balance before shippment.,for customized products,50% downpayment is requested normally.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with detail size, material and further specifications;when you place orders,pleasure contact us in advance to communicate all details.
