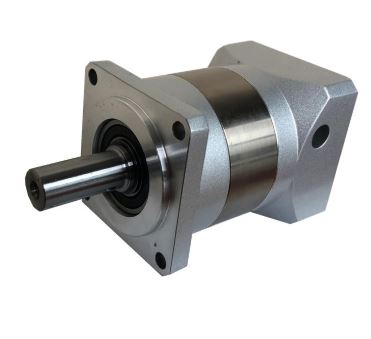

The Planetary Motion Is The Principle For The Planetary Gearbox.
The Accurately Positioned And Meshed Planet Gears With The Sun Gear In The Centre And The Internal Teeth Of The Outer Ring Gear Compose Each Stage Of A Planetary Gearbox.
The Sun Gear Gets The Input While The 3 Planet Gears Provide The Ouput Via A Planet Carrier .
Planetary Gearbox Product Specifications :
Provides High Torque At Slow Speeds.
The Shafts Are Made Up Of Hardened And Tempered Special Alloy Steel.
Sun And Planet Gears Are Made Of Case Carburised And Ground Alloy Steel.
Ring Gears Are Made Up Of Forged Alloy Steel.
Best Load Sharing Because Of Accurate Positioning Of Planets.
Low Noise Levels.
No Oil Leakage.
Good Quality Taper Roller Bearings For Input And Output Shafts.
Very High Efficiency

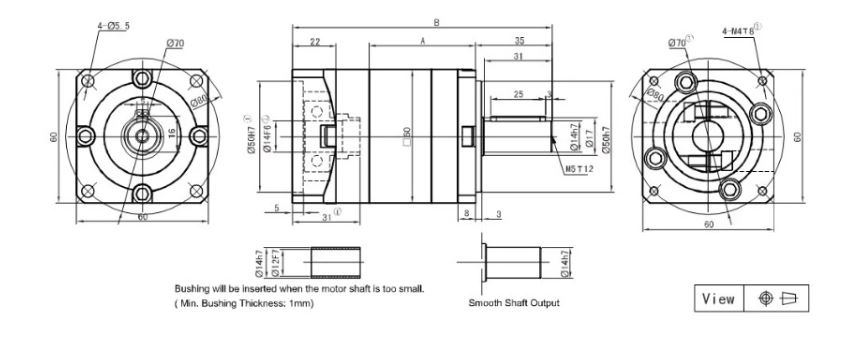

Size: 60 mm ,90mm, 120mm, 160mm
Gear ratio : 3 - 350
Torque : 8.5 Nm - 900 Nm
Speed : 3000 rpm - 8000 rpm
Max radial load : 485~2200 N
Max axial load : 380 ~2300 N
