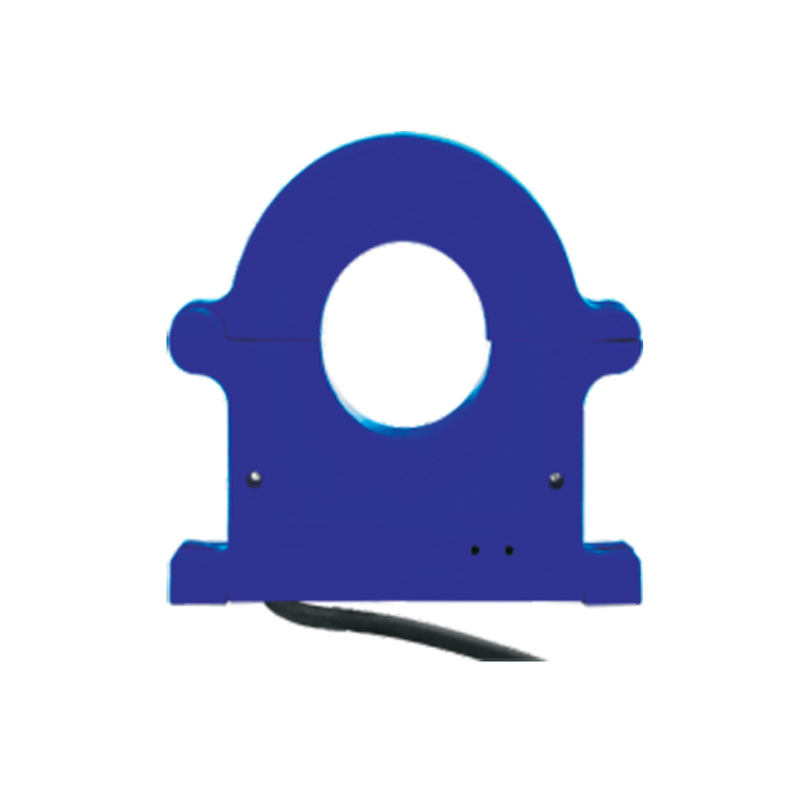

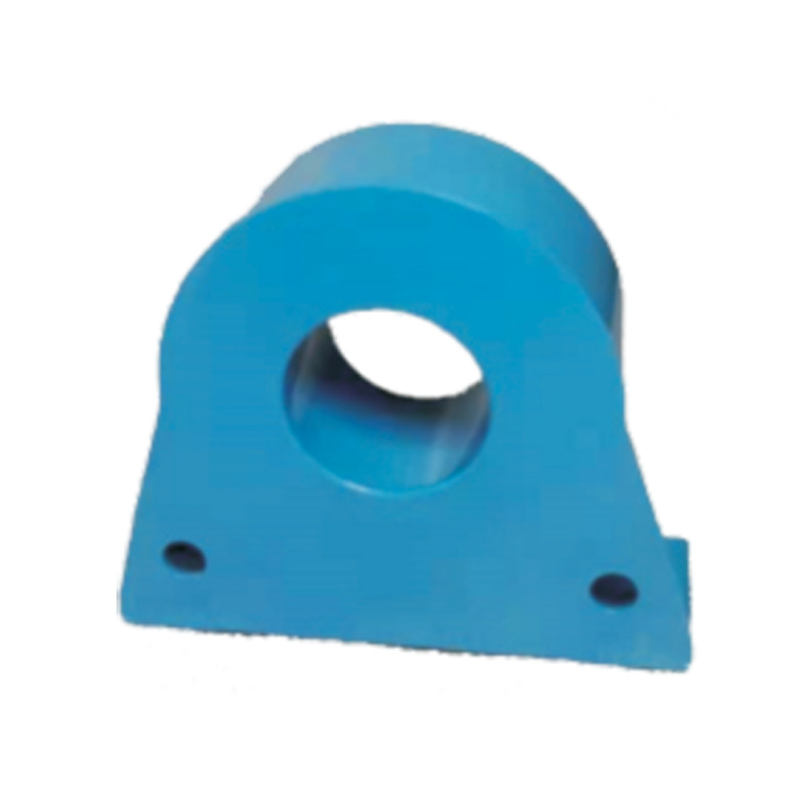

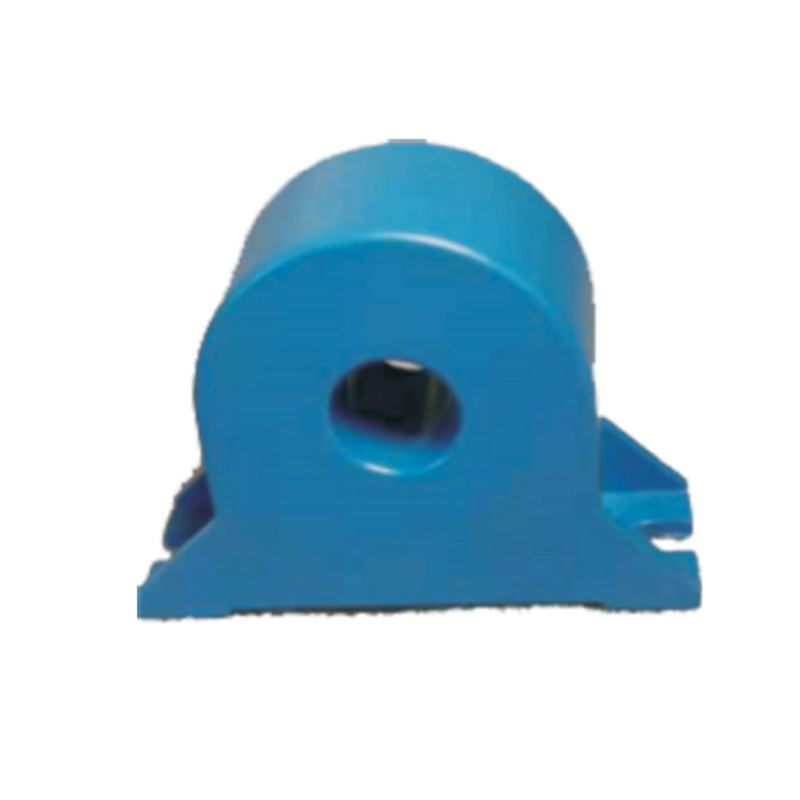

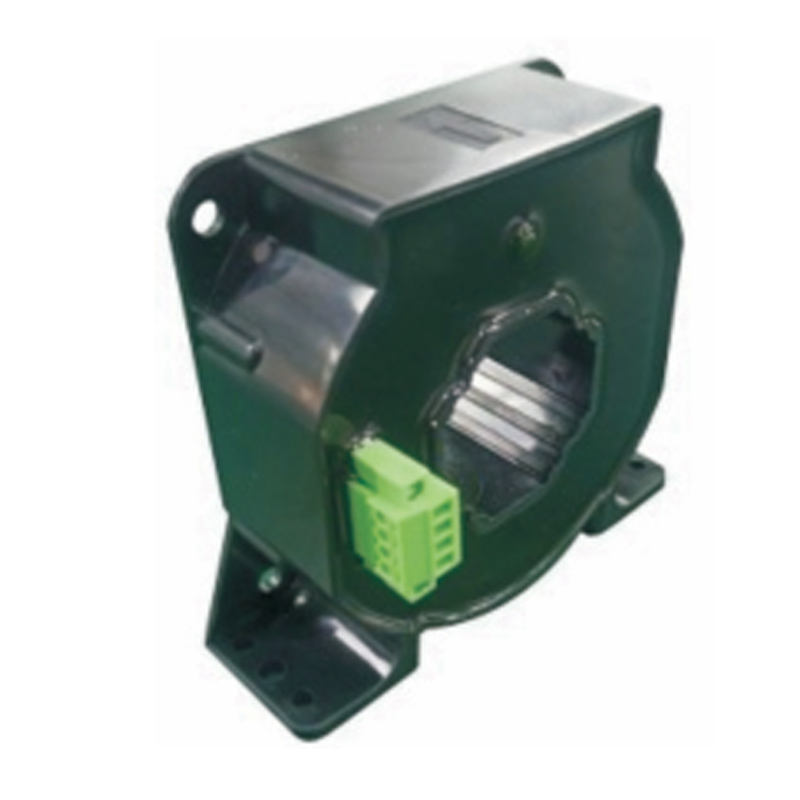

SITD Series High Precision Magnetic Balance Current Sensor Stable for Power Monitoring UPS

Raydafon Group's SITD Series High Precision Magnetic Balance Current Sensor offers unmatched stability for power monitoring in UPS systems, featuring advanced magnetic balance tech and superior accuracy to ensure reliable operation and peace of mind for engineers and professionals in critical applications.

Send Inquiry

Product Description

Quick and easy installation

High precision, high reliability, low cost testing

Linear output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Model	SITD100G	SITD150G	SITD200G
Primary rated input current	0~±100A	0~±150A	0~±200A
Primary current measurement range	120%
Secondary side rated output current	±100mA	±100mA	±100mA
Turns Ratio	1:1000	1:1500	1:2000
Secondary rated output	±15V~±24V
Current consumption	20±5mA(@±18V)
Accuracy	≤±0.5%
Linearity	≤±0.02%
Temperature drift	≤±0.2mA(-40℃~+80℃)
Response time	≤3μs
Load resistance	≤10Ω
Tracking speed	≥100A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	2~6kV/50Hz/1min×1mA

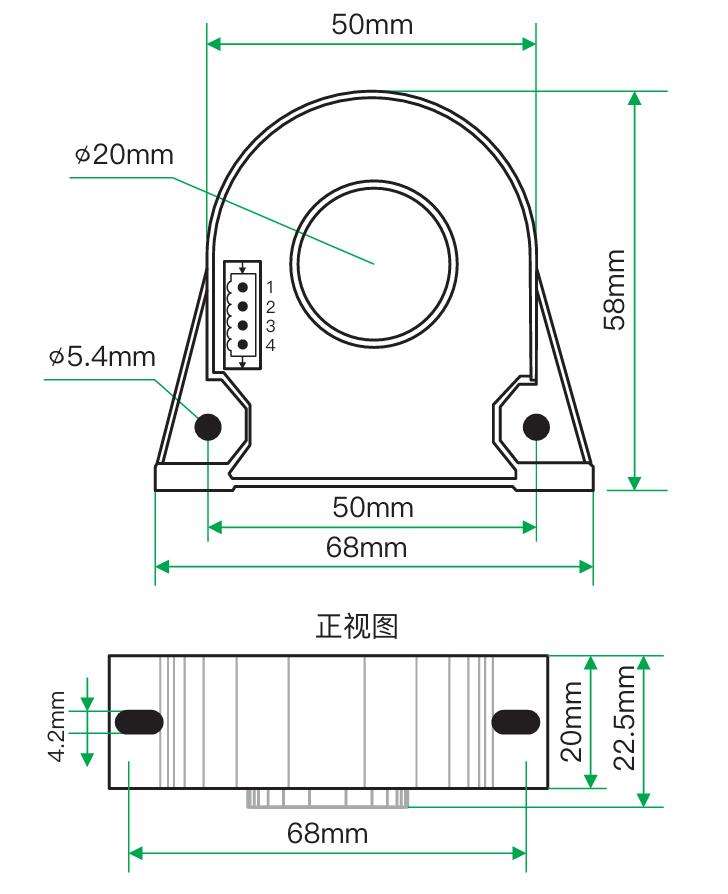

Outlet mode	Pin header, lead wire

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry

Ever-Power Technology Co., Ltd. was established in 2010. It is a high-tech enterprise engaged in system research and development, production, sales and service in the fields of high-speed signal processing, electromechanical control, etc. The company is guided by military development, driven by scientific and technological innovation, and supported by talent development. It has been deeply involved in the electronics industry for more than ten years and has a high-quality, high-tech and high-level engineering and technical team. Electricity sensors, transmitters, and mutual inductors are the electricity isolation detection products launched by Ever-Power Technology in recent years in response to market demand and combined with the company's own product structure advantages. After years of continuous improvement and updating of this type of product, several major series and hundreds of specifications have been formed. The products are widely used in communications, instrumentation, metallurgy, railways, navigation, aerospace and other fields and are generally recognized by users.
