SITD Series electromagnetic conversion magnetic balance current sensor for chopper, variable frequency speed regulator

Raydafon Group's SITD Series electromagnetic conversion magnetic balance current sensor excels in chopper and variable frequency speed regulator applications, offering precise current measurement with enhanced durability and reliability. Ideal for industrial automation, it ensures accurate control, reduces downtime, and improves efficiency. Experience superior performance and peace of mind with our cutting-edge technology.

Send Inquiry

Product Description

Based on the principle of electromagnetic conversion effect

High precision, high reliability Output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Good long-term stability, no accumulated error

Model	SITD200G	SITD300G
Primary rated input current	0~±200A	0~±300A
Primary current measurement range	120%
Working power supply	±15V~±24V
Turn ratio	1:2000	1:3000
Current consumption	28+ISmA
Accuracy	≤0.5%
Linearity	≤0.2%
Offset voltage	TA=25℃,≤±25mV
Temperature drift	≤±0.08%/℃
Response time	≤5μs
Load resistance	≤250Ω
Tracking speed	≥50A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	2.5kV/50Hz/1min×1mA

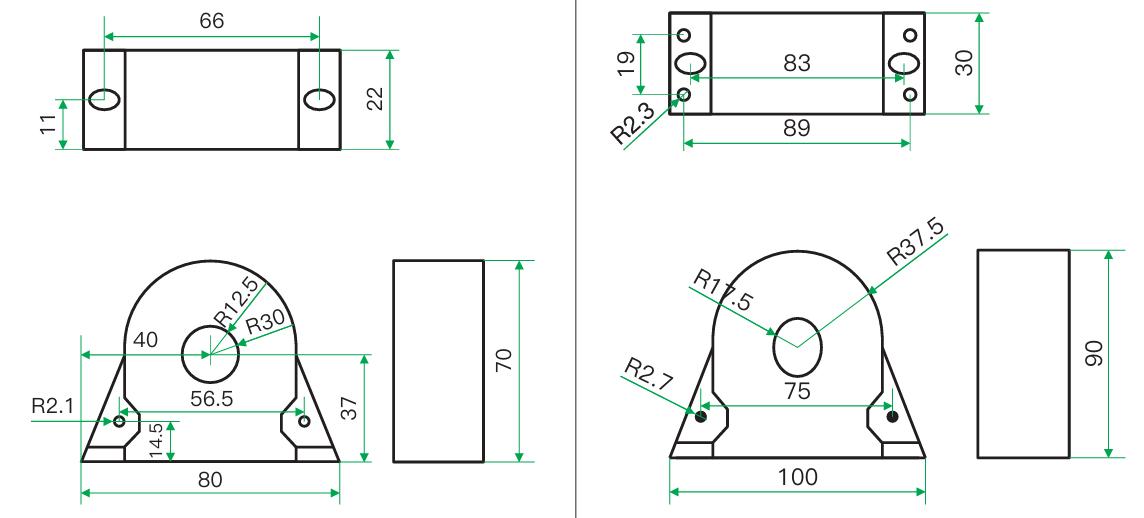

Installation	Screw-fastened flat surface installation

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotive, communication power supply DC motor, chopper, frequency converter, rectifier, industrial automation control, electrochemistry
