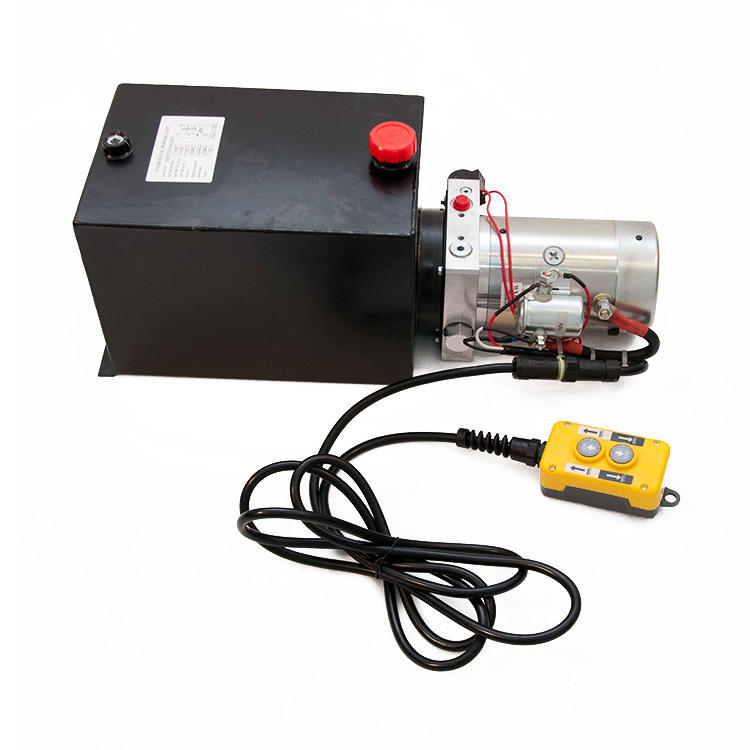

Single Acting 12 Volt DC Electro Hydraulic Power Unit

Single Acting Tipper Trailer Power Unit.
Equipped with a high pressure gear pump, a DC motor, a multi-functional manifold, valves and tank, this power unit has a power up - gravity down circuit. Start the motor to lift the machine and the lowering movement is activated by the solenoid valve with the lowering speed controlled by the pressure compensated flow control vale. It is widely used in tipper trailer, dump trailer, fork lift and scissor lift applications.

Specifications

Tank: Steel, 3 gallon horizontal or 12 Liters
All ports are #6 SAE O-ring boss
Motor: 2.0 hp, 12v, 2600 rpm, S3 Duty
Pressure = 2500 psi (17.5 Mpa)
Gear Pump: .128 Cu In/rev
System Relief valve: 2500 PSI
Solenoid Release Valve: 12VDC, NC
These units are high quality and are used in many OEM applications. We have direct factory support for any questions or parts.
Remote: 2 Button, 3 lines, 10 feet-1/2
21" total length
8-1/2 height (if you include the fill port then total height is 9-1/2")

Hydraulic Fluid:

ISO viscosity grades 22 to 46 are recommended. Anti wear, antifoaming & rust inhibitor additives are recommended.

For colder climates ATF can be used

In extreme cases Mil-5606 fluid can be used

Do not use synthetic, biodegradable or water base hydraulic fluids. In most cases these fluids are not compatible with Buna O-rings. Please check fluid compatibility before use.

Tractor hydraulic fluid is not recommended. Most tractor hydraulic fluid has to high of a viscosity & may not be compatible with Buna O-rings.

Recommended Fluid Viscosity Specifications:

ISO Viscosity Grades 22-46

cSt @ 40°C 22-46

cSt @ 100°C 4-8

Recommended Fluid Maintenance:

Change hydraulic fluid after initial 100 hours of operation

Change hydraulic fluid every 3000 hours or 2 years there after

Check hydraulic fluid level regularly before operation

Fit-up dimensions are: 7-3/4"wide x 8-1/2"tall x 12-1/2" long (fill port is 1" tall on tank)

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
