RC Series 1400 R/min BRC01 HS Series Gearbox Helical Gear Reducer

BRC01 helical gear reducer The high degree of modularity is a designfeature of BRC helical gearboxes range . It can be connected respectively with motors such as normal motor , brake motor . explosion-proof motor , frequency conversion motor , servo motor . IEC motor and so on . This kind of produc......
Send Inquiry
Product Description
RC Series 1400 R/min BRC01 HS Series Gearbox Helical Gear Reducer
BRC01 helical gear reducer
The high degree of modularity is a designfeature of BRC helical gearboxes range . It can be connected respectively with motors such as normal motor , brake motor . explosion-proof motor , frequency conversion motor , servo motor . IEC motor and so on . This kind of product is widely used in drive fields such astextile , foodstuff , ceramics packing , logistics plastics and so on . It is possible to set up the version required using flanges or feet.
Housing
Aluminum Alloys
Gears
Hardened Helical Gears
Input Configurations
Hollow Shaft with IEC Normalized Motor Flange /Solid Shaft Input
Applicable Motors
IEC-normalized Motors and Brake Motors/Explosion-proof Motors/Inverter Motors/Servo Motors
Output Configurations
Solid Shaft with B5 Output Flange/Solid Shaft with B14 Output Flange
Models
RC(Foot-mounted): RC01,RC02,RC03,RC04
RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04
RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04
Input Speed
1400rpm
Input Power
0.12kw~4kw
Ratio
3.66~54
RC Series 1400 R/min BRC01 HS Series Gearbox Helical Gear Reducer
RC Series 1400 R/min BRC01 HS Series Gearbox Helical Gear Reducer
RC Series 1400 R/min BRC01 HS Series Gearbox Helical Gear Reducer
RC Series 1400 R/min BRC01 HS Series Gearbox Helical Gear Reducer
BRC Series helical gear units has more than 4 types .
Power 0 . 12-4KW , Ratio 3.66-54 ; Torquemax 120-500NM .

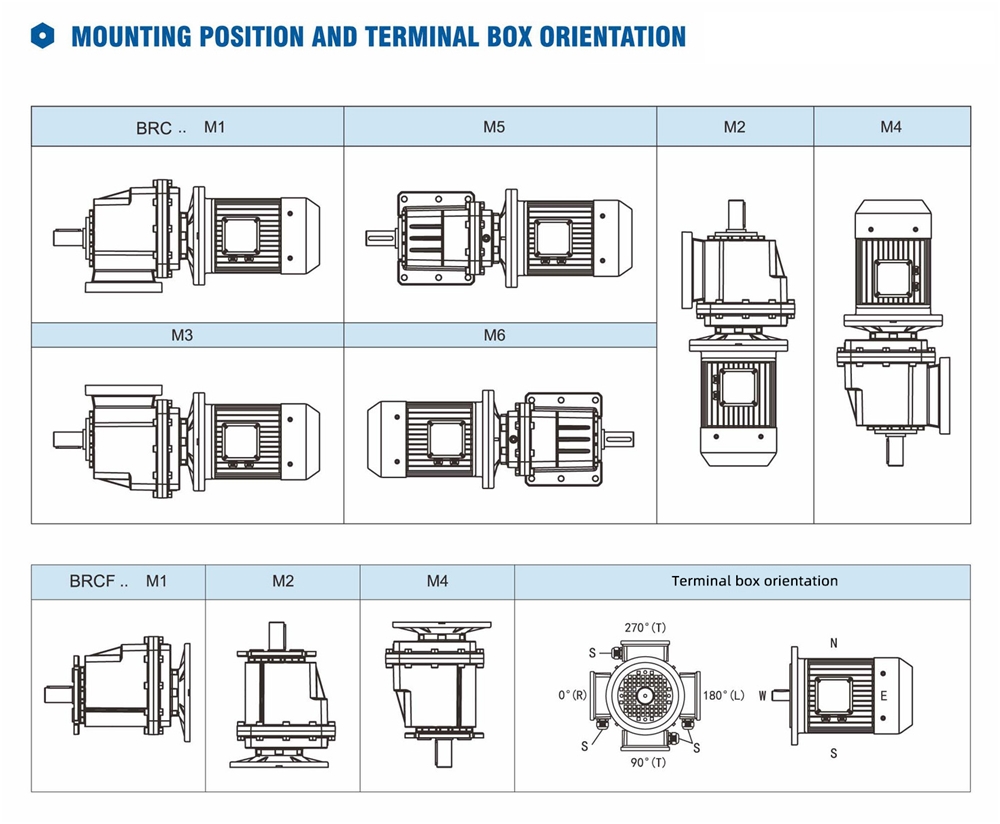

It can be connected ( foot orflange discretionary and use multi-mountingpositions accordng to customers' requirements

-Ground-hardened helical gears
-Modularity , Can be combined in many forms
-Aluminium casing , light weight .
-Gears in carbonize hard durable
-Universal mounting .
-Refined design , space effective and low noise
