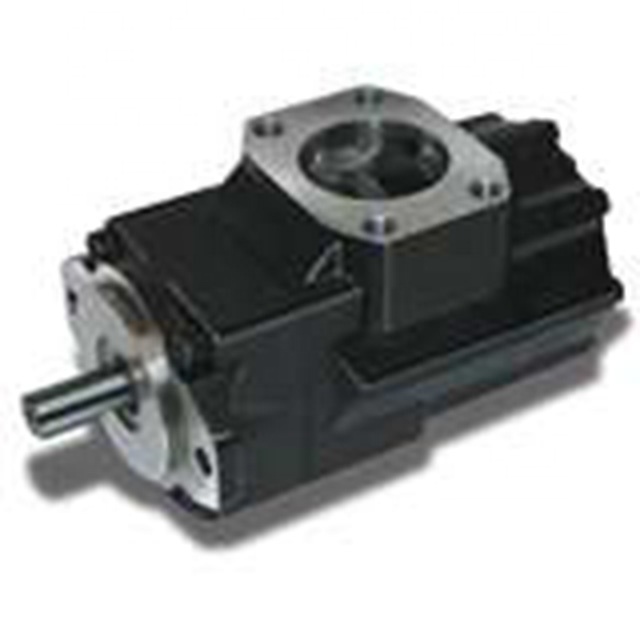

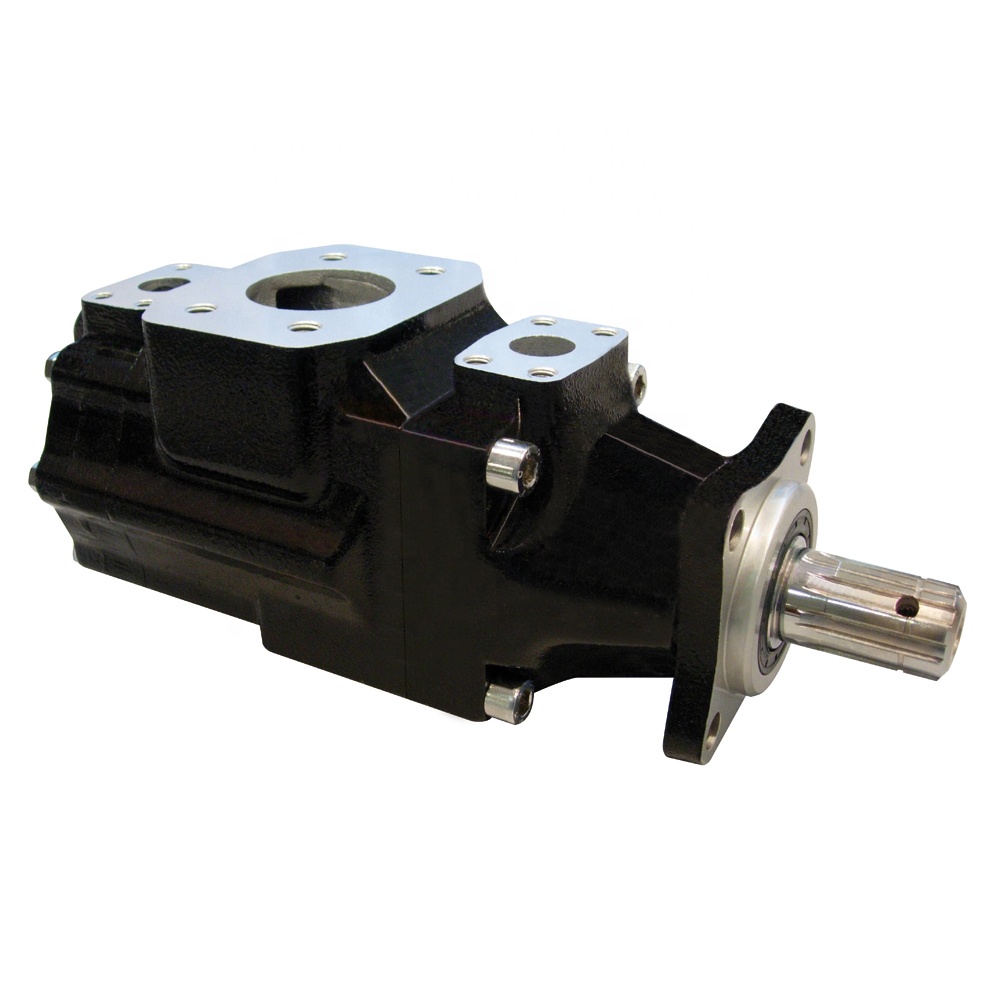

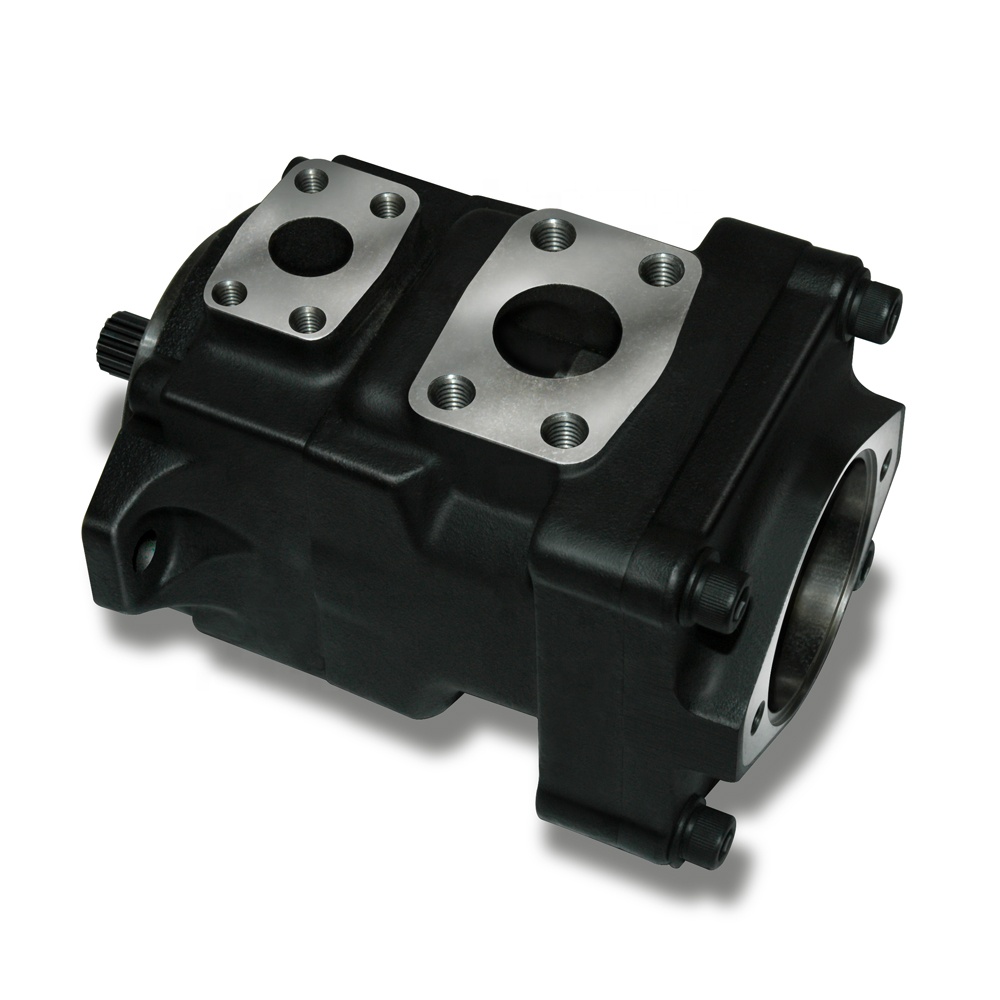

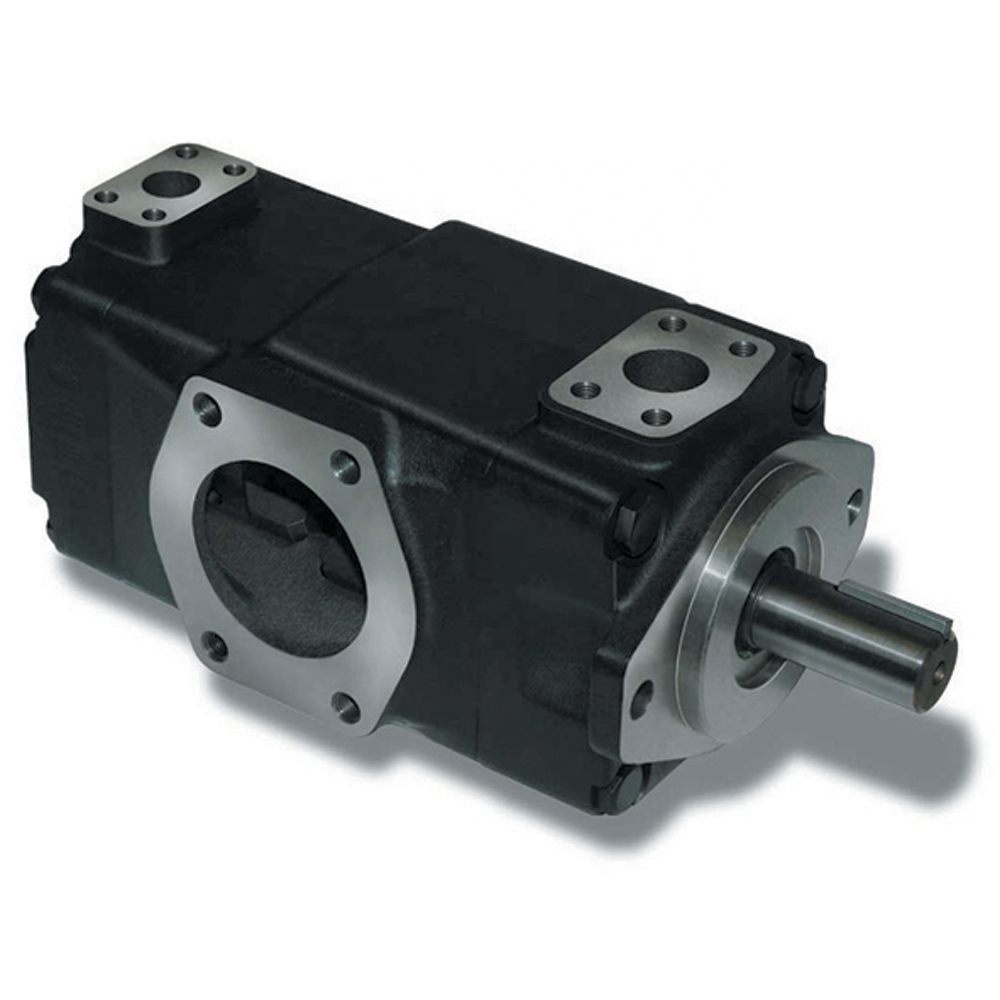

Hydraulic Parker Denison Vane Pump T6C T6D T6E T7E
Features
T6C, T6D T6E and T7E Series are fixed displacement and balanced type single hydraulic vane pumps. The pump is designed for higher operating pressure and greater flow at the same housing size.
With a balanced pin-vane design, outlet pressure is continuously applied only to the pin. The pin provides the steady light force against the vane. Top and bottom areas of the vane are subject to the same pressure, either inlet or outlet pressure, depending on the vane's location during rotor rotation. This pin-vane design minimizes noise level and improves volumetric efficiency.
With the cartridge independent of the shaft, allowing for easy change of flow capacity and field servicing without removing the pump from its mounting.
CARTRIDGE CHART
PUMP SIZE |
CART. KIT | CAM RING | VANE KIT | ROTOR | PRESSURE PLATE | PORT PLATE | SHAFTS | |
T6C-003 | S24-10692N | 034-59050N | 034-59099N | S24-10350N | 034-59772N | 034-59774N | #1 | 034-70814N |
T6C-005 | S24-10694N | 034-59051N | #2 | 034-70880N | ||||
T6C-006 | S24-10696N | 034-59052N | #3 | 034-70815N | ||||
T6C-008 | S24-10698N | 034-59053N | #4 | 034-59426N | ||||
T6C-010 | S24-10721N | 034-59054N |
|
| ||||
T6C-012 | S24-26478N | 034-66595N |
|
| ||||
T6C-014 | S24-10723N | 034-59206N |
|
| ||||
T6C-017 | S24-10725N | 034-59207N |
|
| ||||
T6C-020 | S24-26859N | 034-66607N |
|
| ||||
T6C-022 | S24-10727N | 034-59208N |
|
| ||||
T6C-025 | S24-10729N | 034-59209N |
|
| ||||
T6C-028 | S24-97761N | 034-59245N |
|
| ||||
T6C-031 | S24-45785N | 034-66843N |
|
| ||||
All cartridge assemblies are factory tested prior to shipping -
STANDARD SEAL KIT | VITON SEAL KIT | STANDARD SHAFT SEAL | VITON SHAFT SEAL | BEARING | FRONT COVER | BACK COVER |
S24-10333-0-N | S24-10333-5-N | 620-82012N |
| 230-82054N | 034-48565N | 034-48564N |
Filtration :
For satisfactory service life, use full flow filtration to provide fluid which meets ISO
cleanliness code 16/13 or better.
OEM Part number | Denison vane pump |
Parker Denison vane pump 024-03100-0 | T6C0082R00B1 |
Parker Denison vane pump 024-03100-0/01 | T6C0082R01B1 |
Parker Denison vane pump 024-03100-0/02 | T6C0082R02B1 |
Parker Denison vane pump 024-03100-0/03 | T6C0082R03B1 |
Parker Denison vane pump 024-03100-0/03 | T6C0082R03B1 |
Parker Denison vane pump 024-03400-5/00 | T6C0173R00B5 |
Parker Denison vane pump 024-03100-5 | T6C0082R00B5 |
Parker Denison vane pump 024-03101-0 | T6C0223R00B1 |
Parker Denison vane pump 024-03101-0/01 | T6C0223R01B1 |
Parker Denison vane pump 024-03101-0/02 | T6C0223R02B1 |
Parker Denison vane pump 024-03101-0/03 | T6C0223R03B1 |
Parker Denison vane pump 024-03101-5 | T6C0223R00B5 |
Parker Denison vane pump 024-03102-0 | T6C0101R00B1 |
Parker Denison vane pump 024-03102-0/01 | T6C0101R01B1 |
Parker Denison vane pump 024-03102-0/02 | T6C0101R02B1 |
Parker Denison vane pump 024-03102-0/03 | T6C0101R03B1 |
Parker Denison vane pump 024-03102-4 | T6C0101R00B4 |
For more detailed model number, please contact our company.
