The torque limiter is activated when the operating torque exceeds the setting value. Duringthe limiting phase, the device transmits reduced power in pulses The elimination of the externacause and the reduction of the PTO speed allows the normal power transmissionto be re-established When the limiter is activated, it is recommended to disconnect the PTO to avoidunnecessary wear and overheating.

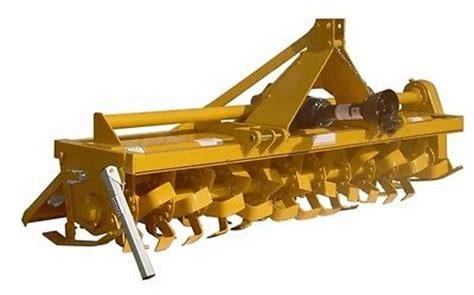

Models : Almost all tillers, regardless of the manufacturer, use a basic PTO with a friction clutch -3 Point PTO with Friction Clutch

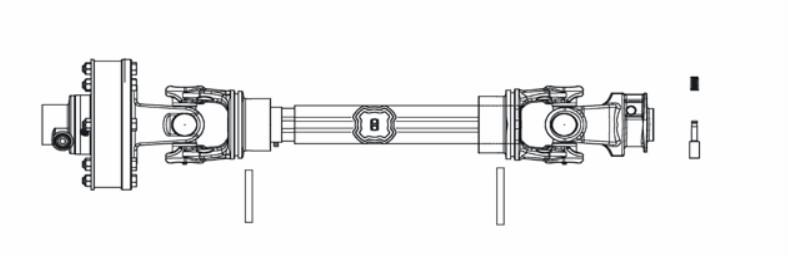

PTO SHAFT SIZE FOR TILLERS
TILLERS
PTO SHAFT SERIES NO.
MIN. LENGTH
MAX. LENGTH
TRACTOR END
TILLERS
Tiller Light Duty with 7" Clutch
Series 4
33"
43"
1-3/8 Z6-QD Pin
1-3/8 Z6-Friction Clutch 2 Discs with Bolt
Tiller Medium Duty with 6" Clutch
Series 4
41"
55"
1-3/8 Z6-QD Pin
1-3/8 Z6-Friction Clutch 2 Discs with Bolt
Tiller Heavy Duty with 7" Clutch
Series 6
45"
60"
1-3/8 Z6-QD Pin
1-3/8 Z6-Friction Clutch 2 Discs with Bolt
PTO ADAPTER-
540
extends
4.5"
1-3/8’ Z6-QD Pin female
1-3/8’ Z6 male

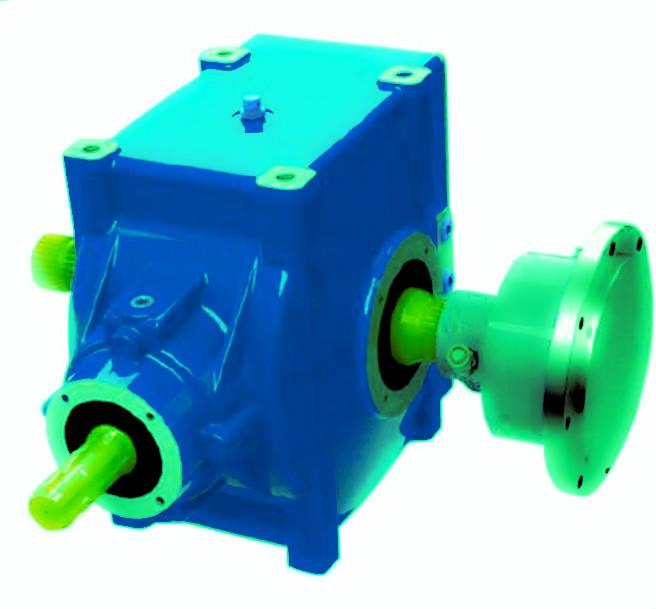

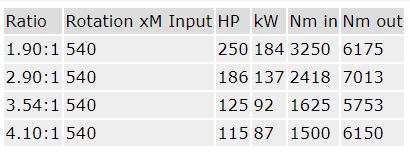

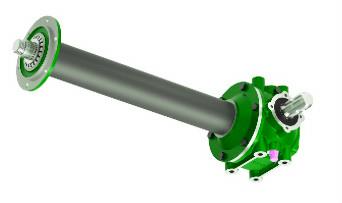

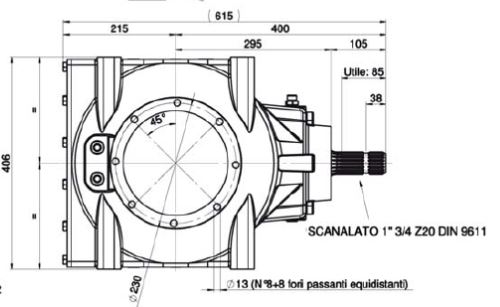

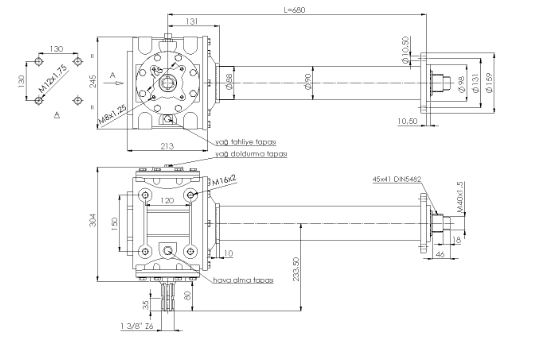

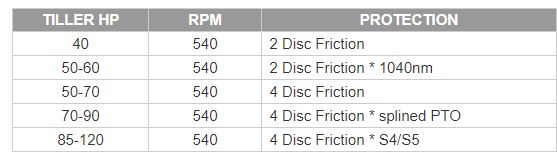

PTO GEARBOX SIZE FOR TILLERS

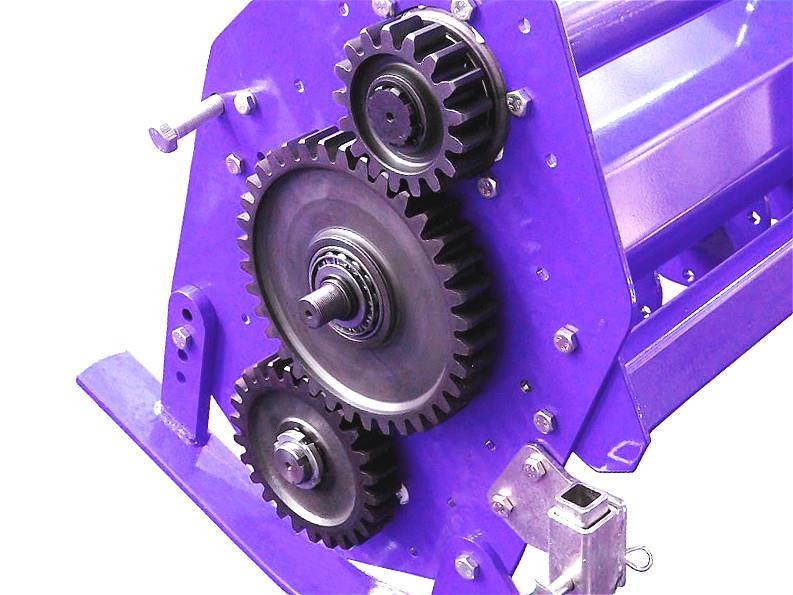

Also we produce all spur gear and spline shafts for the side gearbox of tiller.
