Promotional Various American Standard Pulley 3V Series Cast Iron Ten-Groove QD Sheaves for 3V Belts
3V Series Cast Iron Ten-Groove QD Sheaves for "3V" Belts3V series ten groove QD (quick disassembly) bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 4.75 inches to 33.50 inches. Depending on the pulley size, they use SK, SF, E or F QD bushings......

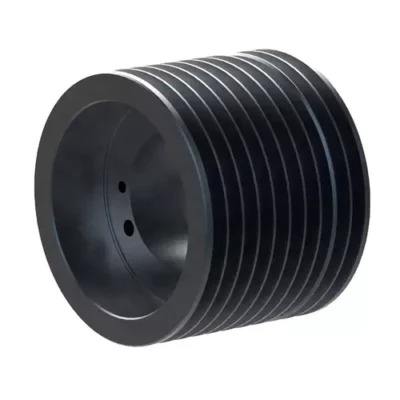

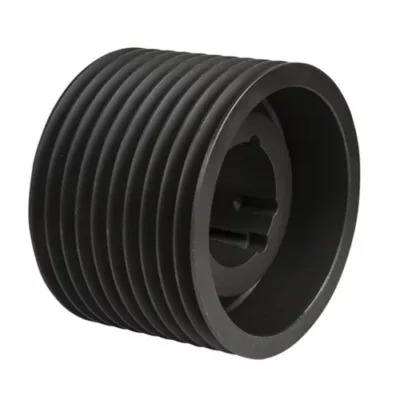

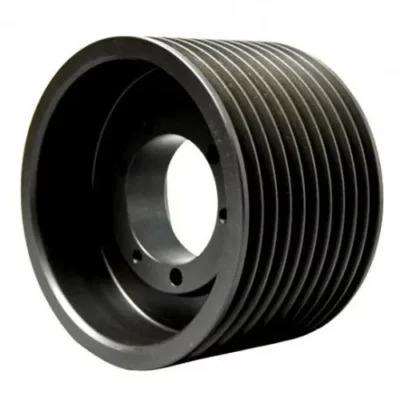

3V Series Cast Iron Ten-Groove QD Sheaves for "3V" Belts
3V series ten groove QD (quick disassembly) bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 4.75 inches to 33.50 inches. Depending on the pulley size, they use SK, SF, E or F QD bushings, which we also have in stock. Our ten groove 3V QD pulleys are mostly made of high-strength 35 cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

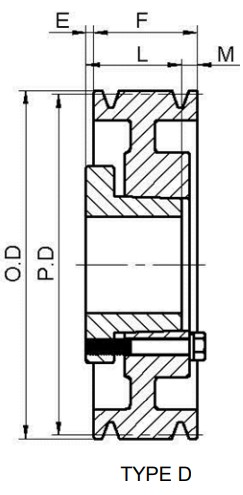

Ten-Groove 3V QD Sheave Size Chart
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
103V475SK
SK
D
4.70"
4.75"
21/32
4 11/32
1 15/16
3 1/16
8.3
103V500SK
SK
D
4.95"
5.00"
21/32
4 11/32
1 15/16
3 1/16
9.5
103V530SK
SK
A
5.25"
5.30"
21/32
4 11/32
1 15/16
1 3/4
10.2
103V560SK
SK
A
5.55"
5.60"
21/32
4 11/32
1 15/16
1 3/4
11.4
103V600SK
SK
A
5.95"
6.00"
21/32
4 11/32
1 15/16
1 3/4
14.5
103V650SK
SK
A
6.45"
6.50"
21/32
4 11/32
1 15/16
1 3/4
17.5
103V690SK
SK
A
6.85"
6.90"
21/32
4 11/32
1 15/16
1 3/4
20.0
103V800SF
SK
A
7.95"
8.00"
21/32
4 11/32
2 1/16
1 5/8
24.0
103V1060E
SF
A
10.55"
10.60"
3/32
4 11/32
2 1/16
1 1/2
30.2
103V1400E
E
A
13.95"
14.00"
3/32
4 11/32
2 3/4
1 1/2
42.8
103V1900E
E
A
18.95"
19.00"
3/32
4 11/32
2 3/4
1 1/2
64.0
103V2500F
E
A
24.95"
25.00"
1/32
4 11/32
3 3/4
5/8
99.0
103V3350F
F
D
33.45"
33.50"
1/32
4 11/32
3 3/4
5/8
158.0
Match 3V, 3VX series V belt
(1) 3V series deep wedge V-belt
The classic 3V series V-belt has a top width of 0.38 ", a thickness of 0.31" and an angle of 38 °, which also classifies it as a deep wedge V-belt. The 3V series belt is designed to be more compact and more powerful than the standard 40 ° angle v-belt. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 3V series v-belts we provide are manufactured according to ISO 9001 specifications and ARPM standards; They are oil and heat resistant and can be directly interchanged with other brands. The 3V conveyor belt is made of natural rubber compound and polyester rope, and is covered with a mixture of cotton and polyester, with high durability. The 3V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. We also stock a complete set of v-belts and matching v-pulleys/pulleys.
(2) 3VX toothed V-belt
The top width of the 3VX toothed v-belt is 0.38 "and the thickness is 0.31". Our grooved 3VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 3VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will be used in conjunction with existing v-belt pulleys/pulleys.
(3) 3V series ribbon V-belt
The 3V series v-belts are part of the "classic" series of v-belts because they are one of the oldest and most common styles used. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of the 3V series v-belt is 0.38 inches.
(4) 3VX belt toothed V-belt
All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 3VX toothed v-belt runs more smoothly and loosely, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs.
Accessories QD Bushings
QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.

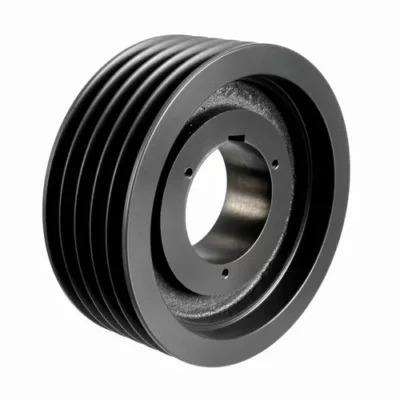

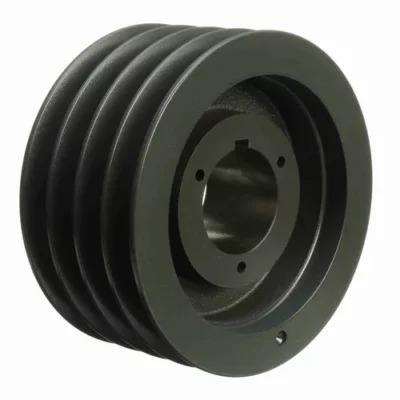

QD bushing pulley for 3V belt
Quick Removable (QD) bushings are easy to install and remove, minimizing downtime without sacrificing the protection required by the machine. Make full use of the drive system by matching the QD bushing with the QD bushing pulley.
Not sure which ones are for you? HZPT provides a variety of QD bushing pulleys for online purchase. Pulleys are filtered by several grooves, outside diameters, and belt types, including 5V, 3V, A, and B belts. View V-pulley dimensions, weights, and shipping details on the product page. If you don't see the QD pulley you need, or you want to make a second observation of your project, please ask us for information or send an email immediately.
Common application of QD pulley
*Machine tool
*Crusher, pulverizer, crusher, classifier, vibrating screen
*Material conveying system
*Fans, blowers and exhausters
*Pumps and compressors
*Woodworking saw, milling machine, planer, lathe
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
