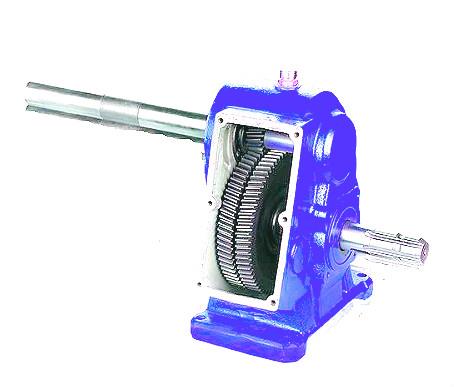

Pesticide Sprayer Gearbox

Pesticide Sprayer Gearbox

XL offer proper pesticide sprayer gearbox for our customers according to their agncultural

machines. If the application, dimension and Input speed and gear ratio are offered, Hongye could offer you

whatever you want.

ODM (original design manufacturing) service is provided when manufacturing pesticide sprayer gearbox.

The followings are its technical parameters:

Model Number: Raydafon55

Gearing Arrangement: Bevel I Miter

Output Torque: 228Nm

Rated Power: 70hp

Input Speed: 540rpm

Output Speed: 2160rpm

Ratio: 1:5 or 1:3.9

Model:3.5

Input description: spline shaft

Output descnpt1on: Key way shaft

Housrng material: HT250

Shaft material: 20CrMnTI

Horsing surface color: customized

Weight: 52kg

Input torque: 910Nm
