energy saving:Oil-free dryer machine save energy more than 15%
environmental protection:Do not use any lubricant to avoid environmental pollution
reliable:Absolute guarantee whithout oil
Because of pure water in sealing, cooling and lubrication of the compression process, greatly improve the efficiency, than the same power gas production rate than dry oil-free machine increase by more than 15%, greatly reduce the energy consumption. It supplies only cheap water, air filter and water filter, low maintenance cost.
100% oil-free compressed air, 100% pure compressed air, 100% compression system without oil pollution risk
In the course of food, beverage processing, pharmaceutical manufacturing, packaging, electronics manufacturing, painting, powder coating and textile manufacturing, it is necessary to eliminate any oil pollution risk, otherwise it will cause serious consequences, damage, production pause, brand and credit damage. Xinmai Er oil-free screw compressor with pure water as a lubricating medium, the host part of no oil, but also because of pure water on the air cleaning effect, the production of compressed air is absolutely pure, without any pollution.

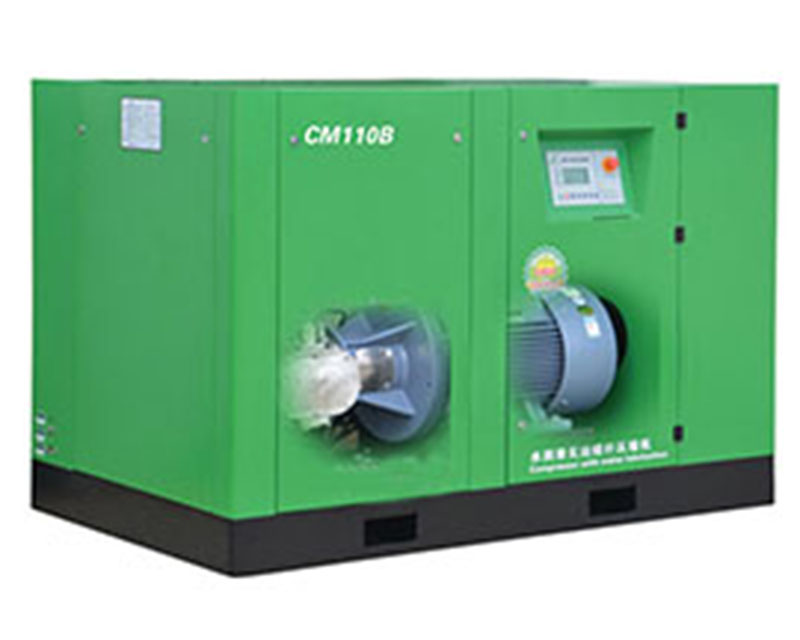

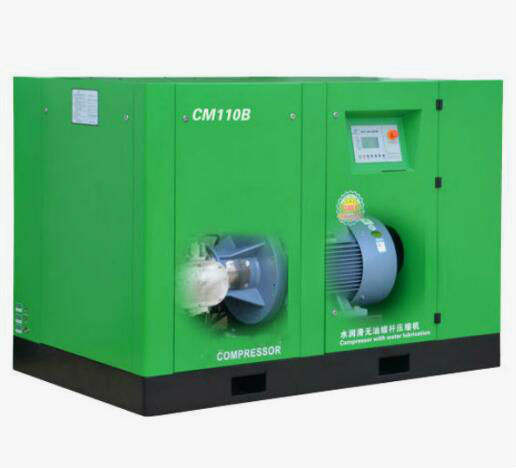

Technical parameters of CM / B series water lubricated oilless screw air compressor
We is a leading manufacturer of industrial air compressor china manufacturers, oir free air compressor china suppliers and screw air compressor china spare parts.Based in China, our product lower noise air compressors,Oil-free screw air compressor range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, etc. industries.
| Model | Maximum work pressure | FAD | Motor power | Noise | Weight | Pipe diameters of cooling water inlet and outlet | Quantily of cooling water | Dimension | Air outlet |
| Water entering32° | L×W×H | ||||||||
| Mpa | m3/min | kW | dB(A) | Kg | T/n | mm | |||
| CM08B(F) | 0.8 | 1.15 | 7.5 | 58 | 630 | 3/4″ | 2 | 3/4″ | 1550×775×1445 |
| 1.0 | 1.02 | ||||||||
| CM11B(F) | 0.8 | 1.55 | 11 | 58 | 650 | 3/4″ | 2.5 | 3/4″ | 1550×775×1445 |
| 1.0 | 1.32 | ||||||||
| 1.25 | 1.02 | ||||||||
| CM15B(F) | 0.8 | 2.40 | 15 | 63 | 900 | 1″ | 3.5 | 1″ | 1900×1000×1635 |
| 1.0 | 2.12 | ||||||||
| 1.25 | 1.61 | ||||||||
| CM18B(F) | 0.8 | 3.10 | 18.5 | 65 | 970 | 1″ | 4 | 1″ | 1900×1000×1635 |
| 1.0 | 2.62 | ||||||||
| 1.25 | 2.13 | ||||||||
| CM22B(F) | 0.8 | 3.50 | 22 | 65 | 1000 | 1″ | 5 | 1″ | 1900×1000×1635 |
| 1.0 | 3.13 | ||||||||
| 1.25 | 2.61 | ||||||||
| CM30B | 0.8 | 5.00 | 30 | 66 | 1250 | 1 1/4″ | 7 | 1 1/2″ | 1900×1050×1430 |
| 1.0 | 4.20 | ||||||||
| 1.25 | 3.81 | ||||||||
| CM37B | 0.8 | 6.10 | 37 | 67 | 1270 | 1 1/4″ | 9 | 1 1/2″ | 1900×1050×1430 |
| 1.0 | 5.22 | ||||||||
| 1.25 | 4.81 | ||||||||
| CM45B | 0.8 | 7.30 | 45 | 68 | 1500 | 1 1/2″ | 10 | 2″ | 2200×1350×1530 |
| 1.0 | 6.13 | ||||||||
| 1.25 | 5.65 | ||||||||
| CM55B | 0.8 | 9.60 | 55 | 70 | 1596 | 1 1/2″ | 12 | 2″ | 2200×1350×1530 |
| 1.0 | 8.60 | ||||||||
| 1.25 | 7.42 | ||||||||
| CM75B | 0.8 | 12.50 | 75 | 73 | 1790 | 1 1/2″ | 18 | 2″ | 2200×1350×1530 |
| 1.0 | 11.42 | ||||||||
| 1.25 | 9.83 | ||||||||
| CM90B | 0.8 | 16.30 | 90 | 73 | 2250 | 2″ | 20 | 2 1/2″ | 2500×1400×1605 |
| 1.0 | 14.52 | ||||||||
| 1.25 | 12.30 | ||||||||
| CM110B | 0.8 | 19.40 | 110 | 78 | 2270 | 2″ | 24 | 2 1/2″ | 2500×1400×1605 |
| 1.0 | 16.90 | ||||||||
| 1.25 | 15.10 | ||||||||
| CM132B | 0.8 | 22.21 | 132 | 78 | 2330 | 2″ | 30 | 2 1/2″ | 2500×1400×1605 |
| 1.0 | 20.38 | ||||||||
| 1.25 | 18.29 | ||||||||
| CM160B | 0.8 | 28.85 | 160 | 78 | 3360 | 2 1/2″ | 35 | 3″ | 3100×1700×2090 |
| 1.0 | 24.52 | ||||||||
| 1.25 | 22.17 | ||||||||
| CM200B | 0.8 | 36.63 | 200 | 78 | 3360 | 3″ | 43 | 4″ | 3100×1700×2090 |
| 1.0 | 32.70 | ||||||||
| 1.25 | 27.72 | ||||||||
| CM250B | 0.8 | 42.88 | 250 | 78 | 3900 | 3″ | 53 | 4″ | 3100×1700×2090 |
| 1.0 | 39.00 | ||||||||
| 1.25 | 34.64 |
*Remarks:The Company reserves the right to continuously improve the technology, parameter changes will not be informed!
