Product Description

JDLB Features Worm gear servo reducer has nine specifications of 25-35-45-50-55-63-75-90-110, and adopts double-lead worm drive. The left and right tooth surfaces of the worm use different lead angles, causing the tooth thickness to change gradually, so that the worm can be moved to adjust the meshing gap. Features: - Worm backlash can be adjusted to less than 1 arc minute - The gap can be readjusted after the reducer is used - Coupling for input: reliable and no backlash -Prototype clamping ring coupling for output: reliable and no backlash JDLB use cases 1. High-precision rotary motion -Reduce vibration and noise caused by load variation and cutting force variation -Reduce shock and noise caused by forward and reverse rotation -Reduce the increased wear of the turbine caused by the above -Increase the response speed of turbo output 2. Precision indexing device -CNC machine tools, assembly lines, cutting machines, conveyor lines, etc. - Occasions that require accurate movement, such as indexing devices, reading mechanisms, etc. 3. When the speed changes -Reduce shock and noise caused by speed changes - Reduced turbo wear caused by speed changes

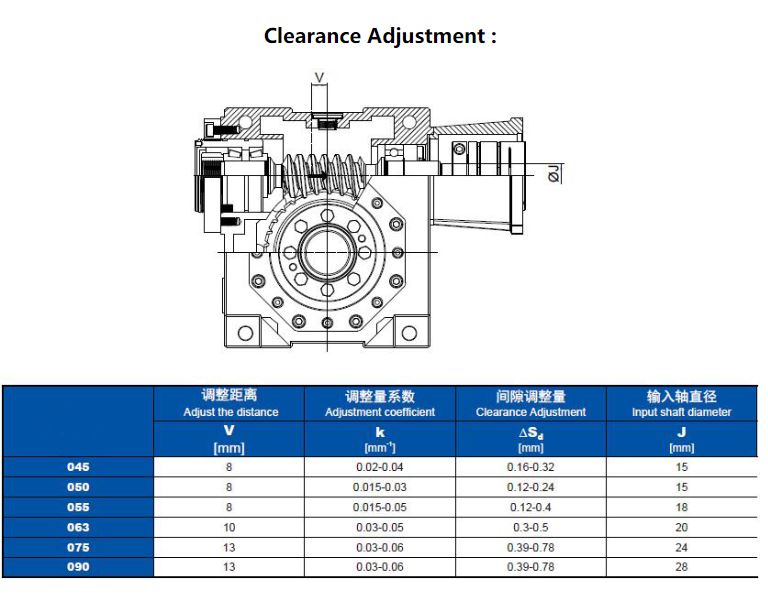

Servo worm gear units have three types : 45 - 50 - 55 - 63 - 75 - 90 ,with dual lead worm drive.Left and right flank of worm shaft using different lead angle,causing tooth thickness gradual change,So that you can move worm shaft and adjust backlash.

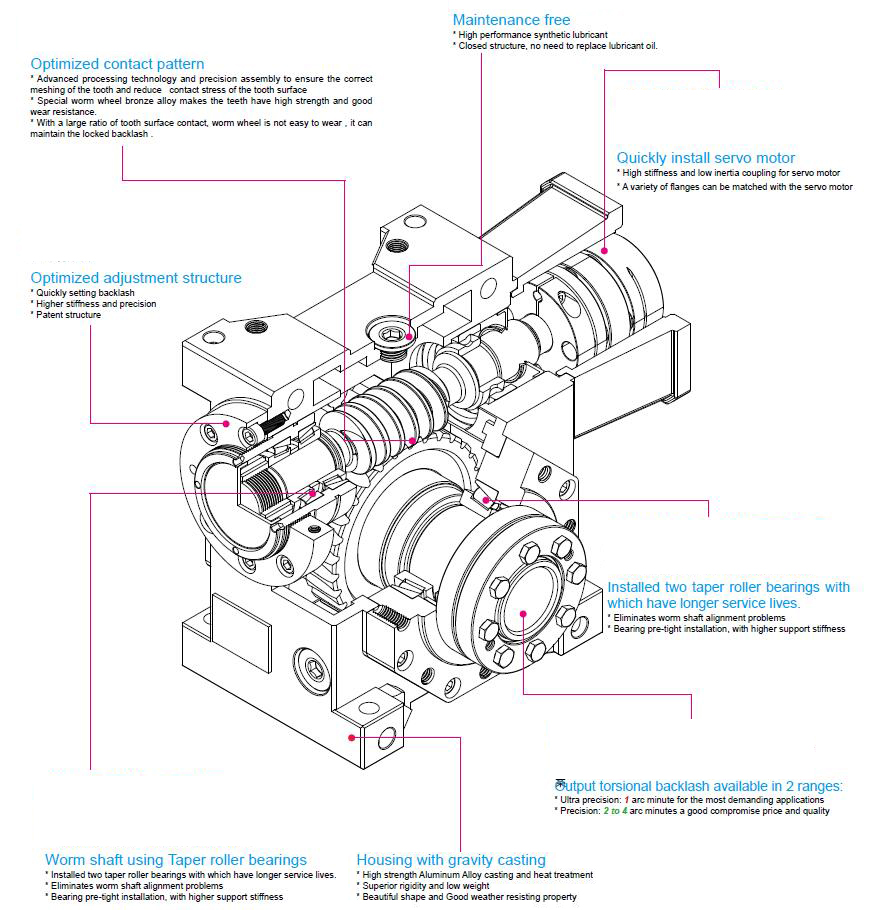

Low backlash Features	-- Worm gear gyration backlash can be adjusted to less than 1 arc. -- Reducer can be re-adjusted the gap after using . -- Input with coupling : reliable without backlash . -- Output using conical clamping ring couplings : reliable without backlash.

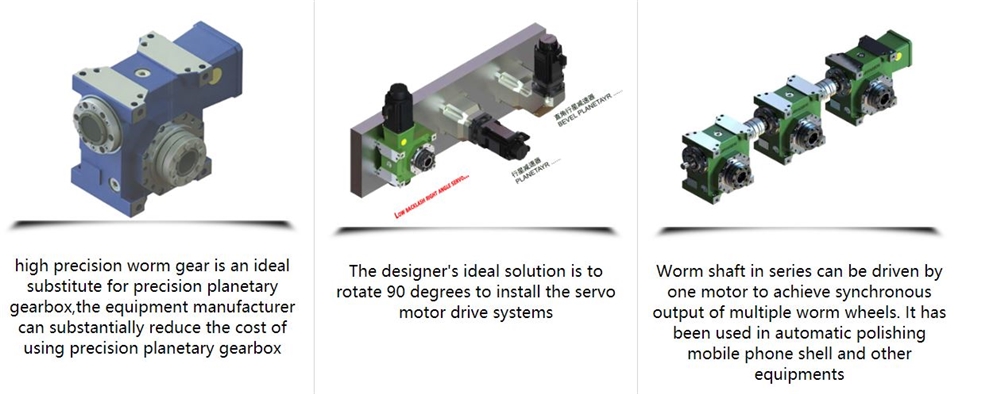

Applications	Precision rotary motion	-- Reducing the noise and vibration that is caused by the load change and the change of cutting force. -- reducing the noise and impact that is caused by the corotation and reverse. -- By reducing worm abrasion. -- Increasing worm output response speed .
		Precision Indexing device	-- CNC machine, assembly line, cutting machine, transmission lines, etc. -- Indexing device,accurate reading mechanism require accurate movement occasions .
		Speed changing situations	-- Reducing the noise and the impact that is caused by speed change. -- Reducing the worm abrasion that is caused by speed changes.
