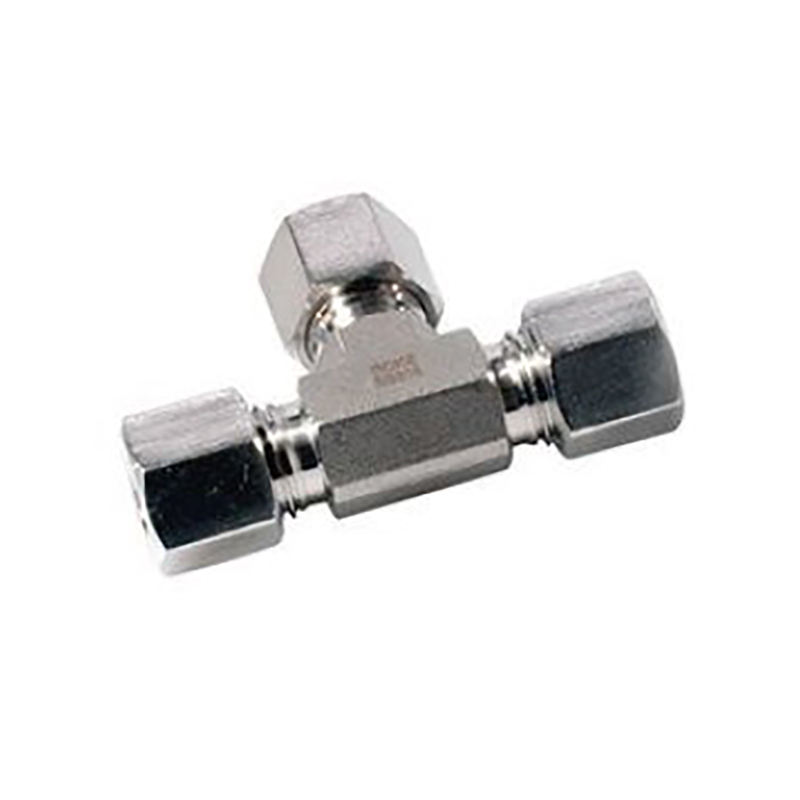

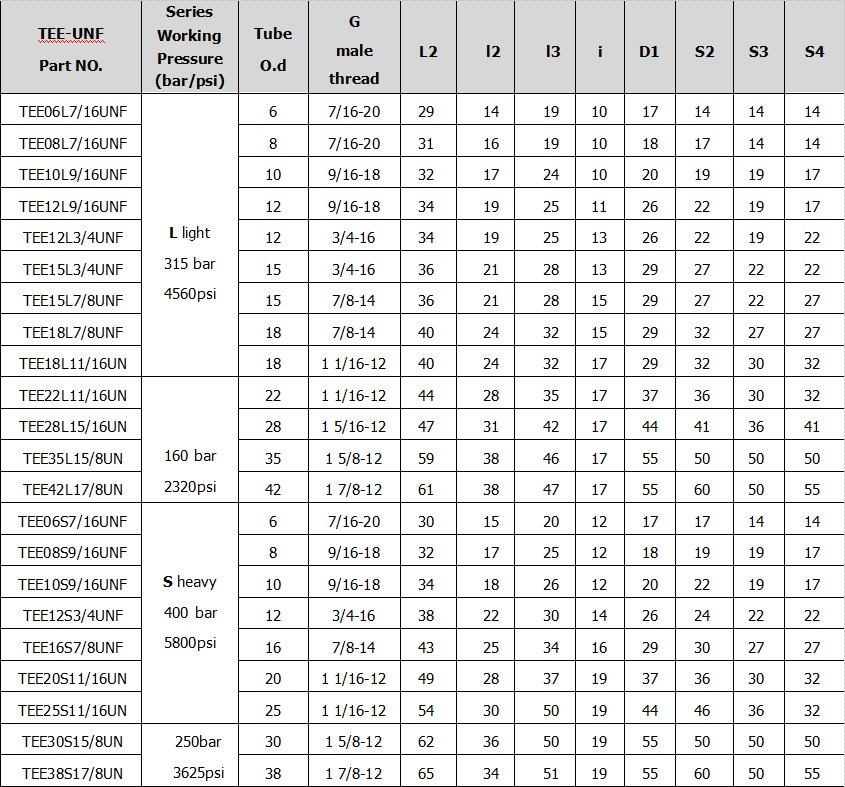

Hydraulic Cylinder Parts Adjustable Lock Nut Branch Tee-TEE-UNF Hydraulic Fitting

Adjustable lock nut branch tee hydraulic fittings are versatile components used in hydraulic systems. They feature a branch tee design with an adjustable lock nut mechanism, allowing for precise positioning and secure tightening.Here are some common applications for adjustable lock nut branch tee fi......

Send Inquiry

Product Description

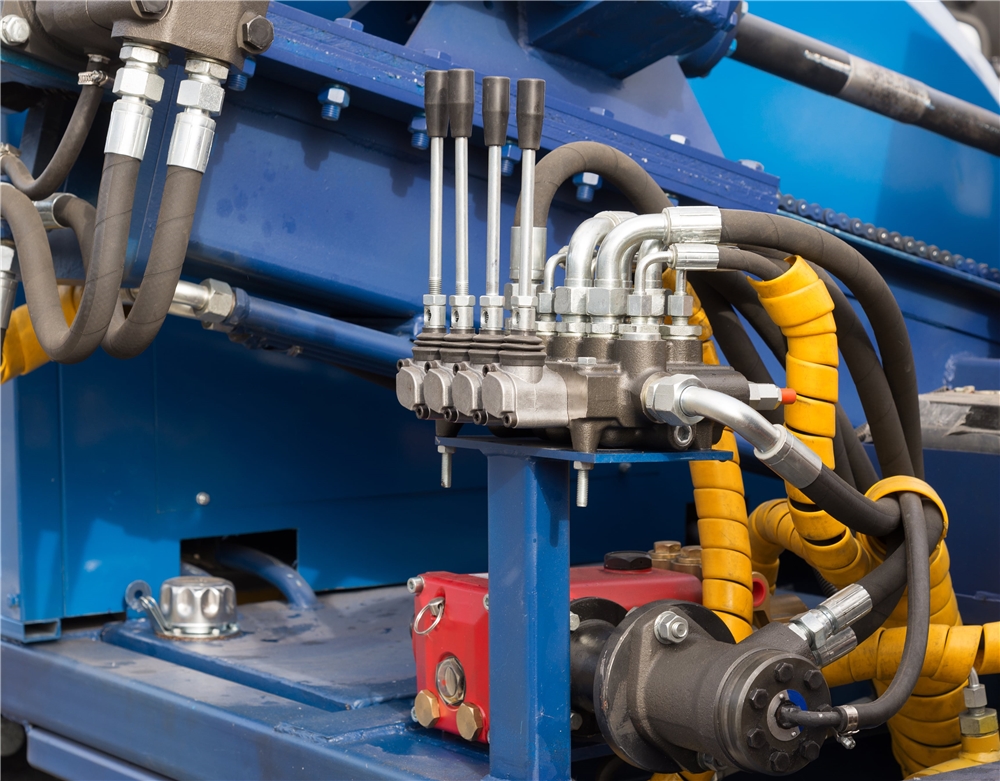

Here are some common applications for adjustable lock nut branch tee fittings in hydraulic systems: 1.Hydraulic Power Units: Adjustable lock nut branch tees are often used in hydraulic power units where hydraulic fluid needs to be distributed to multiple circuits or components. They enable the connection of the main hydraulic supply line while branching out to different subsystems or actuators, providing flexibility in hydraulic system design. 2.Control Systems: In hydraulic control systems, adjustable lock nut branch tees can be utilized to split hydraulic flow to different control valves or actuators. This allows for independent control of various functions or movements within the system, enabling precise and responsive operation. 3.Manifolds: Adjustable lock nut branch tee fittings are commonly employed in hydraulic manifolds or valve blocks. They provide multiple connections in a compact design, allowing for efficient routing and distribution of hydraulic fluid within the system. The adjustable lock nut feature ensures secure connections and facilitates customization of the manifold setup. 4.Custom Hydraulic Systems: Adjustable lock nut branch tees offer flexibility in designing custom hydraulic systems. They allow for the creation of complex hydraulic circuits by branching out hydraulic flow to different components, subsystems, or branches. This versatility is particularly useful in applications where specific flow distribution requirements exist. 5.Hydraulic Test and Diagnostic Equipment: Adjustable lock nut branch tee fittings find application in hydraulic test and diagnostic equipment. They enable the connection of pressure gauges, flow meters, or other measuring devices to different sections of the hydraulic system for monitoring and troubleshooting purposes. The adjustable lock nut feature ensures accurate and reliable connections during testing and diagnostics. 6.Industrial Machinery: Adjustable lock nut branch tee fittings are used in various industrial machinery applications, including presses, machine tools, material handling equipment, and more. They facilitate the splitting or diversion of hydraulic flow to different components or subsystems, enabling precise control, efficient operation, and optimal performance of the machinery. These are just a few examples of the applications where adjustable lock nut branch tee hydraulic fittings are commonly used. The specific usage will depend on the hydraulic system requirements, component compatibility, and the desired functionality of the system

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

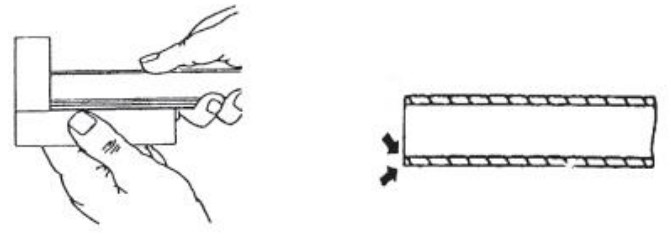

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.

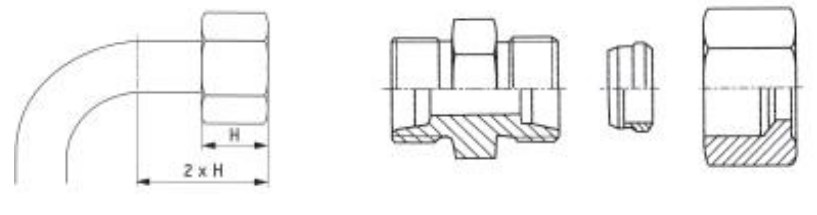

3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
