Heavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors-Tool
  • Heavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors-ToolHeavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors-Tool

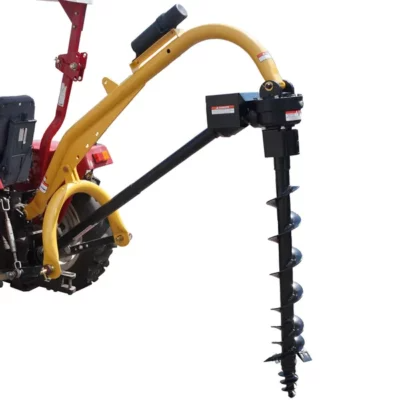

Heavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors-Tool

Raydafon Group's Heavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors is a robust tool for effortless hole digging. Made with durable materials and advanced design, it ensures precision and efficiency. Ideal for farmers and DIY enthusiasts, it simplifies tough tasks, saving time and effort. Experience superior performance and reliability with this top-tier digger.

1000 heavy-duty three-point pile hole excavator for tractors of category 1 and 2

The 1000 heavy-duty three-point pile digger is a kind of equipment installed on the tractor, which is used to drill holes on the ground, mainly for fences, road signs and tree planting. It is designed to handle harsh excavation conditions and can easily dig holes a few feet deep. The three-point linkage of the equipment ensures stability, while the auger blades help to break the soil and remove any debris in the hole. This type of post-digger is usually used for agriculture and landscaping, making it a valuable tool for farmers, ranchers and landowners.

Specification of Model 1000 heavy-duty three-point cylindrical excavator If you don't see the auger combination you want, please contact us and we will create a purchase option for you. -Tractors with rated power not exceeding 45 hp -Series 4 driveline -Heavy duty gearbox, 2.9:1 reduction ratio -2 "output shaft with double 1/2" bolt holes for auger attachment -Select a combination of up to 5 augers -For tractors of category 1 and 2 -Super-heavy steel suspender -Backed by our 6-month warranty and excellent customer service

1000 heavy three-point pillar hole excavator for sale

Heavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors-Tool
Model
Model 400 Compact
Model 650 Standard Duty
Model 1000 Heavy Duty
Model 1500 Extra Heavy Duty
SKU
24-0361
24-0362
24-0318
24-0337
Category
0 & 1
1
1
1 & 2
Boom Length
56"
60"
72"
72"
Tubing Diameter
2-7/8"
2-7/8"
2-7/8"
3-1/4"
Draw Pin Width
20"
27"
27"
32-1/2"
Drive ine
Series 1
Series 1
Series 4
Series 4
Gearbox
2.9:1
2.9:1
2.9:1
3.18:1
Auger Diameters
6", 9", 12" (3' lengths)
6", 9", 12"
6", 9", 12", 18", 24"
6", 9", 12", 18", 24"
Weight
150 bs
160 bs
200 bs
235 bs
SKU
24-0361
24-0362
24-0318
24-0337
Features
4 Positions
3 Positions
4 Positions
4 Positions
Parts of Model 1000 heavy-duty three-point hole digger
Heavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors-Tool
Model # / CAT
A(in)
Lower Hitch Point Spread -Max
B(in)
Lower Hitch Point Spread -Min
C(in)
Clevis/ Ball Joint Outside Width
D(in)
Upper Hitch Point Pin Dia
Model 400 / CAT 0, Sub Compact
26-3/8
20-7/8
1.75
0.75
Model 650 / CAT 1
33-1/2
28
1-5/8
1.0
Model 1000 / CAT 1
32-3/8
26-7/8
1-5/16
0.75
Model 1500 / CAT 1 & 2
38-3/8
32-7/8
1-5/16
0.75
Heavy Duty 3-Point Post Hole Digger Model 1000 for Cat 1 & 2 Tractors-Tool
Features of Model 1000 heavy-duty three-point cylindrical excavator

Heavy-duty three-point pillar digger is a tool commonly used to dig holes on the ground, which is used to install fence posts, sign posts and mailbox posts. Some features of these tools include: Robust structure: heavy-duty backhole excavators are usually made of high-quality steel, with strength and durability. This ensures that they can handle severe soil conditions and use in large quantities without bending or breaking. Three-point linkage compatibility: These excavators are designed to be connected to tractors and other agricultural equipment through the three-point linkage. This provides stability and control during operation. Adjustable angle: The adjustable angle of the excavator allows flexibility when digging holes on uneven terrain. Helical bit options: Heavy cylindrical hole excavators can usually provide various sizes of helical bits to accommodate holes of different diameters. This allows the user to choose the appropriate size for the job at hand. Simple operation: The operation of these tools is simple and clear, and can be used by both novice and experienced operators. Dirt dispersion: Heavy three-point pillar hole excavators usually have a dirt dispersion system. This helps to reduce the time and effort required to remove the excavated soil from the borehole. Accessibility: These excavators are usually equipped with anti-roll bars, which allows the operator to easily climb up and down the tractor without shutting down the machine.

When will the three-point drill be used?

The three-point pile excavator is a tool commonly used for digging holes in agricultural and construction applications. It is usually connected to the tractor or other types of heavy equipment and powered by the PTO shaft of the tractor. When excavating a relatively large number of pile holes in a short time, the 3-point pile hole excavator is the most useful because it allows the operator to dig holes quickly and efficiently, without requiring manual or professional equipment. The following are some situations that may require a 3-point column-hole excavator: Install fence: If you need to install fence, you may need to dig a lot of holes for fence posts. The three-point rear digger can help you dig these holes quickly and efficiently. Tree planting: If you need to plant a lot of trees, especially in large fields or orchards, a hole digger after 3 o'clock can make the process easier and more efficient. Installation of signs: It is also necessary to dig deep holes to install large signs or road signs, which can be easily completed with the help of a 3-point pile digger. In general, for anyone who often needs to dig holes for any reason, the three-point rear hole digger is an indispensable tool, especially for a large number of holes, and hopes to save time and energy. Three-point backhole excavators should be used in relatively dry soil without too much rock or hard soil to ensure the best efficiency and safety. It is also recommended to wear appropriate safety equipment, such as gloves and safety glasses, when operating the equipment.


Hot Tags: Post Hole Digger for Tractors, Heavy Duty Digger Supplier, 3-Point Hitch Digger Manufacturer
