We're professional gearbox cast-iron multiplier ep720 series manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy durable gearbox cast-iron multiplier ep720 series made in China here from our factory.

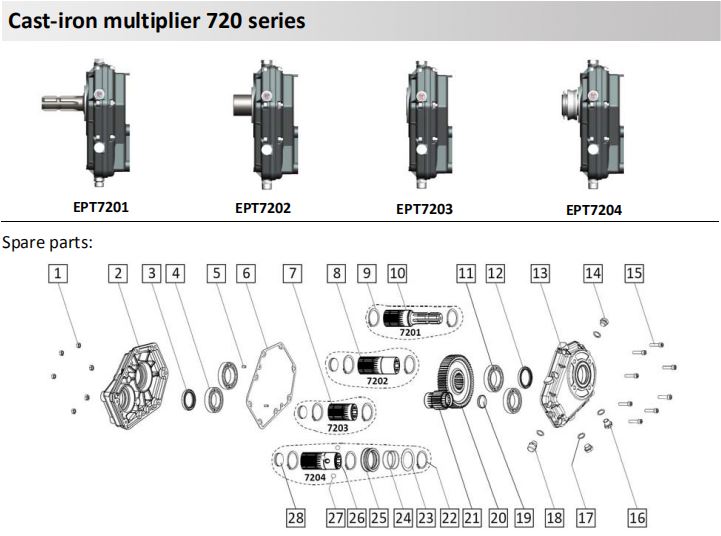

| No. | Description | Quantity | No. | Description | Quantity |
| 1 | Nut M8 | 6 | 15 | Socket cap screw M8 | 8 |
| 2 | Cover | 1 | 16 | Oil level plug 3/8” | 1 |
| 3 | Sealing ring φ45×65×8 | 1 | 17 | Gasket | 4 |
| 4 | Bearing type 6009 | 2 | 18 | Oil filling cap 3/8” | 2 |
| 5 | Peg 6×12 | 2 | 19 | Cap DIN 470 φ37 | 1 |
| 6 | Gasket | 1 | 20 | Ring gear | 1 |
| 7 | Female 1 3/8” DIN 9611 short | 1 | 21 | Pinion gear | 1 |
| 8 | Female 1 3/8” DIN 9611 long | 1 | 22 | Snap ring UNI 7435-50 | 1 |
| 9 | Snap ring dia.50 | 2 | 23 | Ring | 1 |
| 10 | Male 1 3/8” DIN 9611 | 1 | 24 | Spring | 1 |
| 11 | Bearing type 6010 | 2 | 25 | Spring ring | 1 |
| 12 | Sealing ring φ50×65×8 | 1 | 26 | Female 1 3/8” DIN 9611 + tightening | 1 |
| 13 | Housing | 1 | 27 | Ball | 3 |
| 14 | Oil drain plug 3/8” | 2 | 28 | Cap din | 1 |
Technical sheet:
| Input torque | Output torque | Input speed | Transmission ratio | Output speed | Power | Weight |
| (Nm) | (Nm) | (r/min) | (r/min) | (Kw) | (Kg) | |
| 660 | 440 | 540 | 1.5 | 810 | 37 | 16 |
| 660 | 330 | 540 | 2 | 1080 | 37 | 16 |
| 660 | 264 | 540 | 2.5 | 1350 | 37 | 16 |
| 660 | 220 | 540 | 3 | 1620 | 37 | 16 |
| 660 | 180 | 540 | 3.5 | 1836 | 37 | 16 |
| 660 | 166 | 540 | 3.8 | 2052 | 37 | 16 |
