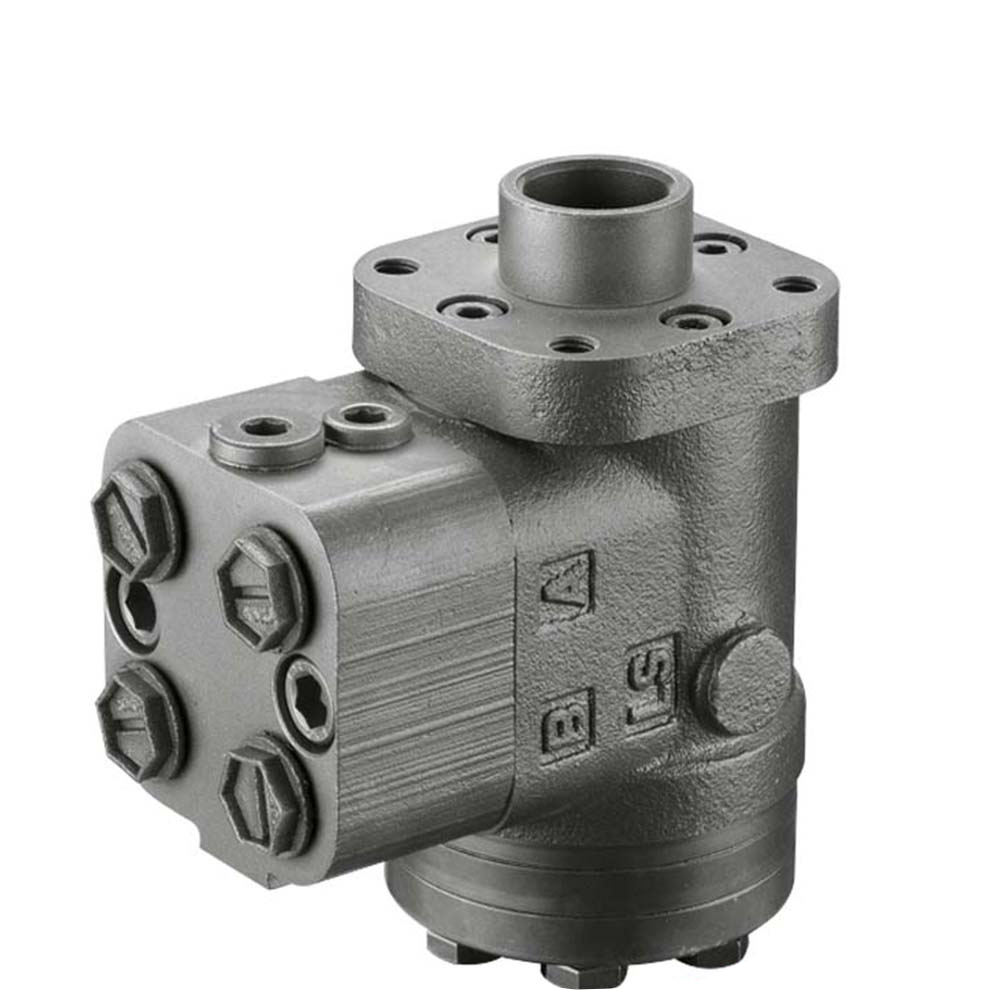

specialized supplier hydraulic steering control unit
1.Hydraulic motor are one type of high torque low speed hydraulic motors, with high efficiency and long life.
2.BM motor has a wide speed range, high starting torque and rotating stable at high speed compact and light. It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.
3.BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
This model of orbital motor can substitute for Charlynn 2000 series, Danfoss OMS series.
TECHNICAL DATA
| TYPE | BM3-80 | BM3-100 | BM3-125 | BM3-160 | BM3-200 | BM3-250 | BM3-315 | BM3-400 | |
| Displacement(ml/r) | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 | |
| Max.Pressure.Drop(Mpa) | cont. | 17.5 | 17.5 | 17.5 | 16 | 16 | 12.5 | 12.5 | 10 |
| int. | 20 | 20 | 20 | 20 | 20 | 16 | 16 | 14 | |
| peak. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 20 | 17.5 | |
| Max.torque(N.m) | cont. | 194 | 242 | 303 | 358 | 438 | 440 | 551 | 560 |
| int. | 218 | 283 | 345 | 429 | 540 | 580 | 625 | 687 | |
| peak. | 271 | 318 | 373 | 459 | 576 | 700 | 831 | 865 | |
| Speed.Range(cont.)(r/min) | 10-810 | 10-750 | 9-600 | 7-470 | 6-375 | 6-300 | 5-240 | 5-180 | |
| Max.Flow(cont.)(L/min) | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Max.Output.Power(cont.)(Kw) | 14 | 16 | 16 | 14 | 14 | 11 | 10 | 8 | |
| Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.1 | |
