BPF4 F6 6 Transfer Station 5 Axis CNC Machine Tool Lathe Machining Center Grinder for Metal Cutter

BPF4/F6 6 Transfer Station 5-Axis CNC Tool GrinderBPF6 tooling grinding center integrates 6 work station for high precision and high efficiencyach station can be optimized for the process features of workpiece and tools , thus cycletime would be enhanced more than 3 times faster than conventional si......

Send Inquiry

Product Description

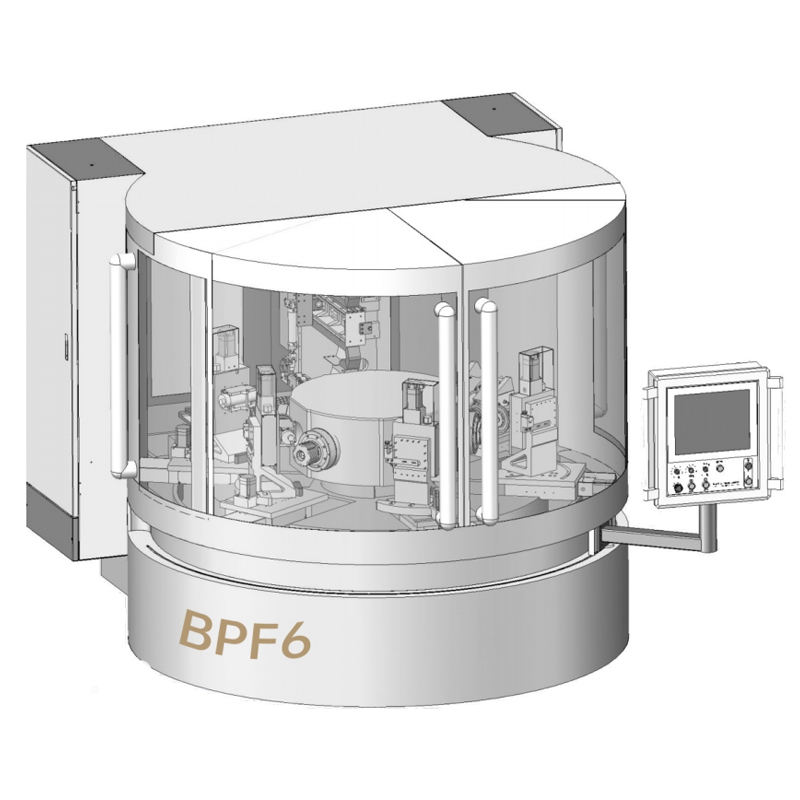

BPF4/F6 6 Transfer Station 5-Axis CNC Tool Grinder

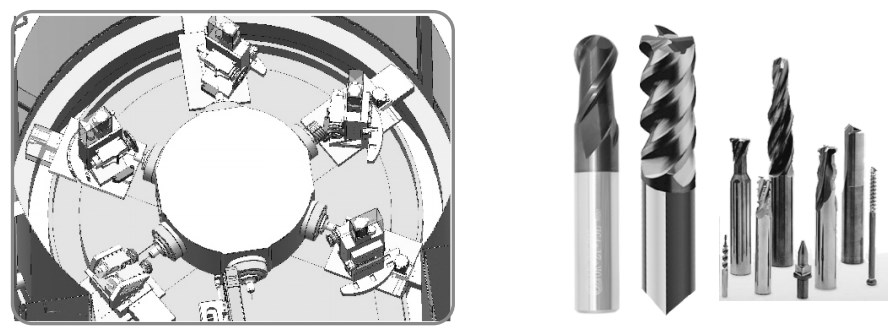

BPF6 tooling grinding center integrates 6 work station for high precision and high efficiencyach station can be optimized for the process features of workpiece and tools , thus cycletime would be enhanced more than 3 times faster than conventional single station grindingmachines . BPF6 is perfect for automatic mass production of mills , drills , thread taps andcustomized shape tooling for aviation , automobile , molds , IT and medical industries .

Main features

1.Double bearing guarantee high work table rigidity ; Extremely short force feedback loopand very high structure strength

2 , On-line measuring " for reference , diameters , profiles and etc .

3 . Precise temperature controlfor coolant

4 , Extremely flexible , easy to setup and widely capable , fixtures easy to change and locationmeasured and corrected by CNC

5 , Standard grinding units , easy to setup

6 , Multiple types of spindle availa ble for various needs : mills , drills , deburring , threadingnd etc

7 , Same blank for different products , unloading to correct stock bin

8 , Fully realizing 6 faces grinding with high turntable repeated positioning accuracy

9 , Fully sealed working units , no chips interruption risk , Precise and reliable drive units

Application			Station 3
Capability	Mill/Drill/Thread	Flute Grinding	φ75 / 100mm Wheel 380W Direct Drive Spindle Max . 10000RPM
Grinding Length	30-50mm	Station 4
Grinding diameter	1-8mm	Retract & Clearance Flute Grinding	φ100mm wheel
Grinding Scope					φ75mm wheel
Grinding range	0.5-8mm			380W Direct Drive Spindle
helical angle	15-55			Max . 10000RPM
Min cycle time	13s	Station 6 (F6)
Station 1			polishing	φ100mm wheel
Loader	Max1350pcs		380W Direct Drive Spindle
Station 2				Max . 10000RPM
Flute Grinding	Wheel Dia . 100mm 300wdirect Drive Spindle Max , 10000RPM	System
Station 5(F6)			BP/SY	4 Channels
Flute Grinding	φ75 / 100mm Wheel 380W Direct Drive Spindle Max . 10000RPM	Machine weight and size
Connected Loading			weigth	4000kg
380V/50HZ	10KW	size	235026502000

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

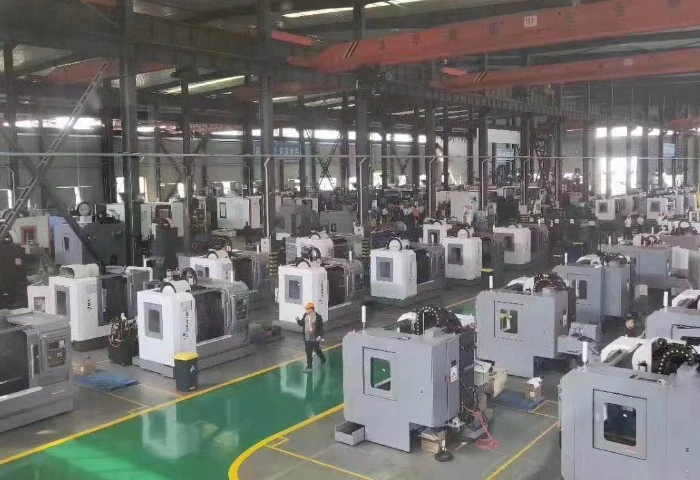

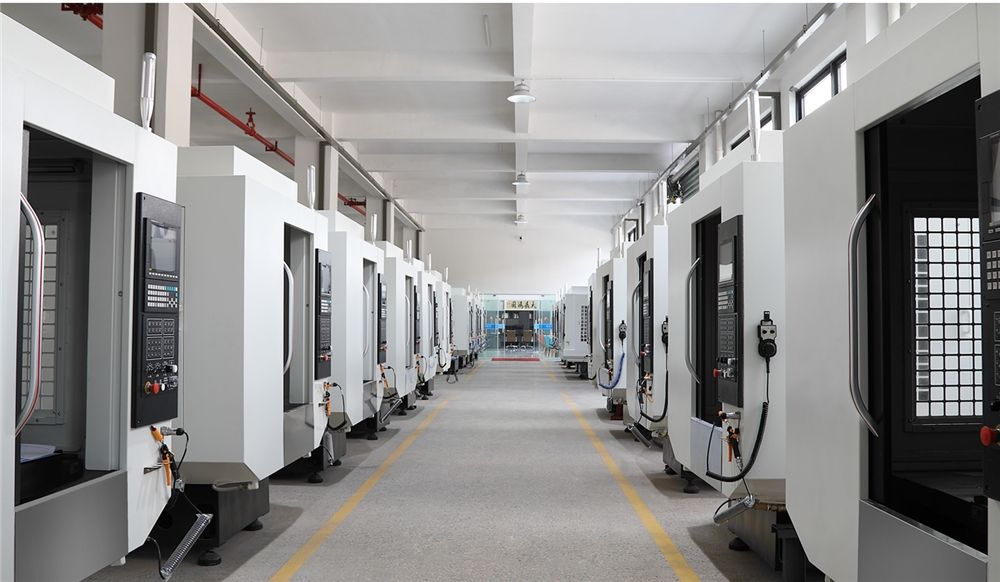

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
