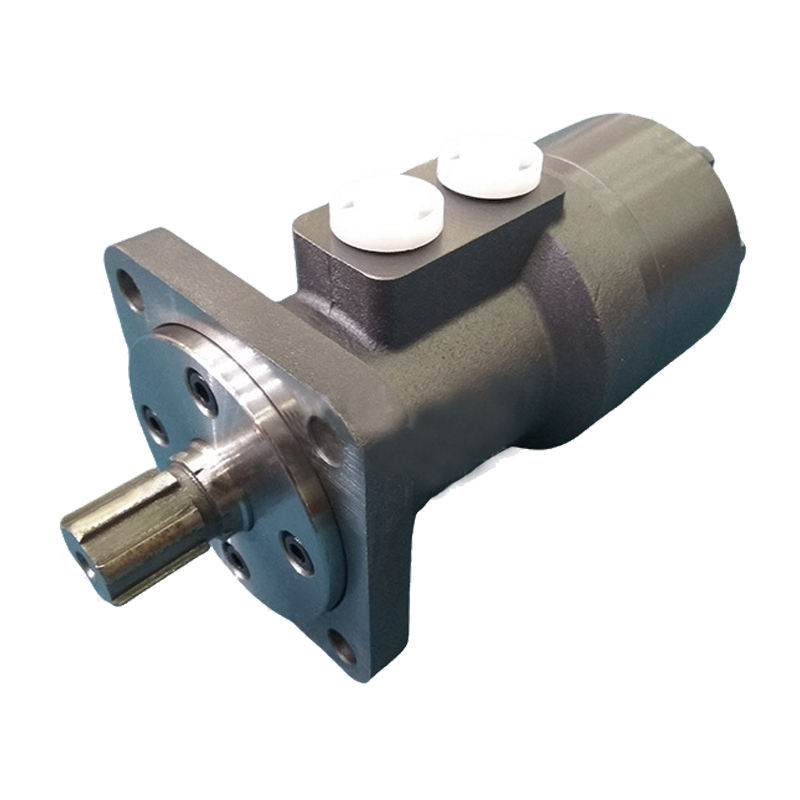

BM4 Series Piston Hydraulic Motor Orbital Type

Send Inquiry

Product Description

BM4 series orbital hydraulic motor is a kind of hydraulic motor with radial bearing support shaft distribution, its
characteristics:
• The flow distribution mechanism is integrated with the shaft extension, the flow distribution precision is high, and the motor mechanical efficiency is high.
• The use of bearing support structure design, so that the motor has a greater radial load capacity.
• Pillar rotary stator sub-design, high mechanical efficiency, high efficiency and good retention.
• Reliable rotary shaft seal design, high back pressure bearing capacity, can be used in series and parallel.
• Advanced structure design, high power density.

Type			BM4 195	BM4 345	BM4 310	BM4 390	BM4 490	BM4 630
Actual displacement (cm³/rev.)			195.7	246.2	311.7	391.4	491	623.2
Maximum speed (Rpm)	Continuous	365	312	245	195	155	123
Maximum speed (Rpm)		Intermittent	445	400	315	250	200	158
Maximum torque (N.M)	Continuous	452	480	620	762	865	980
Maximum torque (N.M)		Intermittent	530	595	765	850	955	1130
Maximum output power (KW)	Continuous	16	15	15	13	12	11
Maximum output power (KW)		Intermittent	18.5	17	17	16	14	13
Maximum operating pressure difference (MPa)	Continuous	17.5	15	15	15	14	12.5
Maximum operating pressure difference (MPa)		Intermittent	20	18	18	17	15	14
Maximum flow (L/min)	Continuous	75	80	80	80	80	80
Maximum flow (L/min)		Intermittent	90	100	100	100	100	100

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
