American Standard 8B Gripbelt Sheaves With Split Taper Bushings for All a and B Section Belts

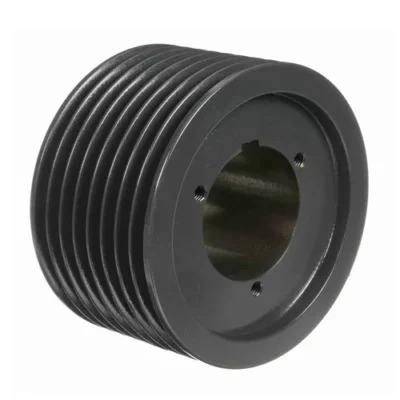

8B Gripbelt Sheaves with Split Taper Bushings for Use with All "A" and "B" Section BeltsThe 8B series pulleys are used for A, AX, AA, 4L, B, BX, BB and 5L v-belts with diameters ranging from 7.35 "to 38.35". Depending on the pulley size, they are used with Q2, R2 or S1 ......
8B Gripbelt Sheaves with Split Taper Bushings for Use with All "A" and "B" Section Belts

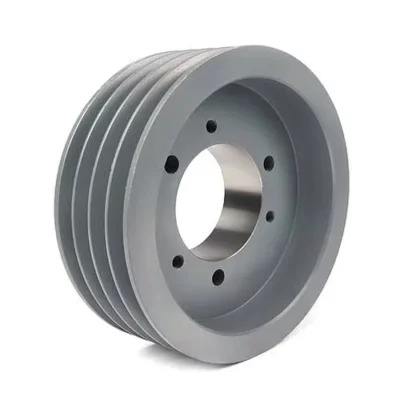

The 8B series pulleys are used for A, AX, AA, 4L, B, BX, BB and 5L v-belts with diameters ranging from 7.35 "to 38.35". Depending on the pulley size, they are used with Q2, R2 or S1 tapered bushes, which we also have in stock. Most of our eight groove 8B split tapered bushing pulleys are made of high-strength grade 35 cast iron, coated with phosphate, and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

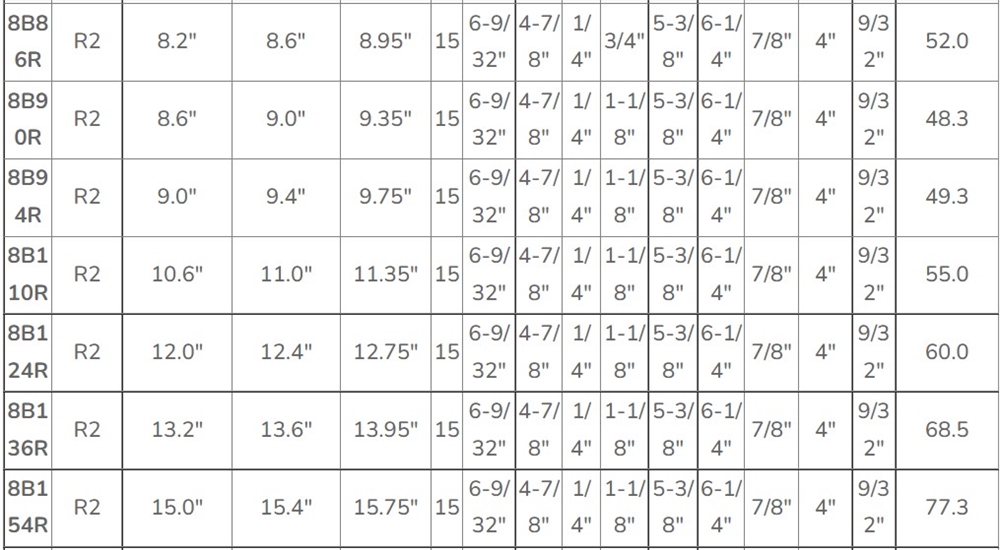

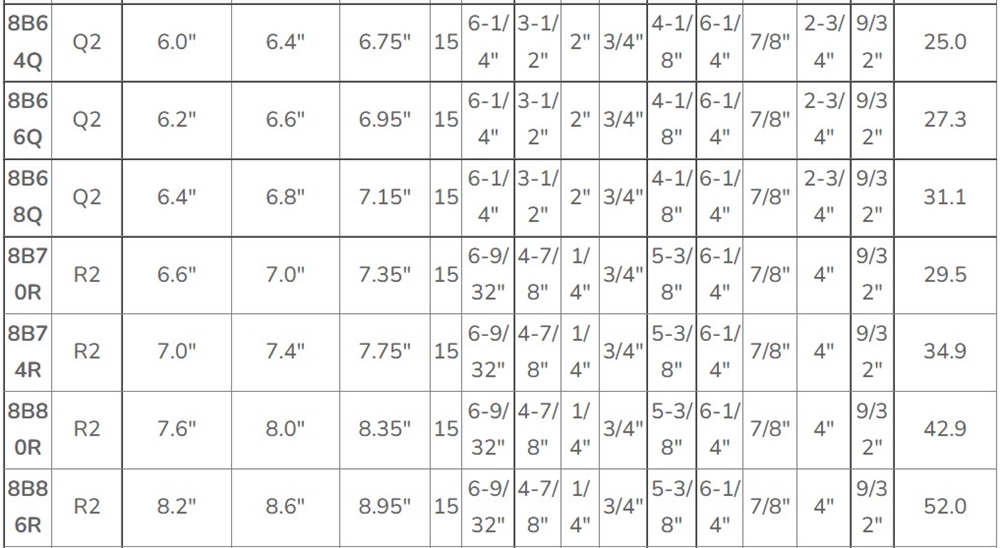

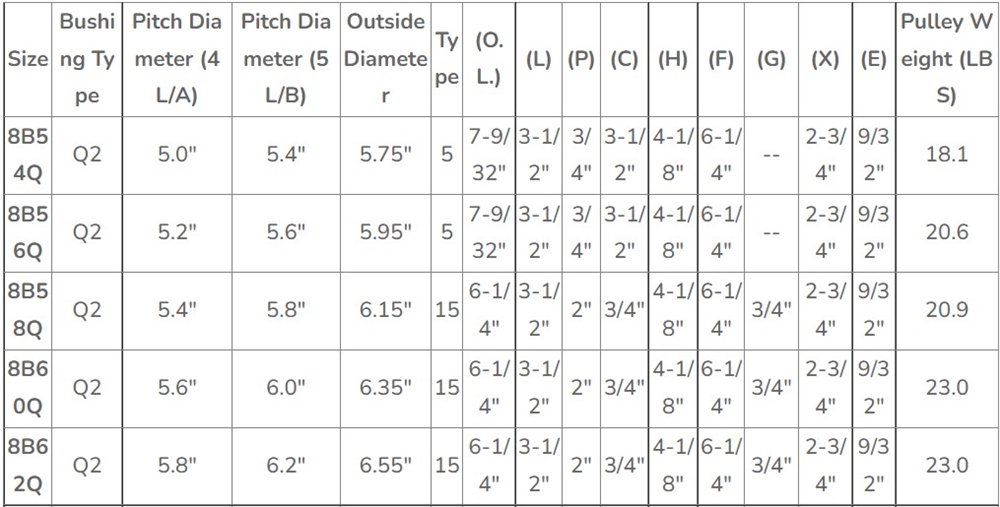

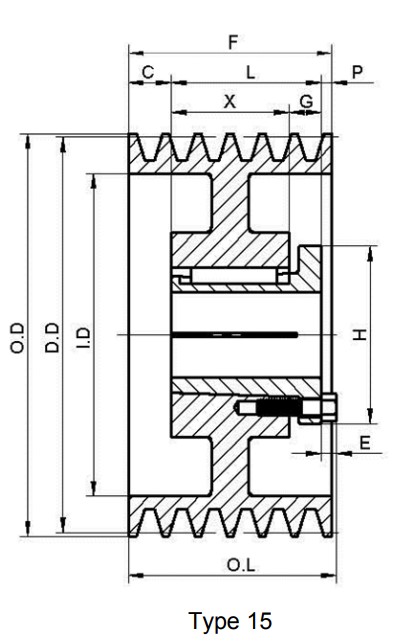

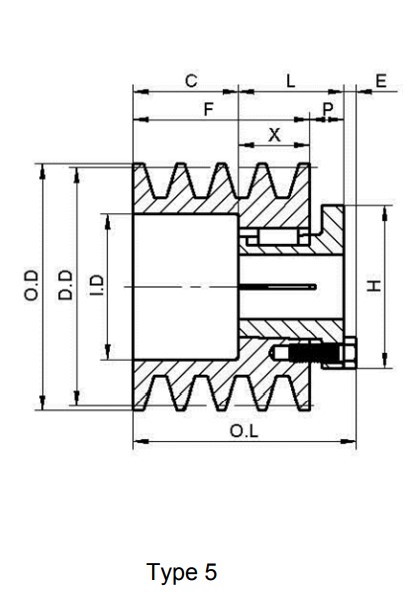

8B Style Pulley Size Chart
For more details, please click here to contact us!
Type of V-pulley
Several types of pulleys are used in v-belt drive, and each pulley has different implementation methods. When the back of the v-belt is used to rotate the pulley in the opposite direction of the driven pulley, it is occasionally appropriate to use flat pulleys, usually for ribbed v-belts.
*Standard pulley sizes have one or more grooves to match classic small engines and hexagonal v-belts.
*The mating pulley contains integral spokes that run radially on the pulley. This results in a high strength to weight ratio in favor of fractional horsepower pulleys.
*In many v-belt drives, the idler pulley is only used as a belt tensioner, but it plays an important role in maintaining the tension required for the drive. The idler pulley will reduce the service life and transmission efficiency of the belt. However, if the industry has to remove obstacles, or the driven pulley cannot maintain a good contact arc with the v-belt to transmit torque, they are still necessary for communication. The idler gear can interact with the tapered or flat side of the v-belt because there is no need to transfer torque to this shaft.
*The variable speed pulley has a variable pitch that adjusts the driven RPM, usually within the range expressed as a percentage. These pulleys also help maintain belt tension for dynamic loads.
*The stepped pulley has two or more non adjustable grooves with different pitch around the same shaft. These pulleys change the speed ratio of the transmission.
How to measure V-pulleys | Dimensions and dimensions
In the power transmission and automotive industry, one of the most widely used and growing product types is V-belt pulley, also known as "pulley". V-belt pulley is an accessory that transfers energy between axles by means of V-belt. However, in order to maintain the normal operation of this pair of key equipment, when the old V-belt pulley is worn, it must be ensured that the appropriate V-belt pulley is replaced. To do this, you need to know the size, size and type of the V-pulley so that the replacement pulley can work properly. It is a simple task to learn to measure the size of V-belt pulley and calculate its size; However, correctly identifying the V-pulley type can be complex. V-pulleys are available in a variety of styles and options, including A, B, C, D, 3V, 5V, 8V, variable pitch, double groove, and metric pulleys. We only stock more than 8000 different V-pulleys.
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
